◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#72740) — 66 parça

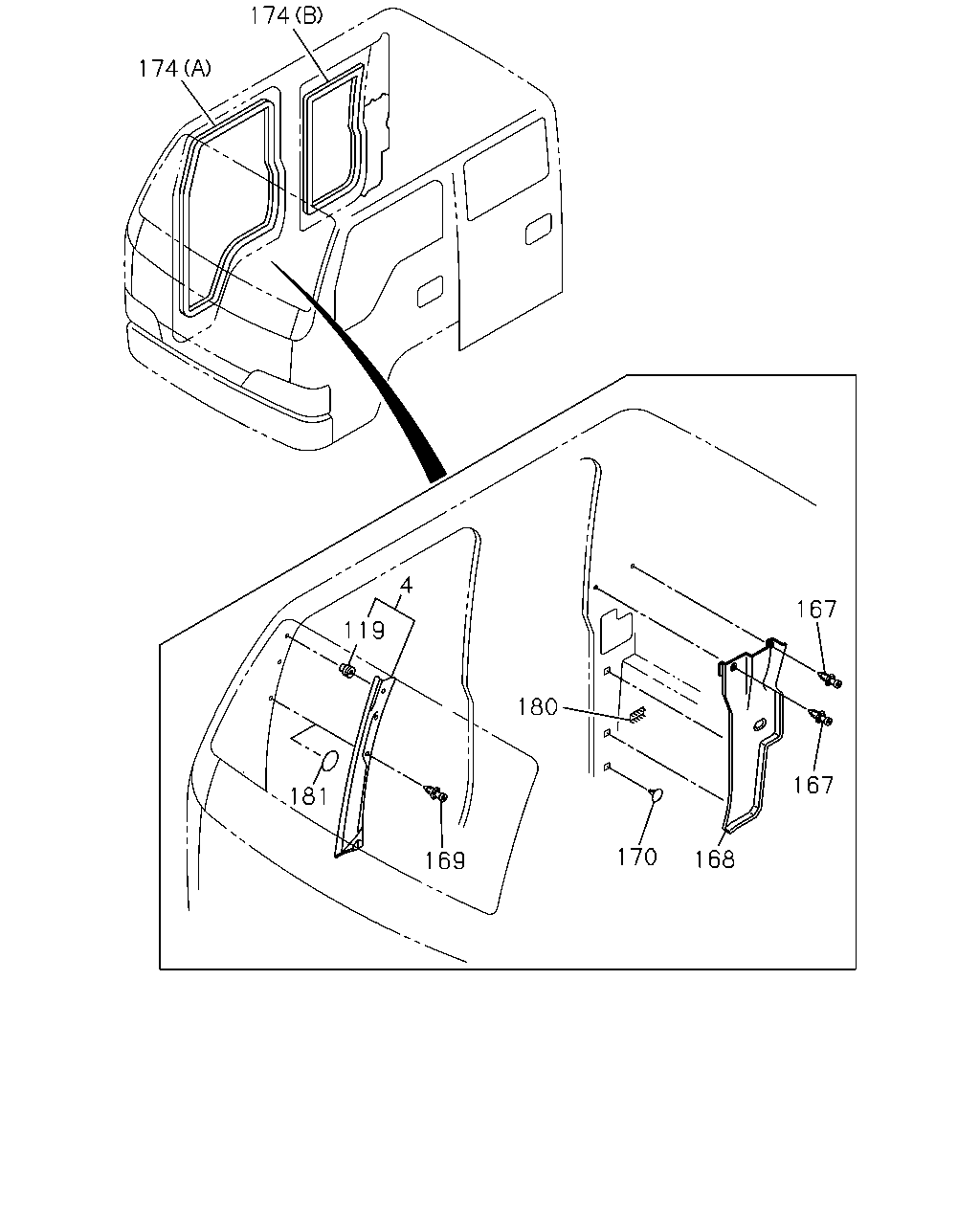

çizim 74172
174 174 4 167 119 180 167 181 170 168 169
BalonParca AdiParca NoAdetTipApplied Date A B
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK BEIGE 		8-97856-695-3 01 1 9704-0209 ●
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK BEIGE 		8-97856-695-3 01 1 0210-0307 ● ●
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-853-3 01 1 0308- ● ●
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK BEIGE 		8-97856-694-3 01 1 9704-0209 ●
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK BEIGE 		8-97856-694-3 01 1 0210-0307 ● ●
4 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97859-852-3 01 1 0308- ● ●
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 		1-73318-278-0 02 1 9704-0209 ●
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 		1-73318-278-0 02 1 0210-0307 ● ●
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 		1-73318-278-0 02 1 0308- ● ●
167 CLIP; TRIM,RR PILLAR
DARK BEIGE 		8-97853-925-0 04 1 9704-0209 ●
167 CLIP; TRIM,RR PILLAR
DARK BEIGE 		8-97853-925-0 04 1 0210-0307 ● ●
167 CLIP; TRIM,RR PILLAR
DARK GRAY 		8-97857-211-0 04 1 0308- ● ●
168 COVER; SEAT BELT RETRACTOR
DARK BEIGE 		8-97857-912-0 01 1 0210-0307 ●
168 COVER; SEAT BELT RETRACTOR
DARK GRAY 		8-97867-616-1 01 1 0308- ●
168 COVER; SEAT BELT RETRACTOR
DARK BEIGE 		8-97857-911-0 01 1 0210-0307 ●
168 COVER; SEAT BELT RETRACTOR
DARK GRAY 		8-97867-615-1 01 1 0308- ●
169 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97856-751-0 02 1 9704-0209 ●
169 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97856-751-0 02 1 0210-0307 ● ●
169 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97857-210-0 02 1 0308- ● ●
170 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 		8-94244-922-0 02 1 9704-0209 ●
170 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 		8-94244-922-0 02 1 0210- ● ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK BEIGE 		8-97856-430-4 01 1 9704-0209 ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK BEIGE 		8-97856-430-4 01 1 0210-0307 ● ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-206-5 01 1 0308- ● ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK BEIGE 		8-97856-429-4 01 1 9704-0209 ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK BEIGE 		8-97856-429-4 01 1 0210-0307 ● ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-205-5 01 1 0308- ● ●
174 FINISHER; BODY SIDE
(B) L=3150 DARK BEIGE 		8-97853-841-5 02 1 0210-0307 ●
174 FINISHER; BODY SIDE
(B) L=3120 DARK GRAY 		8-97867-195-6 02 1 0308- ●
180 FASTENER; COVER 8-94353-002-2 02 1 0210- ●
181 SEAL; FRT PILLAR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9704-0209 ●
181 SEAL; FRT PILLAR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0210-0307 ● ●
181 SEAL; FRT PILLAR
BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0308- ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9704-0209 ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0210-0610 ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ●

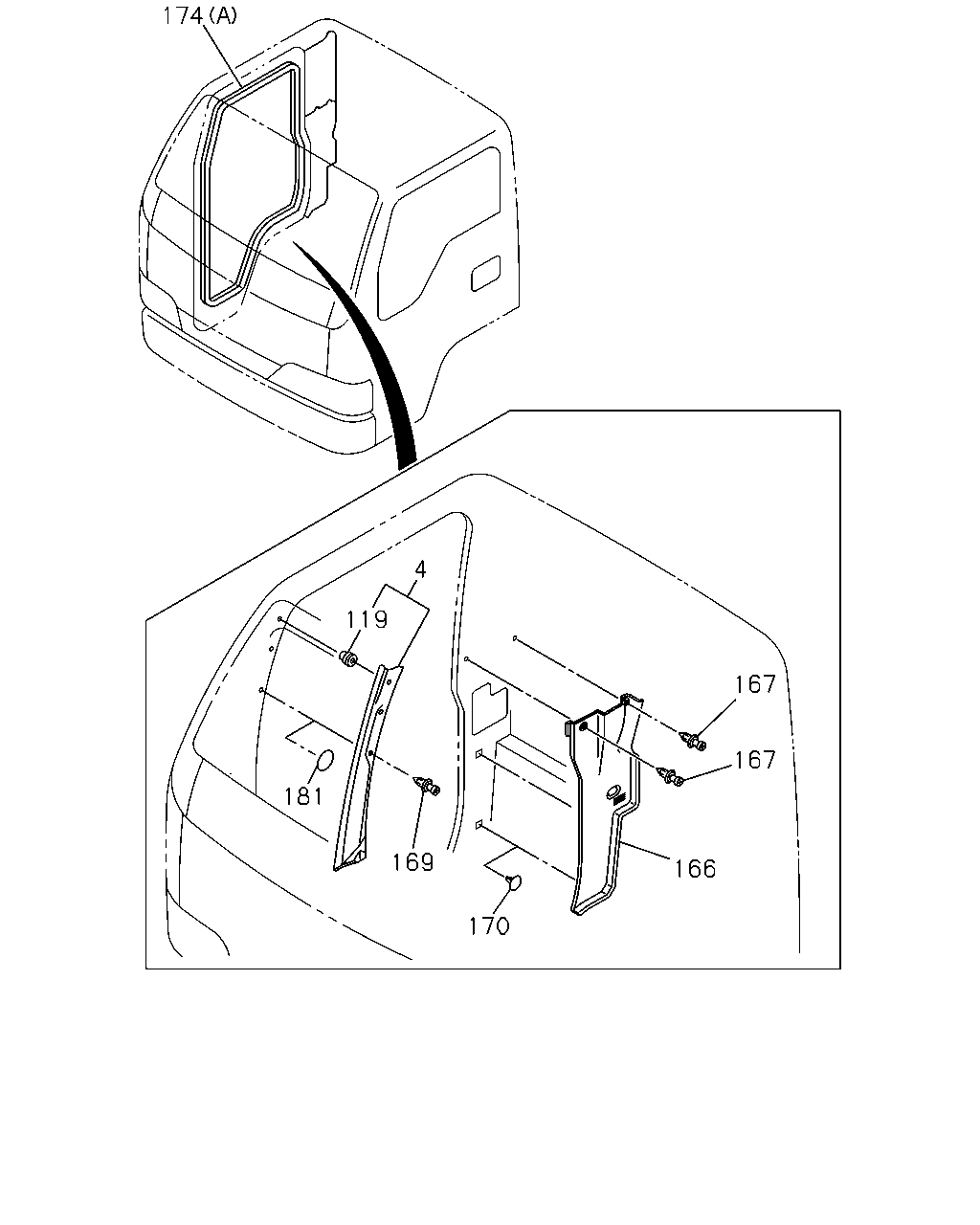

çizim 102721
174 119 167 167 181 169 166 170
BalonParca AdiParca NoAdetTipApplied Date A B
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 		1-73318-278-0 02 1 9704-0209 ●
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 		1-73318-278-0 02 1 0210-0307 ● ●
119 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 		1-73318-278-0 02 1 0308- ● ●
166 TRIM; RR PILLAR
DARK BEIGE 		8-97853-920-5 01 1 9704-0307 ●
166 TRIM; RR PILLAR
DARK GRAY 		8-97859-870-5 01 1 0308- ●
166 TRIM; RR PILLAR
DARK BEIGE 		8-97857-795-0 01 1 9704-0208 ●
166 TRIM; RR PILLAR
DARK BEIGE 		8-97856-211-3 01 1 0209-0307 ●
166 TRIM; RR PILLAR
DARK GRAY 		8-97857-803-0 01 1 0308- ●
167 CLIP; TRIM,RR PILLAR
DARK BEIGE 		8-97853-925-0 04 1 9704-0209 ●
167 CLIP; TRIM,RR PILLAR
DARK BEIGE 		8-97853-925-0 04 1 0210-0307 ● ●
167 CLIP; TRIM,RR PILLAR
DARK GRAY 		8-97857-211-0 04 1 0308- ● ●
169 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97856-751-0 02 1 9704-0209 ●
169 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97856-751-0 02 1 0210-0307 ● ●
169 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X19 PUSH RIVET 		8-97857-210-0 02 1 0308- ● ●
170 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 		8-94244-922-0 02 1 9704-0209 ●
170 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 		8-94244-922-0 02 1 0210- ● ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK BEIGE 		8-97856-430-4 01 1 9704-0209 ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK BEIGE 		8-97856-430-4 01 1 0210-0307 ● ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-206-5 01 1 0308- ● ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK BEIGE 		8-97856-429-4 01 1 9704-0209 ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK BEIGE 		8-97856-429-4 01 1 0210-0307 ● ●
174 FINISHER; BODY SIDE
(A) L=2982 DARK GRAY 		8-97857-205-5 01 1 0308- ● ●
174 FINISHER; BODY SIDE
(B) L=3150 DARK BEIGE 		8-97853-841-5 02 1 0210-0307 ●
174 FINISHER; BODY SIDE
(B) L=3120 DARK GRAY 		8-97867-195-6 02 1 0308- ●
181 SEAL; FRT PILLAR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9704-0209 ●
181 SEAL; FRT PILLAR
BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0210-0307 ● ●
181 SEAL; FRT PILLAR
BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0308- ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-97856-832-1 02 1 9704-0209 ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0210-0610 ● ●
181 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
