◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-35 - FRONT DOOR TRIM ▶
6-35 — FRONT DOOR TRIM (#72739) — 117 parça

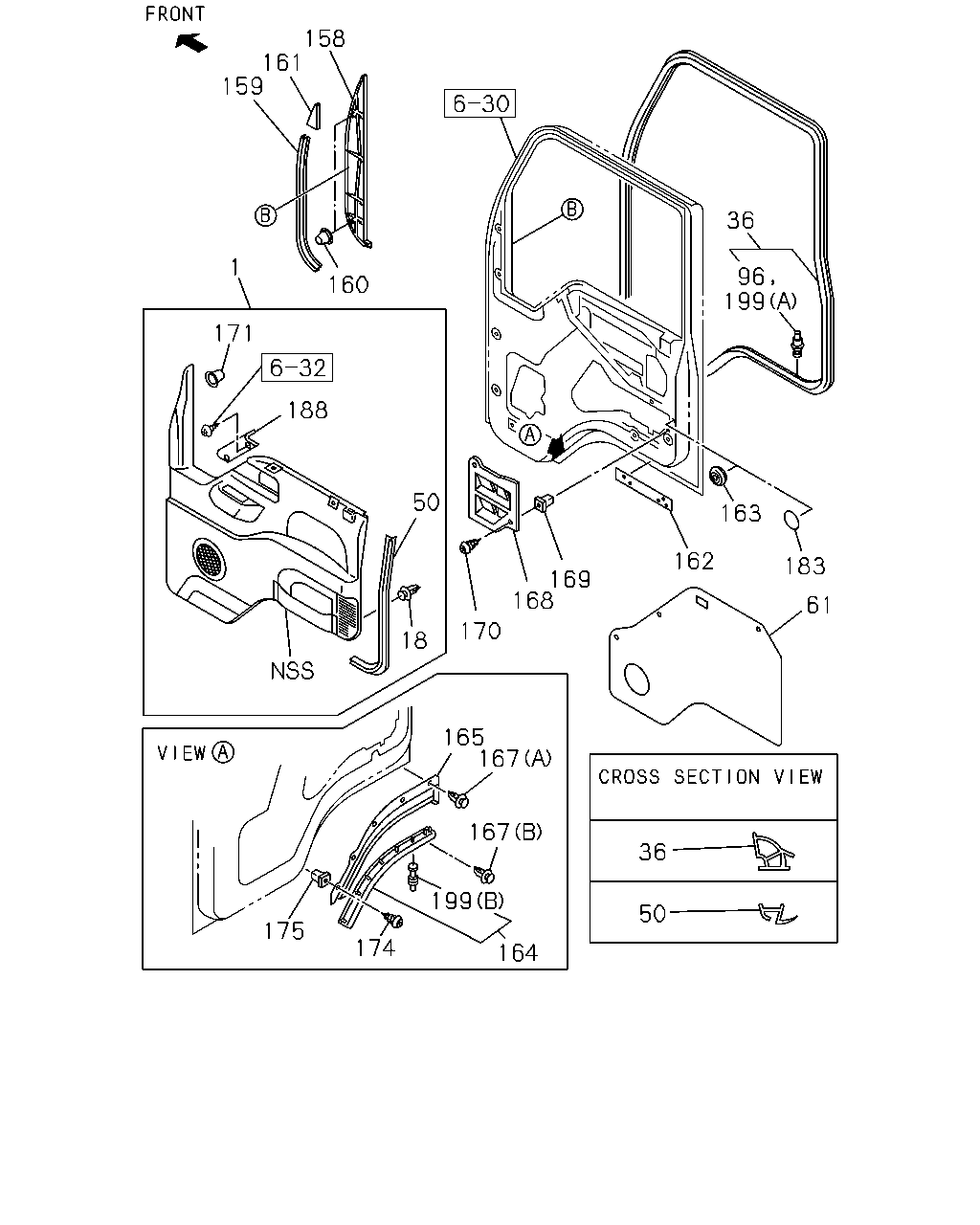

çizim 74070
158 161 159 36 1 96 199 160 171 188 50 163 162 183 169 168 61 170 18 165 167 167 36 199 50 175 174 164
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-411-5 01 1 9704-0209 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-411-5 01 1 0210-0307 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-722-7 01 1 0308- ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-410-5 01 1 9704-0209 ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-410-5 01 1 0210-0307 ● ●
1 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97859-721-6 01 1 0308- ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-635-3 01 1 9704-0209 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-635-3 01 1 0210-0307 ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-645-4 01 1 0308- ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-634-3 01 1 9704-0209 ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK BEIGE 		8-97852-634-3 01 1 0210-0307 ● ●
1 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> DARK GRAY 		8-97852-644-4 01 1 0308- ● ●
18 CLIP; DOOR PAD
OD=7.9 BLACK 		8-94279-974-1 24 1 9704-0209 ●
18 CLIP; DOOR PAD
OD=7.9 BLACK 		8-94279-974-1 24 1 0210- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97852-145-9 01 1 9704-9808 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-409-0 01 1 9809-9902 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-903-0 01 1 9903-0209 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-903-3 01 1 0210- ● ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97852-144-9 01 1 9704-9808 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-408-0 01 1 9809-9902 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-902-0 01 1 9903-0209 ●
36 SEAL; DOOR,MAIN,CAB SIDE 8-97892-902-3 01 1 0210- ● ●
50 FINISHER; DOOR PAD
DARK BEIGE 		8-97868-179-0 02 1 9704-0209 ●
50 FINISHER; DOOR PAD
DARK BEIGE 		8-97868-179-0 02 1 0210-0307 ● ●
50 FINISHER; DOOR PAD
DARK GRAY 		8-97868-180-0 02 1 0308- ● ●
61 SEAL; WATER,DOOR PAD
ANTENNA<U73> EXC. POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97852-308-1 02 1 9704-0209 ●
61 SEAL; WATER,DOOR PAD
ANTENNA<U73> EXC. POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) 		8-97852-308-1 02 1 0210- ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-328-3 02 1 9704-0209 ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> ANTENNA<U73> EXC. RADIO AM W/AMPLIFIER(RS2) 		8-97852-328-3 02 1 0210- ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> RADIO AM W/AMPLIFIER(RS2) 		8-97852-329-2 02 1 9704-0209 ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. ANTENNA<U73> 		8-97852-329-2 02 1 9704-0209 ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> RADIO AM W/AMPLIFIER(RS2) 		8-97852-329-2 02 1 0210- ● ●
61 SEAL; WATER,DOOR PAD
POWER WINDOW FRT DOOR<A32> EXC. ANTENNA<U73> 		8-97852-329-2 02 1 0210- ● ●
61 SEAL; WATER,DOOR PAD
RADIO AM W/AMPLIFIER(RS2) EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-307-1 02 1 9704-0209 ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>,ANTENNA<U73> 		8-97852-307-1 02 1 9704-0209 ●
61 SEAL; WATER,DOOR PAD
RADIO AM W/AMPLIFIER(RS2) EXC. POWER WINDOW FRT DOOR<A32> 		8-97852-307-1 02 1 0210- ● ●
61 SEAL; WATER,DOOR PAD
EXC. POWER WINDOW FRT DOOR<A32>,ANTENNA<U73> 		8-97852-307-1 02 1 0210- ● ●
96 CLIP; SEAL
FRONT NATURAL 		1-09987-253-1 09 1 0510-1007 ● ●
96 CLIP; SEAL
FRONT YELLOW 		1-09987-254-1 09 1 0510-1007 ● ●
96 CLIP; SEAL
LOWER & BACK PINK 		1-09987-256-0 32 1 0510-1007 ● ●
158 GARNISH; DOOR 8-97852-129-2 01 1 9704-0209 ●
158 GARNISH; DOOR 8-97852-129-2 01 1 0210- ● ●
158 GARNISH; DOOR 8-97852-128-2 01 1 9704-0209 ●
158 GARNISH; DOOR 8-97852-128-2 01 1 0210- ● ●
159 FINISHER; GARNISH 8-97852-257-4 02 1 9704-0209 ●
159 FINISHER; GARNISH 8-97852-257-4 02 1 0210- ● ●
160 CLIP; GARNISH 8-97852-058-0 04 1 9704-0209 ●
160 CLIP; GARNISH 8-97852-058-0 04 1 0210- ● ●
161 FASTENER; GARNISH 8-97134-313-0 01 1 9704-0209 ●
161 FASTENER; GARNISH 8-97134-313-1 01 1 0210- ● ●
161 FASTENER; GARNISH 8-97134-312-0 01 1 9704-0209 ●
161 FASTENER; GARNISH 8-97134-312-1 01 1 0210- ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> 		8-97852-478-0 01 1 9704-9802 ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> 		8-97852-477-0 01 1 9704-9802 ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> 		8-97892-157-0 02 1 9803-0209 ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> 		8-97892-157-0 02 1 0210-0609 ● ●
162 PROTECTOR; DOOR
FENDER COVER<6FZ> 		8-98056-386-0 02 1 0610- ● ●
163 GROMMET; LOCATION HOLE,DOOR 8-94279-738-0 02 1 9704-0209 ●
163 GROMMET; LOCATION HOLE,DOOR 8-94279-738-0 02 1 0210-0803 ● ●
164 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 9704-0209 ●
164 SEAL; SUB,SILL SIDE 8-97852-320-4 01 1 0210- ● ●
164 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 9704-0209 ●
164 SEAL; SUB,SILL SIDE 8-97852-319-4 01 1 0210- ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97852-314-7 01 1 9704-0209 ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97852-314-7 01 1 0210-0305 ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97581-079-0 01 1 0306- ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97852-313-7 01 1 9704-0209 ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97852-313-7 01 1 0210-0305 ● ●
165 LINER; DOOR LWR
FENDER COVER<6FZ> 		8-97581-078-0 01 1 0306- ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97852-374-6 01 1 9704-0209 ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97852-374-6 01 1 0210-0305 ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97581-081-0 01 1 0306- ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97852-373-6 01 1 9704-0209 ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97852-373-6 01 1 0210-0305 ● ●
165 LINER; DOOR LWR
EXC. FENDER COVER<6FZ> 		8-97581-080-0 01 1 0306- ● ●
167 CLIP; LINER
(A) D6X16 PUSH RIVET 		1-09983-105-0 08 1 9704-0209 ●
167 CLIP; LINER
(A) D6X16 PUSH RIVET 		1-09983-105-0 08 1 0210-0305 ● ●
167 CLIP; LINER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 0306- ● ●
167 CLIP; LINER
(B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 9704-0209 ●
167 CLIP; LINER
(B) D6X20 PUSH RIVET 		8-97859-673-0 02 1 0210- ● ●
168 VALVE; DOOR OUTLET 8-97855-413-0 01 1 9704-0209 ●
168 VALVE; DOOR OUTLET 8-97855-413-0 01 1 0210- ● ●
168 VALVE; DOOR OUTLET 8-97855-412-0 01 1 9704-0209 ●
168 VALVE; DOOR OUTLET 8-97855-412-0 01 1 0210- ● ●
169 GROMMET; SCREW,VALVE
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9704-9705 ●
169 GROMMET; SCREW,VALVE
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9706-0209 ●
169 GROMMET; SCREW,VALVE
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0210- ● ●
170 SCREW; VALVE
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 04 1 9704-0209 ●
170 SCREW; VALVE
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 04 1 0210-0604 ● ●
170 SCREW; VALVE
M5X12 TAPPING W/PL WASHER 		0-74160-512-0 04 1 0605- ● ●
171 RETAINER; DOOR PAD 5-09709-049-0 02 1 9704-0209 ●
171 RETAINER; DOOR PAD 5-09709-049-0 02 1 0210- ● ●
174 SCREW; LINER
M5X12 W/PL WASHER 		8-94385-565-0 04 1 9704-0209 ●
174 SCREW; LINER
M5X12 W/PL WASHER 		8-94385-565-0 04 1 0210- ● ●
175 GROMMET; SCREW,LINER
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9704-9705 ●
175 GROMMET; SCREW,LINER
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9706-0209 ●
175 GROMMET; SCREW,LINER
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0210- ● ●
183 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 02 1 0804- ● ●
188 CASE; DOOR
DARK GRAY 		8-97852-668-3 01 1 0308- ● ●
188 CASE; DOOR
DARK BEIGE 		8-97852-436-3 01 1 9704-0209 ●
188 CASE; DOOR
DARK BEIGE 		8-97852-436-3 01 1 0210-0307 ● ●
188 CASE; DOOR
DARK BEIGE 		8-97852-435-3 01 1 9704-0209 ●
188 CASE; DOOR
DARK BEIGE 		8-97852-435-3 01 1 0210-0307 ● ●
188 CASE; DOOR
DARK GRAY 		8-97852-667-3 01 1 0308- ● ●
199 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 09 1 1008- ● ●
199 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 09 1 1008- ● ●
199 CLIP; SEAL
(A) LOWER & BACK PINK 		1-09987-256-0 32 1 1008- ● ●
199 CLIP; SEAL
(B) NATURAL 		8-97852-455-0 07 1 0308- ● ●
199 CLIP; SEAL
(B) PINK 		8-97852-456-0 07 1 0308- ● ●
199 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 23 1 9704-9902 ●
199 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 09 1 9903-0209 ●
199 CLIP; SEAL
(A) FRONT YELLOW 		1-09987-254-1 09 1 0210-0509 ● ●
199 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 23 1 9704-9902 ●
199 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 09 1 9903-0209 ●
199 CLIP; SEAL
(A) FRONT NATURAL 		1-09987-253-1 09 1 0210-0509 ● ●
199 CLIP; SEAL
(A) LOWER & BACK PINK 		1-09987-256-0 32 1 9903-0209 ●
199 CLIP; SEAL
(A) LOWER & BACK PINK 		1-09987-256-0 32 1 0210-0509 ● ●
