◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-32 - FRONT DOOR LOCK AND HANDLE ▶
6-32 — FRONT DOOR LOCK AND HANDLE (#72738) — 77 parça

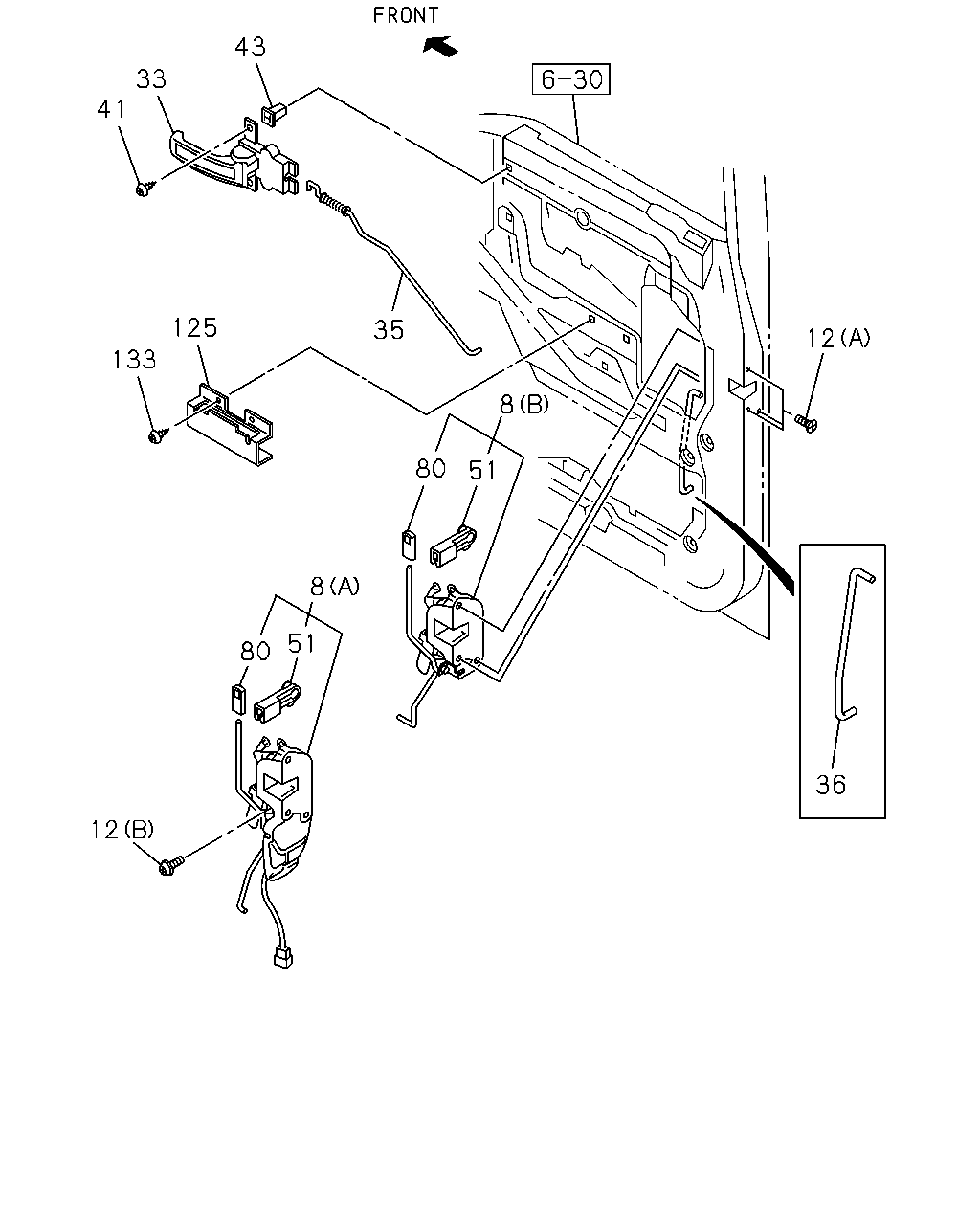

çizim 74136
43 33 41 125 133 35 8 12 51 80 8 51 80 12 36
BalonParca AdiParca NoAdetTipApplied Date A B
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK BEIGE 		8-97852-416-6 01 1 9704-0209 ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK BEIGE 		8-97852-416-6 01 1 0210-0307 ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-101-2 01 1 0308-1009 ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97421-011-0 01 1 1010-1405 ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97428-938-0 01 1 1406- ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK BEIGE 		8-97852-414-6 01 1 9704-0209 ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK BEIGE 		8-97852-414-6 01 1 0210-0307 ● ●
8 LOCK; DOOR,FRT DOOR
AUTO DOOR LOCK<AU4> (A) DARK GRAY 		8-97892-099-2 01 1 0308- ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE 		8-97852-413-3 01 1 9704-0209 ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE 		8-97852-413-3 01 1 0210-0307 ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-198-2 01 1 0308- ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE 		8-97852-412-3 01 1 9704-0209 ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK BEIGE 		8-97852-412-3 01 1 0210-0307 ● ●
8 LOCK; DOOR,FRT DOOR
EXC. AUTO DOOR LOCK<AU4> (B) DARK GRAY 		8-97892-098-2 01 1 0308- ● ●
12 SCREW; DOOR LK
AUTO DOOR LOCK<AU4> (B) T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 01 1 1406- ● ●
12 SCREW; DOOR LK
(A) M6X16 		1-09981-447-1 06 1 9704-0209 ●
12 SCREW; DOOR LK
(A) M6X16 		1-09981-447-1 06 1 0210-0805 ● ●
12 SCREW; DOOR LK
(A) M6X16 		8-97581-217-0 06 1 0806- ● ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97866-600-1 01 1 9704-0209 ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97866-600-1 01 1 0210-0307 ● ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97866-602-1 01 1 0308- ● ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97866-599-1 01 1 9704-0209 ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK BEIGE 		8-97866-599-1 01 1 0210-0307 ● ●
33 LEVER ASM; INSIDE,FRT DOOR
DARK GRAY 		8-97866-601-1 01 1 0308- ● ●
35 LINK; DOOR LOCK,INSIDE 8-97852-110-1 01 1 9704-0209 ●
35 LINK; DOOR LOCK,INSIDE 8-97852-110-1 01 1 0210- ● ●
35 LINK; DOOR LOCK,INSIDE 8-97852-109-1 01 1 9704-0209 ●
35 LINK; DOOR LOCK,INSIDE 8-97852-109-1 01 1 0210- ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97852-335-0 01 1 9704-0209 ●
36 LINK; DOOR LOCK,OUTSIDE 8-97852-335-0 01 1 0210- ● ●
36 LINK; DOOR LOCK,OUTSIDE 8-97852-334-0 01 1 9704-0209 ●
36 LINK; DOOR LOCK,OUTSIDE 8-97852-334-0 01 1 0210- ● ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9704-0209 ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 0210-0604 ● ●
41 SCREW; INSIDE HANDLE
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0605- ● ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 04 1 9704-9705 ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 9706-0209 ●
43 GROMMET; SCREW,INSIDE LEVER,DOOR
D=8.6X7.7 L=7.5 		8-94279-078-0 04 1 0210- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 9704-0209 ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97859-069-0 01 1 0210- ● ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97852-643-0 01 1 9704-0209 ●
51 SNAP; FRT DOOR LOCK CONT ROD 8-97852-643-0 01 1 0210- ● ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97859-070-0 02 1 9704-0209 ●
80 KNOB; DOOR LOCK
AUTO DOOR LOCK<AU4> DARK BEIGE 		8-97859-070-0 02 1 0210-0307 ● ●
80 KNOB; DOOR LOCK
DARK GRAY 		8-97098-574-0 02 1 0308- ● ●
80 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 		8-97852-656-0 02 1 9704-0209 ●
80 KNOB; DOOR LOCK
EXC. AUTO DOOR LOCK<AU4> 		8-97852-656-0 02 1 0210-0307 ● ●
125 BRACKET; DOOR PULL 8-97852-125-1 02 1 9704-0209 ●
125 BRACKET; DOOR PULL 8-97852-125-1 02 1 0210- ● ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 9704-0209 ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING W/PL WASHER 		0-74310-516-0 06 1 0210-0604 ● ●
133 SCREW; DOOR PULL STAY
M5X16 TAPPING W/PL WASHER 		0-74360-516-0 06 1 0605- ● ●

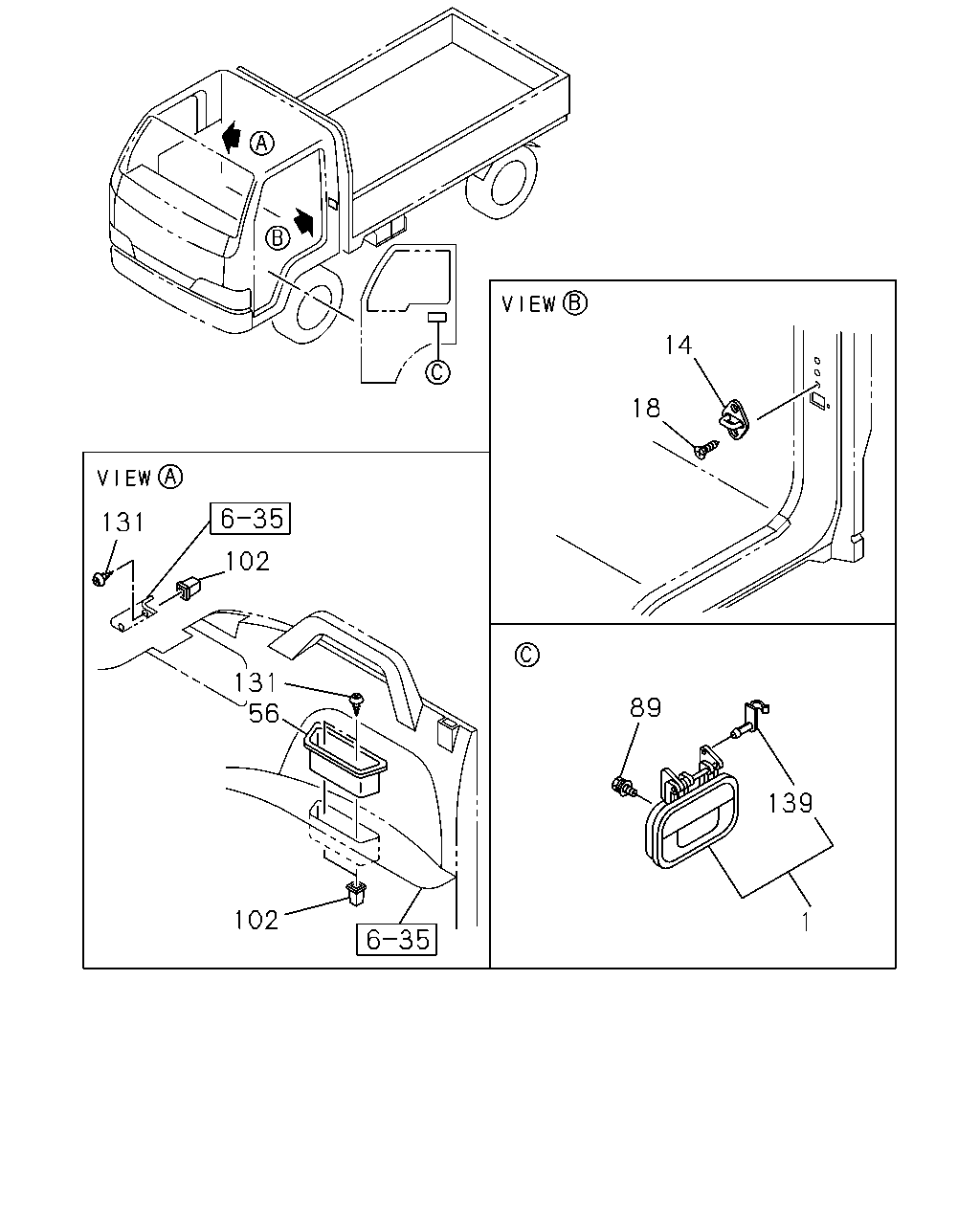

çizim 74230
14 18 131 102 131 56 89 139 102 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 9704-0209 ●
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-722-1 01 1 0210- ● ●
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 9704-0209 ●
1 HANDLE; OUTSIDE,FRT DOOR 8-97867-721-1 01 1 0210- ● ●
14 STRIKER; FRT DOOR 8-97852-106-1 02 1 9704-9903 ●
14 STRIKER; FRT DOOR 8-97221-702-0 02 1 9904-0209 ●
14 STRIKER; FRT DOOR 8-97221-702-1 02 1 0210- ● ●
18 SCREW; DOOR STRIKER
M8X20 		1-09981-450-3 04 1 9704-9903 ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 9904-0209 ●
18 SCREW; DOOR STRIKER
M8X23 W/LK WASHER 		8-97221-701-0 04 1 0210- ● ●
56 ESCUTCHEON; LOCK KNOB
DARK BEIGE 		8-97852-421-3 02 1 9704-0209 ●
56 ESCUTCHEON; LOCK KNOB
DARK BEIGE 		8-97852-421-3 02 1 0210-0307 ● ●
56 ESCUTCHEON; LOCK KNOB
DARK GRAY 		8-97852-669-3 02 1 0308- ● ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9704-0209 ●
89 BOLT; DOOR OUTSIDE HANDLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 0210- ● ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8X8 L=7.5 M5 YELLOW 		8-94279-740-0 06 1 9704-9705 ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 9706-0209 ●
102 GROMMET; SCREW,ESCUTCHEON,DOOR PULL
D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0210- ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 9704-0209 ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74110-512-0 06 1 0210-0604 ● ●
131 SCREW; ESCUTCHEON,DOOR PULL
M5X12 TAPPING W/PL WASHER 		0-74160-512-0 06 1 0605- ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 9704-0209 ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-652-1 01 1 0210- ● ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 9704-0209 ●
139 HOLDER; ROD,DOOR HANDLE 8-97852-651-1 01 1 0210- ● ●
