Isuzu WW
▶
TRUCKS
▶
NHR
▶
50785 - NHR(MALAYSIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

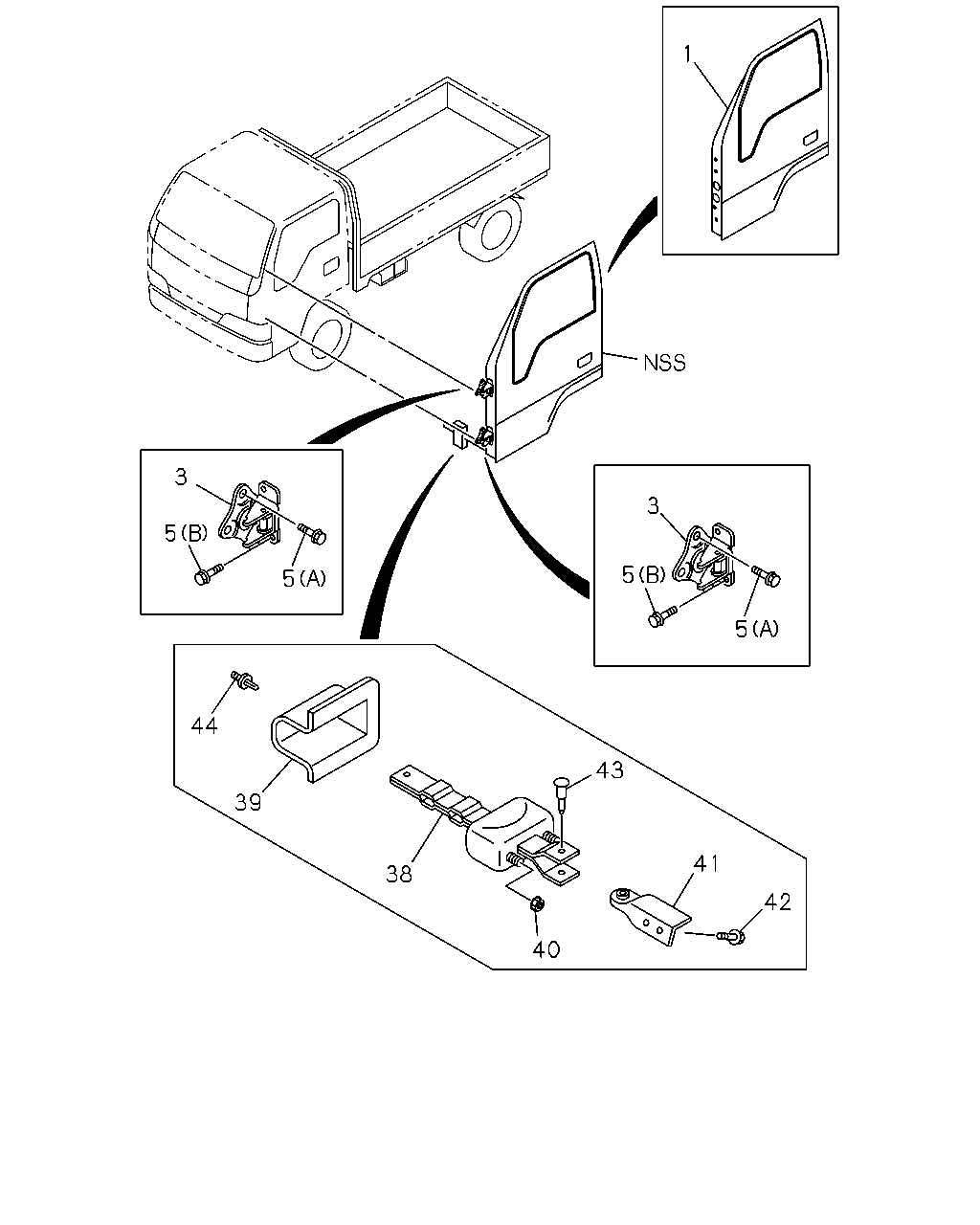

6-30 - FRONT DOOR AND HINGE
▶
6-30 — FRONT DOOR AND HINGE
(#72736) — 33 parça
Tümü
A - NHB5SF
B - NHB5WF
1
3
3
5
5
5
5
44
43
39
41
38
42
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DOOR ASM; FRT,WO/TRIM
8-97867-885-1
01
1
9704-0209
●
1
DOOR ASM; FRT,WO/TRIM
8-97867-885-2
01
1
0210-0711
●
●
1
DOOR ASM; FRT,WO/TRIM
8-97581-448-2
01
1
0712-
●
●
1
DOOR ASM; FRT,WO/TRIM
8-97867-884-1
01
1
9704-0209
●
1
DOOR ASM; FRT,WO/TRIM
8-97867-884-2
01
1
0210-0711
●
●
1
DOOR ASM; FRT,WO/TRIM
8-97581-447-1
01
1
0712-
●
●
3
HINGE; DOOR FRT
8-97852-007-5
04
1
9704-0209
●
3
HINGE; DOOR FRT
8-97852-007-5
04
1
0210-
●
●
5
BOLT; HINGE
(B) M8X24.5 W/LK&PL WASHER
8-94279-217-0
08
1
9704-0209
●
5
BOLT; HINGE
(B) M8X24.5 W/LK&PL WASHER
8-94279-217-0
08
1
0210-
●
●
5
BOLT; HINGE
(A) M8X18 W/LK&PL WASHER
8-94279-232-0
12
1
9704-0209
●
5
BOLT; HINGE
(A) M8X18 W/LK&PL WASHER
8-94279-232-0
12
1
0210-
●
●
38
CHECKER ASM; DOOR
8-97867-841-1
02
1
9704-0209
●
38
CHECKER ASM; DOOR
8-97867-841-1
02
1
0210-0301
●
●
38
CHECKER ASM; DOOR
8-97581-681-4
02
1
0302-
●
●
39
COVER; CHECKER
8-97852-365-3
02
1
9704-0209
●
39
COVER; CHECKER
8-97852-365-5
02
1
0210-
●
●
40
NUT; CHECKER
M8 FLANGE
0-91150-108-0
04
1
9704-0209
●
40
NUT; CHECKER
M8 FLANGE
0-91150-108-0
04
1
0210-0602
●
●
40
NUT; CHECKER
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
41
BRACKET; CHECKER
8-97852-403-1
01
1
9704-0209
●
41
BRACKET; CHECKER
8-97852-403-1
01
1
0210-
●
●
41
BRACKET; CHECKER
8-97852-402-1
01
1
9704-0209
●
41
BRACKET; CHECKER
8-97852-402-1
01
1
0210-
●
●
42
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
9704-0209
●
42
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
04
1
0210-0808
●
●
42
BOLT; BRKT
M8X24.5 W/LK&PL WASHER
8-98051-939-0
04
1
0809-1201
●
●
42
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
04
1
1202-
●
●
43
PIN
8-97852-057-1
02
1
9704-0209
●
43
PIN
8-97852-057-1
02
1
0210-
●
●
44
FASTENER; COVER
OD=8.3
8-94279-989-0
02
1
9704-0207
●
44
FASTENER; COVER
OD=8.3
8-97997-832-0
02
1
0208-0209
●
44
FASTENER; COVER
OD=8.3
8-97997-832-0
02
1
0210-
●
●
