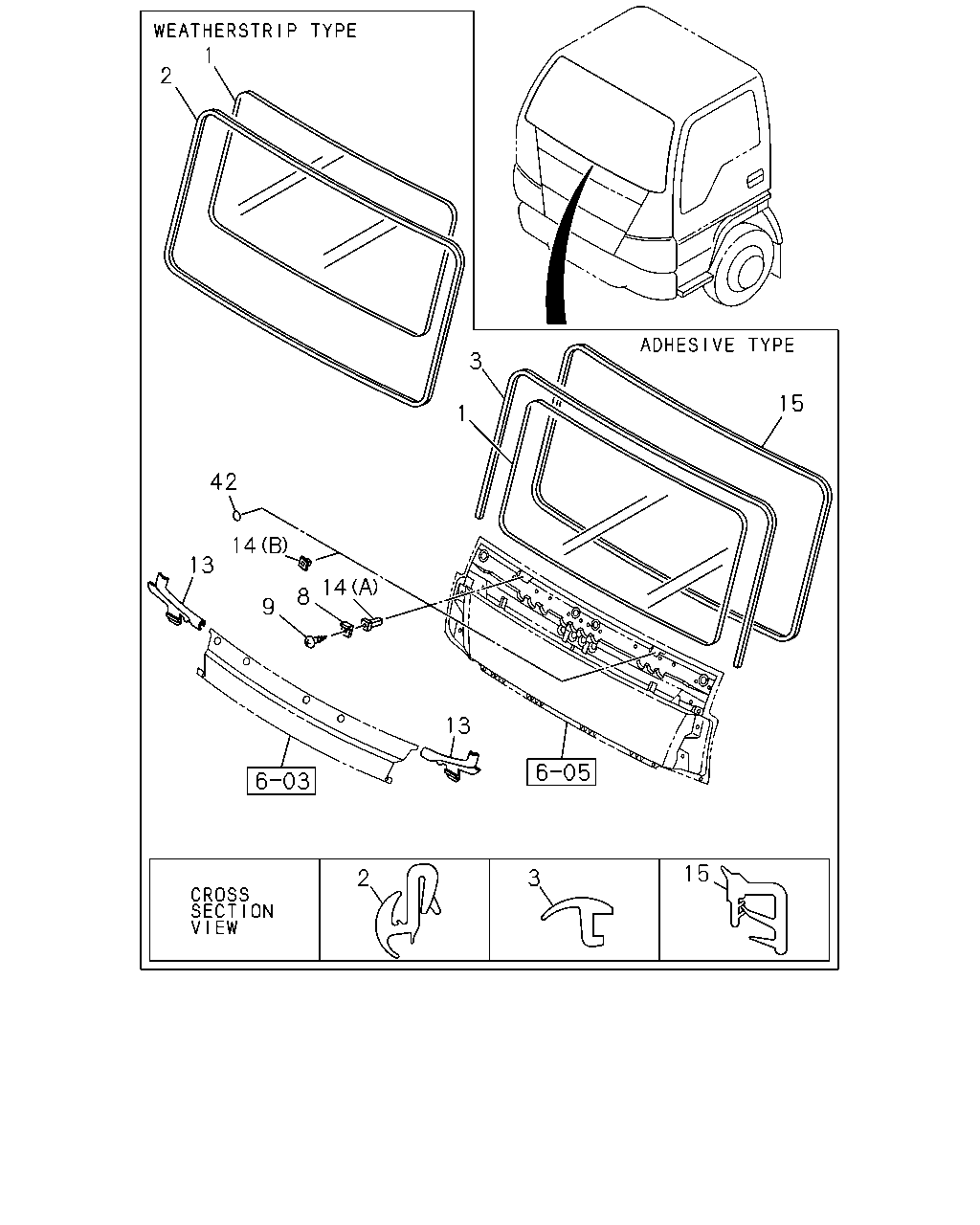

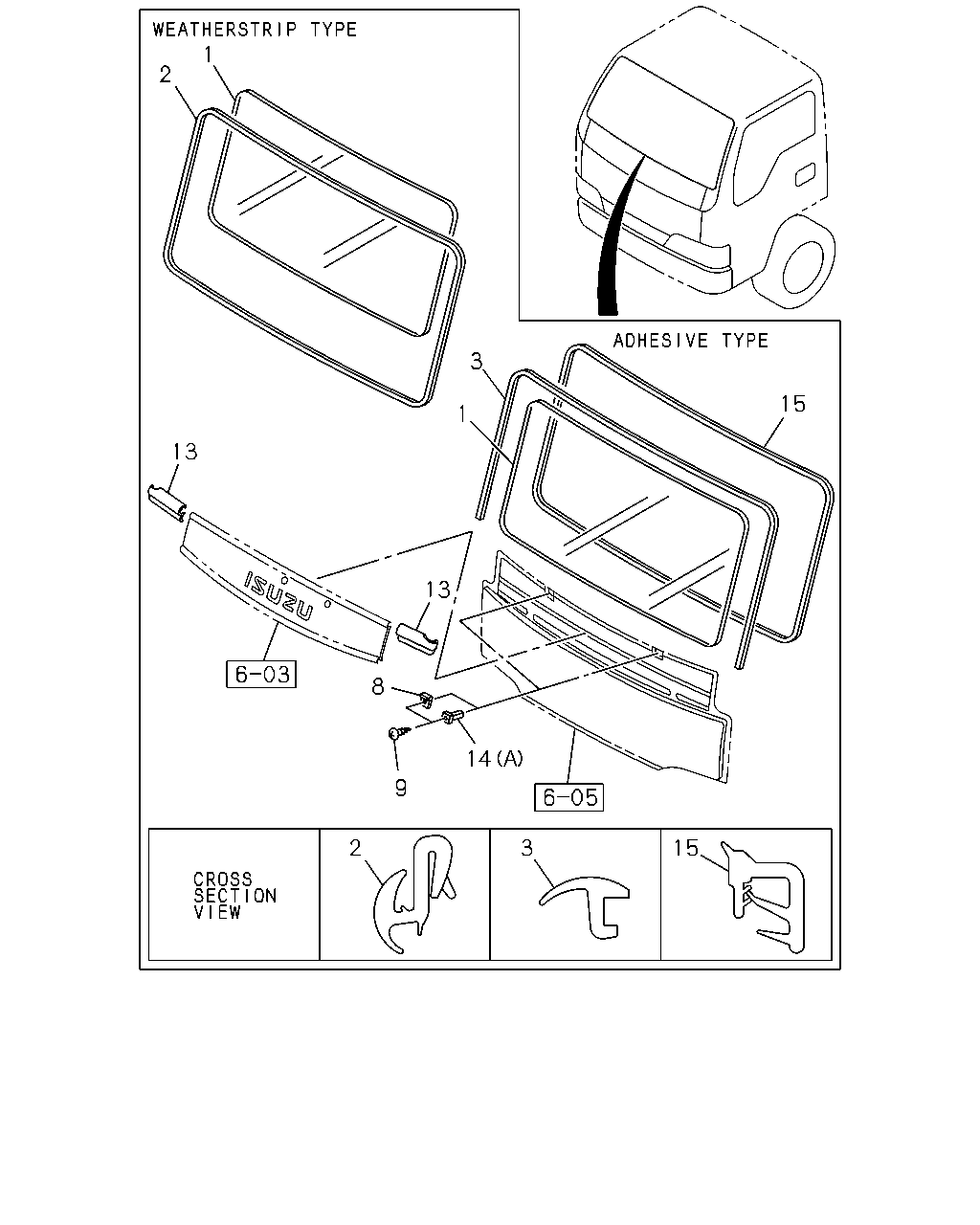

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#72734) — 80 parça

1 2 3 15 1 13 13 8 14 9 2 3 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; WINDSHIELD	8-97114-295-0	01	1	9704-9802	●
1	GLASS; WINDSHIELD	8-97869-123-0	01	1	9803-0209	●
1	GLASS; WINDSHIELD	8-97869-123-0	01	1	0210-0307	●	●
1	GLASS; WINDSHIELD	8-97869-124-0	01	1	0308-0805	●	●
1	GLASS; WINDSHIELD	8-97997-944-1	01	1	0806-	●	●
2	WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-3	01	1	9704-0209	●
2	WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-4	01	1	0210-	●	●
3	MOLDING; WINDSHIELD FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	1112-		●
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97857-907-1	01	1	9704-9802	●
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-1	01	1	9803-0209	●
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-3	01	1	0210-1111	●	●
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-3	01	1	1112-	●
3	MOLDING; WINDSHIELD EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-3	01	1	1112-		●
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	9704-0305	●
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-0	02	1	0210-0305		●
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-1204	●	●
8	STOPPER; WINDSHIELD GLASS IDENTIFICATION LABEL FOR KD<6UT> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	1205-	●	●
9	SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14	8-94279-325-0	02	1	9704-0209	●
9	SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14	8-94279-325-0	02	1	0210-1204	●	●
9	SCREW; STOPPER IDENTIFICATION LABEL FOR KD<6UT> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14	8-94279-325-0	02	1	1205-	●	●
13	MOLDING; BRKT,OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	1112-		●
13	MOLDING; BRKT,OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	1112-		●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	9704-0209	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	0210-1111	●	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	1112-	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	1112-		●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	9704-0209	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	0210-1111	●	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	1112-	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	1112-		●
14	GROMMET; SCREW,STOPPER EXC. IDENTIFICATION LABEL FOR KD<6UT>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) D=7.9X7.9 L=11.4 M5	8-94367-528-0	02	1	1305-	●	●
14	GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK	8-94279-714-0	04	1	9704-0209	●
14	GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK	8-94279-714-0	04	1	0210-	●	●
14	GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0210-0305		●
14	GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0306-1204	●	●
14	GROMMET; SCREW,STOPPER IDENTIFICATION LABEL FOR KD<6UT> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1205-	●	●
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE	8-97853-804-4	01	1	9704-0209	●
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE	8-97853-804-4	01	1	0210-0307	●	●
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-7	01	1	0308-	●	●

1 2 3 15 1 42 14 13 14 8 9 13 15 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GLASS; WINDSHIELD	8-97114-295-0	01	1	9704-9802	●
1	GLASS; WINDSHIELD	8-97869-123-0	01	1	9803-0209	●
1	GLASS; WINDSHIELD	8-97869-123-0	01	1	0210-0307	●	●
1	GLASS; WINDSHIELD	8-97869-124-0	01	1	0308-0805	●	●
1	GLASS; WINDSHIELD	8-97997-944-1	01	1	0806-	●	●
2	WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-3	01	1	9704-0209	●
2	WEATHERSTRIP; WINDSHIELD GLASS WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97856-351-4	01	1	0210-	●	●
3	MOLDING; WINDSHIELD FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-678-3	01	1	1112-		●
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97857-907-1	01	1	9704-9802	●
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-1	01	1	9803-0209	●
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-3	01	1	0210-1111	●	●
3	MOLDING; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-3	01	1	1112-	●
3	MOLDING; WINDSHIELD EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97890-214-3	01	1	1112-		●
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97859-215-0	02	1	9704-0305	●
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-0	02	1	0210-0305		●
8	STOPPER; WINDSHIELD GLASS EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	0306-1204	●	●
8	STOPPER; WINDSHIELD GLASS IDENTIFICATION LABEL FOR KD<6UT> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-733-1	02	1	1205-	●	●
9	SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14	8-94279-325-0	02	1	9704-0209	●
9	SCREW; STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14	8-94279-325-0	02	1	0210-1204	●	●
9	SCREW; STOPPER IDENTIFICATION LABEL FOR KD<6UT> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> M5X14	8-94279-325-0	02	1	1205-	●	●
13	MOLDING; BRKT,OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-617-4	01	1	1112-		●
13	MOLDING; BRKT,OUTSIDE MIRROR FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97581-618-3	01	1	1112-		●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	9704-0209	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	0210-1111	●	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	1112-	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-787-4	01	1	1112-		●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	9704-0209	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	0210-1111	●	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	1112-	●
13	MOLDING; BRKT,OUTSIDE MIRROR EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL>	8-97853-786-3	01	1	1112-		●
14	GROMMET; SCREW,STOPPER EXC. IDENTIFICATION LABEL FOR KD<6UT>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) D=7.9X7.9 L=11.4 M5	8-94367-528-0	02	1	1305-	●	●
14	GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK	8-94279-714-0	04	1	9704-0209	●
14	GROMMET; SCREW,STOPPER WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 14.5X14.5 BLACK	8-94279-714-0	04	1	0210-	●	●
14	GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0210-0305		●
14	GROMMET; SCREW,STOPPER EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	0306-1204	●	●
14	GROMMET; SCREW,STOPPER IDENTIFICATION LABEL FOR KD<6UT> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) D=7.8X7.8 L=18 NATURAL	8-94279-043-0	02	1	1205-	●	●
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE	8-97853-804-4	01	1	9704-0209	●
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK BEIGE	8-97853-804-4	01	1	0210-0307	●	●
15	FINISHER; WINDSHIELD EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY	8-97859-856-7	01	1	0308-	●	●
42	SEAL; HOLE FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1112-1204		●
42	SEAL; HOLE EXC. IDENTIFICATION LABEL FOR KD<6UT>,WINDSHIELD WEATHERSTRIP TYPE<7EL> OD=20 T=0.05 BLACK	5-76777-036-0	02	1	1205-1304	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
