6-03 — RADIATOR GRILLE (#72732) — 84 parça

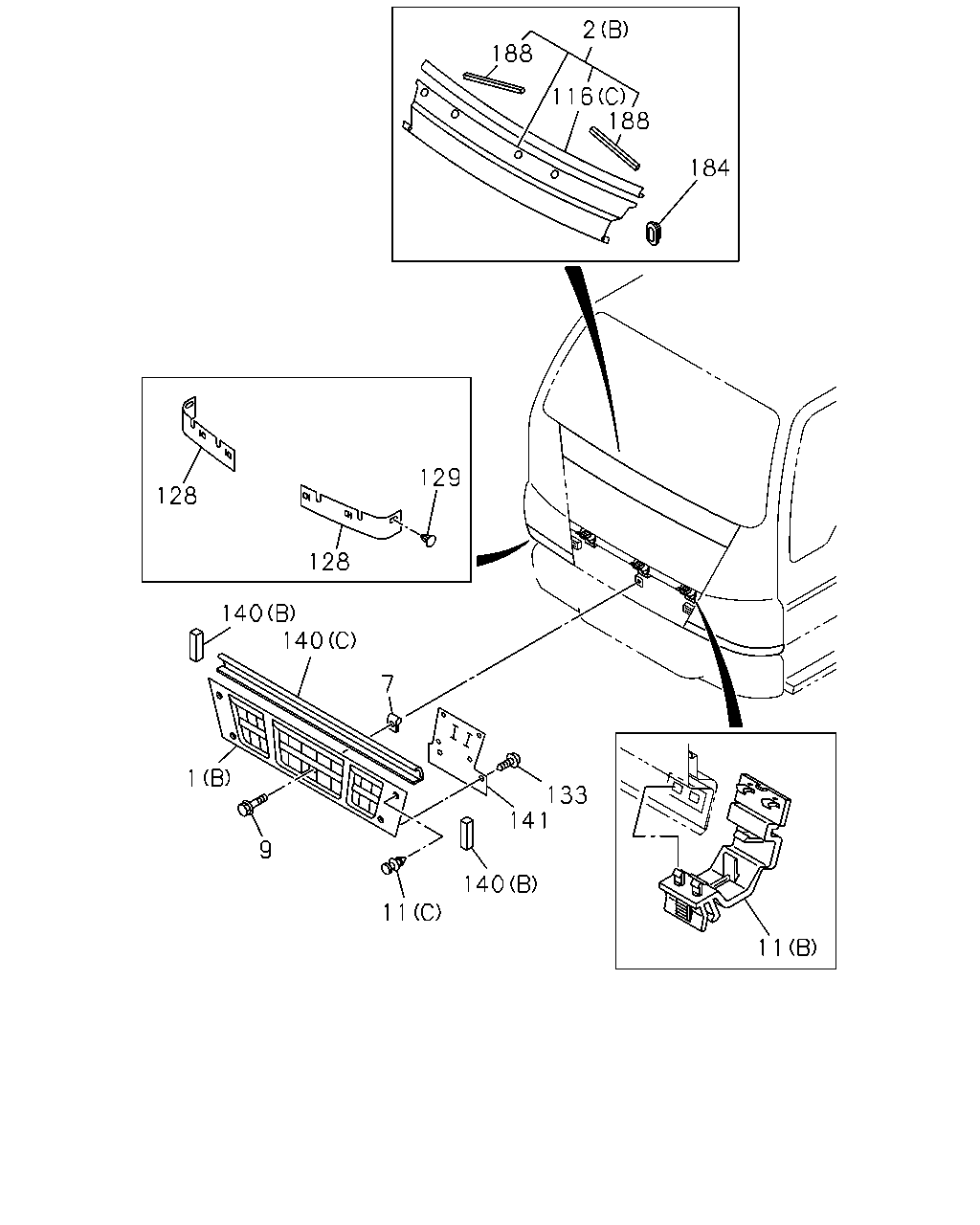

2 188 116 188 184 129 128 128 140 140 7 1 133 141 9 140 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> (B) BLUE	8-97582-418-4	01	1	1112-	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> (B) WHITE	8-97582-414-4	01	1	1112-	●
1	GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97869-096-0	01	1	9704-0209		●
1	GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97869-096-0	01	1	0210-1111	●	●
1	GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97869-096-0	01	1	1112-		●
1	GRILLE; RAD EXC. FACE LIFT MODEL<TX7> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97869-096-0	01	1	1112-	●
2	GRILLE; ORNAMENT FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WO/DECAL	8-97585-545-2	01	1	1112-	●
2	GRILLE; ORNAMENT FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WO/DECAL	8-97581-679-5	01	1	1112-	●
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL	8-97859-608-2	01	1	9704-0209		●
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL	8-97859-608-2	01	1	0210-0307	●	●
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL	8-97859-463-4	01	1	0308-1111	●	●
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL	8-97859-463-4	01	1	1112-		●
2	GRILLE; ORNAMENT EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL	8-97859-463-4	01	1	1112-	●
7	NUT; SPIRE,RAD GRILLE	8-97805-829-0	01	1	9704-0209		●
7	NUT; SPIRE,RAD GRILLE	8-97805-829-0	01	1	0210-0505	●	●
7	NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-	●	●
9	SCREW; RAD GRILLE M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	9704-0209		●
9	SCREW; RAD GRILLE M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	0210-0805	●	●
9	SCREW; RAD GRILLE M6X20 W/PL WASHER	8-98059-504-0	01	1	0806-	●	●
11	CLIP; RAD GRILLE FACE LIFT MODEL<TX7> (C)	8-97581-651-2	04	1	1112-	●
11	CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	03	1	9704-0209		●
11	CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	03	1	0210-	●	●
11	CLIP; RAD GRILLE (A)	8-97075-929-2	02	1	9704-1111	●	●
11	CLIP; RAD GRILLE (A)	8-97075-929-2	02	1	1112-		●
11	CLIP; RAD GRILLE EXC. FACE LIFT MODEL<TX7> (A)	8-97075-929-2	02	1	1112-	●
116	MOLDING; ORNAMENT GRILLE FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)	8-97581-655-1	01	1	1112-	●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	9704-0209		●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	0210-1111	●	●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	1112-		●
116	MOLDING; ORNAMENT GRILLE EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	1112-	●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-97853-097-4	01	1	9704-0209		●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-97853-097-5	01	1	0210-1111	●	●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-97853-097-5	01	1	1112-		●
116	MOLDING; ORNAMENT GRILLE EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-97853-097-5	01	1	1112-	●
128	COVER; HEADLAMP GRILLE FACE LIFT MODEL<TX7>	8-97581-653-3	02	1	1112-	●
129	CLIP; COVER HEADLAMP GRILLE FACE LIFT MODEL<TX7> D=6.5	8-97855-279-0	02	1	1112-	●
133	SCREW; COVER FACE LIFT MODEL<TX7> M5X12 W/PL WASHER	8-94385-565-0	06	1	1112-	●
140	SEAL; RAD GRILLE FACE LIFT MODEL<TX7> (C)	8-97581-664-0	01	1	1112-	●
140	SEAL; RAD GRILLE FACE LIFT MODEL<TX7> (B)	8-97583-411-1	02	1	1112-	●
140	SEAL; RAD GRILLE (A)	8-97061-039-3	02	1	9704-1111	●	●
140	SEAL; RAD GRILLE (A)	8-97061-039-3	02	1	1112-		●
140	SEAL; RAD GRILLE EXC. FACE LIFT MODEL<TX7> (A)	8-97061-039-3	02	1	1112-	●
141	COVER; RAD GRILLE FACE LIFT MODEL<TX7>	8-97581-648-1	01	1	1112-	●
184	GROMMET; ORNAMENT FACE LIFT MODEL<TX7>	8-97581-668-0	02	1	1112-	●
188	SEAL; ORNAMENT FACE LIFT MODEL<TX7>	8-97584-800-0	02	1	1112-	●

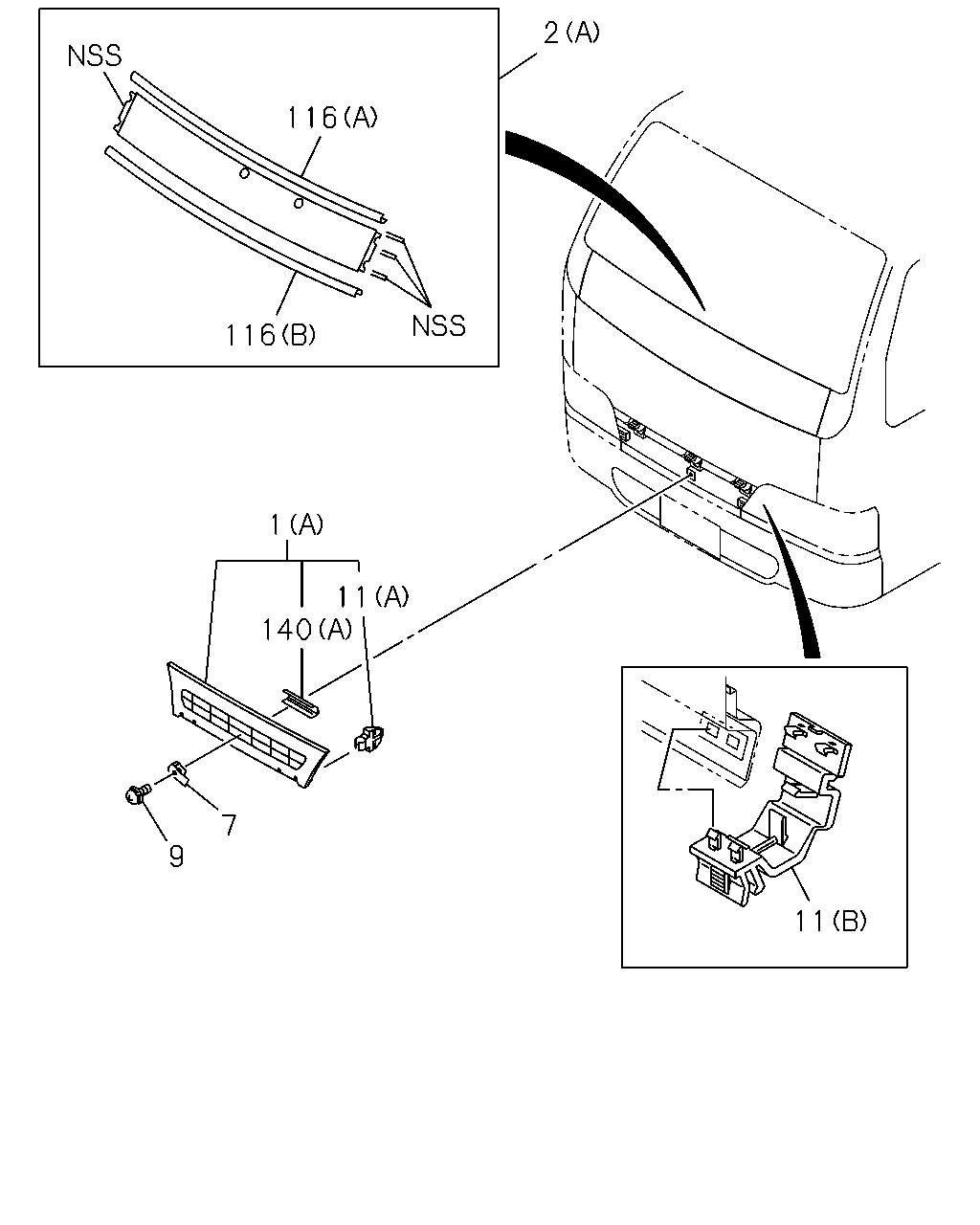

2 116 116 1 11 140 7 9 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> (B) BLUE	8-97582-418-4	01	1	1112-	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> (B) WHITE	8-97582-414-4	01	1	1112-	●
1	GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97869-096-0	01	1	9704-0209		●
1	GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97869-096-0	01	1	0210-1111	●	●
1	GRILLE; RAD (A) PLEASE PAINT TO MATCH BODY COLOR	8-97869-096-0	01	1	1112-		●
1	GRILLE; RAD EXC. FACE LIFT MODEL<TX7> (A) PLEASE PAINT TO MATCH BODY COLOR	8-97869-096-0	01	1	1112-	●
2	GRILLE; ORNAMENT FACE LIFT MODEL<TX7> WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WO/DECAL	8-97585-545-2	01	1	1112-	●
2	GRILLE; ORNAMENT FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WO/DECAL	8-97581-679-5	01	1	1112-	●
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL	8-97859-608-2	01	1	9704-0209		●
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL	8-97859-608-2	01	1	0210-0307	●	●
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL	8-97859-463-4	01	1	0308-1111	●	●
2	GRILLE; ORNAMENT EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL	8-97859-463-4	01	1	1112-		●
2	GRILLE; ORNAMENT EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) WO/DECAL	8-97859-463-4	01	1	1112-	●
7	NUT; SPIRE,RAD GRILLE	8-97805-829-0	01	1	9704-0209		●
7	NUT; SPIRE,RAD GRILLE	8-97805-829-0	01	1	0210-0505	●	●
7	NUT; SPIRE,RAD GRILLE	8-98014-760-0	01	1	0506-	●	●
9	SCREW; RAD GRILLE M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	9704-0209		●
9	SCREW; RAD GRILLE M6X20 W/PL WASHER TAPPING	8-94321-767-1	01	1	0210-0805	●	●
9	SCREW; RAD GRILLE M6X20 W/PL WASHER	8-98059-504-0	01	1	0806-	●	●
11	CLIP; RAD GRILLE FACE LIFT MODEL<TX7> (C)	8-97581-651-2	04	1	1112-	●
11	CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	03	1	9704-0209		●
11	CLIP; RAD GRILLE (B) WHITE	8-97102-415-0	03	1	0210-	●	●
11	CLIP; RAD GRILLE (A)	8-97075-929-2	02	1	9704-1111	●	●
11	CLIP; RAD GRILLE (A)	8-97075-929-2	02	1	1112-		●
11	CLIP; RAD GRILLE EXC. FACE LIFT MODEL<TX7> (A)	8-97075-929-2	02	1	1112-	●
116	MOLDING; ORNAMENT GRILLE FACE LIFT MODEL<TX7> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (C)	8-97581-655-1	01	1	1112-	●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	9704-0209		●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	0210-1111	●	●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	1112-		●
116	MOLDING; ORNAMENT GRILLE EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (A)	8-97853-095-2	01	1	1112-	●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-97853-097-4	01	1	9704-0209		●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-97853-097-5	01	1	0210-1111	●	●
116	MOLDING; ORNAMENT GRILLE EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-97853-097-5	01	1	1112-		●
116	MOLDING; ORNAMENT GRILLE EXC. FACE LIFT MODEL<TX7>,WINDSHIELD WEATHERSTRIP TYPE<7EL> (B)	8-97853-097-5	01	1	1112-	●
140	SEAL; RAD GRILLE FACE LIFT MODEL<TX7> (C)	8-97581-664-0	01	1	1112-	●
140	SEAL; RAD GRILLE FACE LIFT MODEL<TX7> (B)	8-97583-411-1	02	1	1112-	●
140	SEAL; RAD GRILLE (A)	8-97061-039-3	02	1	9704-1111	●	●
140	SEAL; RAD GRILLE (A)	8-97061-039-3	02	1	1112-		●
140	SEAL; RAD GRILLE EXC. FACE LIFT MODEL<TX7> (A)	8-97061-039-3	02	1	1112-	●
