◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#72731) — 82 parça

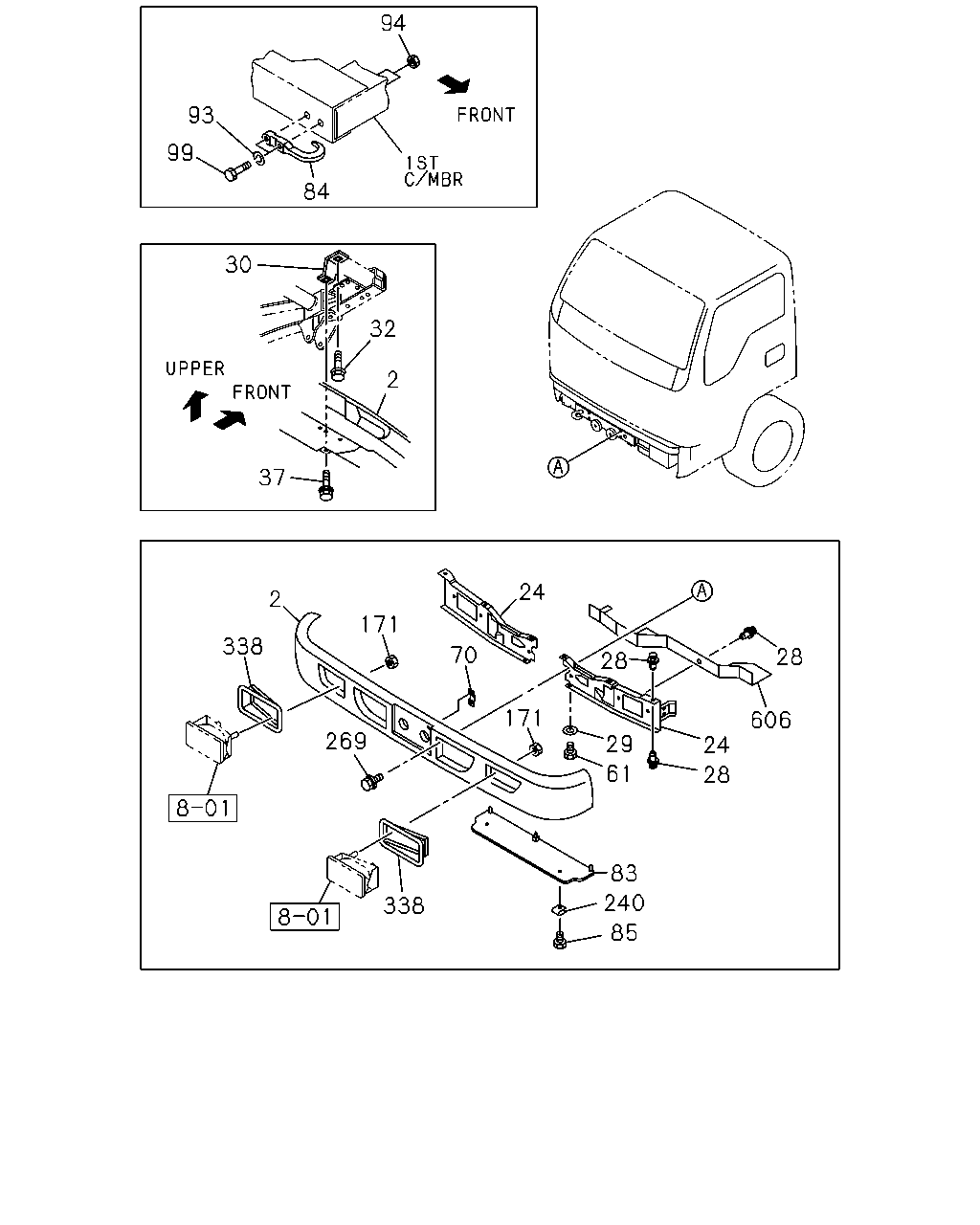

çizim 74007
94 93 99 84 30 32 2 37 24 2 171 338 70 28 28 171 606 269 29 24 61 28 83 240 338 85
BalonParca AdiParca NoAdetTipApplied Date A B
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97582-635-0 01 1 1112- ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FACE LIFT MODEL<TX7> DARK GRAY 		8-97585-462-0 01 1 1112- ●
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97582-633-0 01 1 1112- ●
2 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97868-119-0 01 1 9704-0209 ●
2 BUMPER; FRT,CENTER
BODY COLOR ADRIATIC BLUE(730) EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97868-119-0 01 1 0210-0307 ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97868-118-0 01 1 9704-0209 ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97868-118-0 01 1 0210-0307 ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97868-118-0 01 1 0308-1111 ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97868-118-0 01 1 1112- ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FACE LIFT MODEL<TX7> WHITE 		8-97868-118-0 01 1 1112- ●
2 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97868-121-0 01 1 9704-0209 ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97868-121-0 01 1 9704-0209 ●
2 BUMPER; FRT,CENTER
BODY COLOR CARDINAL RED(736) EXC. FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97868-121-0 01 1 0210-0307 ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97868-121-0 01 1 0210-0307 ● ●
2 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97868-121-0 01 1 0308-1110 ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97868-121-0 01 1 1111-1111 ● ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97868-121-0 01 1 1112- ●
2 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> EXC. FACE LIFT MODEL<TX7> DARK GRAY 		8-97868-121-0 01 1 1112- ●
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97868-120-0 01 1 9704-0209 ●
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97868-120-0 01 1 0210-0307 ● ●
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97868-120-0 01 1 0308-1111 ● ●
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97868-120-0 01 1 1112- ●
2 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) EXC. FRT BUMPER DARK GRAY<EQ9>,FACE LIFT MODEL<TX7> BLUE 		8-97868-120-0 01 1 1112- ●
24 BAR; FRT BUMPER
FACE LIFT MODEL<TX7> 		8-97070-817-4 01 1 1112- ●
24 BAR; FRT BUMPER
FACE LIFT MODEL<TX7> 		8-97070-818-4 01 1 1112- ●
24 BAR; FRT BUMPER 8-97867-904-0 01 1 9704-0209 ●
24 BAR; FRT BUMPER 8-97867-904-0 01 1 0210-1111 ● ●
24 BAR; FRT BUMPER 8-97867-904-0 01 1 1112- ●
24 BAR; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> 		8-97867-904-0 01 1 1112- ●
24 BAR; FRT BUMPER 8-97867-903-0 01 1 9704-0209 ●
24 BAR; FRT BUMPER 8-97867-903-0 01 1 0210-1111 ● ●
24 BAR; FRT BUMPER 8-97867-903-0 01 1 1112- ●
24 BAR; FRT BUMPER
EXC. FACE LIFT MODEL<TX7> 		8-97867-903-0 01 1 1112- ●
28 FASTENER; BACK BAR
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 12 1 9704-0209 ●
28 FASTENER; BACK BAR
D=5.8 SCREW & GROMMET NYLON 		8-94242-150-0 12 1 0210- ● ●
29 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 06 1 9704-0209 ●
29 WASHER; FRT BUMPER
ID=8.5 		8-94167-476-0 06 1 0210- ● ●
30 BRACKET; FRT BUMPER 8-97093-639-3 02 1 9704-0209 ●
30 BRACKET; FRT BUMPER 8-97093-639-3 02 1 0210- ● ●
32 BOLT; BRKT,BUMPER
M8X25 FLANGE 		0-28680-825-0 02 1 9704-0209 ●
32 BOLT; BRKT,BUMPER
M8X25 FLANGE 		0-28680-825-0 02 1 0210-0512 ● ●
32 BOLT; BRKT,BUMPER
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
37 BOLT; BRKT TO BUMPER LWR
M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9704-0209 ●
37 BOLT; BRKT TO BUMPER LWR
M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0210- ● ●
61 BOLT; BACK BAR
FACE LIFT MODEL<TX7> M8X18 W/LK WASHER 		0-50540-818-0 06 1 1112- ●
61 BOLT; BACK BAR
M8X16 FLANGE 		0-28080-816-0 06 1 9704-0209 ●
61 BOLT; BACK BAR
M8X16 FLANGE 		0-28080-816-0 06 1 0210-0512 ● ●
61 BOLT; BACK BAR
M8X16 FLANGE 		0-28050-816-0 06 1 0601-1111 ● ●
61 BOLT; BACK BAR
M8X16 FLANGE 		0-28050-816-0 06 1 1112- ●
61 BOLT; BACK BAR
EXC. FACE LIFT MODEL<TX7> M8X16 FLANGE 		0-28050-816-0 06 1 1112- ●
70 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 9704-0209 ●
70 BRACKET; LICENSE PLATE,FRT 8-94151-164-1 02 1 0210- ● ●
83 GUIDE; AIR,FRT BUMPER 8-97076-832-2 01 1 9704-0209 ●
83 GUIDE; AIR,FRT BUMPER 8-97076-832-2 01 1 0210- ● ●
84 HOOK 8-94249-270-2 01 1 9704-0209 ●
84 HOOK 8-94249-270-2 01 1 0210- ● ●
85 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 03 1 9704-0209 ●
85 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER 		8-97012-072-0 03 1 0210- ● ●
93 WASHER; LK,HOOK
ID=14.2 		9-09150-814-0 02 1 9704-0209 ●
93 WASHER; LK,HOOK
ID=14.2 		9-09150-814-0 02 1 0210-0603 ● ●
93 WASHER; LK,HOOK
ID=14.2 		0-91510-814-0 02 1 0604- ● ●
94 NUT; HOOK
M14 		9-99110-514-0 02 1 9704-0209 ●
94 NUT; HOOK
M14 		9-99110-514-0 02 1 0210-0512 ● ●
94 NUT; HOOK
M14 		0-91110-514-0 02 1 0601- ● ●
99 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 9704-0209 ●
99 BOLT; HOOK
M14X50 		0-10806-450-0 02 1 0210-0512 ● ●
99 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0601- ● ●
171 NUT; BACK BAR
M8 FLANGE 		1-09464-018-1 04 1 9704-0209 ●
171 NUT; BACK BAR
M8 FLANGE 		1-09464-018-1 04 1 0210- ● ●
240 NUT; AIR GUIDE,FRT BUMPER
M6 		8-94412-740-1 03 1 9704-0004 ●
240 NUT; AIR GUIDE,FRT BUMPER
M6 SPIRE NUT 		8-97210-973-1 03 1 0005-0209 ●
240 NUT; AIR GUIDE,FRT BUMPER
M6 SPIRE NUT 		8-97210-973-1 03 1 0210- ● ●
269 BOLT; BUMPER BAR TO FRAME
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 9704-0209 ●
269 BOLT; BUMPER BAR TO FRAME
M10X35 W/LK&PL WASHER 		8-97101-865-0 04 1 0210- ● ●
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-861-0 01 1 1112- ●
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729) FACE LIFT MODEL<TX7> EXC. FRT BUMPER DARK GRAY<EQ9> WHITE 		8-97097-865-0 01 1 1112- ●
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FACE LIFT MODEL<TX7> DARK GRAY 		8-97585-463-0 01 1 1112- ●
338 BEZEL; FOG LAMP
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FRT BUMPER DARK GRAY<EQ9> FACE LIFT MODEL<TX7> DARK GRAY 		8-97585-464-0 01 1 1112- ●
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-859-0 01 1 1112- ●
338 BEZEL; FOG LAMP
BODY COLOR MARINE BLUE(890) FACE LIFT MODEL<TX7> EXC. FRT BUMPER DARK GRAY<EQ9> BLUE 		8-97097-863-0 01 1 1112- ●
606 SEAL; BACK BAR 8-97867-844-0 02 1 9704-0209 ●
606 SEAL; BACK BAR 8-97867-844-0 02 1 0210- ● ●
