Isuzu WW
▶
TRUCKS
▶
NHR
▶
50785 - NHR(MALAYSIA)
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#72728) — 18 parça
Tümü
A - NHB5WF
B - NHB5SF
◀
[515A] NO.2 (9 parça)
[515A] NO.1 (9 parça)
▶
145
144
145
14
14
308
14
144
14
308
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
14
COVER; MTG,CAB
(A) BLACK L=125
8-94273-738-3
02
1
0210-
●
14
COVER; MTG,CAB
(B) BLACK L=124
8-94273-857-3
02
1
0210-0906
●
14
COVER; MTG,CAB
(B) BLACK L=124
8-98132-457-0
02
1
0907-
●
144
BRACKET ASM; CAB RR MTG
8-97853-066-4
02
1
9704-
●
144
BRACKET ASM; CAB RR MTG
8-97853-060-4
02
1
0210-
●
145
BOLT; CAB RR MTG BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
12
1
9704-0209
●
145
BOLT; CAB RR MTG BRKT
M8X24.5 W/LK&PL WASHER
8-94279-208-0
12
1
0210-0808
●
●
145
BOLT; CAB RR MTG BRKT
M8X24.5 W/LK&PL WASHER
8-98051-939-0
12
1
0809-
●
●
308
RIVET; COVER
D6X12.5
8-94146-425-0
06
1
0210-
●

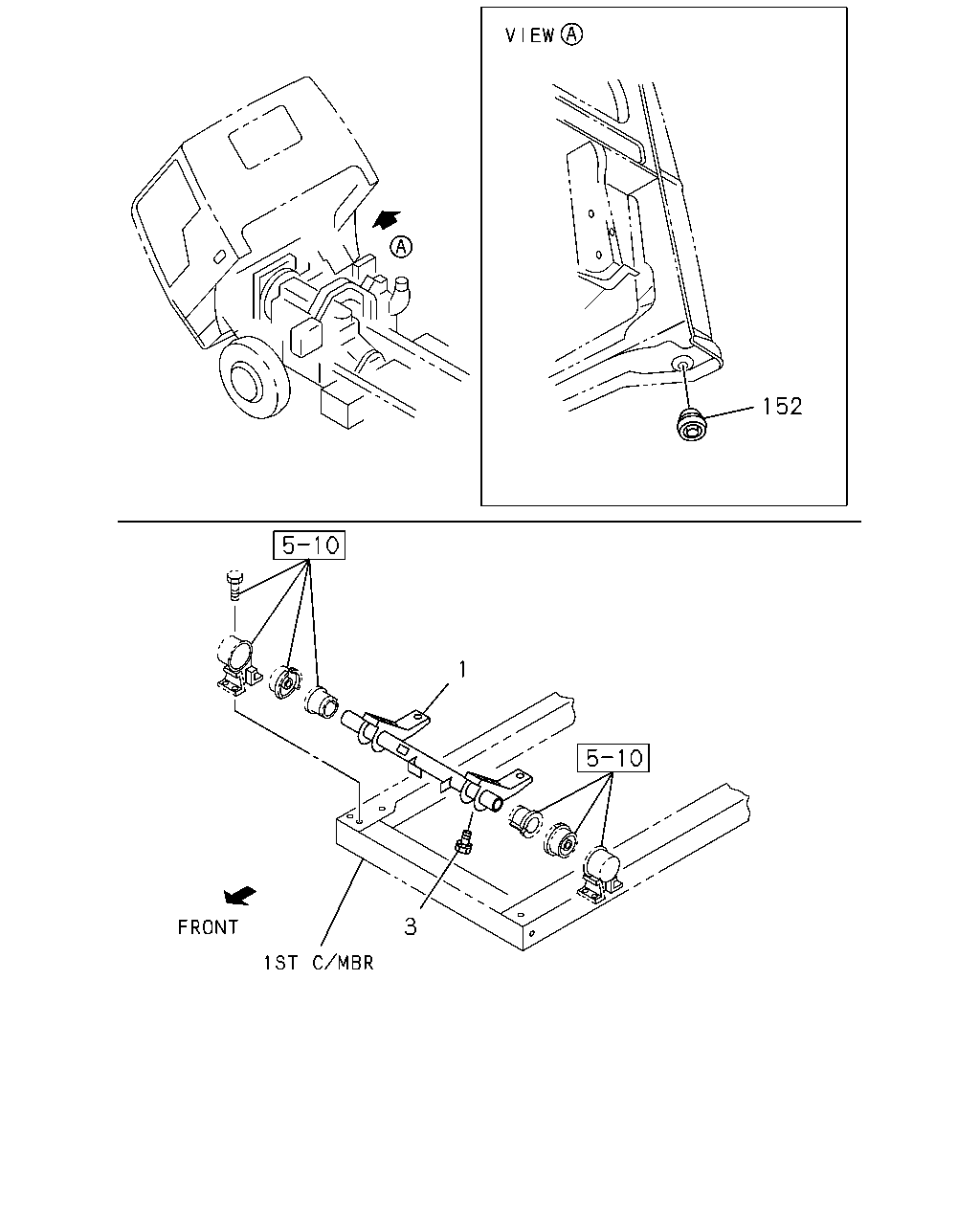

152
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LEVER; TORSION BAR
8-97114-082-1
01
1
9704-0111
●
1
LEVER; TORSION BAR
8-97328-488-0
01
1
0112-0209
●
1
LEVER; TORSION BAR
8-97328-488-0
01
1
0210-
●
●
3
BOLT; LEVER
M12X50
8-94401-729-1
04
1
9704-0111
●
3
BOLT; LEVER
M12X37 W/LK&PL WASHER
8-97326-378-0
04
1
0112-0209
●
3
BOLT; LEVER
M12X37 W/LK&PL WASHER
8-97326-378-0
04
1
0210-0611
●
●
3
BOLT; LEVER
M12X37 W/LK&PL WASHER
8-97359-033-0
04
1
0612-
●
●
152
GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=19
8-94279-055-0
02
1
9704-0210
●
152
GROMMET; DUMMY HOLE,CAB TILT LOCK
OD=25 BLACK
1-76798-019-0
02
1
0211-
●
