5-10 — CAB MOUNTING; FRAME SIDE (#72727) — 99 parça

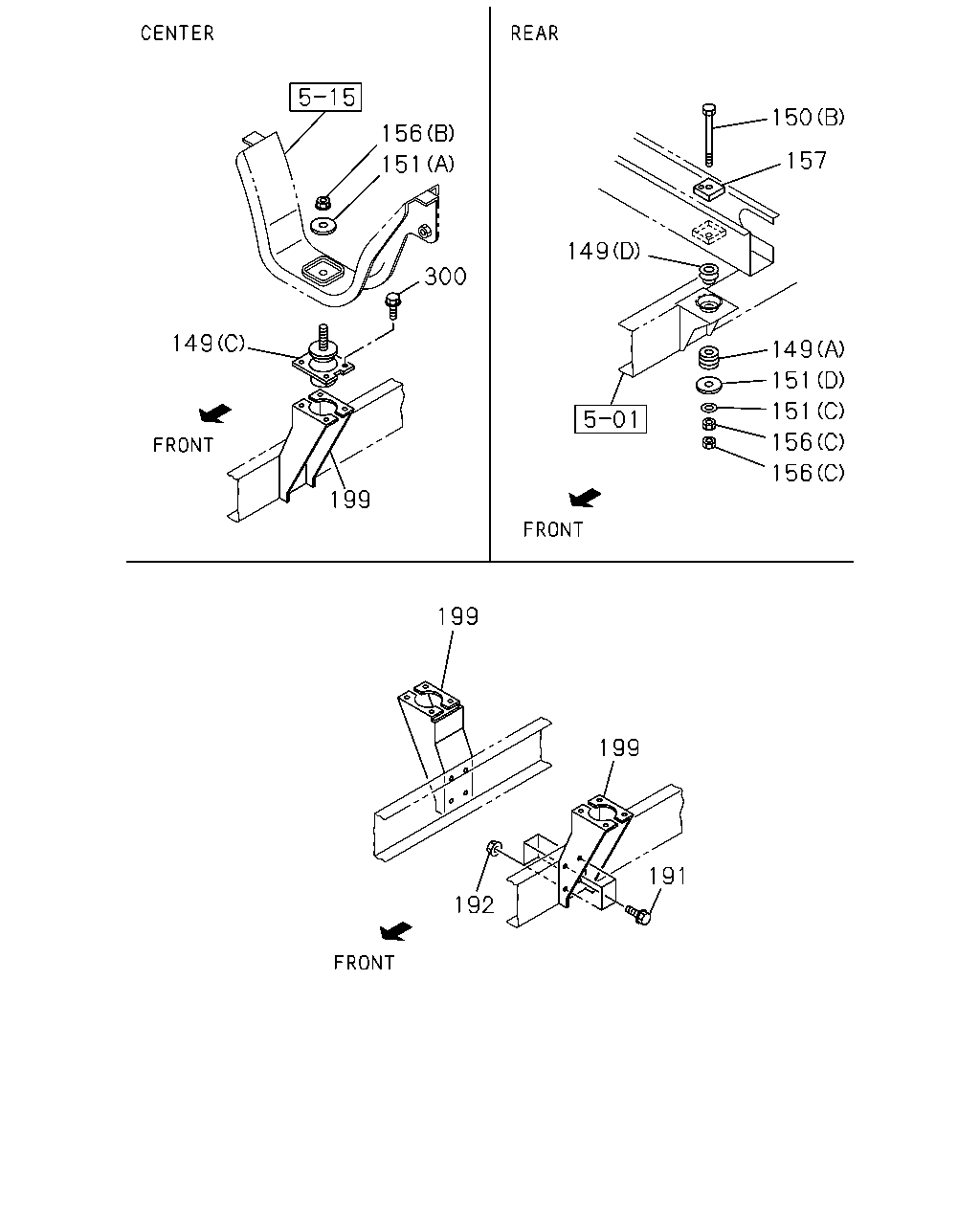

çizim 73370
150 156 157 151 149 300 149 149 151 151 156 156 199 199 199 191 192
BalonParca AdiParca NoAdetTipApplied Date A B
149 RUBBER; MTG,CAB,UPR RR
(B) 		8-97086-442-4 02 1 9704- ●
149 RUBBER; MTG,CAB,UPR RR
(D) H=26.5 		5-53459-041-0 02 1 0210- ●
149 RUBBER; MTG,CAB,UPR RR
(A) H=30.6 		8-94128-501-0 02 1 0210- ●
149 RUBBER; MTG,CAB,UPR RR
(C) 		8-97086-440-3 02 1 0210-0612 ●
149 RUBBER; MTG,CAB,UPR RR
(C) 		8-98038-868-0 02 1 0701- ●
150 BOLT; CAB MTG RR
(A) 		0-10806-690-0 02 1 9704-9705 ●
150 BOLT; CAB MTG RR
(A) 		0-28881-690-0 02 1 9706-0209 ●
150 BOLT; CAB MTG RR
(A) 		0-28881-690-0 02 1 0210-0512 ● ●
150 BOLT; CAB MTG RR
(A) 		0-28851-690-0 02 1 0601- ● ●
150 BOLT; CAB MTG RR
(B) M10X105 		8-94128-717-1 02 1 0210-0610 ●
150 BOLT; CAB MTG RR
(B) M10X105 		8-98004-320-0 02 1 0611- ●
151 WASHER; CAB MTG,RR UPR
(B) ID=16.4 OD=62 		8-97034-382-0 02 1 9704-0209 ●
151 WASHER; CAB MTG,RR UPR
(B) ID=16.4 OD=62 		8-97034-382-0 02 1 0210-0611 ● ●
151 WASHER; CAB MTG,RR UPR
(B) ID=17 OD=62 		8-97359-042-1 02 1 0612- ● ●
151 WASHER; CAB MTG,RR UPR
(A) ID=16.5 OD=58 		8-97034-383-1 02 1 9704-0209 ●
151 WASHER; CAB MTG,RR UPR
(A) ID=16.5 OD=58 		8-97034-383-1 02 1 0210-0611 ● ●
151 WASHER; CAB MTG,RR UPR
(A) ID=16.5 OD=58 		8-97359-040-1 02 1 0612- ● ●
151 WASHER; CAB MTG,RR UPR
(C) OD=33 ID=10.2 T=3.2 		9-09851-423-0 02 1 0210-0611 ●
151 WASHER; CAB MTG,RR UPR
(C) OD=33 ID=10.2 T=3.2 		8-98004-321-0 02 1 0612- ●
151 WASHER; CAB MTG,RR UPR
(D) ID=14 OD=60 		9-53459-048-0 02 1 0210-0610 ●
151 WASHER; CAB MTG,RR UPR
(D) ID=14 OD=60 		8-98004-322-0 02 1 0611- ●
156 NUT; CAB MTG RR
(A) M16 		9-99111-416-0 02 1 9704-0512 ●
156 NUT; CAB MTG RR
(A) M16 		0-91111-516-0 02 1 0601- ●
156 NUT; CAB MTG RR
(B) M14 FLANGE 		0-91150-114-0 02 1 0210- ●
156 NUT; CAB MTG RR
(C) M10 		9-09110-410-0 04 1 0210-0512 ●
156 NUT; CAB MTG RR
(C) M10 		0-91110-510-0 04 1 0601- ●
157 RUBBER; MTG,CAB,TOP RR 9-53459-603-0 02 1 0210- ●
191 BOLT; BRKT FIX
M12X30 FLANGE 		0-28081-230-0 08 1 9704-9704 ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28681-235-0 08 1 9705-0209 ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28681-235-0 08 1 0210-0512 ● ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28651-235-0 08 1 0601- ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 08 1 9704-0209 ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 08 1 0210-0602 ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-112-0 08 1 0603- ● ●
199 BRACKET; CAB RR MTG 8-97086-445-2 01 1 9704-0209 ●
199 BRACKET; CAB RR MTG 8-97086-445-2 01 1 0210- ● ●
199 BRACKET; CAB RR MTG 8-97086-447-1 01 1 9704-0209 ●
199 BRACKET; CAB RR MTG 8-97086-447-1 01 1 0210- ● ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28081-020-0 08 1 9704-9704 ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28681-020-0 08 1 9705-0209 ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28681-020-0 08 1 0210-0512 ● ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28651-020-0 08 1 0601- ● ●
çizim 73958
150 151 300 149 199 151 156 199 199 192 191
BalonParca AdiParca NoAdetTipApplied Date A B
149 RUBBER; MTG,CAB,UPR RR
(B) 		8-97086-442-4 02 1 9704- ●
149 RUBBER; MTG,CAB,UPR RR
(D) H=26.5 		5-53459-041-0 02 1 0210- ●
149 RUBBER; MTG,CAB,UPR RR
(A) H=30.6 		8-94128-501-0 02 1 0210- ●
149 RUBBER; MTG,CAB,UPR RR
(C) 		8-97086-440-3 02 1 0210-0612 ●
149 RUBBER; MTG,CAB,UPR RR
(C) 		8-98038-868-0 02 1 0701- ●
150 BOLT; CAB MTG RR
(A) 		0-10806-690-0 02 1 9704-9705 ●
150 BOLT; CAB MTG RR
(A) 		0-28881-690-0 02 1 9706-0209 ●
150 BOLT; CAB MTG RR
(A) 		0-28881-690-0 02 1 0210-0512 ● ●
150 BOLT; CAB MTG RR
(A) 		0-28851-690-0 02 1 0601- ● ●
150 BOLT; CAB MTG RR
(B) M10X105 		8-94128-717-1 02 1 0210-0610 ●
150 BOLT; CAB MTG RR
(B) M10X105 		8-98004-320-0 02 1 0611- ●
151 WASHER; CAB MTG,RR UPR
(B) ID=16.4 OD=62 		8-97034-382-0 02 1 9704-0209 ●
151 WASHER; CAB MTG,RR UPR
(B) ID=16.4 OD=62 		8-97034-382-0 02 1 0210-0611 ● ●
151 WASHER; CAB MTG,RR UPR
(B) ID=17 OD=62 		8-97359-042-1 02 1 0612- ● ●
151 WASHER; CAB MTG,RR UPR
(A) ID=16.5 OD=58 		8-97034-383-1 02 1 9704-0209 ●
151 WASHER; CAB MTG,RR UPR
(A) ID=16.5 OD=58 		8-97034-383-1 02 1 0210-0611 ● ●
151 WASHER; CAB MTG,RR UPR
(A) ID=16.5 OD=58 		8-97359-040-1 02 1 0612- ● ●
151 WASHER; CAB MTG,RR UPR
(C) OD=33 ID=10.2 T=3.2 		9-09851-423-0 02 1 0210-0611 ●
151 WASHER; CAB MTG,RR UPR
(C) OD=33 ID=10.2 T=3.2 		8-98004-321-0 02 1 0612- ●
151 WASHER; CAB MTG,RR UPR
(D) ID=14 OD=60 		9-53459-048-0 02 1 0210-0610 ●
151 WASHER; CAB MTG,RR UPR
(D) ID=14 OD=60 		8-98004-322-0 02 1 0611- ●
156 NUT; CAB MTG RR
(A) M16 		9-99111-416-0 02 1 9704-0512 ●
156 NUT; CAB MTG RR
(A) M16 		0-91111-516-0 02 1 0601- ●
156 NUT; CAB MTG RR
(B) M14 FLANGE 		0-91150-114-0 02 1 0210- ●
156 NUT; CAB MTG RR
(C) M10 		9-09110-410-0 04 1 0210-0512 ●
156 NUT; CAB MTG RR
(C) M10 		0-91110-510-0 04 1 0601- ●
191 BOLT; BRKT FIX
M12X30 FLANGE 		0-28081-230-0 08 1 9704-9704 ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28681-235-0 08 1 9705-0209 ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28681-235-0 08 1 0210-0512 ● ●
191 BOLT; BRKT FIX
M12X35 FLANGE 		0-28651-235-0 08 1 0601- ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 08 1 9704-0209 ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91150-112-0 08 1 0210-0602 ● ●
192 NUT; BRKT FIX
M12 FLANGE 		0-91180-112-0 08 1 0603- ● ●
199 BRACKET; CAB RR MTG 8-97086-445-2 01 1 9704-0209 ●
199 BRACKET; CAB RR MTG 8-97086-445-2 01 1 0210- ● ●
199 BRACKET; CAB RR MTG 8-97086-447-1 01 1 9704-0209 ●
199 BRACKET; CAB RR MTG 8-97086-447-1 01 1 0210- ● ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28081-020-0 08 1 9704-9704 ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28681-020-0 08 1 9705-0209 ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28681-020-0 08 1 0210-0512 ● ●
300 BOLT; MTG RUBBER
M10X20 FLANGE 		0-28651-020-0 08 1 0601- ● ●
çizim 74008
1 7 20 2 1 2 20 7 18 18 18 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET; CAB MTG 8-97033-350-3 01 1 9704-0209 ●
1 BRACKET; CAB MTG 8-97033-350-3 01 1 0210- ● ●
1 BRACKET; CAB MTG 8-97033-348-5 01 1 9704-0209 ●
1 BRACKET; CAB MTG 8-97033-348-5 01 1 0210- ● ●
2 BUSHING; TORSION BAR 8-97061-514-0 02 1 9704-0209 ●
2 BUSHING; TORSION BAR 8-97061-514-0 02 1 0210- ● ●
7 BOLT; BRKT,CAB TILT
M12X40 FLANGE 		8-97036-581-1 08 1 9704-9704 ●
7 BOLT; BRKT,CAB TILT
M12X40 FLANGE 		0-28681-240-0 08 1 9705-0209 ●
7 BOLT; BRKT,CAB TILT
M12X40 FLANGE 		0-28681-240-0 08 1 0210-0512 ● ●
7 BOLT; BRKT,CAB TILT
M12X40 FLANGE 		0-28651-240-0 08 1 0601- ● ●
18 PLATE; MTG BRKT FIX
(B) 		8-97034-139-2 02 1 9704-0209 ●
18 PLATE; MTG BRKT FIX
(B) 		8-97034-139-2 02 1 0210- ● ●
18 PLATE; MTG BRKT FIX
(A) 		8-97034-140-2 02 1 9704-0209 ●
18 PLATE; MTG BRKT FIX
(A) 		8-97034-140-2 02 1 0210- ● ●
20 RUBBER; MTG,CAB BRKT 8-97033-368-2 02 1 9704-0209 ●
20 RUBBER; MTG,CAB BRKT 8-97033-368-3 02 1 0210- ● ●
