◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶
5-01 — FRAME AND OTHER PARTS (#72726) — 76 parça

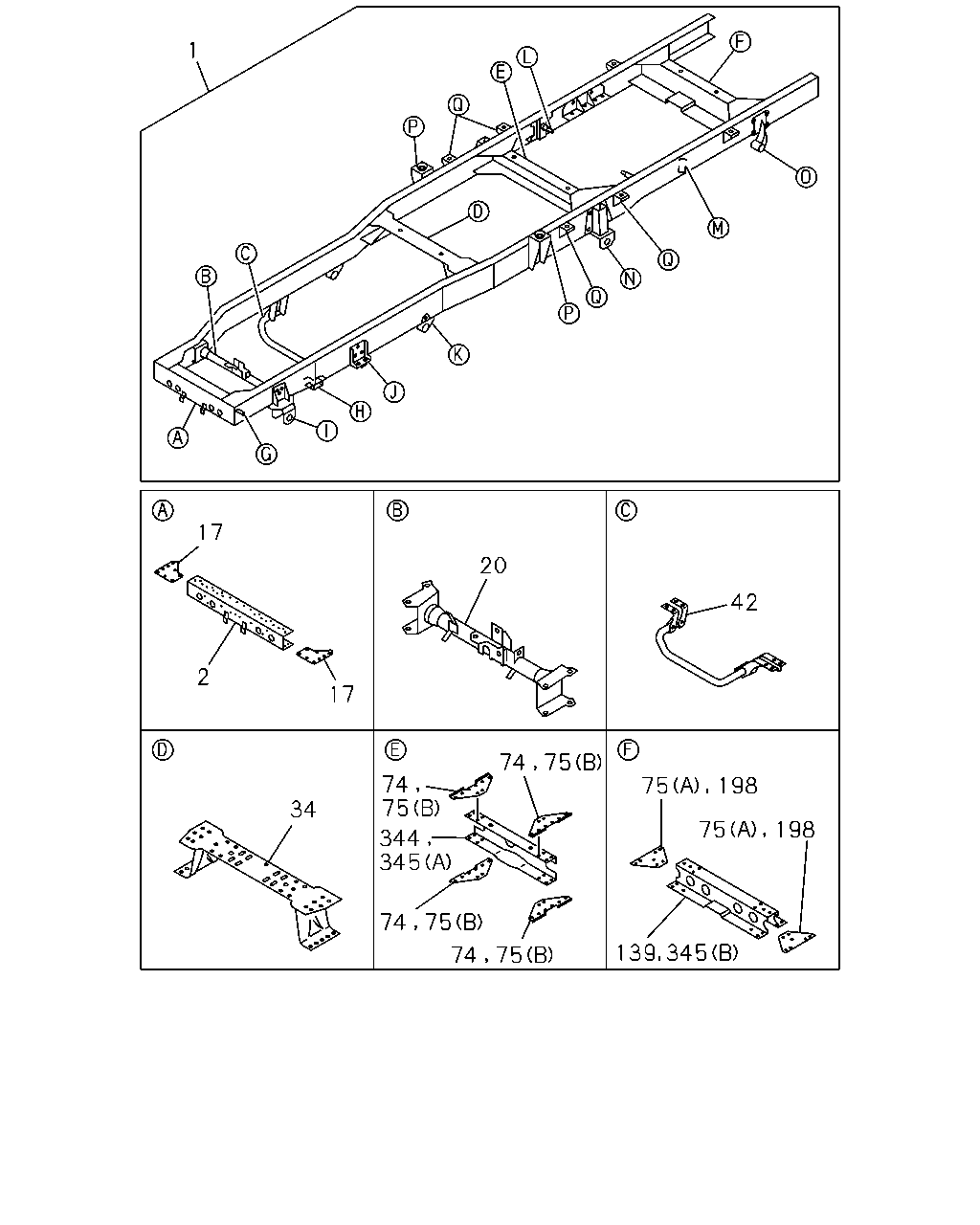

çizim 74033
1 17 20 42 2 17 74 75 75 198 34 75 198 344 345 74 75 74 75 74 75 139 345
BalonParca AdiParca NoAdetTipApplied Date A B
1 FRAME ASM 8-97047-352-1 01 1 9704-0307 ●
1 FRAME ASM 8-97210-887-2 01 1 0308- ●
1 FRAME ASM 8-97089-873-0 01 1 0210-0307 ●
1 FRAME ASM 8-97210-891-2 01 1 0308- ●
2 MEMBER; CROSS,1ST 8-97034-332-2 01 1 9704-0209 ●
2 MEMBER; CROSS,1ST 8-97034-332-2 01 1 0210- ● ●
17 GUSSET; 1ST C/MBR 8-97088-205-1 02 1 9704-0209 ●
17 GUSSET; 1ST C/MBR 8-97088-205-1 02 1 0210- ● ●
20 MEMBER; CROSS,2ND 8-97145-718-0 01 1 9704-0209 ●
20 MEMBER; CROSS,2ND 8-97145-718-0 01 1 0210- ● ●
34 MEMBER; CROSS,3RD 8-97039-670-1 01 1 9704-0209 ●
34 MEMBER; CROSS,3RD 8-97039-670-1 01 1 0210- ● ●
42 MEMBER; CROSS,ENG MTG 8-94246-127-7 01 1 9704-0209 ●
42 MEMBER; CROSS,ENG MTG 8-94246-127-7 01 1 0210- ● ●
74 GUSSET; 4TH C/MBR 8-97062-499-0 02 1 9704-0209 ●
74 GUSSET; 4TH C/MBR 8-97062-499-0 02 1 0210-0307 ● ●
74 GUSSET; 4TH C/MBR 8-97062-499-0 02 1 0308- ●
74 GUSSET; 4TH C/MBR 8-97062-500-0 02 1 9704-0209 ●
74 GUSSET; 4TH C/MBR 8-97062-500-0 02 1 0210-0307 ● ●
74 GUSSET; 4TH C/MBR 8-97062-500-0 02 1 0308- ●
75 GUSSET; 5TH C/MBR
(A) 		8-94258-081-1 02 1 9704-0209 ●
75 GUSSET; 5TH C/MBR
(A) 		8-94258-081-1 02 1 0210-0307 ● ●
75 GUSSET; 5TH C/MBR
(A) 		8-94258-081-1 02 1 0308- ●
75 GUSSET; 5TH C/MBR
(B) 		8-97062-499-0 02 1 0308- ●
75 GUSSET; 5TH C/MBR
(B) 		8-97062-500-0 02 1 0308- ●
139 MEMBER; CROSS,6TH 8-97045-542-2 01 1 0308- ●
198 GUSSET; 6TH C/MBR 8-94258-081-1 02 1 0308- ●
344 MEMBER; CROSS,4TH 8-97076-793-2 01 1 9704-0209 ●
344 MEMBER; CROSS,4TH 8-97076-793-2 01 1 0210-0307 ● ●
344 MEMBER; CROSS,4TH 8-97076-793-2 01 1 0308- ●
345 MEMBER; CROSS,5TH
(B) 		8-97045-542-2 01 1 9704-0209 ●
345 MEMBER; CROSS,5TH
(B) 		8-97045-542-2 01 1 0210-0307 ● ●
345 MEMBER; CROSS,5TH
(B) 		8-97045-542-2 01 1 0308- ●
345 MEMBER; CROSS,5TH
(A) 		8-97076-793-2 01 1 0308- ●
çizim 74098
24 358 63 39 51 140 101 105 142 43 156
BalonParca AdiParca NoAdetTipApplied Date A B
24 BRACKET; FRT SPR,FRT 8-97065-789-1 01 1 9704-0209 ●
24 BRACKET; FRT SPR,FRT 8-97065-789-1 01 1 0210- ● ●
24 BRACKET; FRT SPR,FRT 8-94366-818-1 01 1 9704-0209 ●
24 BRACKET; FRT SPR,FRT 8-94366-818-1 01 1 0210- ● ●
39 BRACKET; FRT SPR,RR 8-94258-091-0 02 1 9704-0209 ●
39 BRACKET; FRT SPR,RR 8-94258-091-0 02 1 0210- ● ●
43 BRACKET; CAB MTG,RR 8-97042-541-0 01 1 0210- ●
43 BRACKET; CAB MTG,RR 8-97042-540-0 01 1 0210- ●
51 BRACKET; ENG SUPPORT,OUTER 8-94258-086-1 02 1 9704-0209 ●
51 BRACKET; ENG SUPPORT,OUTER 8-94258-086-1 02 1 0210- ● ●
63 BRACKET; RAD MTG 8-94257-950-1 01 1 9704-0209 ●
63 BRACKET; RAD MTG 8-94257-950-1 01 1 0210- ● ●
101 BRACKET; RR SPR,FRT 8-94258-093-1 02 1 9704-0209 ●
101 BRACKET; RR SPR,FRT 8-94258-093-1 02 1 0210- ● ●
105 BRACKET; RR SPR,RR 8-94126-621-1 01 1 9704-0209 ●
105 BRACKET; RR SPR,RR 8-94126-621-1 01 1 0210- ● ●
105 BRACKET; RR SPR,RR 8-94126-620-1 01 1 9704-0209 ●
105 BRACKET; RR SPR,RR 8-94126-620-1 01 1 0210- ● ●
140 BRACKET; S/ABS,RR 8-94258-104-1 01 1 9704-0209 ●
140 BRACKET; S/ABS,RR 8-94258-104-1 01 1 0210- ● ●
140 BRACKET; S/ABS,RR 8-94258-103-1 01 1 9704-0209 ●
140 BRACKET; S/ABS,RR 8-94258-103-1 01 1 0210- ● ●
142 BRACKET; FLEX HOSE,BRAKE 8-97047-775-1 01 1 9704-0209 ●
142 BRACKET; FLEX HOSE,BRAKE 8-97047-775-1 01 1 0210- ● ●
156 BRACKET; RR BODY MTG 8-94101-398-1 06 1 0210-0307 ●
156 BRACKET; RR BODY MTG 8-97207-097-0 06 1 0308- ●
358 BRACKET; CAB EARTH 8-97065-790-3 01 1 9704-0209 ●
358 BRACKET; CAB EARTH 8-97065-790-3 01 1 0210-0310 ● ●
358 BRACKET; CAB EARTH 8-97210-488-0 01 1 0311- ● ●
çizim 74258
376 376 376 376 376 376 376 376 376 376 176
BalonParca AdiParca NoAdetTipApplied Date A B
176 BOLT; C/MBR,ENG MTG
M10X25 FLANGE 		0-28081-025-0 08 1 9704-0209 ●
176 BOLT; C/MBR,ENG MTG
M10X25 FLANGE 		0-28081-025-0 08 1 0210-0512 ● ●
176 BOLT; C/MBR,ENG MTG
M10X25 FLANGE 		0-28051-025-0 08 1 0601- ● ●
376 RIVET; FRAME
(A) D8X20 TAPER END 		9-06750-820-0 AR 1 9704- ● ●
376 RIVET; FRAME
(B) D8X22 TAPER END 		9-06750-822-0 AR 1 9704- ● ●
376 RIVET; FRAME
(C) D8X28 TAPER END 		9-06750-828-0 AR 1 9704- ● ●
376 RIVET; FRAME
(D) D10X24 TAPER END 		9-06751-024-0 AR 1 9704- ● ●
376 RIVET; FRAME
(E) D10X26 TAPER END 		9-06751-026-0 AR 1 9704- ● ●
376 RIVET; FRAME
(F) D10X28 TAPER END 		9-06751-028-0 AR 1 9704- ● ●
376 RIVET; FRAME
(G) D10X30 TAPER END 		9-06751-030-0 AR 1 9704- ● ●
376 RIVET; FRAME
(H) D10X32 TAPER END 		9-06751-032-0 AR 1 9704- ● ●
376 RIVET; FRAME
(I) D10X36 TAPER END 		9-06751-036-0 AR 1 9704- ● ●
376 RIVET; FRAME
(J) D12X30 TAPER END 		9-06751-230-0 AR 1 9704- ● ●
