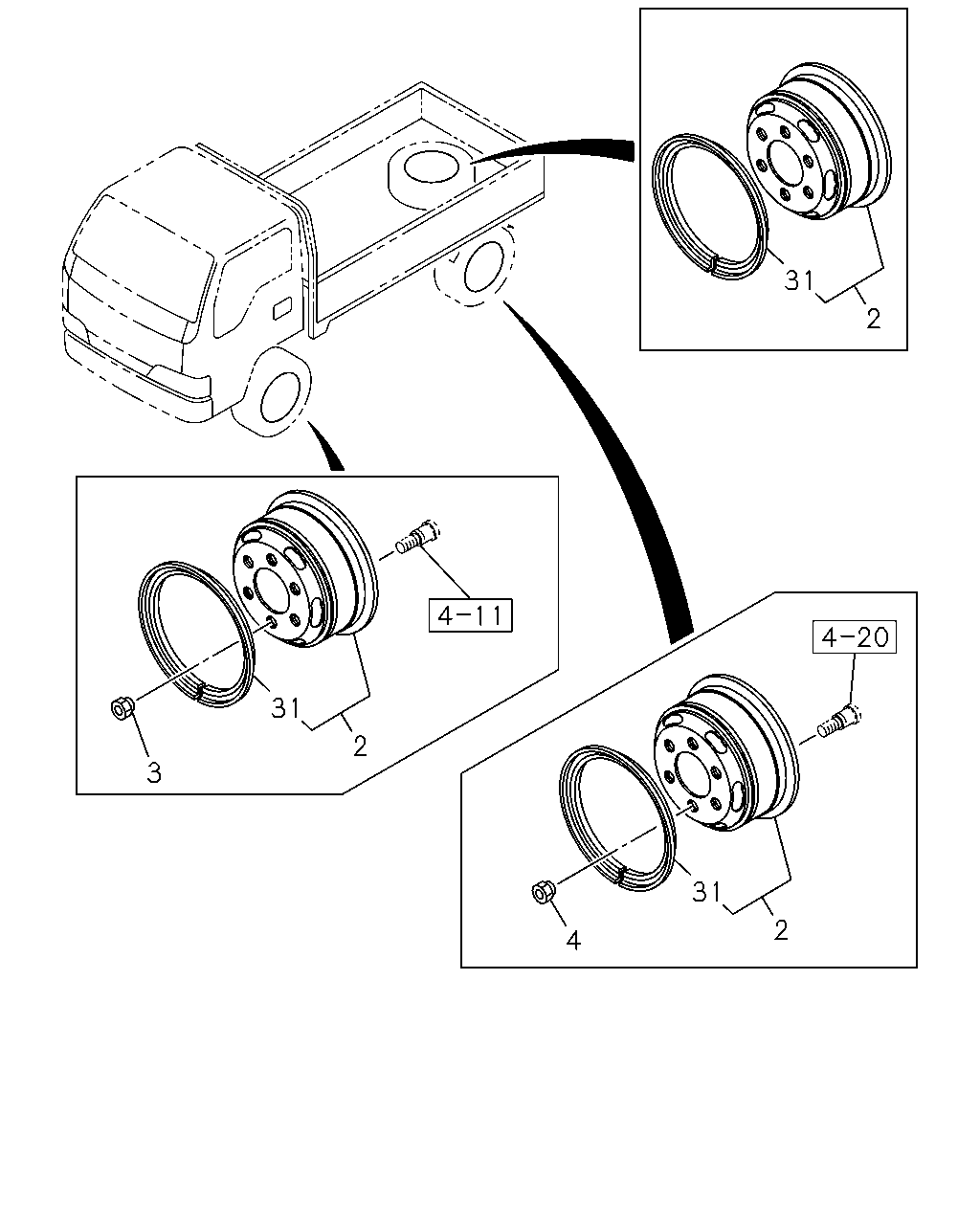

4-80 — ROAD WHEEL (#72725) — 20 parça

31 2 31 2 3 31 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	WHEEL; DISC SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	9704-0209	●
2	WHEEL; DISC SPARE 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	01	1	0210-	●	●
2	WHEEL; DISC FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	9704-0209	●
2	WHEEL; DISC FRONT,REAR 5.5FX15 OFFSET=30 BLACK 6-HOLE	8-94119-944-0	04	1	0210-	●	●
3	NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	9704-0209	●
3	NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0210-0610	●	●
3	NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-	●	●
3	NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	9704-0209	●
3	NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0210-0610	●	●
3	NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-	●	●
4	NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	9704-0209	●
4	NUT; WHEEL,RR AXLE M14 LH THREAD	5-42334-002-0	06	1	0210-0610	●	●
4	NUT; WHEEL,RR AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-	●	●
4	NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	9704-0209	●
4	NUT; WHEEL,RR AXLE M14 RH THREAD	5-42333-008-0	06	1	0210-0610	●	●
4	NUT; WHEEL,RR AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-	●	●
31	RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	9704-0209	●
31	RING; SIDE,DISC WHEEL SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	0210-	●	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	9704-0209	●
31	RING; SIDE,DISC WHEEL FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	0210-	●	●
