4-50 — FRONT SUSPENSION (#72720) — 80 parça

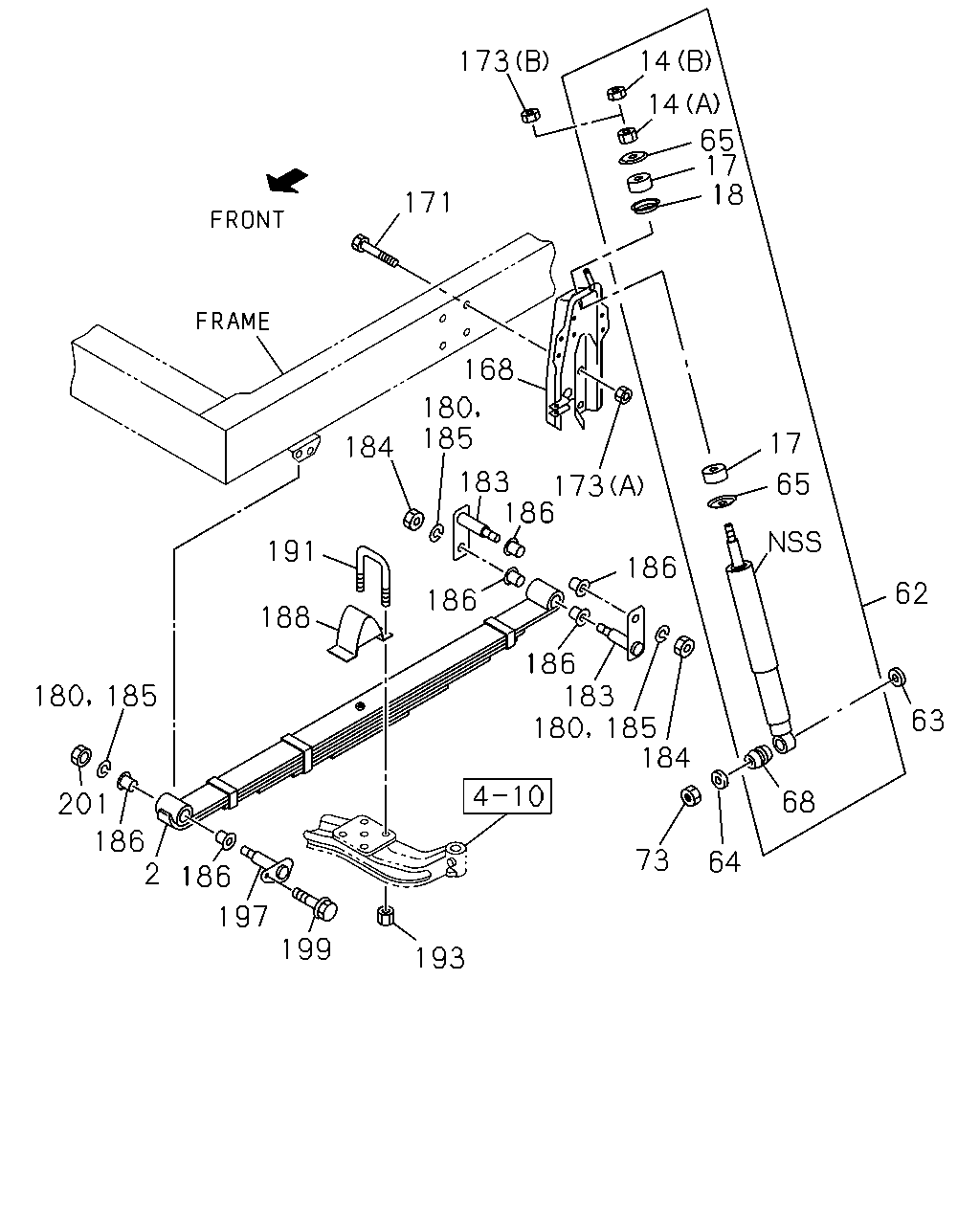

çizim 102692
14 173 14 65 17 18 171 168 180 185 17 184 183 173 186 65 191 186 62 186 188 186 183 184 185 180 63 68 201 186 2 73 64 186 197 199 193 180 185
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-94343-081-1 01 1 9704-0006 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-97260-095-0 01 1 0007-0209 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-97260-095-0 01 1 0210- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-94343-082-1 01 1 9704-0006 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-97260-096-0 01 1 0007-0209 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 5-LEAF 		8-97260-096-0 01 1 0210- ● ●
14 NUT; S/ABS,UPR
(A) M10 		9-09110-410-0 02 1 9704-0003 ●
14 NUT; S/ABS,UPR
(A) M10 		8-94317-772-0 02 1 0004-0209 ●
14 NUT; S/ABS,UPR
(A) M10 		8-94317-772-0 02 1 0210- ● ●
14 NUT; S/ABS,UPR
(B) M10 		9-09111-410-0 02 1 9704-0003 ●
17 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 9704-0209 ●
17 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 0210- ● ●
18 WASHER; CENTERING,S/ABS
ID=13 OD=38 		9-51631-063-0 02 1 9704-0209 ●
18 WASHER; CENTERING,S/ABS
ID=13 OD=38 		9-51631-063-0 02 1 0210- ● ●
62 ABSORBER ASM; SHOCK,FRT 8-97107-983-0 02 1 9704-0003 ●
62 ABSORBER ASM; SHOCK,FRT 8-97253-599-0 02 1 0004-0209 ●
62 ABSORBER ASM; SHOCK,FRT 8-97253-599-1 02 1 0210- ● ●
62 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-151-0 02 1 0210- ● ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		9-09164-616-0 02 1 9704-0209 ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		9-09164-616-0 02 1 0210-1011 ● ●
63 WASHER; PL,S/ABS,LWR
ID=17 OD=32 		0-91614-616-0 02 1 1012- ● ●
64 WASHER; S/ABS,LWR
ID=12.5 		9-51679-022-0 02 1 9704-0209 ●
64 WASHER; S/ABS,LWR
ID=12.5 		9-51679-022-0 02 1 0210- ● ●
65 WASHER; S/ABS
UPPER ID=10.5 OD=38 		9-51631-062-0 04 1 9704-0209 ●
65 WASHER; S/ABS
UPPER ID=10.5 OD=38 		9-51631-062-0 04 1 0210- ● ●
68 BUSHING; S/ABS
TOKICO 		8-94224-694-0 02 1 9704-0209 ●
68 BUSHING; S/ABS
TOKICO 		8-94224-694-0 02 1 0210- ● ●
73 NUT; BRKT,SHOCK
M12 		9-99111-512-0 02 1 9704-0209 ●
73 NUT; BRKT,SHOCK
M12 		9-99111-512-0 02 1 0210-0512 ● ●
73 NUT; BRKT,SHOCK
M12 		0-91111-512-0 02 1 0601- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97045-611-1 01 1 9704-0209 ●
168 BRACKET; S/ABS,FRT SUSP 8-97045-611-1 01 1 0210- ● ●
168 BRACKET; S/ABS,FRT SUSP 8-97045-610-1 01 1 9704-0209 ●
168 BRACKET; S/ABS,FRT SUSP 8-97045-610-1 01 1 0210- ● ●
171 BOLT; S/ABS BRKT
M10X30 		0-20801-030-0 08 1 9704-9704 ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 9704-0209 ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE 		0-28681-030-0 08 1 0210-0512 ● ●
171 BOLT; S/ABS BRKT
M10X30 FLANGE 		0-28651-030-0 08 1 0601- ● ●
173 NUT; S/ABS
(A) BRKT TO FRAME M10 FLANGE 		0-91150-210-0 08 1 9704-0209 ●
173 NUT; S/ABS
(A) BRKT TO FRAME M10 FLANGE 		0-91150-210-0 08 1 0210-0602 ● ●
173 NUT; S/ABS
(A) BRKT TO FRAME M10 FLANGE 		0-91180-210-0 08 1 0603-1403 ● ●
173 NUT; S/ABS
(A) BRKT TO FRAME M10 FLANGE 		0-91180-110-0 08 1 1404- ● ●
173 NUT; S/ABS
(B) S/ABS TO FRAME M10 		9-09111-410-0 02 1 9704-0209 ●
173 NUT; S/ABS
(B) S/ABS TO FRAME M10 		9-09111-410-0 02 1 0210-0306 ● ●
180 WASHER; PL,PIN
ID=16.5 		8-97070-925-1 06 1 9704-9705 ●
183 SHACKLE; FRT SUSP 8-94468-235-2 04 1 9704-0209 ●
183 SHACKLE; FRT SUSP 8-94468-235-2 04 1 0210- ● ●
184 NUT; SHACKLE
M16 		9-99110-416-0 04 1 9704-9705 ●
184 NUT; SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 04 1 9706-0209 ●
184 NUT; SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 04 1 0210-0610 ● ●
184 NUT; SHACKLE
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 04 1 0611- ● ●
184 NUT; SHACKLE
KD PREPARATORY PACK<6HF> M16 		9-99110-416-0 04 1 9706-0209 ●
184 NUT; SHACKLE
KD PREPARATORY PACK<6HF> M16 		9-99110-416-0 04 1 0210-0512 ● ●
184 NUT; SHACKLE
KD PREPARATORY PACK<6HF> M16 		0-91110-516-0 04 1 0601- ● ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-97070-925-1 06 1 9706-0209 ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-97070-925-1 06 1 0210-0611 ● ●
185 WASHER; LK,PIN
KD PREPARATORY PACK<6HF> ID=16.5 		8-98011-489-0 06 1 0612- ● ●
186 BUSHING; SHACKLE
L=38.6 		8-94113-314-2 12 1 9704-0209 ●
186 BUSHING; SHACKLE
L=38.6 		8-94113-314-2 12 1 0210- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94150-265-2 02 1 9704-0209 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 8-94150-265-3 02 1 0210- ● ●
191 U-BOLT; FRT SPR
L=85 		8-94249-417-3 04 1 9704-0104 ●
191 U-BOLT; FRT SPR
L=85 		8-97304-072-0 04 1 0105-0209 ●
191 U-BOLT; FRT SPR
L=85 		8-97304-072-1 04 1 0210- ● ●
193 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 9704-0209 ●
193 NUT; U BOLT
M14 FLANGE 		8-94137-483-0 08 1 0210-0610 ● ●
193 NUT; U BOLT
M14 FLANGE 		8-97360-124-0 08 1 0611- ● ●
197 PIN; FRT SPR,FRT 8-94117-900-1 02 1 9704-0209 ●
197 PIN; FRT SPR,FRT 8-94117-900-1 02 1 0210- ● ●
199 BOLT
M10X22 W/LK WASHER 		0-50041-022-0 02 1 9704-9704 ●
199 BOLT
M10X25 FLANGE 		0-28681-025-0 02 1 9704-0209 ●
199 BOLT
M10X25 FLANGE 		0-28681-025-0 02 1 0210-0512 ● ●
199 BOLT
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
201 NUT; PIN LK
M16 		9-99110-416-0 02 1 9704-9705 ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 02 1 9706-0209 ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97147-389-0 02 1 0210-0610 ● ●
201 NUT; PIN LK
EXC. KD PREPARATORY PACK<6HF> M16 FLANGE 		8-97360-125-0 02 1 0611- ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		9-99110-416-0 02 1 9706-0209 ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		9-99110-416-0 02 1 0210-0512 ● ●
201 NUT; PIN LK
KD PREPARATORY PACK<6HF> M16 		0-91110-516-0 02 1 0601- ● ●
