4-42 — POWER STEERING OIL PUMP (#72719) — 119 parça

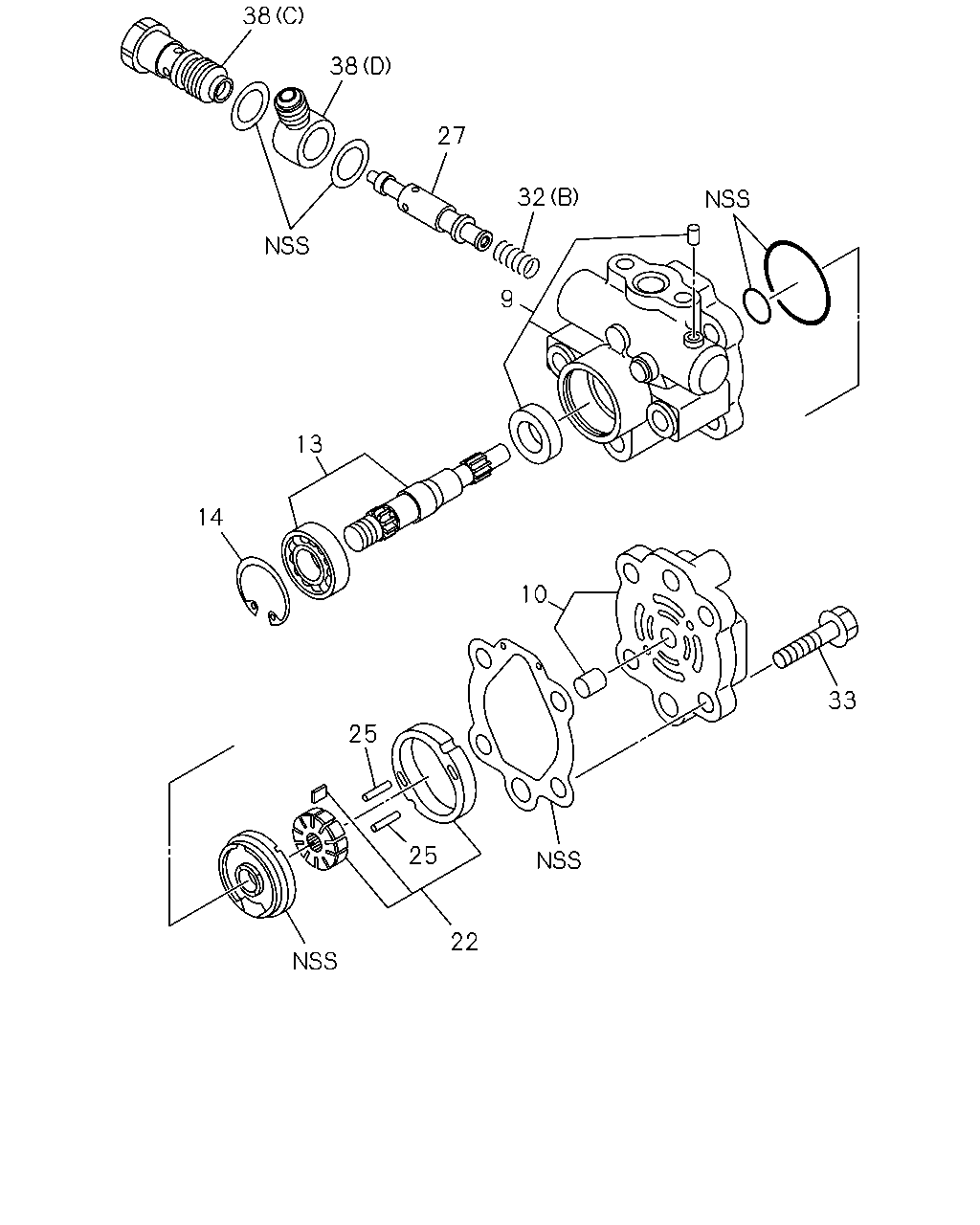

38 38 27 32 9 13 14 25 33 10 25 22 23 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-97084-333-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97247-061-2	8-97246-980-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97354-730-1	8-97354-933-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-140-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-97076-460-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 8-97354-730-1	8-97102-294-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 8-97247-061-2	8-97247-586-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-142-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-97047-208-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 8-97354-730-1	8-97354-935-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 8-98217-772-0	8-98219-139-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: D = 8-97354-730-1, E = 8-98217-772-0	8-97064-620-0	01	1	-
14	RING; RET,OIL PUMP OD=37.8 ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	9-09180-135-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-94475-369-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97247-061-2	8-97247-585-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97354-730-1	8-97313-095-0	01	1	-0808
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98217-772-0	8-97357-499-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97354-730-1	8-97357-499-0	01	1	0809-
23	PLATE; SIDE,OIL PUMP ASM PART: D = 8-97354-730-1	8-97354-679-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-371-0	02	1	-
25	PIN; HSG,P/S ASM PART: D = 8-97354-730-1, E = 8-98217-772-0	8-97081-859-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 8-97354-730-1	8-97094-142-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-136-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 8-97354-730-1	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 8-97354-730-1, E = 8-98217-772-0	8-97064-987-0	01	1	-
33	BOLT; COVER ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-381-1	04	1	-
33	BOLT; COVER ASM PART: D = 8-97354-730-1	8-97064-979-0	04	1	-
33	BOLT; COVER ASM PART: E = 8-98217-772-0	8-97081-847-0	04	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-377-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-94475-382-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: D = 8-97354-730-1	8-97354-941-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: D = 8-97354-730-1	8-97354-943-0	01	1	-
38	CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98217-772-0	8-98219-135-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: E = 8-98217-772-0	8-98219-137-0	01	1	-

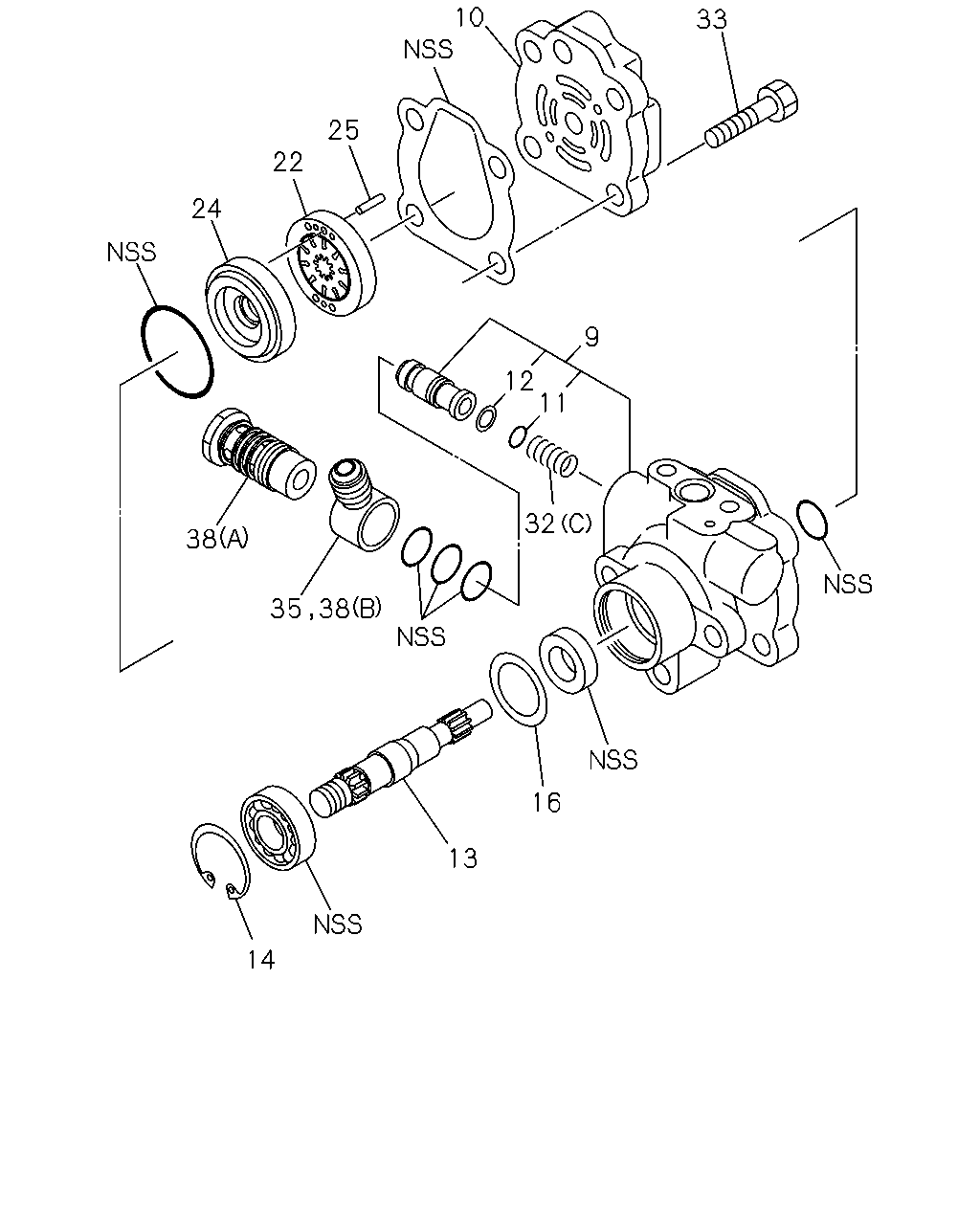

10 33 25 22 24 9 12 11 32 38 16 13 14 35 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-97084-333-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97247-061-2	8-97246-980-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97354-730-1	8-97354-933-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-140-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-97076-460-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 8-97354-730-1	8-97102-294-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 8-97247-061-2	8-97247-586-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-142-0	01	1	-
11	RING; RET,OIL TANK ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94175-185-0	01	1	-
12	FILTER; OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94175-184-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-97047-208-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 8-97354-730-1	8-97354-935-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 8-98217-772-0	8-98219-139-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: D = 8-97354-730-1, E = 8-98217-772-0	8-97064-620-0	01	1	-
14	RING; RET,OIL PUMP OD=37.8 ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	9-09180-135-0	01	1	-
16	RING; RET,OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-374-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-94475-369-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97247-061-2	8-97247-585-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97354-730-1	8-97313-095-0	01	1	-0808
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98217-772-0	8-97357-499-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97354-730-1	8-97357-499-0	01	1	0809-
24	PLATE ASM; THRUST ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-97063-133-0	01	1	-
24	PLATE ASM; THRUST ASM PART: C = 8-97247-061-2	8-97217-284-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-371-0	02	1	-
25	PIN; HSG,P/S ASM PART: D = 8-97354-730-1, E = 8-98217-772-0	8-97081-859-0	02	1	-
32	SPRING; OIL PUMP (C) ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 8-97354-730-1	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 8-97354-730-1, E = 8-98217-772-0	8-97064-987-0	01	1	-
33	BOLT; COVER ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-381-1	04	1	-
33	BOLT; COVER ASM PART: D = 8-97354-730-1	8-97064-979-0	04	1	-
33	BOLT; COVER ASM PART: E = 8-98217-772-0	8-97081-847-0	04	1	-
35	PIPE; HOSE CONN,OIL PUMP ASM PART: C = 8-97247-061-2	8-94475-382-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-377-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-94475-382-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: D = 8-97354-730-1	8-97354-941-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: D = 8-97354-730-1	8-97354-943-0	01	1	-
38	CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98217-772-0	8-98219-135-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: E = 8-98217-772-0	8-98219-137-0	01	1	-

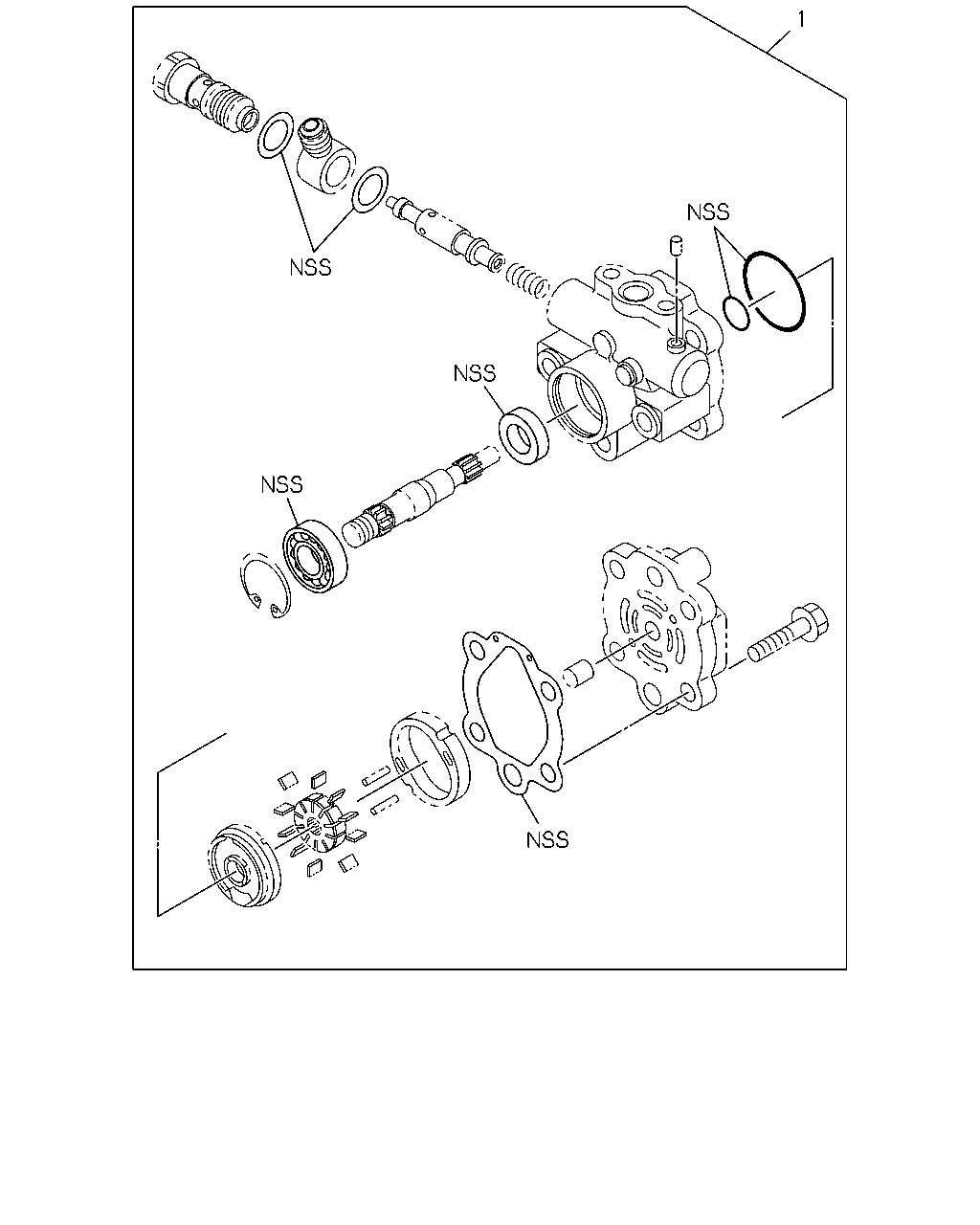

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-97084-209-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97247-061-2	8-97247-588-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 8-97354-730-1	8-97354-944-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-134-0	01	1	-

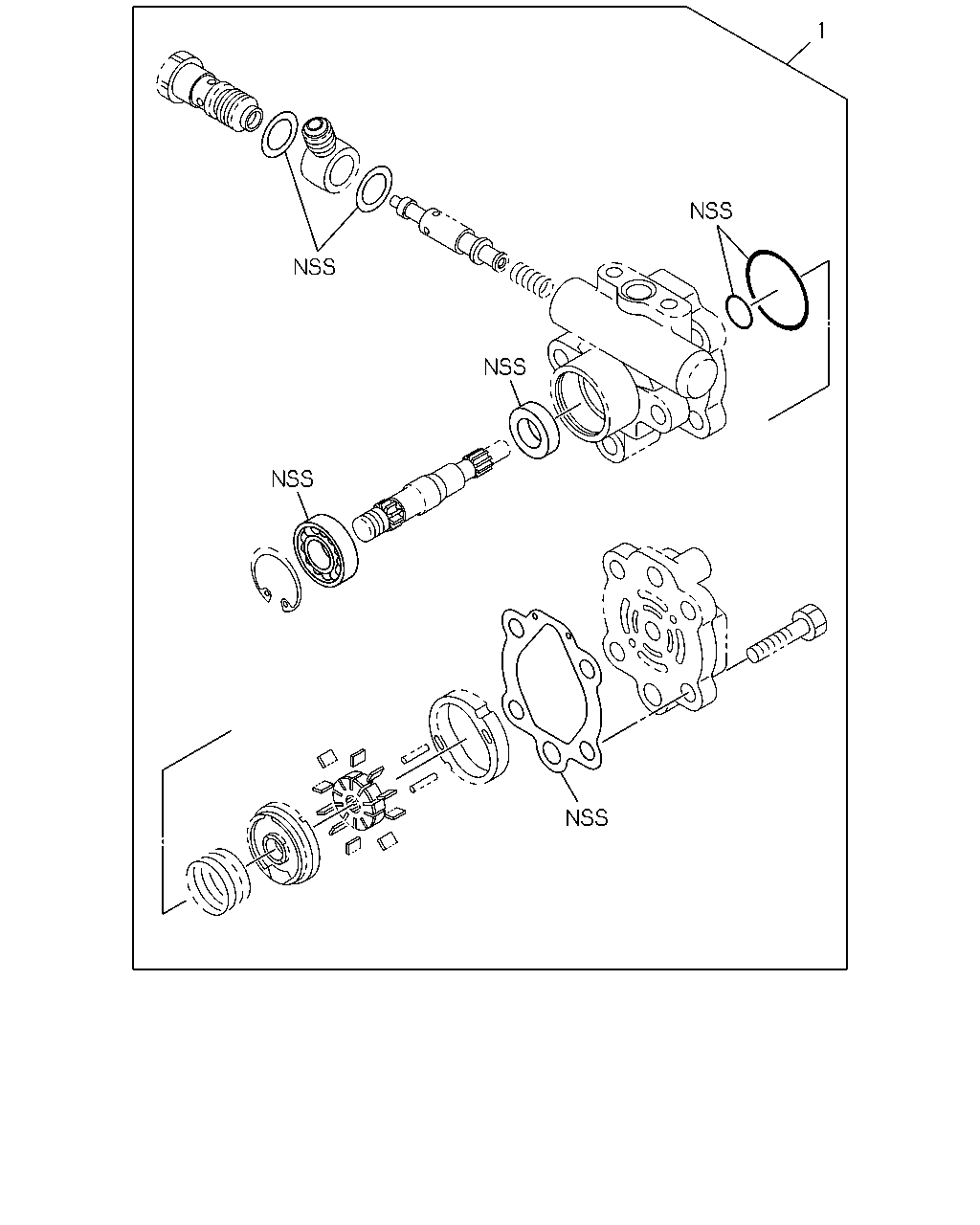

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-97084-209-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97247-061-2	8-97247-588-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 8-97354-730-1	8-97354-944-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-134-0	01	1	-

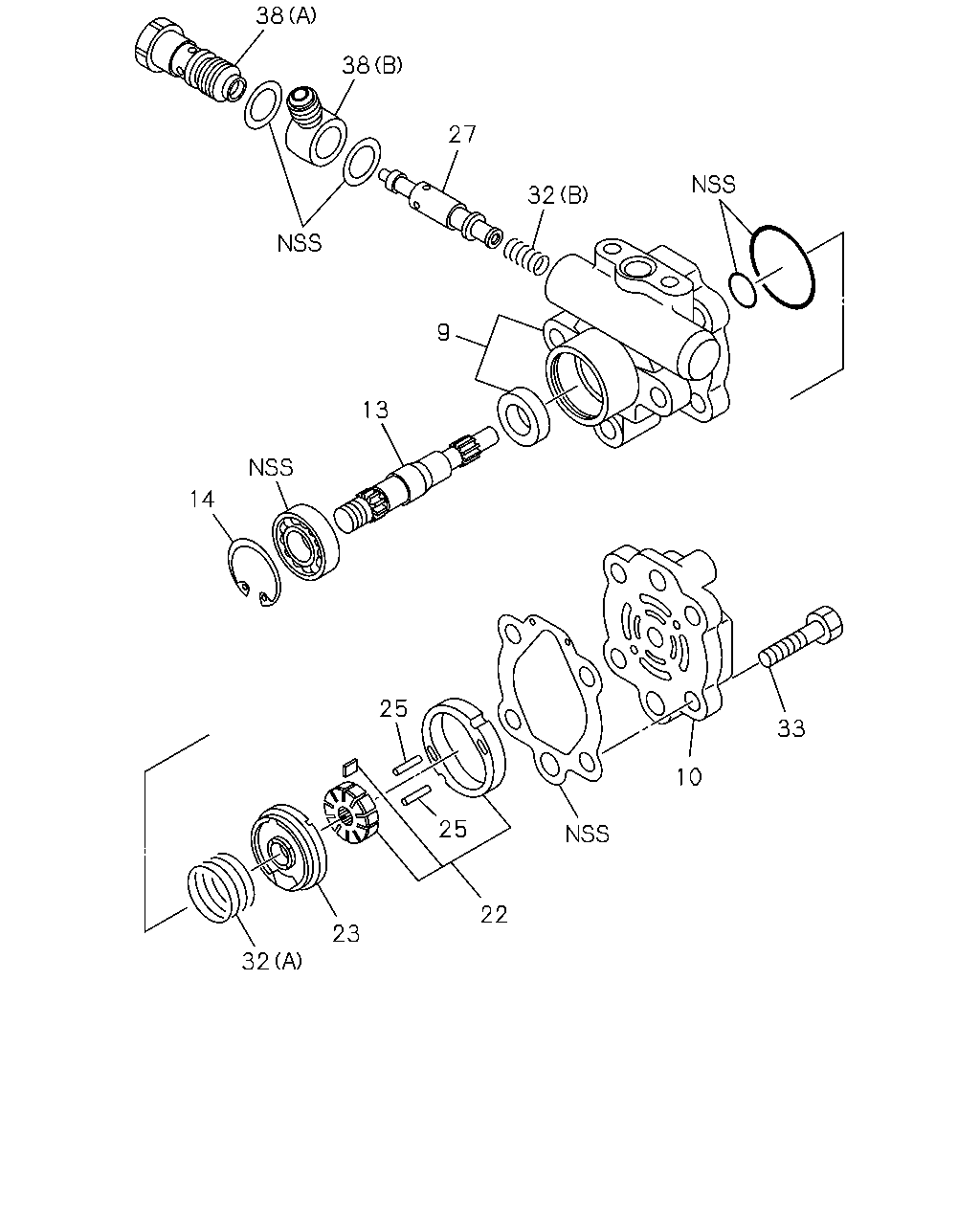

38 38 27 32 9 13 14 10 33 25 25 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-97084-333-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: C = 8-97247-061-2	8-97246-980-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: D = 8-97354-730-1	8-97354-933-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-140-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-97076-460-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: D = 8-97354-730-1	8-97102-294-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: C = 8-97247-061-2	8-97247-586-0	01	1	-
10	BODY ASM; RR,OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-142-0	01	1	-
13	SHAFT KIT; RET ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-97047-208-0	01	1	-
13	SHAFT KIT; RET ASM PART: D = 8-97354-730-1	8-97354-935-0	01	1	-
13	SHAFT KIT; RET ASM PART: E = 8-98217-772-0	8-98219-139-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: D = 8-97354-730-1, E = 8-98217-772-0	8-97064-620-0	01	1	-
14	RING; RET,OIL PUMP OD=37.8 ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	9-09180-135-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-94475-369-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: C = 8-97247-061-2	8-97247-585-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97354-730-1	8-97313-095-0	01	1	-0808
22	CARTRIDGE ASM; OIL PUMP ASM PART: E = 8-98217-772-0	8-97357-499-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: D = 8-97354-730-1	8-97357-499-0	01	1	0809-
25	PIN; HSG,P/S ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-371-0	02	1	-
25	PIN; HSG,P/S ASM PART: D = 8-97354-730-1, E = 8-98217-772-0	8-97081-859-0	02	1	-
27	VALVE ASM; OIL PUMP ASM PART: D = 8-97354-730-1	8-97094-142-0	01	1	-
27	VALVE ASM; OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-136-0	01	1	-
32	SPRING; OIL PUMP (C) ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-376-0	01	1	-
32	SPRING; OIL PUMP (A) ASM PART: D = 8-97354-730-1	8-97064-982-0	01	1	-
32	SPRING; OIL PUMP (B) ASM PART: D = 8-97354-730-1, E = 8-98217-772-0	8-97064-987-0	01	1	-
33	BOLT; COVER ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-381-1	04	1	-
33	BOLT; COVER ASM PART: D = 8-97354-730-1	8-97064-979-0	04	1	-
33	BOLT; COVER ASM PART: E = 8-98217-772-0	8-97081-847-0	04	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: A = 8-97084-207-0, B = 8-97226-344-0, C = 8-97247-061-2	8-94475-377-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-94475-382-0	01	1	-
38	CONNECTOR; OIL PUMP (A) ASM PART: D = 8-97354-730-1	8-97354-941-0	01	1	-
38	CONNECTOR; OIL PUMP (B) ASM PART: D = 8-97354-730-1	8-97354-943-0	01	1	-
38	CONNECTOR; OIL PUMP (D) ASM PART: E = 8-98217-772-0	8-98219-135-0	01	1	-
38	CONNECTOR; OIL PUMP (C) ASM PART: E = 8-98217-772-0	8-98219-137-0	01	1	-

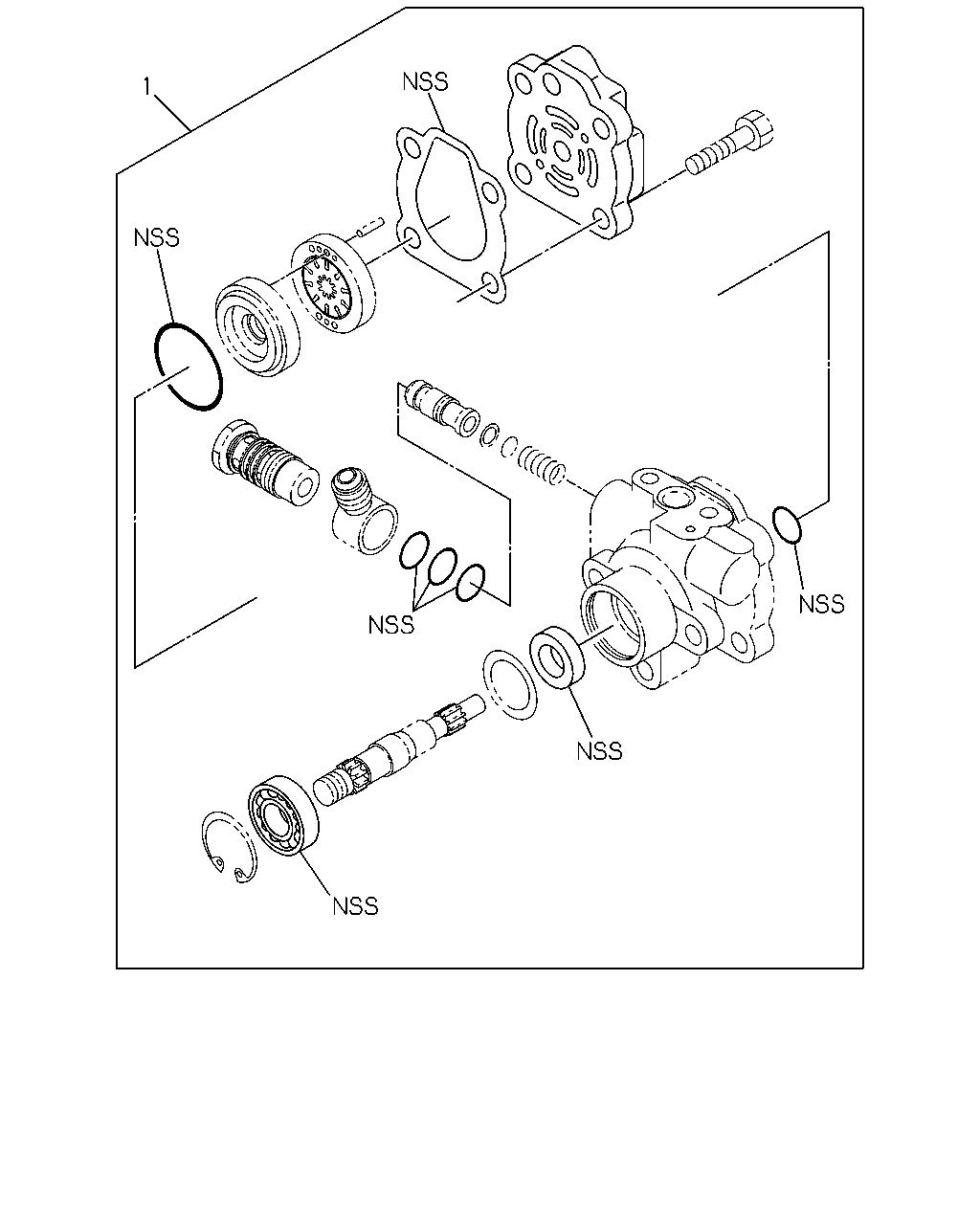

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 8-97084-207-0, B = 8-97226-344-0	8-97084-209-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: C = 8-97247-061-2	8-97247-588-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: D = 8-97354-730-1	8-97354-944-0	01	1	-
1	REPAIR KIT; OIL PUMP ASM PART: E = 8-98217-772-0	8-98219-134-0	01	1	-
