◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#72718) — 141 parça
çizim 73783
59 66 67 44 43 55 9 43 7 14 22 22 8 30 23 25 32 26 19
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-707-0 		9-09924-502-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97076-370-3 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97108-214-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97356-125-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: D = 8-98251-946-0 		8-97356-128-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-707-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: D = 8-98251-946-0 		8-97014-820-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-820-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-820-0 02 1 1112-
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-820-0 01 1 -1111
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97076-374-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97107-730-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97356-104-8, D = 8-98251-946-0 		8-97356-136-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-933-1 01 1 -0702
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-933-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97107-733-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98036-333-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98036-333-0 01 1 0703-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97069-707-0 		5-09811-039-0 02 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97145-739-2, C = 8-97356-104-8, D = 8-98251-946-0 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-707-0 		9-44277-014-0 01 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.515-1.535 ASM PART: A = 8-97069-707-0 		9-44279-008-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.545-1.565 ASM PART: A = 8-97069-707-0 		9-44279-009-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.575-1.595 ASM PART: A = 8-97069-707-0 		9-44279-010-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.605-1.625 ASM PART: A = 8-97069-707-0 		9-44279-011-0 AR 1 -
25 SHIM; ADJ SCREW,STRG UNIT
T=1.635-1.655 ASM PART: A = 8-97069-707-0 		9-44279-012-0 AR 1 -
26 GASKET; COVER,STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97107-737-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-836-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-836-0 04 1 -0702
30 BOLT; COVER STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98036-336-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98036-336-0 04 1 0703-
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: A = 8-97069-707-0 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-834-0 01 1 -0702
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98036-337-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98036-337-0 01 1 0703-
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-707-0 		9-09111-410-0 01 1 -
43 BEARING; WORM SHAFT,STRG UNIT
ASM PART: A = 8-97069-707-0 		8-94128-202-0 02 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 8-97069-707-0 		5-09625-070-0 01 1 -
55 WORM & BALL NUT ASM; STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97108-219-0 01 1 -
59 NUT; COVER STRG UNIT
M7.2 ASM PART: A = 8-97069-707-0 		8-94128-207-0 01 1 -
66 COVER; REAR STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97107-735-0 01 1 -
67 SEAL; OIL,PLUG,STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97107-738-0 01 1 -

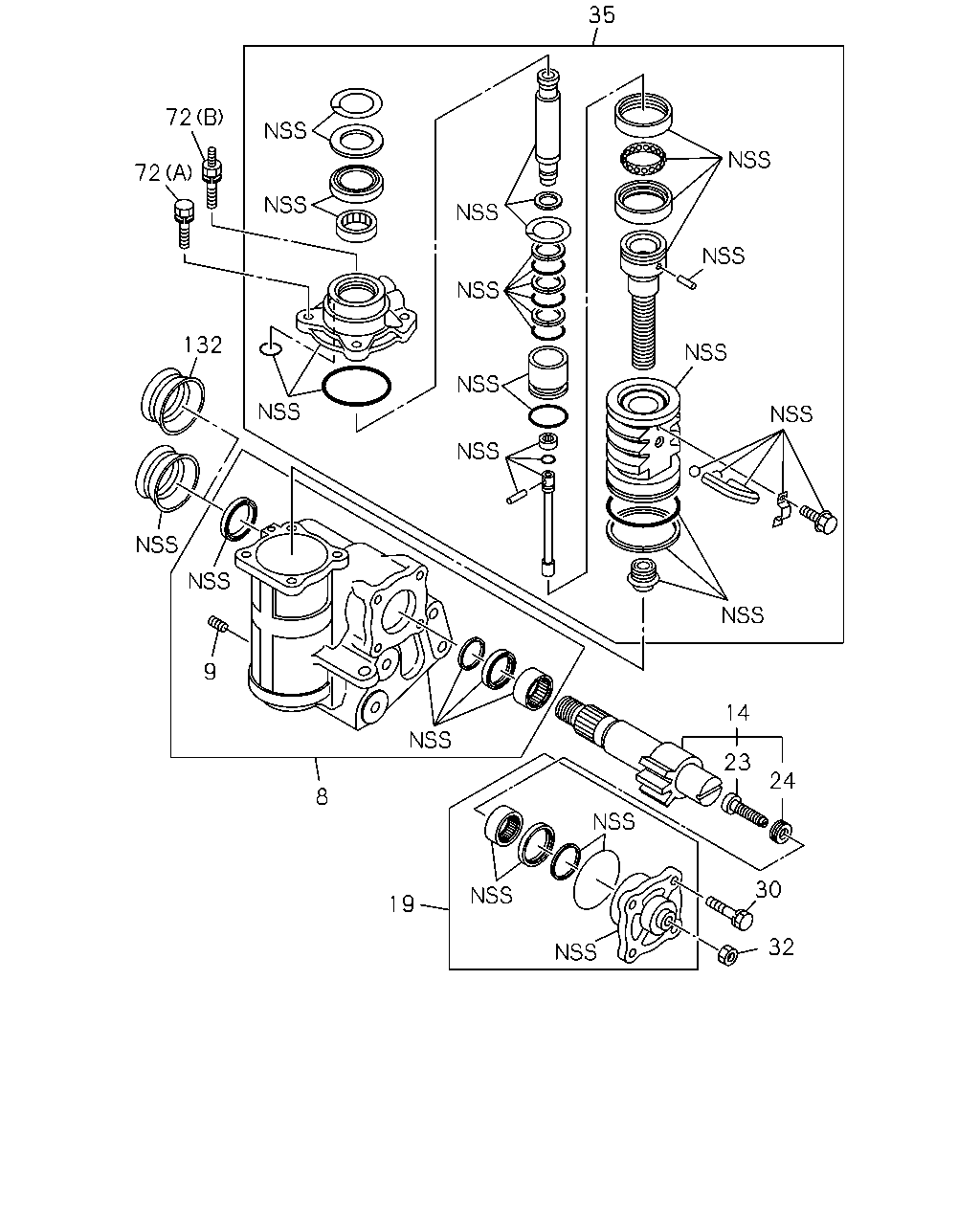

çizim 74227
72 72 132 8 9 19 23 24 30 32 14 35
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97076-370-3 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97108-214-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97356-125-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: D = 8-98251-946-0 		8-97356-128-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-707-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: D = 8-98251-946-0 		8-97014-820-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-820-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-820-0 02 1 1112-
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-820-0 01 1 -1111
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97076-374-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97107-730-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97356-104-8, D = 8-98251-946-0 		8-97356-136-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-933-1 01 1 -0702
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-933-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97107-733-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98036-333-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98036-333-0 01 1 0703-
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97145-739-2, C = 8-97356-104-8, D = 8-98251-946-0 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-707-0 		9-44277-014-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 8-97145-739-2, C = 8-97356-104-8, D = 8-98251-946-0 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-836-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-836-0 04 1 -0702
30 BOLT; COVER STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98036-336-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98036-336-0 04 1 0703-
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: A = 8-97069-707-0 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-834-0 01 1 -0702
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98036-337-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98036-337-0 01 1 0703-
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-707-0 		9-09111-410-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97259-671-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97356-134-1 01 1 -0803
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98112-931-3 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98112-931-3 01 1 0804-
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: B = 8-97145-739-2, C = 8-97356-104-8, D = 8-98251-946-0 		8-97014-835-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: C = 8-97356-104-8 		8-97014-836-0 03 1 -0702
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: B = 8-97145-739-2 		8-97014-836-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: D = 8-98251-946-0 		8-98036-336-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: C = 8-97356-104-8 		8-98036-336-0 03 1 0703-
132 COVER; DUST,STRG UNIT
ASM PART: D = 8-98251-946-0 		8-97076-372-0 01 1 -

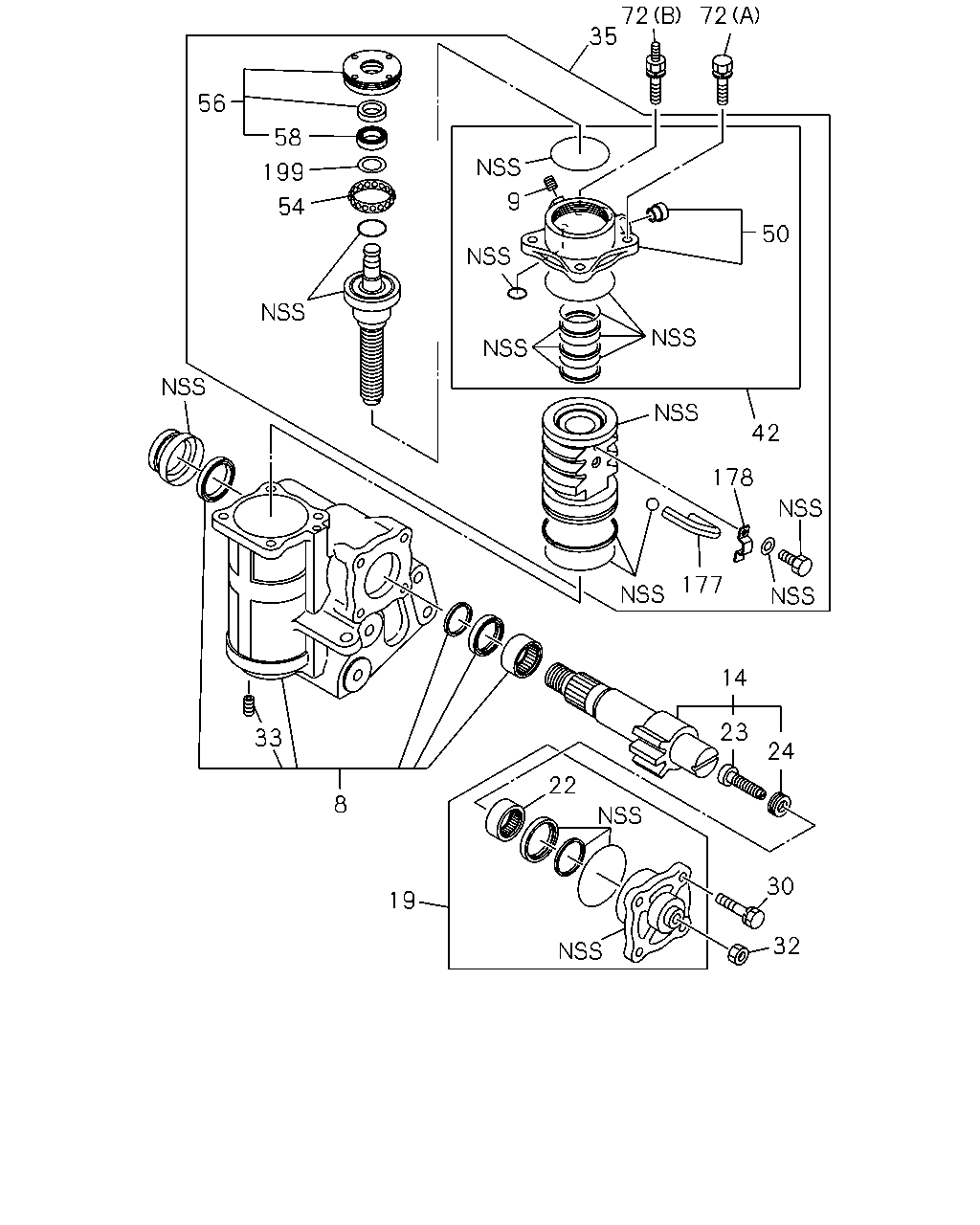

çizim 74257
72 35 72 56 58 199 9 54 42 178 177 14 23 33 24 22 8 30 19 32 50
BalonParca AdiParca NoAdetTipApplied Date
8 BOX ASM; STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97076-370-3 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97108-214-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97356-125-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: D = 8-98251-946-0 		8-97356-128-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 8-97069-707-0 		5-09605-020-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: D = 8-98251-946-0 		8-97014-820-0 02 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-820-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-820-0 02 1 1112-
9 PLUG; FILLER,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-820-0 01 1 -1111
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97076-374-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97107-730-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 8-97356-104-8, D = 8-98251-946-0 		8-97356-136-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-933-1 01 1 -0702
19 COVER; SIDE STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-933-1 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 8-97069-707-0 		8-97107-733-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98036-333-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98036-333-0 01 1 0703-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 8-97069-707-0 		5-09811-039-0 02 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: B = 8-97145-739-2, C = 8-97356-104-8, D = 8-98251-946-0 		8-97014-842-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 8-97069-707-0 		9-44277-014-0 01 1 -
24 RETAINER; STRG UNIT
ASM PART: B = 8-97145-739-2, C = 8-97356-104-8, D = 8-98251-946-0 		8-97014-841-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-836-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-836-0 04 1 -0702
30 BOLT; COVER STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98036-336-0 04 1 -
30 BOLT; COVER STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98036-336-0 04 1 0703-
30 BOLT; COVER STRG UNIT
M10X22 ASM PART: A = 8-97069-707-0 		9-01911-022-0 04 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97014-834-0 01 1 -0702
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-834-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98036-337-0 01 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98036-337-0 01 1 0703-
32 NUT; ADJ SCREW,STRG UNIT
M10 ASM PART: A = 8-97069-707-0 		9-09111-410-0 01 1 -
33 PLUG; DRAIN,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-820-0 02 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97259-671-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97356-104-8 		8-97356-134-1 01 1 -0803
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: D = 8-98251-946-0 		8-98112-931-3 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 8-97356-104-8 		8-98112-931-3 01 1 0804-
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97076-366-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97076-365-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-810-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97076-364-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-812-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(B) ASM PART: B = 8-97145-739-2, C = 8-97356-104-8, D = 8-98251-946-0 		8-97014-835-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: C = 8-97356-104-8 		8-97014-836-0 03 1 -0702
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: B = 8-97145-739-2 		8-97014-836-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: D = 8-98251-946-0 		8-98036-336-0 03 1 -
72 BOLT; HSG FIX STRG UNIT
(A) ASM PART: C = 8-97356-104-8 		8-98036-336-0 03 1 0703-
177 TUBE; BALL BRG STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97077-537-0 02 1 -
178 CLIP; BALL TUBE STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97014-808-0 01 1 -
199 WASHER; WAVE,STRG UNIT
ASM PART: B = 8-97145-739-2 		8-97201-812-0 01 1 -

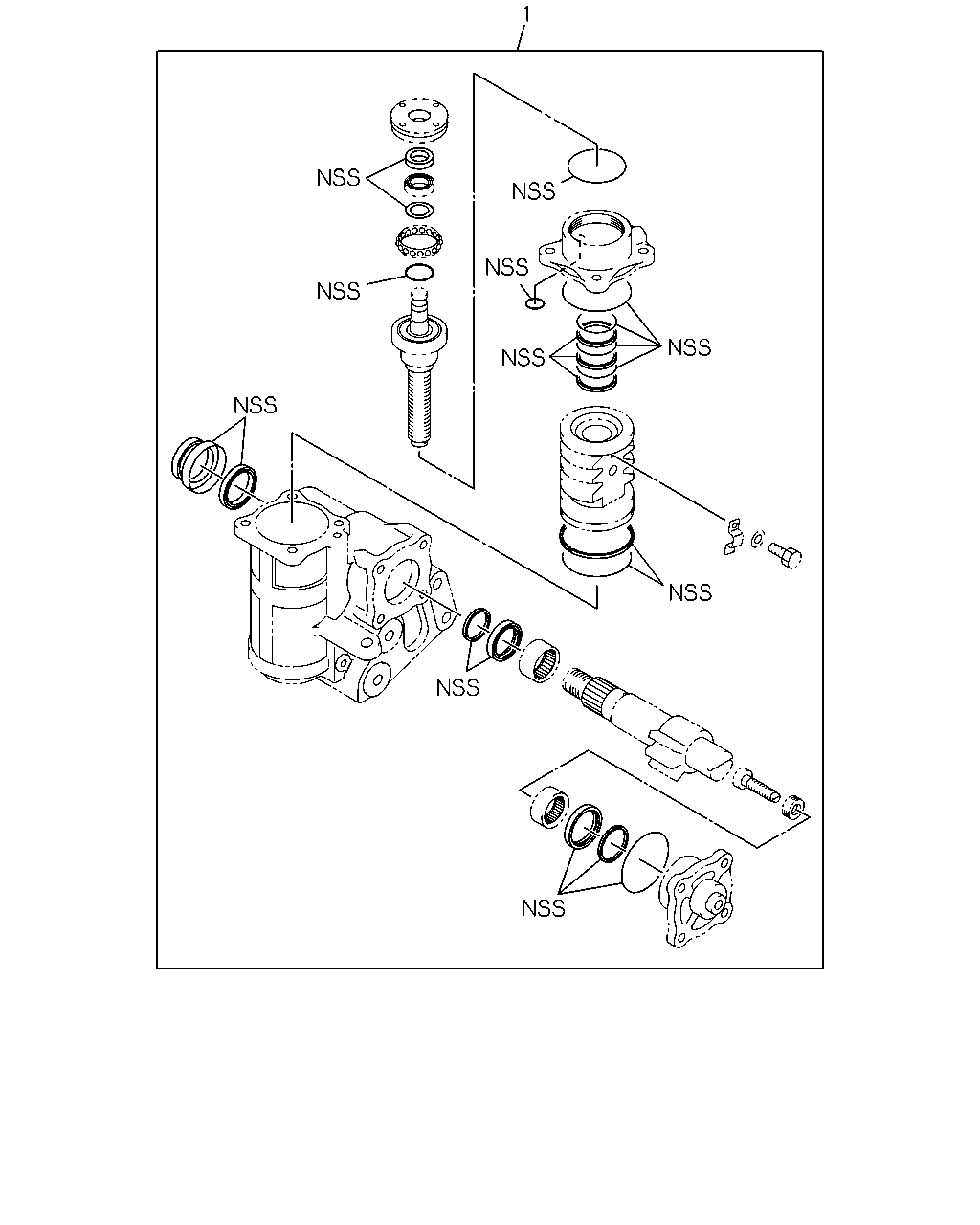

çizim 102665
1
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97145-739-2 		8-97218-602-1 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97356-104-8 		8-97356-138-0 01 1 -1111
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97356-104-8 		8-98171-736-0 01 1 1112-
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: D = 8-98251-946-0 		8-98171-736-0 01 1 -

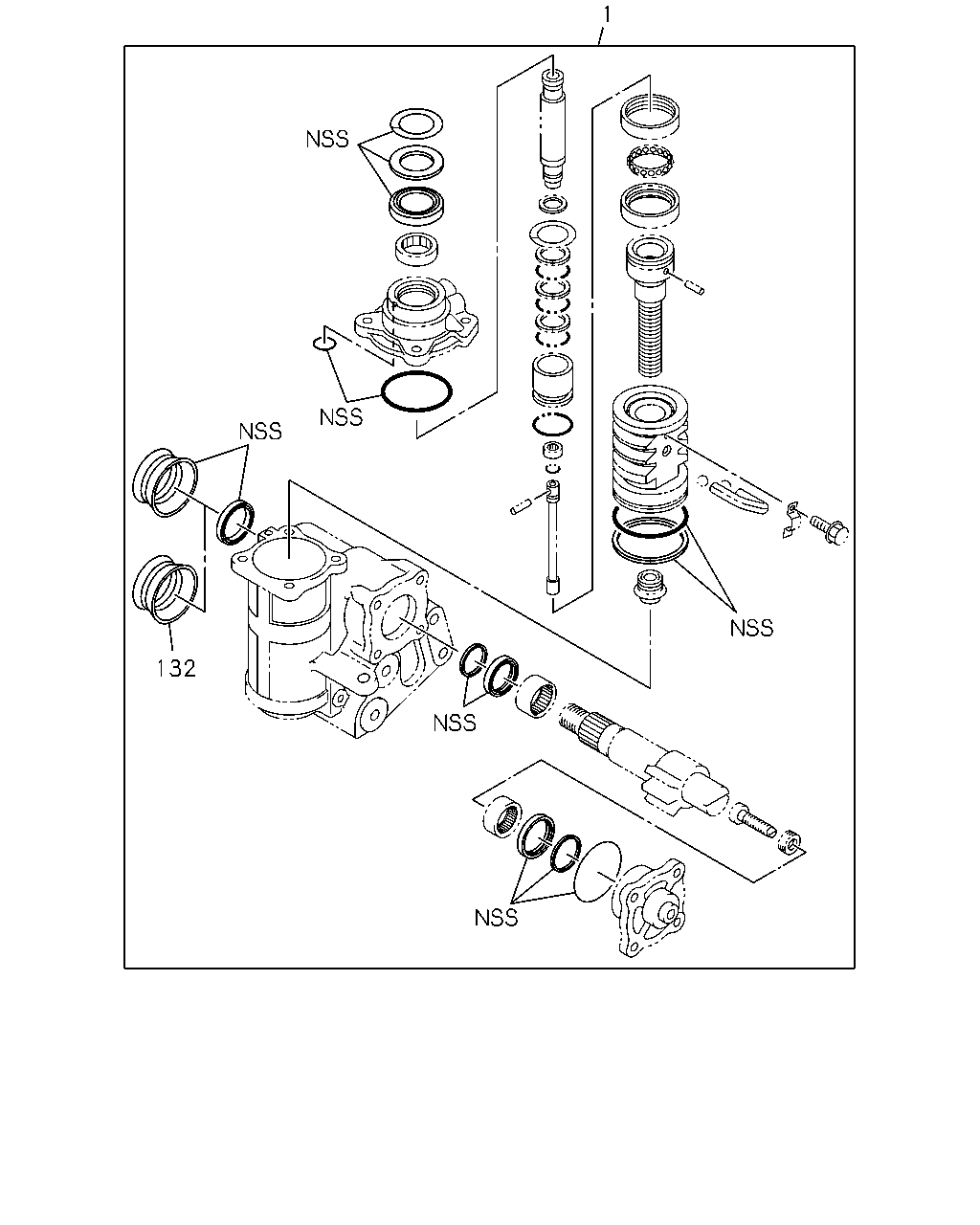

çizim 102669
1 132
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: B = 8-97145-739-2 		8-97218-602-1 01 1 -
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97356-104-8 		8-97356-138-0 01 1 -1111
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: C = 8-97356-104-8 		8-98171-736-0 01 1 1112-
1 REPAIR KIT; STRG UNIT,1 YEAR
ASM PART: D = 8-98251-946-0 		8-98171-736-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: D = 8-98251-946-0 		8-97076-372-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
