◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#72717) — 45 parça

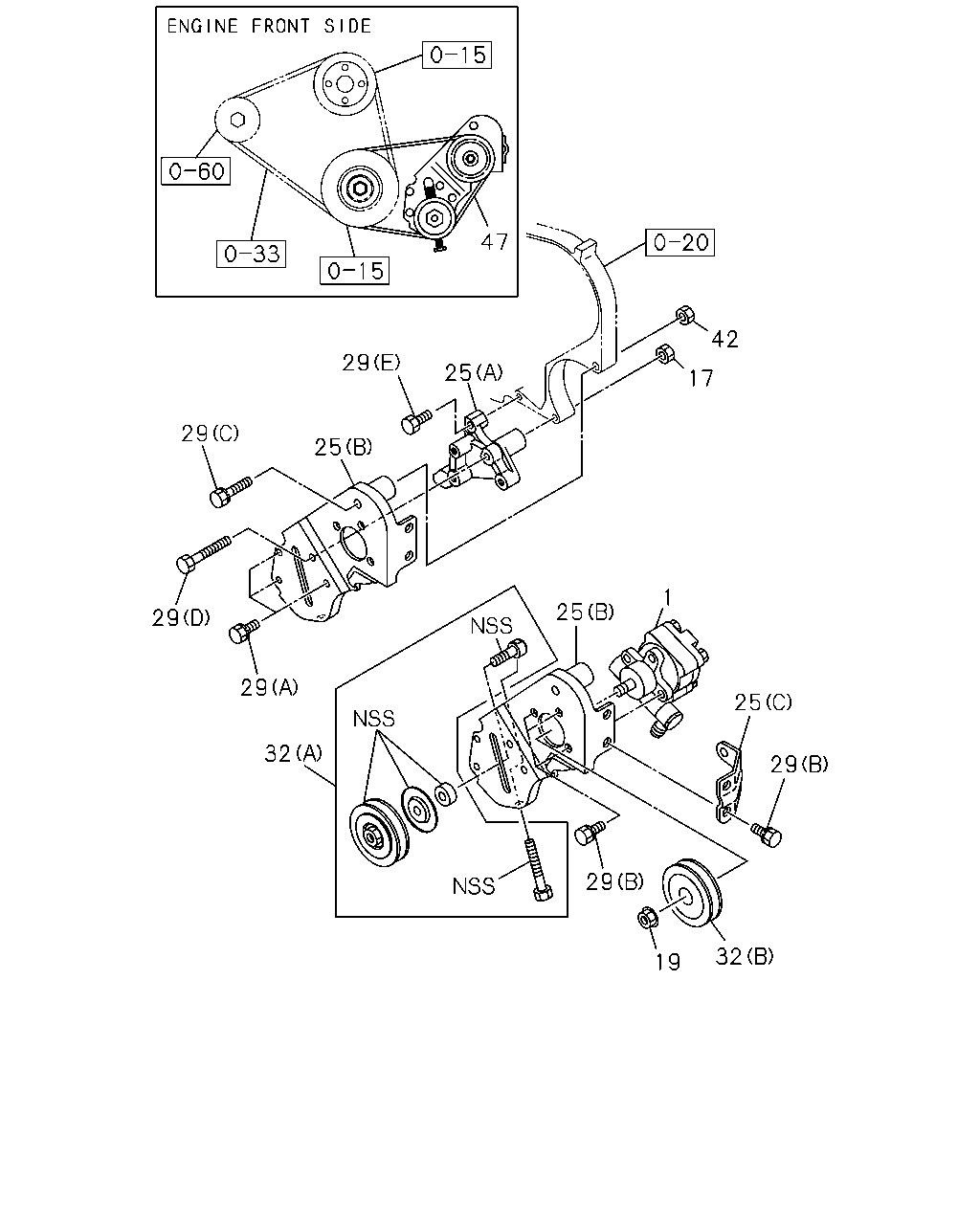

çizim 74256
47 42 29 25 17 29 25 1 25 29 29 25 32 29 29 32 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97084-207-0 01 1 9704-9903 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97226-344-0 01 1 9904-0001 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97247-061-2 01 1 0002-0206 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97354-730-0 01 1 0207-0209 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-97354-730-1 01 1 0210-1303 ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. POWER STEERING<N40> 		8-98217-772-0 01 1 1304- ● ●
17 NUT; POWER STRG PUMP
POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 9704-0209 ●
17 NUT; POWER STRG PUMP
POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 0210-0602 ● ●
17 NUT; POWER STRG PUMP
POWER STEERING<N40> M8 FLANGE 		0-91180-108-0 01 1 0603- ● ●
19 NUT; PULLEY,OIL PUMP
POWER STEERING<N40> M12 		8-94139-015-0 01 1 9704-0209 ●
19 NUT; PULLEY,OIL PUMP
POWER STEERING<N40> M12 		8-94139-015-0 01 1 0210-0610 ● ●
19 NUT; PULLEY,OIL PUMP
POWER STEERING<N40> M12 		8-97360-126-0 01 1 0611- ● ●
25 BRACKET; P/S PUMP
POWER STEERING<N40> (B) 		8-97065-974-0 01 1 9704-0209 ●
25 BRACKET; P/S PUMP
POWER STEERING<N40> (B) 		8-97065-974-0 01 1 0210- ● ●
25 BRACKET; P/S PUMP
POWER STEERING<N40> (A) 		8-97107-869-0 01 1 9704-0209 ●
25 BRACKET; P/S PUMP
POWER STEERING<N40> (A) 		8-97107-869-0 01 1 0210- ● ●
25 BRACKET; P/S PUMP
POWER STEERING<N40> (C) 		8-97107-872-0 01 1 9704-0209 ●
25 BRACKET; P/S PUMP
POWER STEERING<N40> (C) 		8-97107-872-0 01 1 0210- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 9704-0209 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (A) M8X18 W/LK WASHER 		0-50040-818-0 03 1 0210-0909 ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (A) M8X18 W/LK WASHER 		0-50540-818-0 03 1 0910- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 9704-0209 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (C) M10X100 W/LK WASHER 		0-50041-000-0 01 1 0210-0909 ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (C) M10X100 W/LK WASHER 		0-50541-000-0 01 1 0910- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 9704-0209 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (B) M10X20 W/LK WASHER 		0-50041-020-0 05 1 0210-0512 ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (B) M10X20 W/LK WASHER 		0-50541-020-0 05 1 0601- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (D) M8X105 		8-94134-128-1 01 1 9704-0209 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (D) M8X105 		8-94134-128-1 01 1 0210- ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (E) M8X65 W/LK WASHER 		8-94205-986-1 01 1 9704-9903 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (E) M8X60 FLANGE 		0-28080-860-0 01 1 9904-0209 ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (E) M8X60 FLANGE 		0-28080-860-0 01 1 0210-0512 ● ●
29 BOLT; BRKT,POWER STRG
POWER STEERING<N40> (E) M8X60 FLANGE 		0-28050-860-0 01 1 0601- ● ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> (A) 		8-94128-866-0 01 1 9704-0209 ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> (A) 		8-94128-866-0 01 1 0210- ● ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> (B) 		8-97084-332-2 01 1 9704-0209 ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> (B) 		8-97084-332-2 01 1 0210-1303 ● ●
32 PULLEY; IDLER,P/S
POWER STEERING<N40> (B) 		8-98217-771-0 01 1 1304- ● ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M10 FLANGE 		0-91150-110-0 01 1 9704-0209 ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M10 FLANGE 		0-91150-110-0 01 1 0210-0602 ● ●
42 NUT; ADJ PLATE
POWER STEERING<N40> M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
47 BELT; P/S PUMP
POWER STEERING<N40> OD=854 		8-97085-131-0 01 1 9704-0209 ●
47 BELT; P/S PUMP
POWER STEERING<N40> OD=854 		8-97085-131-0 01 1 0210- ● ●
47 BELT; P/S PUMP
POWER STEERING<N40> BEST VALUE PARTS 		5-87610-096-0 01 1 9704-0209 ●
47 BELT; P/S PUMP
POWER STEERING<N40> BEST VALUE PARTS 		5-87610-096-0 01 1 0210- ● ●
