Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#72716) — 224 parça

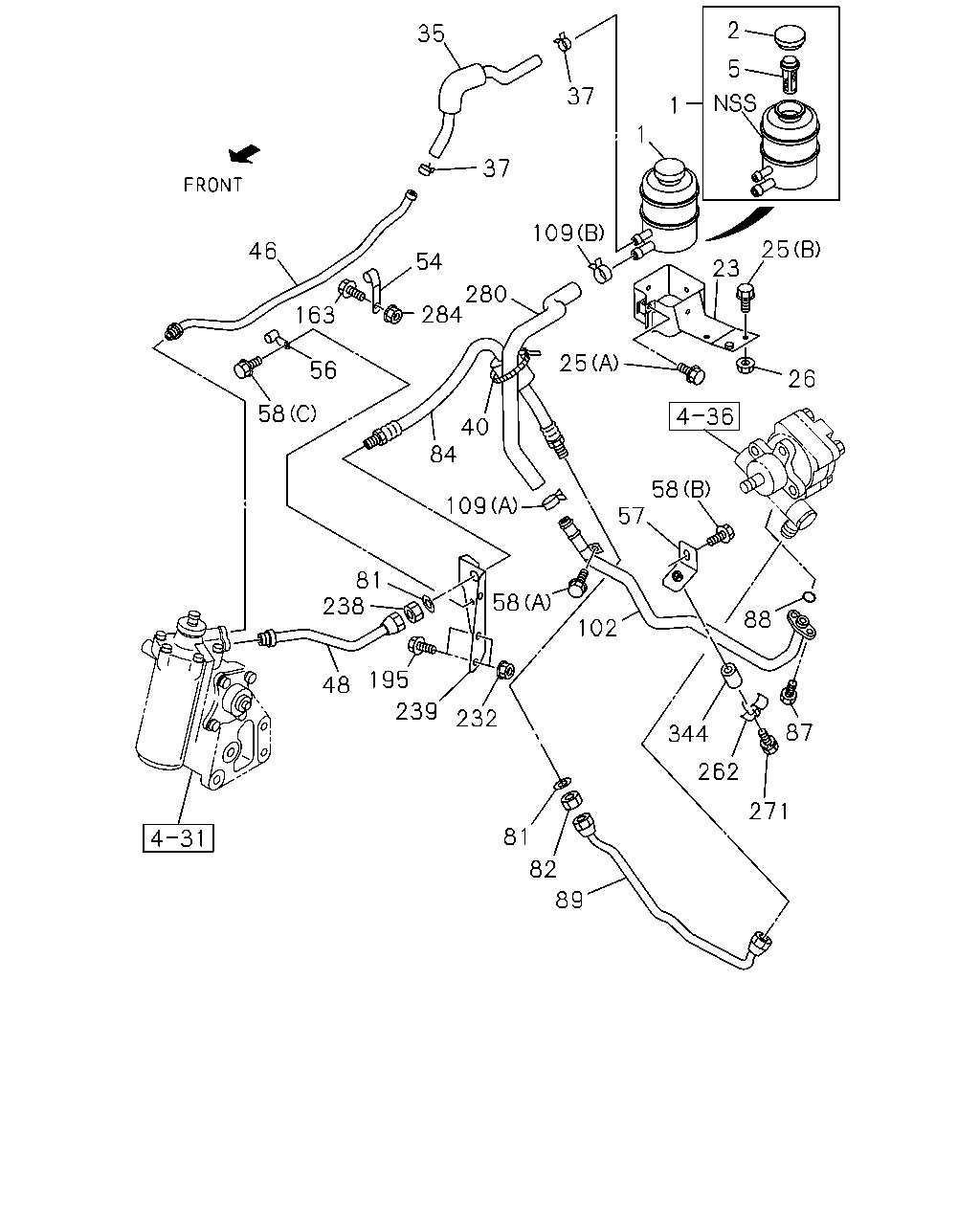

2 35 5 37 1 1 37 109 25 46 54 23 280 284 163 25 56 26 58 40 84 58 57 109 81 238 58 88 102 195 48 239 232 87 344 262 271 81 82 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	9704-0209	●
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0210-	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	9704-0209	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0210-	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	9704-0209	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0210-	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	9704-0209	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0210-1211	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-98215-043-0	01	1	1212-	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28080-825-0	01	1	9704-0209	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28080-825-0	01	1	0210-0512	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	9704-0209	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0210-0512	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●
26	NUT; OIL TANK TO BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9704-0209	●
26	NUT; OIL TANK TO BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0210-0602	●	●
26	NUT; OIL TANK TO BRKT POWER STEERING<N40> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	9704-0209	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	0210-	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	9704-0209	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0210-0911	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-98008-098-0	02	1	0912-	●	●
40	CLIP; BAND POWER STEERING<N40> L=250	5-09707-030-1	01	1	9704-0209	●
40	CLIP; BAND POWER STEERING<N40> L=250	5-09707-030-1	01	1	0210-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97081-442-2	01	1	9704-0209	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97081-442-2	01	1	0210-0307	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-358-0	01	1	0308-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97081-440-2	01	1	9704-0209	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97081-440-2	01	1	0210-0307	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-352-0	01	1	0308-	●	●
54	CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	9704-0209	●
54	CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	0210-	●	●
56	CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	9704-0209	●
56	CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	0210-	●	●
57	BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97101-943-0	01	1	9704-0209	●
57	BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97101-943-0	01	1	0210-0307	●	●
57	BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97312-558-3	01	1	0308-	●	●
58	BOLT; CLIP POWER STEERING<N40> (C) M6X16 FLANGE	0-28280-616-0	01	1	9704-0209	●
58	BOLT; CLIP POWER STEERING<N40> (C) M6X16 FLANGE	0-28280-616-0	01	1	0210-0307	●	●
58	BOLT; CLIP POWER STEERING<N40> (C) M6X16 FLANGE	0-28680-616-0	01	1	0308-0512	●	●
58	BOLT; CLIP POWER STEERING<N40> (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
58	BOLT; CLIP POWER STEERING<N40> (B) M8X20 FLANGE	0-28480-820-0	01	1	9704-9812	●
58	BOLT; CLIP POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-0209	●
58	BOLT; CLIP POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0210-	●	●
58	BOLT; CLIP POWER STEERING<N40> (A) M6X16	8-94238-894-0	01	1	9704-9903	●
58	BOLT; CLIP POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	9904-0209	●
58	BOLT; CLIP POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	0210-	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9704-0209	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	0210-0603	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0604-	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16	8-94370-339-0	01	1	9704-0209	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16	8-94370-339-0	01	1	0210-	●	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	9704-0209	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	0210-0301	●	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-326-0	01	1	0302-	●	●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X12 W/LK WASHER	0-50040-812-0	02	1	9704-0209	●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X12 W/LK WASHER	0-50040-812-0	02	1	0210-0307	●	●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X12 FLANGE	0-28080-812-0	02	1	0308-0512	●	●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X12 FLANGE	0-28050-812-0	02	1	0601-1303	●	●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X14 FLANGE	8-98219-171-0	02	1	1304-	●	●
88	RING; OIL PIPE POWER STEERING<N40> ID=11.0	9-09561-111-0	01	1	9704-0209	●
88	RING; OIL PIPE POWER STEERING<N40> ID=11.0	9-09561-111-0	01	1	0210-	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97148-571-0	01	1	9704-9811	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97214-442-0	01	1	9812-9903	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97227-155-0	01	1	9904-0209	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97227-155-0	01	1	0210-0307	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97312-556-0	01	1	0308-1303	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-98218-675-0	01	1	1304-	●	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97136-516-0	01	1	9704-9811	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97214-446-0	01	1	9812-9812	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97223-147-0	01	1	9901-9904	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97226-682-0	01	1	9905-0209	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97226-682-0	01	1	0210-0307	●	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97312-557-1	01	1	0308-1303	●	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-98218-669-0	01	1	1304-	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9704-0209	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0210-0911	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	9704-0209	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	0210-1003	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X20 FLANGE	0-28080-820-0	01	1	9704-0209	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X20 FLANGE	0-28080-820-0	01	1	0210-0307	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0308-0512	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	9704-0209	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0210-0512	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	02	1	9704-0209	●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	9704-0209	●
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	0210-	●	●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	9704-0209	●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	0210-	●	●
262	CLIP; P/S PIPE POWER STEERING<N40>	8-94154-657-1	01	1	9704-9811	●
262	CLIP; P/S PIPE POWER STEERING<N40>	8-97214-447-1	01	1	9812-0209	●
262	CLIP; P/S PIPE POWER STEERING<N40>	8-97214-447-1	01	1	0210-0307	●	●
262	CLIP; P/S PIPE POWER STEERING<N40>	8-97300-961-1	01	1	0308-	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X30 W/LK WASHER	0-50040-830-0	01	1	9704-0209	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X30 W/LK WASHER	0-50040-830-0	01	1	0210-0307	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X40 FLANGE	0-28680-840-0	01	1	0308-0512	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	9704-0209	●
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	0210-	●	●
284	NUT; PIPE POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9704-0209	●
284	NUT; PIPE POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0210-0602	●	●
284	NUT; PIPE POWER STEERING<N40> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
344	PIECE; DISTANCE POWER STEERING<N40>	8-97214-563-0	01	1	9812-0209	●
344	PIECE; DISTANCE POWER STEERING<N40>	8-97214-563-0	01	1	0210-0307	●	●

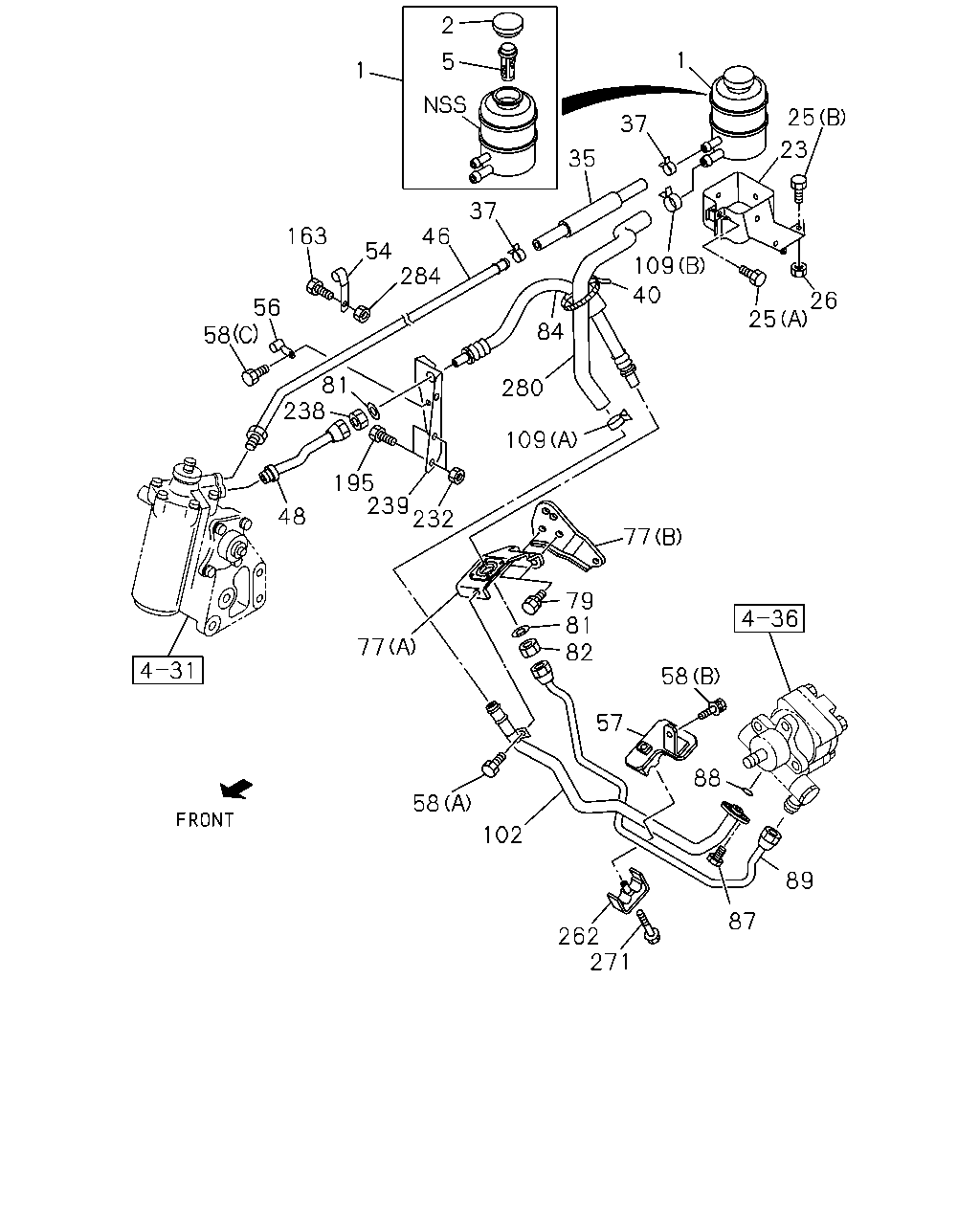

2 1 5 1 25 37 23 35 37 163 46 54 284 109 40 26 56 58 25 84 81 238 280 109 195 239 232 48 77 79 81 82 77 58 57 88 58 102 89 87 262 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	9704-0209	●
1	TANK ASM; OIL,P/S POWER STEERING<N40>	8-97107-987-0	01	1	0210-	●	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	9704-0209	●
2	CAP; OIL TANK,P/S POWER STEERING<N40>	8-94146-153-2	01	1	0210-	●	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	9704-0209	●
5	STRAINER; OIL TANK,P/S POWER STEERING<N40>	8-97094-732-0	01	1	0210-	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	9704-0209	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-97066-500-3	01	1	0210-1211	●	●
23	BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-98215-043-0	01	1	1212-	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28080-825-0	01	1	9704-0209	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28080-825-0	01	1	0210-0512	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M8X25 FLANGE	0-28050-825-0	01	1	0601-	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	9704-0209	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28480-620-0	01	1	0210-0512	●	●
25	BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●
26	NUT; OIL TANK TO BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9704-0209	●
26	NUT; OIL TANK TO BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0210-0602	●	●
26	NUT; OIL TANK TO BRKT POWER STEERING<N40> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	9704-0209	●
35	HOSE; RETURN,P/S TANK POWER STEERING<N40>	8-97081-444-3	01	1	0210-	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	9704-0209	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-94238-568-0	02	1	0210-0911	●	●
37	CLIP; HOSE,P/S POWER STEERING<N40> ID=16	8-98008-098-0	02	1	0912-	●	●
40	CLIP; BAND POWER STEERING<N40> L=250	5-09707-030-1	01	1	9704-0209	●
40	CLIP; BAND POWER STEERING<N40> L=250	5-09707-030-1	01	1	0210-	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97081-442-2	01	1	9704-0209	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97081-442-2	01	1	0210-0307	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK POWER STEERING<N40>	8-97364-358-0	01	1	0308-	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97081-440-2	01	1	9704-0209	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97081-440-2	01	1	0210-0307	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT POWER STEERING<N40>	8-97364-352-0	01	1	0308-	●	●
54	CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	9704-0209	●
54	CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94259-342-0	01	1	0210-	●	●
56	CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	9704-0209	●
56	CLIP; OIL PIPE POWER STEERING<N40> ID=11 L=40	8-94123-171-1	01	1	0210-	●	●
57	BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97101-943-0	01	1	9704-0209	●
57	BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97101-943-0	01	1	0210-0307	●	●
57	BRACKET; POWER STRG PIPE POWER STEERING<N40>	8-97312-558-3	01	1	0308-	●	●
58	BOLT; CLIP POWER STEERING<N40> (C) M6X16 FLANGE	0-28280-616-0	01	1	9704-0209	●
58	BOLT; CLIP POWER STEERING<N40> (C) M6X16 FLANGE	0-28280-616-0	01	1	0210-0307	●	●
58	BOLT; CLIP POWER STEERING<N40> (C) M6X16 FLANGE	0-28680-616-0	01	1	0308-0512	●	●
58	BOLT; CLIP POWER STEERING<N40> (C) M6X16 FLANGE	0-28650-616-0	01	1	0601-	●	●
58	BOLT; CLIP POWER STEERING<N40> (B) M8X20 FLANGE	0-28480-820-0	01	1	9704-9812	●
58	BOLT; CLIP POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-0209	●
58	BOLT; CLIP POWER STEERING<N40> (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0210-	●	●
58	BOLT; CLIP POWER STEERING<N40> (A) M6X16	8-94238-894-0	01	1	9704-9903	●
58	BOLT; CLIP POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	9904-0209	●
58	BOLT; CLIP POWER STEERING<N40> (A) M6X20	8-94279-112-0	01	1	0210-	●	●
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40> (B)	8-97075-615-0	01	1	0308-	●	●
77	BRACKET; POWER STEERING HOSE POWER STEERING<N40> (A)	8-97208-424-0	01	1	0308-	●	●
79	BOLT; BRKT POWER STEERING<N40> M8X20 W/LK WASHER	0-50040-820-0	02	1	0308-0909	●	●
79	BOLT; BRKT POWER STEERING<N40> M8X20 W/LK WASHER	0-50540-820-0	02	1	0910-	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	9704-0209	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	02	1	0210-0603	●	●
81	WASHER; LK,FLEX HOSE POWER STEERING<N40> ID=16.5 TOOTH LK INT	0-91541-216-0	02	1	0604-	●	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16	8-94370-339-0	01	1	9704-0209	●
82	NUT; FLEX HOSE,P/S POWER STEERING<N40> M16	8-94370-339-0	01	1	0210-	●	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	9704-0209	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97047-717-4	01	1	0210-0301	●	●
84	HOSE; FLEX,P/S POWER STEERING<N40>	8-97358-326-0	01	1	0302-	●	●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X12 W/LK WASHER	0-50040-812-0	02	1	9704-0209	●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X12 W/LK WASHER	0-50040-812-0	02	1	0210-0307	●	●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X12 FLANGE	0-28080-812-0	02	1	0308-0512	●	●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X12 FLANGE	0-28050-812-0	02	1	0601-1303	●	●
87	BOLT; POWER STRG PIPE POWER STEERING<N40> M8X14 FLANGE	8-98219-171-0	02	1	1304-	●	●
88	RING; OIL PIPE POWER STEERING<N40> ID=11.0	9-09561-111-0	01	1	9704-0209	●
88	RING; OIL PIPE POWER STEERING<N40> ID=11.0	9-09561-111-0	01	1	0210-	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97148-571-0	01	1	9704-9811	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97214-442-0	01	1	9812-9903	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97227-155-0	01	1	9904-0209	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97227-155-0	01	1	0210-0307	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-97312-556-0	01	1	0308-1303	●	●
89	PIPE; OIL,P/S OIL PUMP TO FLEX HOSE POWER STEERING<N40>	8-98218-675-0	01	1	1304-	●	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97136-516-0	01	1	9704-9811	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97214-446-0	01	1	9812-9812	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97223-147-0	01	1	9901-9904	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97226-682-0	01	1	9905-0209	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97226-682-0	01	1	0210-0307	●	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-97312-557-1	01	1	0308-1303	●	●
102	PIPE; SUCTION,P/S POWER STEERING<N40>	8-98218-669-0	01	1	1304-	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9704-0209	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	0210-0911	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (A) ID=21	8-98150-355-0	01	1	0912-	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	9704-0209	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-94382-401-0	01	1	0210-1003	●	●
109	CLIP; RUBBER HOSE POWER STEERING<N40> (B) ID=22	8-97359-141-0	01	1	1004-	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X20 FLANGE	0-28080-820-0	01	1	9704-0209	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X20 FLANGE	0-28080-820-0	01	1	0210-0307	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	01	1	0308-0512	●	●
163	BOLT; OIL PIPE POWER STEERING<N40> M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	9704-0209	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28680-825-0	02	1	0210-0512	●	●
195	BOLT; BRKT POWER STEERING<N40> M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	02	1	9704-0209	●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91150-108-0	02	1	0210-0602	●	●
232	NUT; BRKT POWER STEERING<N40> M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	9704-0209	●
238	NUT; FLEX HOSE POWER STEERING<N40> M16	8-94370-339-0	01	1	0210-	●	●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	9704-0209	●
239	BRACKET; FLEX HOSE POWER STEERING<N40>	8-97089-879-0	01	1	0210-	●	●
262	CLIP; P/S PIPE POWER STEERING<N40>	8-94154-657-1	01	1	9704-9811	●
262	CLIP; P/S PIPE POWER STEERING<N40>	8-97214-447-1	01	1	9812-0209	●
262	CLIP; P/S PIPE POWER STEERING<N40>	8-97214-447-1	01	1	0210-0307	●	●
262	CLIP; P/S PIPE POWER STEERING<N40>	8-97300-961-1	01	1	0308-	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X30 W/LK WASHER	0-50040-830-0	01	1	9704-0209	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X30 W/LK WASHER	0-50040-830-0	01	1	0210-0307	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X40 FLANGE	0-28680-840-0	01	1	0308-0512	●	●
271	BOLT; P/S OIL PIPE FIX POWER STEERING<N40> M8X40 FLANGE	0-28650-840-0	01	1	0601-	●	●
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	9704-0209	●
280	HOSE; P/S OIL PUMP,INL POWER STEERING<N40>	8-97062-797-1	01	1	0210-	●	●
284	NUT; PIPE POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	9704-0209	●
284	NUT; PIPE POWER STEERING<N40> M8 FLANGE	0-91150-108-0	01	1	0210-0602	●	●
284	NUT; PIPE POWER STEERING<N40> M8 FLANGE	0-91180-108-0	01	1	0603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
