◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-31 - STEERING COLUMN AND SHAFT ▶
4-31 — STEERING COLUMN AND SHAFT (#72714) — 300 parça

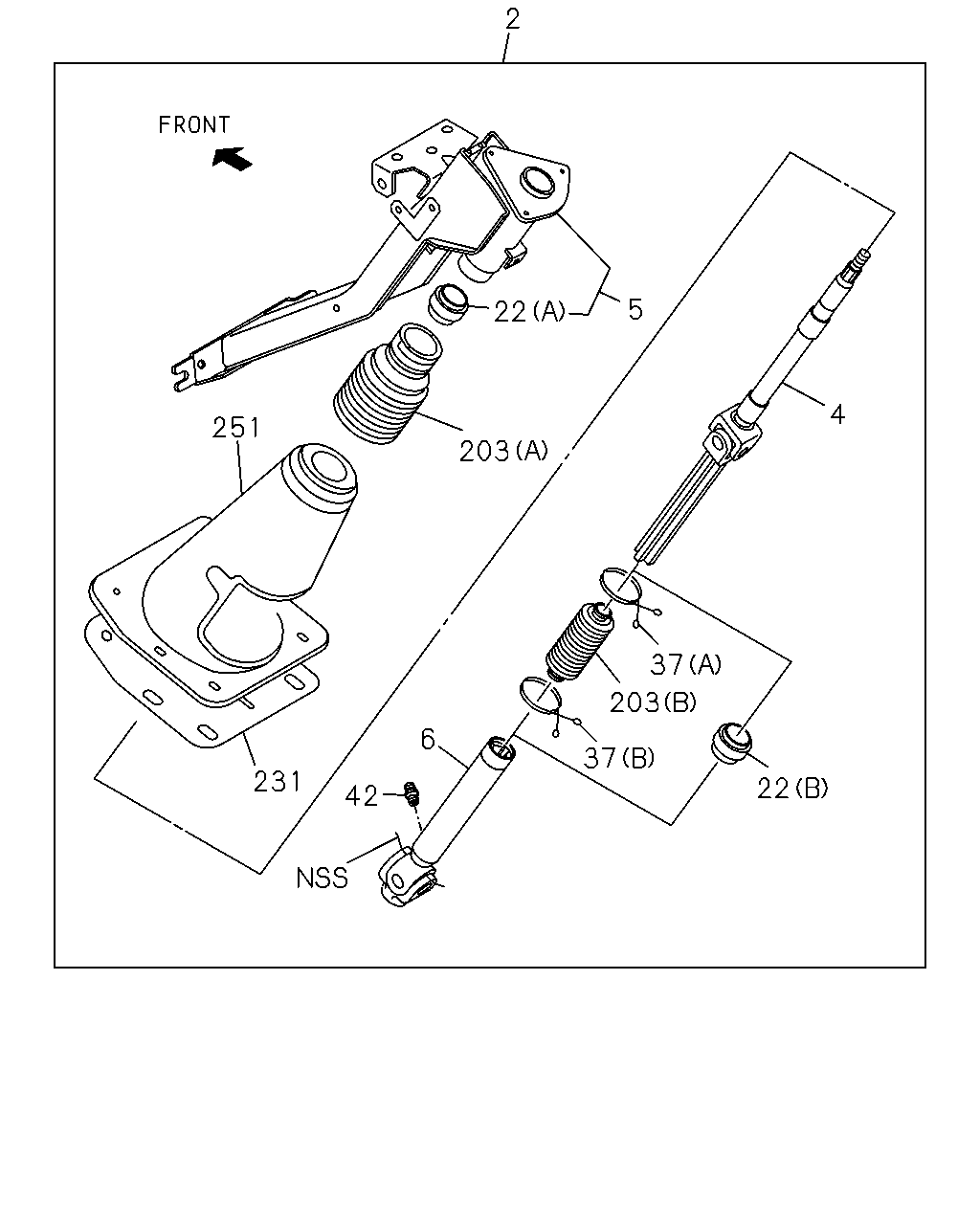

çizim 73369
2 5 22 4 251 203 37 203 6 37 231 22 42
BalonParca AdiParca NoAdetTipApplied Date A B
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-1 01 1 9704-9812 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97291-632-0 01 1 9901-0110 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0111-0209 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0210-0404 ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405- ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-804-1 01 1 9704-9812 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97291-628-0 01 1 9901-0110 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0111-0209 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0210-0404 ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405- ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-974-0 01 1 9704-0207 ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97394-787-1 01 1 0208-0209 ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97394-787-1 01 1 0210-0307 ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0308-0311 ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404 ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0405- ● ●
4 SHAFT; STRG
TILT STEERING<N33> 		8-97096-763-0 01 1 9704-9712 ●
4 SHAFT; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97201-106-0 01 1 9801-9812 ●
4 SHAFT; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97201-110-0 01 1 9801-9812 ●
4 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 9901-0209 ●
4 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 0210-0311 ● ●
4 SHAFT; STRG 8-97201-110-1 01 1 0312-0404 ● ●
4 SHAFT; STRG 8-97378-634-0 01 1 0405- ● ●
4 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 9704-0207 ●
4 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0208-0209 ●
4 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0210-0311 ● ●
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9704-0209 ●
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0210- ● ●
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 9704-0209 ●
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0210- ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97173-626-0 01 1 9704-0209 ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97173-626-0 01 1 0210-0311 ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0312- ● ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97094-625-1 01 1 9704-9712 ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 9801-0209 ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0210-0311 ● ●
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404 ● ●
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405- ● ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9704-0207 ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208-0209 ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0210-0311 ● ●
22 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405- ● ●
22 BUSHING; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-821-0 01 1 9704-0209 ●
22 BUSHING; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-821-0 01 1 0210-0311 ● ●
22 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0312- ● ●
22 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> (A) 		8-97201-085-0 01 1 9704-0207 ●
37 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (B) LOWER 		8-94165-569-0 01 1 9704-9812 ●
37 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (A) UPPER 		8-94165-570-0 01 1 9704-9812 ●
37 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9704-9812 ●
37 CLAMP; BOOT TO SHAFT
(A),(B) 		8-97173-630-0 02 1 9901-0209 ●
37 CLAMP; BOOT TO SHAFT
(A),(B) 		8-97173-630-0 02 1 0210-0404 ● ●
42 NIPPLE; GREASE,SLEEVE YOKE
EXC. TILT STEERING<N33> 		8-97178-201-0 01 1 0208-0209 ●
42 NIPPLE; GREASE,SLEEVE YOKE
EXC. TILT STEERING<N33> 		8-97178-201-0 01 1 0210-0311 ● ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-94159-074-0 01 1 9704-9712 ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 9801-0209 ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 0210-0311 ● ●
203 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0312-0404 ● ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (A) 		8-97076-822-0 01 1 9704-0209 ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (A) 		8-97076-822-0 01 1 0210-0311 ● ●
203 BOOT; STRG COLUMN LWR
(A) 		8-97076-822-0 01 1 0312- ● ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97173-631-0 01 1 9704-0207 ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97351-851-0 01 1 0208-0209 ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97351-851-0 01 1 0210-0311 ● ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-97173-632-0 01 1 9704-0209 ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-97173-632-0 01 1 0210-0311 ● ●
231 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 9704-0209 ●
231 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 0210-0311 ● ●
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0312- ● ●
231 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 9704-0209 ●
231 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 0210-0311 ● ●
251 COVER; LWR
TILT STEERING<N33> DARK BEIGE 		8-97157-808-1 01 1 9704-0110 ●
251 COVER; LWR
TILT STEERING<N33> BLACK 		8-97159-168-1 01 1 0111-0209 ●
251 COVER; LWR
TILT STEERING<N33> BLACK 		8-97159-168-1 01 1 0210-0311 ● ●
251 COVER; LWR
BLACK 		8-97159-168-2 01 1 0312- ● ●
251 COVER; LWR
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-976-0 01 1 9704-0209 ●
251 COVER; LWR
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-976-0 01 1 0210-0307 ● ●
251 COVER; LWR
EXC. TILT STEERING<N33> BLACK 		8-97159-175-0 01 1 0308-0311 ● ●

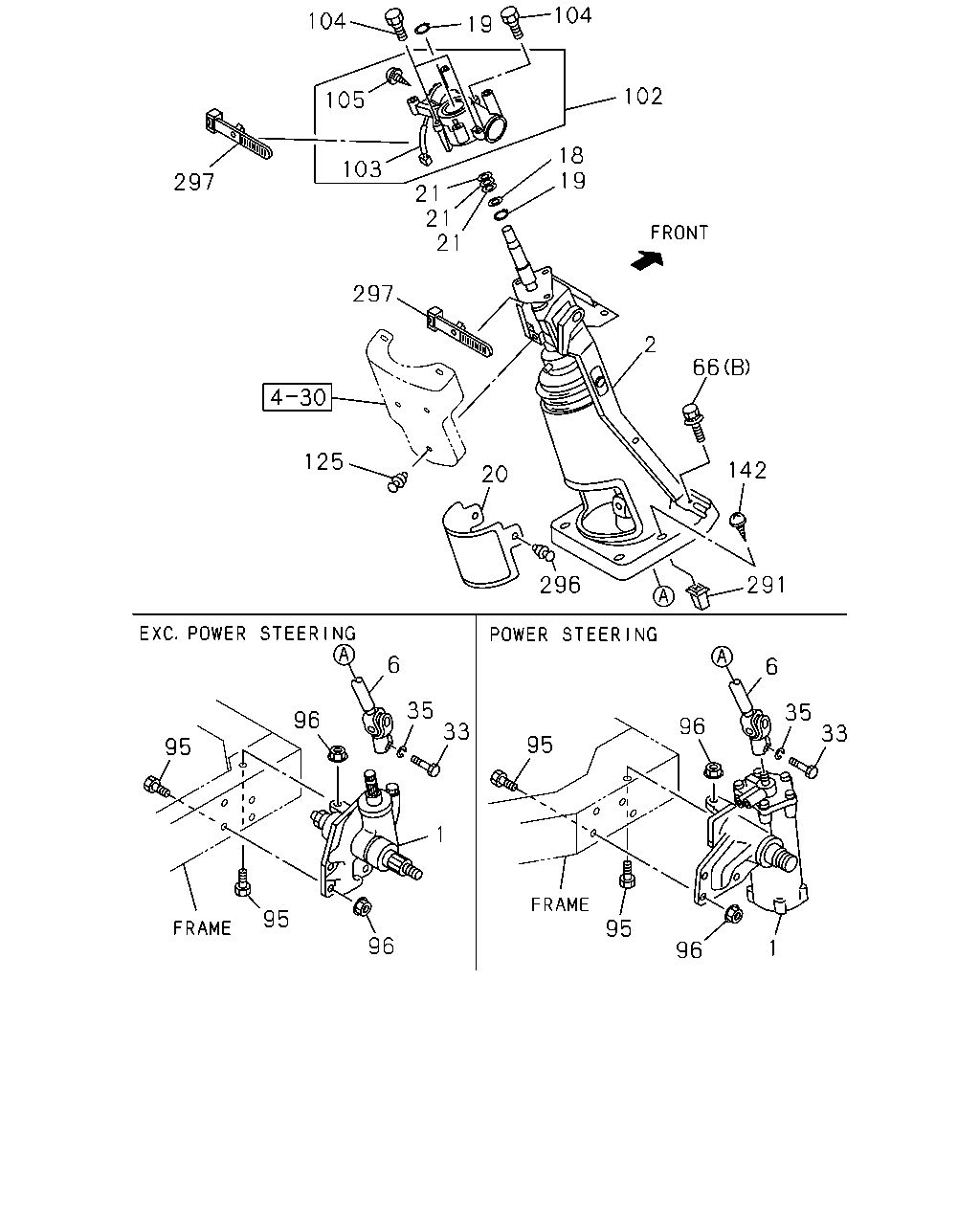

çizim 102664
104 104 19 102 105 18 19 103 297 21 21 21 297 2 66 125 142 20 296 291 6 6 35 33 35 33 96 96 95 95 1 95 95 96 1 96
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97145-739-2 01 1 9704-0209 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97145-739-2 01 1 0210-0302 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-97356-104-8 01 1 0303-1308 ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. POWER STEERING<N40> 		8-98251-946-0 01 1 1309- ● ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97069-707-0 01 1 9704-0209 ●
1 STEERING UNIT
SEE FIG-NO 4-40 FOR COMPONENT. EXC. POWER STEERING<N40> 		8-97069-707-0 01 1 0210- ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-1 01 1 9704-9812 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97291-632-0 01 1 9901-0110 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0111-0209 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0210-0404 ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405- ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-804-1 01 1 9704-9812 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97291-628-0 01 1 9901-0110 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0111-0209 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0210-0404 ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405- ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-974-0 01 1 9704-0207 ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97394-787-1 01 1 0208-0209 ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97394-787-1 01 1 0210-0307 ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0308-0311 ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404 ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0405- ● ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97094-625-1 01 1 9704-9712 ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 9801-0209 ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0210-0311 ● ●
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404 ● ●
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405- ● ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9704-0207 ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208-0209 ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0210-0311 ● ●
18 WASHER; STEERING SHAFT
ID=19 		8-94146-919-0 01 1 9704-0209 ●
18 WASHER; STEERING SHAFT
ID=19 		8-94146-919-0 01 1 0210- ● ●
19 RING; SNAP,STRG SHAFT
ID=17.5 		9-09180-019-0 02 1 9704-0209 ●
19 RING; SNAP,STRG SHAFT
ID=17.5 		9-09180-019-0 02 1 0210- ● ●
20 COVER; STRG SHAFT
DARK BEIGE 		8-97097-005-1 01 1 9704-9704 ●
20 COVER; STRG SHAFT
DARK BEIGE 		8-97158-892-0 01 1 9705-9908 ●
20 COVER; STRG SHAFT
DARK BEIGE 		8-97097-005-1 01 1 9909-0209 ●
20 COVER; STRG SHAFT
DARK BEIGE 		8-97097-005-1 01 1 0210-0307 ● ●
20 COVER; STRG SHAFT
BLACK 		8-97291-634-1 01 1 0308- ● ●
21 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 9704-0209 ●
21 WASHER; WAVE,STRG LOCK TO SHAFT 8-94174-865-0 03 1 0210- ● ●
33 BOLT; STRG SHAFT TO UNIT
M10X33 		8-94249-011-1 01 1 9704-9801 ●
33 BOLT; STRG SHAFT TO UNIT
EXC. TILT STEERING<N33> M10X33 		8-94249-011-1 01 1 9802-0209 ●
33 BOLT; STRG SHAFT TO UNIT
EXC. TILT STEERING<N33> M10X33 		8-94249-011-1 01 1 0210-0311 ● ●
33 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> M8X30 		8-94247-692-0 01 1 9802-0209 ●
33 BOLT; STRG SHAFT TO UNIT
TILT STEERING<N33> M8X30 		8-94247-692-0 01 1 0210-0311 ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-94247-692-0 01 1 0312-0805 ● ●
33 BOLT; STRG SHAFT TO UNIT
M8X30 		8-97359-615-0 01 1 0806- ● ●
35 WASHER; LK,STRG SHAFT
ID=10.2 		9-09150-810-0 01 1 9704-9801 ●
35 WASHER; LK,STRG SHAFT
EXC. TILT STEERING<N33> ID=10.2 		9-09150-810-0 01 1 9802-0209 ●
35 WASHER; LK,STRG SHAFT
EXC. TILT STEERING<N33> ID=10.2 		9-09150-810-0 01 1 0210-0311 ● ●
35 WASHER; LK,STRG SHAFT
TILT STEERING<N33> ID=8.2 		9-09150-508-0 01 1 9802-0209 ●
35 WASHER; LK,STRG SHAFT
TILT STEERING<N33> ID=8.2 		9-09150-508-0 01 1 0210-0311 ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 		9-09150-508-0 01 1 0312-0603 ● ●
35 WASHER; LK,STRG SHAFT
ID=8.2 		0-91510-508-0 01 1 0604- ● ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1201- ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9704-0209 ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0210-0611 ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1111 ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 1112-1112 ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201- ● ●
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9704-0209 ●
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0210- ● ●
95 BOLT; STRG UNIT
M12X39 		8-97029-320-0 05 1 9704-9809 ●
95 BOLT; STRG UNIT
M12X45 		8-97212-810-1 05 1 9810-0209 ●
95 BOLT; STRG UNIT
M12X45 		8-97212-810-1 05 1 0210- ● ●
96 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 05 1 9704-0209 ●
96 NUT; STRG UNIT
M12 FLANGE 		8-94436-194-0 05 1 0210-0610 ● ●
96 NUT; STRG UNIT
M12 FLANGE 		8-97359-618-0 05 1 0611- ● ●
102 LOCK ASM; STRG 8-97170-365-0 01 1 9704-0209 ●
102 LOCK ASM; STRG 8-97170-365-0 01 1 0210-0308 ● ●
102 LOCK ASM; STRG 8-97170-364-0 01 1 0309- ● ●
103 SWITCH; IGNITION 8-97117-997-0 01 1 9704-0209 ●
103 SWITCH; IGNITION 8-97117-997-0 01 1 0210-0308 ● ●
103 SWITCH; IGNITION 8-97088-268-0 01 1 0309- ● ●
104 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER 		8-97122-790-0 03 1 9704-0209 ●
104 BOLT; STRG LOCK TO COLUMN
M6X25 W/LK&PL WASHER 		8-97122-790-0 03 1 0210-0307 ● ●
104 BOLT; STRG LOCK TO COLUMN
M6X30 W/LK&PL WASHER 		8-97189-885-0 03 1 0308- ● ●
105 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 9704-0209 ●
105 SCREW; IGN SW
M4X12 W/LK WASHER 		9-03910-412-0 01 1 0210- ● ●
125 CLIP; STRG SHAFT
DARK BEIGE 		8-97856-011-0 01 1 9704-0209 ●
125 CLIP; STRG SHAFT
DARK BEIGE 		8-97856-011-0 01 1 0210-0307 ● ●
125 CLIP; STRG SHAFT
BLACK 		8-97868-409-0 01 1 0308- ● ●
142 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 9704-0209 ●
142 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74305-520-0 06 1 0210-0604 ● ●
142 SCREW; BRKT COWL
M5X20 TAPPING W/PL WASHER 		0-74365-520-0 06 1 0605-0612 ● ●
142 SCREW; BRKT COWL
M5X18 TAPPING 		0-72180-518-0 06 1 0701- ● ●
291 GROMMET; STRG SHAFT COVER
H=15 		8-94463-268-1 06 1 9704-0209 ●
291 GROMMET; STRG SHAFT COVER
H=15 		8-94463-268-1 06 1 0210- ● ●
296 CLIP; COVER
DARK BEIGE 		8-97856-011-0 01 1 9704-0209 ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0210- ● ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 1112- ● ●
296 CLIP; COVER
TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 1112- ● ●
297 CLIP; BAND
L=145 		8-94257-575-1 03 1 9704-0209 ●
297 CLIP; BAND
L=145 		8-94257-575-1 03 1 0210- ● ●

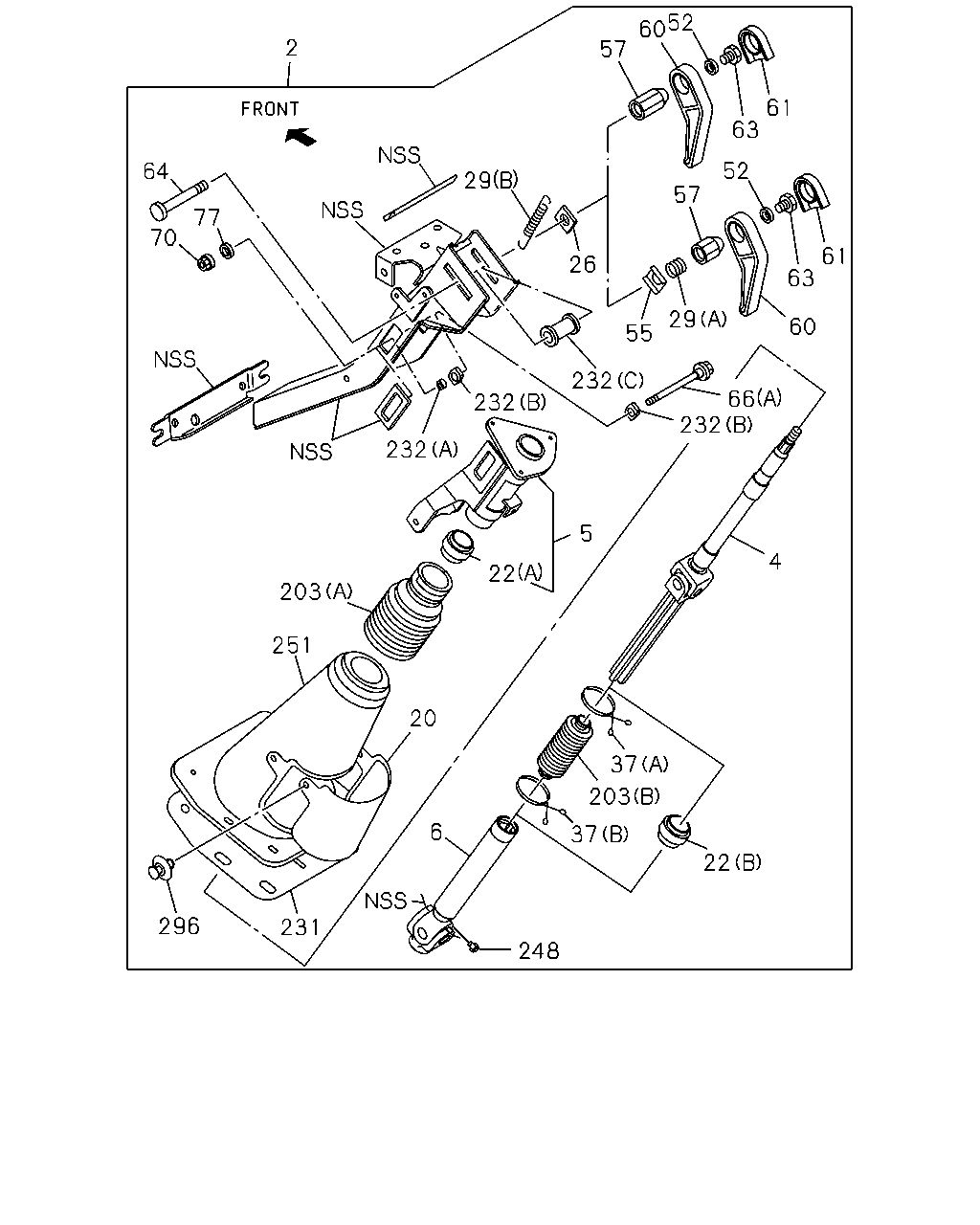

çizim 102667
52 60 2 57 61 63 52 64 29 57 77 70 61 63 26 29 60 55 232 66 232 232 232 5 4 22 203 251 20 37 203 6 37 22 296 231 248
BalonParca AdiParca NoAdetTipApplied Date A B
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-806-1 01 1 9704-9812 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97291-632-0 01 1 9901-0110 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0111-0209 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-633-0 01 1 0210-0404 ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-058-1 01 1 0405- ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97157-804-1 01 1 9704-9812 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> DARK BEIGE 		8-97291-628-0 01 1 9901-0110 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0111-0209 ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97291-629-0 01 1 0210-0404 ● ●
2 SHAFT ASM; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK 		8-97400-056-1 01 1 0405- ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-974-0 01 1 9704-0207 ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97394-787-1 01 1 0208-0209 ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> DARK BEIGE 		8-97394-787-1 01 1 0210-0307 ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97394-700-1 01 1 0308-0311 ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97398-853-0 01 1 0312-0404 ● ●
2 SHAFT ASM; STRG
EXC. TILT STEERING<N33> BLACK 		8-97400-061-1 01 1 0405- ● ●
4 SHAFT; STRG
TILT STEERING<N33> 		8-97096-763-0 01 1 9704-9712 ●
4 SHAFT; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97201-106-0 01 1 9801-9812 ●
4 SHAFT; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97201-110-0 01 1 9801-9812 ●
4 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 9901-0209 ●
4 SHAFT; STRG
TILT STEERING<N33> 		8-97201-110-1 01 1 0210-0311 ● ●
4 SHAFT; STRG 8-97201-110-1 01 1 0312-0404 ● ●
4 SHAFT; STRG 8-97378-634-0 01 1 0405- ● ●
4 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97173-634-0 01 1 9704-0207 ●
4 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0208-0209 ●
4 SHAFT; STRG
EXC. TILT STEERING<N33> 		8-97351-830-0 01 1 0210-0311 ● ●
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 9704-0209 ●
5 COLUMN; STRG
TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97096-767-2 01 1 0210- ● ●
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 9704-0209 ●
5 COLUMN; STRG
TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> 		8-97093-792-2 01 1 0210- ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97173-626-0 01 1 9704-0209 ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97173-626-0 01 1 0210-0311 ● ●
5 COLUMN; STRG
EXC. TILT STEERING<N33> 		8-97146-719-0 01 1 0312- ● ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97094-625-1 01 1 9704-9712 ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 9801-0209 ●
6 SHAFT; STRG LWR
TILT STEERING<N33> 		8-97201-107-0 01 1 0210-0311 ● ●
6 SHAFT; STRG LWR 8-97201-107-0 01 1 0312-0404 ● ●
6 SHAFT; STRG LWR 8-97378-632-0 01 1 0405- ● ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97173-635-0 01 1 9704-0207 ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0208-0209 ●
6 SHAFT; STRG LWR
EXC. TILT STEERING<N33> 		8-97351-831-0 01 1 0210-0311 ● ●
20 COVER; STRG SHAFT
DARK BEIGE 		8-97097-005-1 01 1 9704-9704 ●
20 COVER; STRG SHAFT
DARK BEIGE 		8-97158-892-0 01 1 9705-9908 ●
20 COVER; STRG SHAFT
DARK BEIGE 		8-97097-005-1 01 1 9909-0209 ●
20 COVER; STRG SHAFT
DARK BEIGE 		8-97097-005-1 01 1 0210-0307 ● ●
20 COVER; STRG SHAFT
BLACK 		8-97291-634-1 01 1 0308- ● ●
22 BUSHING; STRG COLUMN
(B) 		8-97378-617-0 01 1 0405- ● ●
22 BUSHING; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-821-0 01 1 9704-0209 ●
22 BUSHING; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-821-0 01 1 0210-0311 ● ●
22 BUSHING; STRG COLUMN
(A) 		8-97076-821-0 01 1 0312- ● ●
22 BUSHING; STRG COLUMN
EXC. TILT STEERING<N33> (A) 		8-97201-085-0 01 1 9704-0207 ●
26 PLATE; ADJ
TILT STEERING<N33> 		8-97076-827-0 01 1 9704-9812 ●
26 PLATE; ADJ
TILT STEERING<N33> 		8-97222-989-0 01 1 9901-0209 ●
26 PLATE; ADJ
TILT STEERING<N33> 		8-97222-989-0 01 1 0210- ● ●
29 SPRING; COLUMN
TILT STEERING<N33> (B) 		8-97076-811-0 01 1 9704-0209 ●
29 SPRING; COLUMN
TILT STEERING<N33> (B) 		8-97076-811-0 01 1 0210- ● ●
29 SPRING; COLUMN
TILT STEERING<N33> (A) 		8-97076-829-0 01 1 9704-9812 ●
37 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (B) LOWER 		8-94165-569-0 01 1 9704-9812 ●
37 CLAMP; BOOT TO SHAFT
TILT STEERING<N33> (A) UPPER 		8-94165-570-0 01 1 9704-9812 ●
37 CLAMP; BOOT TO SHAFT
EXC. TILT STEERING<N33> (A),(B) 		8-97173-630-0 02 1 9704-9812 ●
37 CLAMP; BOOT TO SHAFT
(A),(B) 		8-97173-630-0 02 1 9901-0209 ●
37 CLAMP; BOOT TO SHAFT
(A),(B) 		8-97173-630-0 02 1 0210-0404 ● ●
52 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 9704-0209 ●
52 WASHER; PL,ADJ LEVER
TILT STEERING<N33> 		8-97076-813-0 01 1 0210- ● ●
55 PLATE; GUIDE
TILT STEERING<N33> 		8-97076-828-0 01 1 9704-9812 ●
57 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97076-826-0 01 1 9704-9812 ●
57 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97222-988-0 01 1 9901-0209 ●
57 NUT; ADJ BOLT
TILT STEERING<N33> 		8-97222-988-0 01 1 0210- ● ●
60 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 9704-0209 ●
60 LEVER; ADJ,STRG COLUMN
TILT STEERING<N33> 		8-97076-830-0 01 1 0210- ● ●
61 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 9704-0209 ●
61 CAP; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-814-0 01 1 0210- ● ●
63 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97076-824-0 01 1 9704-9812 ●
63 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97222-986-0 01 1 9901-0209 ●
63 BOLT; ADJ LEVER,TILT STRG
TILT STEERING<N33> 		8-97222-986-0 01 1 0210- ● ●
64 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97076-825-0 01 1 9704-9812 ●
64 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97222-987-0 01 1 9901-0209 ●
64 BOLT; ADJ,PROTECTOR
TILT STEERING<N33> 		8-97222-987-0 01 1 0210- ● ●
66 BOLT; STRG COLUMN
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1201- ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 9704-0209 ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 04 1 0210-0611 ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 0612-1111 ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 04 1 1112-1112 ● ●
66 BOLT; STRG COLUMN
(B) M8X24.5 W/LK&PL WASHER 		8-98051-939-0 02 1 1201- ● ●
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 9704-0209 ●
66 BOLT; STRG COLUMN
TILT STEERING<N33> (A) 		8-97076-831-0 01 1 0210- ● ●
70 NUT; STRG COLUMN
TILT STEERING<N33> 		8-97076-807-0 01 1 9704-0209 ●
70 NUT; STRG COLUMN
TILT STEERING<N33> 		8-97076-807-0 01 1 0210- ● ●
77 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 9704-0209 ●
77 WASHER; PL,COLUMN
TILT STEERING<N33> 		8-97076-804-0 01 1 0210- ● ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-94159-074-0 01 1 9704-9712 ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 9801-0209 ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (B) 		8-97201-115-0 01 1 0210-0311 ● ●
203 BOOT; STRG COLUMN LWR
(B) 		8-97201-115-0 01 1 0312-0404 ● ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (A) 		8-97076-822-0 01 1 9704-0209 ●
203 BOOT; STRG COLUMN LWR
TILT STEERING<N33> (A) 		8-97076-822-0 01 1 0210-0311 ● ●
203 BOOT; STRG COLUMN LWR
(A) 		8-97076-822-0 01 1 0312- ● ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97173-631-0 01 1 9704-0207 ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97351-851-0 01 1 0208-0209 ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (B) 		8-97351-851-0 01 1 0210-0311 ● ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-97173-632-0 01 1 9704-0209 ●
203 BOOT; STRG COLUMN LWR
EXC. TILT STEERING<N33> (A) 		8-97173-632-0 01 1 0210-0311 ● ●
231 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 9704-0209 ●
231 SEAL; RUBBER,STRG COLUMN
TILT STEERING<N33> 		8-97076-808-1 01 1 0210-0311 ● ●
231 SEAL; RUBBER,STRG COLUMN 8-97076-808-1 01 1 0312- ● ●
231 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 9704-0209 ●
231 SEAL; RUBBER,STRG COLUMN
EXC. TILT STEERING<N33> 		8-97173-628-0 01 1 0210-0311 ● ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 9704-0209 ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (B) 		8-97076-805-0 02 1 0210- ● ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 9704-0209 ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (A) 		8-97076-806-0 01 1 0210- ● ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 9704-0209 ●
232 SPACER; STRG SHAFT
TILT STEERING<N33> (C) 		8-97148-277-0 01 1 0210- ● ●
248 SCREW; YOKE
TILT STEERING<N33> 		8-97076-819-0 01 1 9704-9712 ●
248 SCREW; YOKE
TILT STEERING<N33> 		8-97222-984-0 01 1 9901-0209 ●
248 SCREW; YOKE
TILT STEERING<N33> 		8-97222-984-0 01 1 0210-0311 ● ●
248 SCREW; YOKE 8-97222-984-0 01 1 0312- ● ●
251 COVER; LWR
TILT STEERING<N33> DARK BEIGE 		8-97157-808-1 01 1 9704-0110 ●
251 COVER; LWR
TILT STEERING<N33> BLACK 		8-97159-168-1 01 1 0111-0209 ●
251 COVER; LWR
TILT STEERING<N33> BLACK 		8-97159-168-1 01 1 0210-0311 ● ●
251 COVER; LWR
BLACK 		8-97159-168-2 01 1 0312- ● ●
251 COVER; LWR
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-976-0 01 1 9704-0209 ●
251 COVER; LWR
EXC. TILT STEERING<N33> DARK BEIGE 		8-97158-976-0 01 1 0210-0307 ● ●
251 COVER; LWR
EXC. TILT STEERING<N33> BLACK 		8-97159-175-0 01 1 0308-0311 ● ●
296 CLIP; COVER
DARK BEIGE 		8-97856-011-0 01 1 9704-0209 ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 0210- ● ●
296 CLIP; COVER
BLACK 		8-97868-409-0 01 1 1112- ● ●
296 CLIP; COVER
TILT STEERING<N33> BLACK 		8-97868-409-0 01 1 1112- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
