◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-30 - STEERING WHEEL AND COWL ▶
4-30 — STEERING WHEEL AND COWL (#72713) — 27 parça

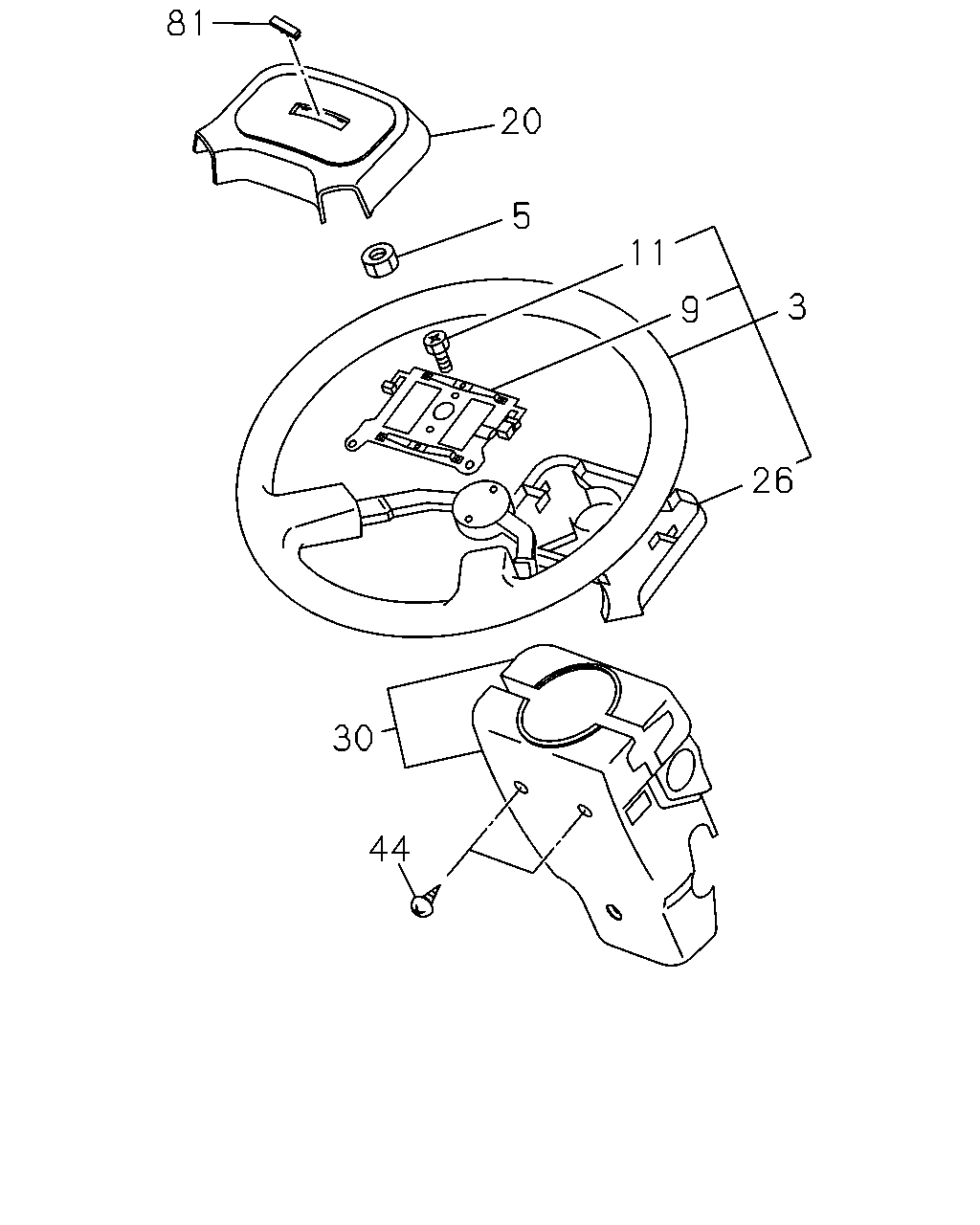

çizim 73784
81 20 5 11 3 9 26 30 44
BalonParca AdiParca NoAdetTipApplied Date A B
3 WHEEL; STRG
DARK BEIGE 		8-97009-451-1 01 1 9704-0209 ●
3 WHEEL; STRG
DARK BEIGE 		8-97009-451-1 01 1 0210-0307 ● ●
3 WHEEL; STRG
DARK GRAY 		8-97098-531-2 01 1 0308- ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 9704-0209 ●
5 NUT; STRG WHEEL TO SHAFT
M14 		9-99111-414-0 01 1 0210-0512 ● ●
5 NUT; STRG WHEEL TO SHAFT
M14 		0-91111-514-0 01 1 0601- ● ●
9 PLATE; HORN CONTACT 8-97076-688-1 01 1 9704-0209 ●
9 PLATE; HORN CONTACT 8-97076-688-1 01 1 0210- ● ●
11 SCREW; PLATE TO BUTTON 8-97076-690-1 02 1 9704-0209 ●
11 SCREW; PLATE TO BUTTON 8-97076-690-1 02 1 0210-0309 ● ●
11 SCREW; PLATE TO BUTTON 8-97076-690-1 01 1 0310- ● ●
20 SHROUD; PAD,STRG WHEEL
DARK BEIGE 		8-97009-450-0 01 1 9704-0209 ●
20 SHROUD; PAD,STRG WHEEL
DARK BEIGE 		8-97009-450-0 01 1 0210-0307 ● ●
20 SHROUD; PAD,STRG WHEEL
DARK GRAY 		8-97098-526-0 01 1 0308- ● ●
26 COVER; STRG WHEEL,LWR
DARK BEIGE 		8-97097-432-1 01 1 9704-0209 ●
26 COVER; STRG WHEEL,LWR
DARK BEIGE 		8-97097-432-1 01 1 0210-0307 ● ●
26 COVER; STRG WHEEL,LWR
DARK GRAY 		8-97098-534-1 01 1 0308- ● ●
30 COWL; STEERING
TILT STEERING<N33> DARK BEIGE 		8-97856-001-8 01 1 9704-0209 ●
30 COWL; STEERING
TILT STEERING<N33> DARK BEIGE 		8-97856-001-8 01 1 0210-0307 ● ●
30 COWL; STEERING
TILT STEERING<N33> BLACK 		8-97197-936-8 01 1 0308- ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-002-7 01 1 9704-0209 ●
30 COWL; STEERING
EXC. TILT STEERING<N33> DARK BEIGE 		8-97856-002-7 01 1 0210-0307 ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33> BLACK 		8-97997-903-7 01 1 0308-1111 ● ●
30 COWL; STEERING
EXC. TILT STEERING<N33> BLACK 		8-97997-903-7 01 1 1112- ● ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 9704-0209 ●
44 SCREW; STRG COWL
M5X16 W/LK&PL WASHER 		8-94279-400-0 02 1 0210- ● ●
81 EMBLEM; STRG WHEEL
ISUZU BRAND<7WL> DARK GRAY 		8-97098-527-0 01 1 1112- ●
