4-25 — REAR FINAL DRIVE (#72712) — 91 parça

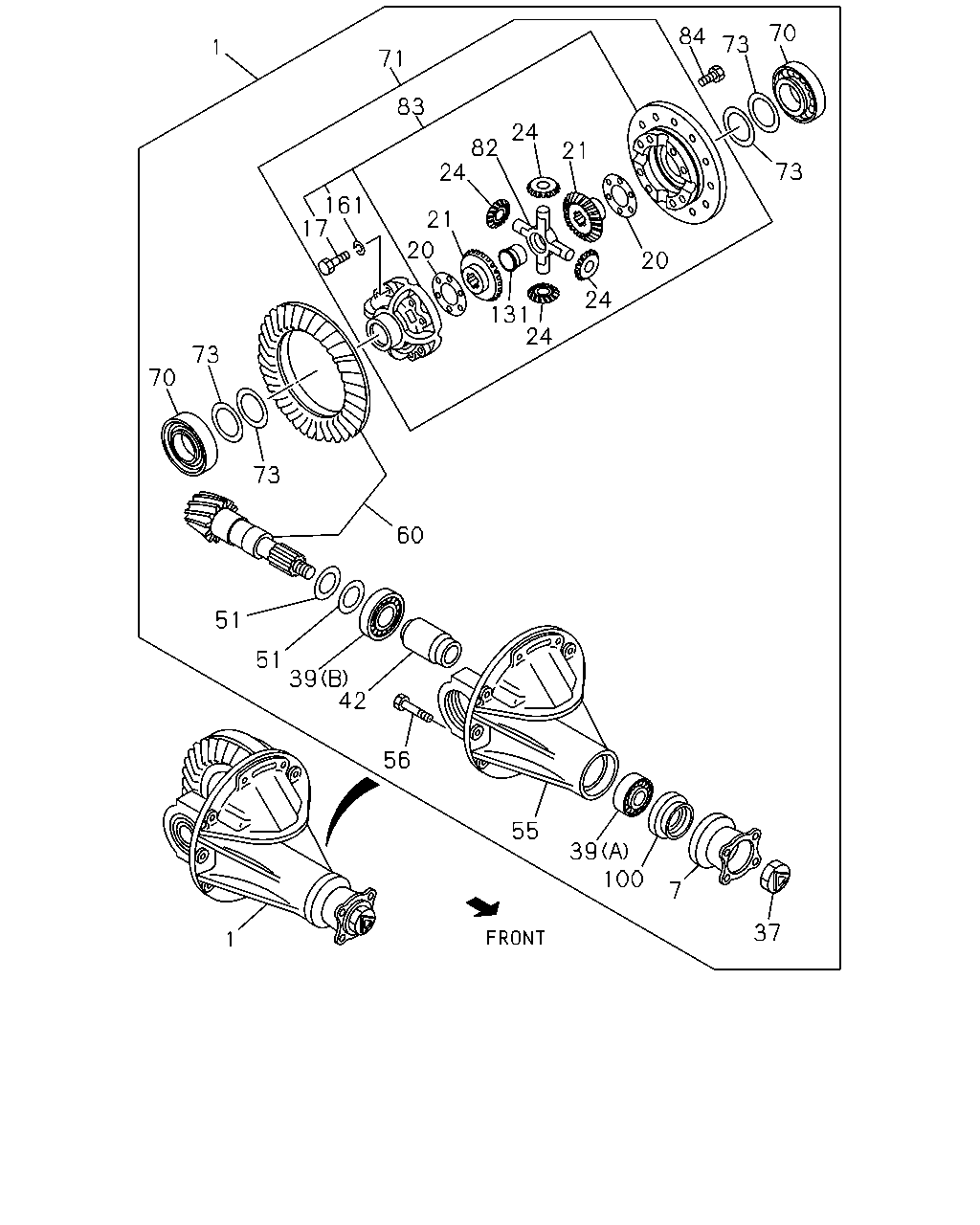

çizim 102663
70 84 73 71 83 24 82 24 21 73 161 17 21 20 20 24 131 24 73 70 73 60 51 51 39 42 56 55 39 100 7 37 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/8(RV9) 39/8 		8-97035-409-0 01 1 9704-0209 ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/8(RV9) 39/8 		8-97035-409-0 01 1 0210-0304 ● ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/8(RV9) 39/8 		8-97367-500-0 01 1 0305- ● ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97080-672-0 01 1 9704-0209 ●
1 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97080-672-0 01 1 0210- ● ●
7 FLANGE; FINAL 8-97075-216-3 01 1 9704-0209 ●
7 FLANGE; FINAL 8-97075-216-3 01 1 0210- ● ●
17 BOLT; DIFF CAGE SETTING
M12X58 		5-09020-007-1 08 1 9704-0108 ●
17 BOLT; DIFF CAGE SETTING
M12X58 		8-97314-497-0 08 1 0109-0209 ●
17 BOLT; DIFF CAGE SETTING
M12X58 		8-97314-497-0 08 1 0210- ● ●
20 WASHER; THRUST,SIDE GEAR
T=1.00 		9-41562-602-0 02 1 9704-0209 ●
20 WASHER; THRUST,SIDE GEAR
T=1.00 		9-41562-602-0 02 1 0210- ● ●
21 GEAR; SIDE,DIFF
Z=18 		9-41561-047-1 02 1 9704-9911 ●
21 GEAR; SIDE,DIFF
Z=18 		8-97226-764-0 02 1 9912-0209 ●
21 GEAR; SIDE,DIFF
Z=18 		8-97226-764-0 02 1 0210-1105 ● ●
21 GEAR; SIDE,DIFF
Z=18 		8-98190-383-1 02 1 1106- ● ●
24 GEAR; PINION,DIFF
Z=10 		9-41551-029-1 04 1 9704-9911 ●
24 GEAR; PINION,DIFF
Z=10 		8-97226-762-0 04 1 9912-0209 ●
24 GEAR; PINION,DIFF
Z=10 		8-97226-762-0 04 1 0210-1105 ● ●
24 GEAR; PINION,DIFF
Z=10 		8-98186-829-0 04 1 1106- ● ●
37 NUT; DRIVING PINION
M24 FLANGE 		8-94376-261-1 01 1 9704-0209 ●
37 NUT; DRIVING PINION
M24 FLANGE 		8-94376-261-1 01 1 0210- ● ●
39 BEARING; FINAL PINION
(A) OUTER NSK 		9-00093-078-0 01 1 9704-0209 ●
39 BEARING; FINAL PINION
(A) OUTER NSK 		9-00093-078-0 01 1 0210- ● ●
39 BEARING; FINAL PINION
(B) INNER JTEKT 		9-00093-079-0 01 1 9704-0209 ●
39 BEARING; FINAL PINION
(B) INNER JTEKT 		9-00093-079-1 01 1 0210- ● ●
42 COLLAR; DIST,COLLAPSIBLE
L=53.35 		9-41219-634-1 01 1 9704-0209 ●
42 COLLAR; DIST,COLLAPSIBLE
L=53.35 		9-41219-634-1 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.12 		9-41219-608-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.12 		9-41219-608-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.16 		9-41219-610-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.16 		9-41219-610-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.20 		9-41219-612-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.20 		9-41219-612-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.24 		9-41219-614-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.24 		9-41219-614-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.28 		9-41219-616-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.28 		9-41219-616-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.32 		9-41219-618-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.32 		9-41219-618-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.36 		9-41219-620-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.36 		9-41219-620-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.40 		9-41219-622-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.40 		9-41219-622-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.44 		9-41219-624-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.44 		9-41219-624-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.48 		9-41219-626-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.48 		9-41219-626-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.52 		9-41219-628-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.52 		9-41219-628-0 01 1 0210- ● ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.56 		9-41219-630-0 01 1 9704-0209 ●
51 SHIM; PINION,FINAL DRIVE
OD=89.5 T=2.56 		9-41219-630-0 01 1 0210- ● ●
55 CARRIER; DIFF 8-94376-227-3 01 1 9704-0209 ●
55 CARRIER; DIFF 8-94376-227-3 01 1 0210- ● ●
56 BOLT; BRG CAP
M14X80 		8-94365-377-2 04 1 9704-0209 ●
56 BOLT; BRG CAP
M14X80 		8-94365-377-3 04 1 0210- ● ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/8(RV9) 39/8 		8-97035-431-0 01 1 9704-0209 ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/8(RV9) 39/8 		8-97035-431-0 01 1 0210- ● ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97076-962-0 01 1 9704-0209 ●
60 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/8(RU1) 41/8 		8-97076-962-0 01 1 0210- ● ●
70 BEARING; DIFF CAGE
JTEKT 		8-98003-043-0 02 1 0504- ● ●
70 BEARING; DIFF CAGE
NSK 		9-00032-211-0 02 1 9704-0209 ●
70 BEARING; DIFF CAGE
NSK 		9-00032-211-0 02 1 0210- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 5-41500-030-0 01 1 9704-9911 ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-97228-310-0 01 1 9912-0209 ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-97228-310-0 01 1 0210-1105 ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 8-98191-997-1 01 1 1106- ● ●
73 SHIM; DIFF SIDE BRG
T=0.50 		9-41519-009-0 AR 1 9704-0209 ●
73 SHIM; DIFF SIDE BRG
T=0.50 		9-41519-009-0 AR 1 0210- ● ●
73 SHIM; DIFF SIDE BRG
T=0.25 		9-41519-010-0 AR 1 9704-0209 ●
73 SHIM; DIFF SIDE BRG
T=0.25 		9-41519-010-0 AR 1 0210- ● ●
73 SHIM; DIFF SIDE BRG
T=0.30 		9-41519-601-0 AR 1 9704-0209 ●
73 SHIM; DIFF SIDE BRG
T=0.30 		9-41519-601-0 AR 1 0210- ● ●
73 SHIM; DIFF SIDE BRG
T=0.35 		9-41519-602-0 AR 1 9704-0209 ●
73 SHIM; DIFF SIDE BRG
T=0.35 		9-41519-602-0 AR 1 0210- ● ●
82 SPIDER; DIFF PINION 5-41521-006-0 01 1 9704-0209 ●
82 SPIDER; DIFF PINION 5-41521-006-0 01 1 0210- ● ●
83 CAGE ASM; DIFF 9-41510-610-0 01 1 9704-0209 ●
83 CAGE ASM; DIFF 9-41510-610-0 01 1 0210- ● ●
84 BOLT; FINAL DRIVE GEAR
M12X25 		9-09606-505-2 12 1 9704-0209 ●
84 BOLT; FINAL DRIVE GEAR
M12X25 		9-09606-505-2 12 1 0210- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		8-94408-084-1 01 1 9704-0209 ●
100 SEAL; OIL,FINAL PINION
NOK 		8-94408-084-1 01 1 0210-0412 ● ●
100 SEAL; OIL,FINAL PINION
NOK 		8-97328-648-0 01 1 0501- ● ●
100 SEAL; OIL,FINAL PINION
TKK 		8-94408-085-1 01 1 9808-0209 ●
100 SEAL; OIL,FINAL PINION
TKK 		8-94408-085-1 01 1 0210-0412 ● ●
131 PIECE; THRUST,DIFF BOX 5-41525-002-0 01 1 9704-0209 ●
131 PIECE; THRUST,DIFF BOX 5-41525-002-0 01 1 0210- ● ●
161 WASHER; LK
ID=12.2 		9-09150-612-0 08 1 9704-0209 ●
161 WASHER; LK
ID=12.2 		9-09150-612-0 08 1 0210-0603 ● ●
161 WASHER; LK
ID=12.2 		0-91510-612-0 08 1 0604- ● ●
