◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#72711) — 75 parça

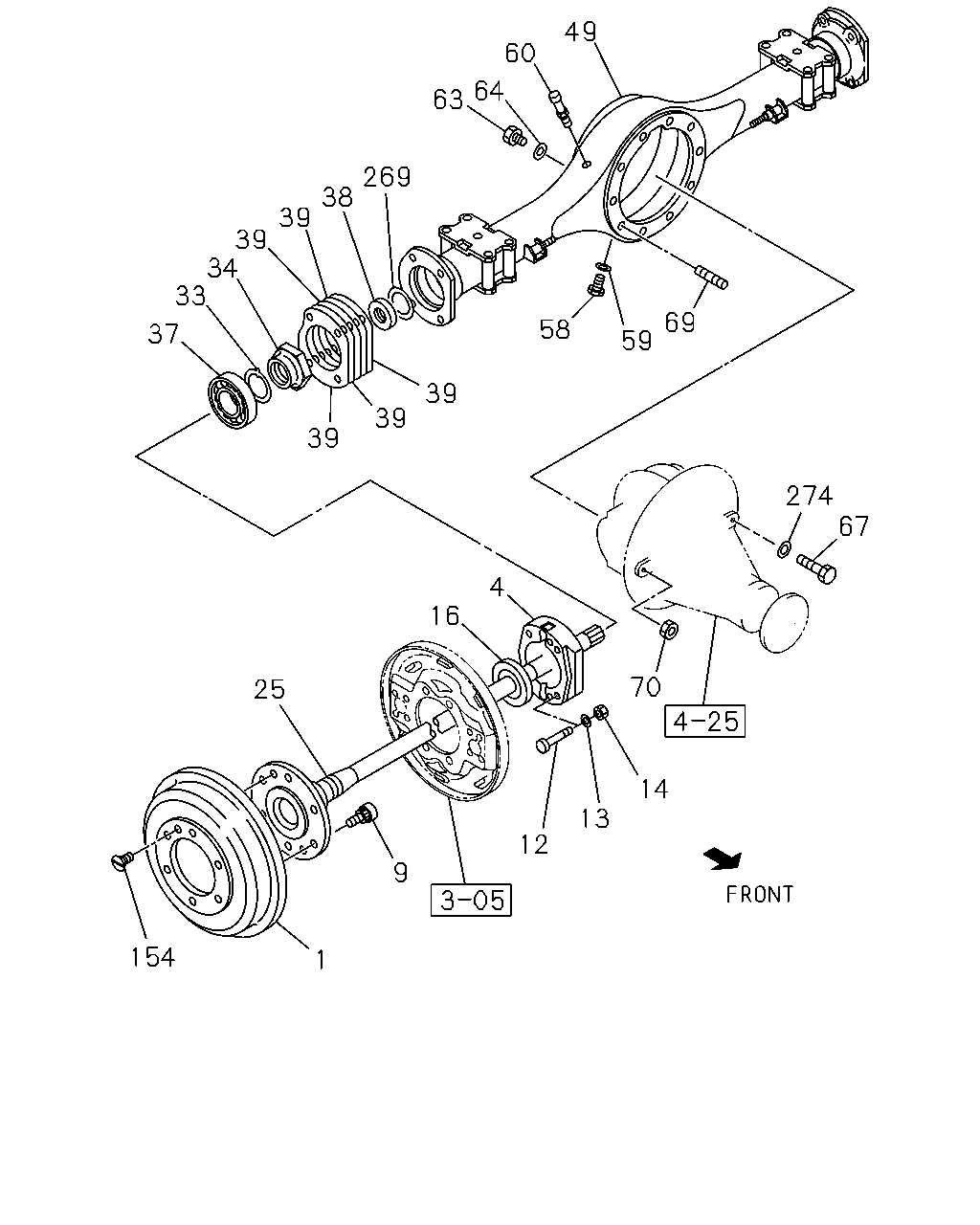

çizim 73366
49 60 64 63 269 38 39 39 34 33 69 58 37 59 39 39 39 274 67 4 16 70 25 14 13 12 9 154 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR 8-97034-799-2 02 1 9704-0209 ●
1 DRUM; BRK,RR 8-97034-799-2 02 1 0210- ● ●
4 HOLDER; BRG,AXLE SHAFT 8-94120-081-0 01 1 9704-0110 ●
4 HOLDER; BRG,AXLE SHAFT 8-94120-080-0 01 1 9704-0110 ●
4 HOLDER; BRG,AXLE SHAFT 8-97324-241-0 02 1 0111-0209 ●
4 HOLDER; BRG,AXLE SHAFT 8-97324-241-0 02 1 0210- ● ●
9 PIN; WHEEL,RR AXLE
M14X42 LH THREAD 		8-97126-489-0 06 1 9704-0209 ●
9 PIN; WHEEL,RR AXLE
M14X42 LH THREAD 		8-97126-489-0 06 1 0210- ● ●
9 PIN; WHEEL,RR AXLE
M14X42 RH THREAD 		8-97126-488-0 06 1 9704-0209 ●
9 PIN; WHEEL,RR AXLE
M14X42 RH THREAD 		8-97126-488-0 06 1 0210- ● ●
12 BOLT; BRG HOLDER TO CASE
M12X72 		8-94477-674-2 04 1 9704-0209 ●
12 BOLT; BRG HOLDER TO CASE
M12X72 		8-94477-674-2 04 1 0210- ● ●
12 BOLT; BRG HOLDER TO CASE
M12X69 REAMER 		9-42119-603-2 04 1 9704-0209 ●
12 BOLT; BRG HOLDER TO CASE
M12X69 REAMER 		9-42119-603-2 04 1 0210- ● ●
13 WASHER; LK,BRG HOLDER TO CASE
ID=12.2 		9-09150-512-0 08 1 9704-0209 ●
13 WASHER; LK,BRG HOLDER TO CASE
ID=12.2 		9-09150-512-0 08 1 0210-0603 ● ●
13 WASHER; LK,BRG HOLDER TO CASE
ID=12.2 		0-91510-512-0 08 1 0604- ● ●
14 NUT; BRG HOLDER TO CASE
M12 		9-99110-412-0 08 1 9704-0209 ●
14 NUT; BRG HOLDER TO CASE
M12 		9-99110-412-0 08 1 0210-0512 ● ●
14 NUT; BRG HOLDER TO CASE
M12 		0-91110-512-0 08 1 0601- ● ●
16 SEAL; OIL,RR HUB,OUTER
ID=50.5 OD=72 		9-09724-022-1 02 1 9704-0209 ●
16 SEAL; OIL,RR HUB,OUTER
ID=50.5 OD=72 		9-09724-022-1 02 1 0210- ● ●
25 SHAFT; AXLE,RR 8-97083-094-1 02 1 9704-0209 ●
25 SHAFT; AXLE,RR 8-97083-094-1 02 1 0210- ● ●
33 WASHER; AXLE SHAFT 8-97086-472-0 02 1 9704-0209 ●
33 WASHER; AXLE SHAFT 8-97086-472-0 02 1 0210- ● ●
34 NUT; AXLE SHAFT
M45 		8-94178-278-0 02 1 9704-0209 ●
34 NUT; AXLE SHAFT
M45 		8-94178-278-0 02 1 0210- ● ●
37 BEARING; HUB INNER,RR AXLE
ID=45 OD=85 		9-00032-209-0 02 1 9704-0209 ●
37 BEARING; HUB INNER,RR AXLE
ID=45 OD=85 		9-00032-209-0 02 1 0210- ● ●
38 SEAL; OIL,RR HUB,INNER
ID=37.5 OD=60 		5-09625-092-0 02 1 9704-0209 ●
38 SEAL; OIL,RR HUB,INNER
ID=37.5 OD=60 		5-09625-092-0 02 1 0210- ● ●
39 SHIM; BRG HOLDER
T=1.000 		9-42119-616-0 AR 1 9704-0209 ●
39 SHIM; BRG HOLDER
T=1.000 		9-42119-616-0 AR 1 0210- ● ●
39 SHIM; BRG HOLDER
T=0.500 		9-42119-617-0 AR 1 9704-0209 ●
39 SHIM; BRG HOLDER
T=0.500 		9-42119-617-0 AR 1 0210- ● ●
39 SHIM; BRG HOLDER
T=0.13 		9-42119-618-0 AR 1 9704-0209 ●
39 SHIM; BRG HOLDER
T=0.13 		9-42119-618-0 AR 1 0210- ● ●
39 SHIM; BRG HOLDER
T=0.076 		9-42119-619-0 AR 1 9704-0209 ●
39 SHIM; BRG HOLDER
T=0.076 		9-42119-619-0 AR 1 0210- ● ●
39 SHIM; BRG HOLDER
T=0.050 		9-42119-620-0 AR 1 9704-0209 ●
39 SHIM; BRG HOLDER
T=0.050 		9-42119-620-0 AR 1 0210- ● ●
49 CASE; RR AXLE 8-97047-980-1 01 1 9704-0209 ●
49 CASE; RR AXLE 8-97047-980-3 01 1 0210- ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 9704-0209 ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97109-869-0 01 1 0210-0611 ● ●
58 PLUG; DRAIN,AXLE CASE
M16X12.5 		8-97307-060-0 01 1 0612- ● ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 9704-0209 ●
59 GASKET; DRAIN PLUG
ID=16.2 OD=24 		9-09571-416-0 01 1 0210- ● ●
60 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 9704-0209 ●
60 BREATHER; RR AXLE CASE
L=30 		8-94416-611-1 01 1 0210-0409 ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-97383-656-0 01 1 0410-0606 ● ●
60 BREATHER; RR AXLE CASE
L=29 		8-98006-960-0 01 1 0607- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 9704-0209 ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		9-09662-005-0 01 1 0210-0611 ● ●
63 PLUG; OIL FILLER,AXLE CASE
M20X10.5 		8-98009-333-0 01 1 0612- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 9704-0209 ●
64 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30 		8-94462-734-0 01 1 0210- ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 9704-0209 ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0210-0610 ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 		0-10956-040-0 08 1 0611-0611 ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50061-040-0 08 1 0611-0909 ● ●
67 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER 		0-50561-040-0 08 1 0910- ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 9704-0209 ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97026-282-0 02 1 0210-0610 ● ●
69 STUD; AXLE CASE
M10X40.5 L=52.5 		8-97359-802-0 02 1 0611- ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91150-210-0 02 1 9704-0209 ●
70 NUT; CARRIER
M10 FLANGE 		0-91150-210-0 02 1 0210-0602 ● ●
70 NUT; CARRIER
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
154 SCREW; SLOTTED
M6X16 CK-HEAD 		9-03090-616-0 02 1 9704-0209 ●
154 SCREW; SLOTTED
M6X16 CK-HEAD 		9-03090-616-0 02 1 0210-0703 ● ●
154 SCREW; SLOTTED
M6X16 CK-HEAD 		0-36410-616-0 02 1 0704- ● ●
269 GASKET; REAR AXLE 9-09720-517-0 02 1 9704-0209 ●
269 GASKET; REAR AXLE 9-09720-517-0 02 1 0210- ● ●
274 WASHER; HSG
ID=10.2 		0-91510-810-0 08 1 0611-0611 ● ●
