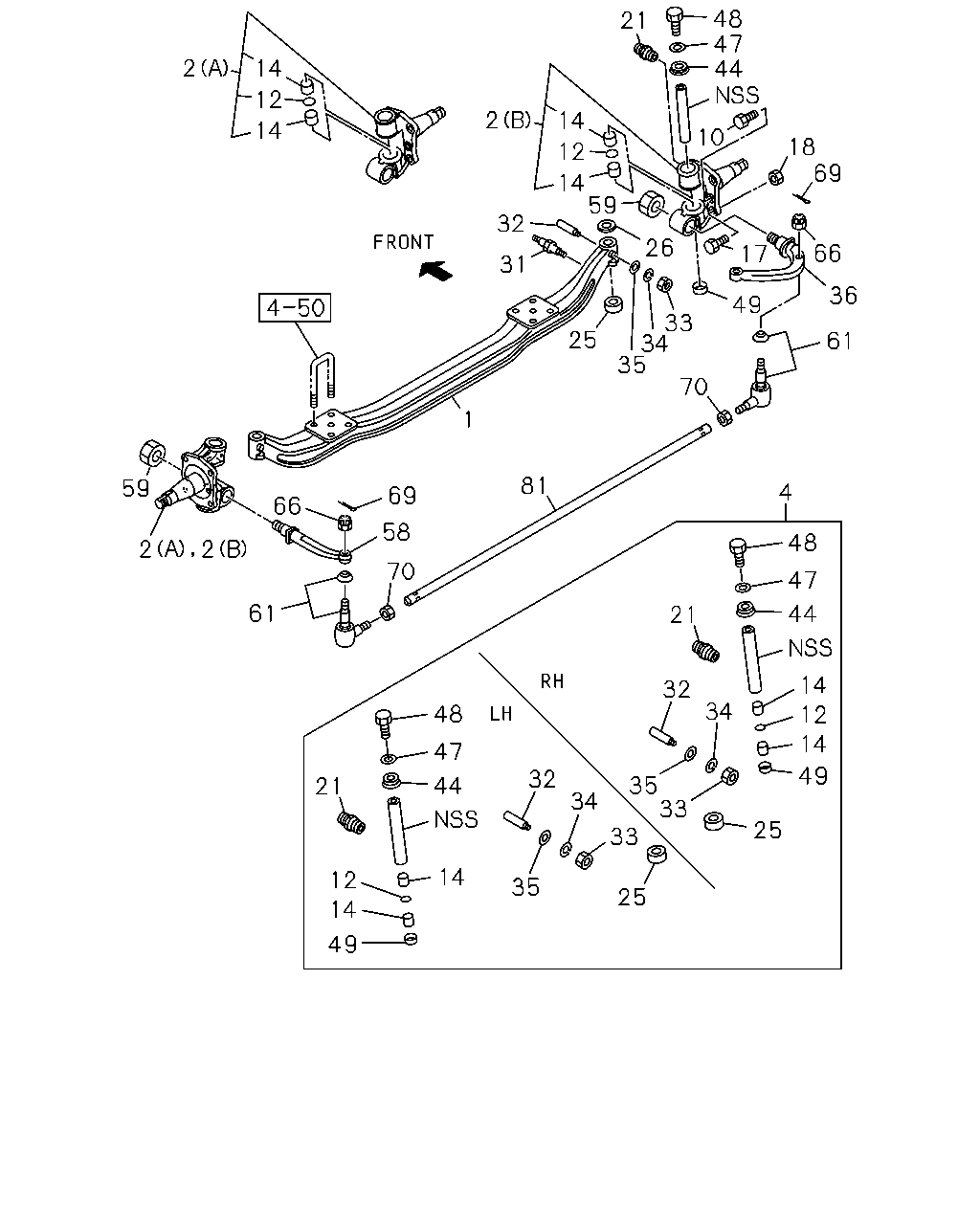

4-10 — FRONT AXLE (#72709) — 106 parça

48 47 44 21 2 14 12 2 14 14 10 18 69 12 14 59 32 26 66 17 31 36 49 33 34 35 25 61 70 1 59 81 4 69 66 58 48 2 2 70 47 61 44 21 14 32 34 48 12 14 47 49 32 35 33 44 21 34 25 33 14 12 35 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT	8-94113-402-7	01	1	9704-0209	●
1	AXLE; FRT	8-94113-402-9	01	1	0210-	●	●
2	KNUCKLE; FRT AXLE (A)	8-94248-851-4	01	1	9704-9905	●
2	KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (A)	8-94248-851-4	01	1	9906-9909	●
2	KNUCKLE; FRT AXLE (A)	8-94248-850-4	01	1	9704-9905	●
2	KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (A)	8-94248-850-4	01	1	9906-9909	●
2	KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (B)	8-97230-676-0	01	1	9906-9909	●
2	KNUCKLE; FRT AXLE (B)	8-97230-676-0	01	1	9910-0008	●
2	KNUCKLE; FRT AXLE (B)	8-97261-538-0	01	1	0009-0209	●
2	KNUCKLE; FRT AXLE (B)	8-97261-538-0	01	1	0210-	●	●
2	KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (B)	8-97230-675-0	01	1	9906-9909	●
2	KNUCKLE; FRT AXLE (B)	8-97230-675-0	01	1	9910-0008	●
2	KNUCKLE; FRT AXLE (B)	8-97261-537-0	01	1	0009-0209	●
2	KNUCKLE; FRT AXLE (B)	8-97261-537-0	01	1	0210-	●	●
4	KING PIN KIT	5-87831-029-4	01	1	9704-0209	●
4	KING PIN KIT	5-87831-029-4	01	1	0210-0402	●	●
4	KING PIN KIT	5-87832-208-2	01	1	0403-	●	●
10	PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9704-0209	●
10	PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	0210-0610	●	●
10	PLUG; PLATE,KNUCKLE	8-97360-117-0	01	1	0611-	●	●
12	GASKET; KNUCKLE	9-09561-225-0	02	1	9704-0209	●
12	GASKET; KNUCKLE	9-09561-225-0	02	1	0210-	●	●
14	BUSHING; KING PIN	8-94102-046-2	04	1	9704-0209	●
14	BUSHING; KING PIN	8-94102-046-3	04	1	0210-	●	●
17	BOLT; STOPPER KNUCKLE	8-97071-957-0	03	1	9704-0209	●
17	BOLT; STOPPER KNUCKLE	8-97071-957-0	03	1	0210-0610	●	●
17	BOLT; STOPPER KNUCKLE	8-98014-904-0	03	1	0611-	●	●
18	NUT; STOPPER BOLT,KNUCKLE M12	9-99111-512-0	03	1	9704-0209	●
18	NUT; STOPPER BOLT,KNUCKLE M12	9-99111-512-0	03	1	0210-0512	●	●
18	NUT; STOPPER BOLT,KNUCKLE M12	0-91111-512-0	03	1	0601-	●	●
21	NIPPLE; GREASE,KING PIN L=11.5	8-94150-094-0	02	1	9704-9905	●
21	NIPPLE; GREASE,KING PIN EXC. AXLE ISUZU PRODUCTION<8BF> L=11.5	8-94150-094-0	02	1	9906-9906	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	9-09031-006-0	02	1	9704-9905	●
21	NIPPLE; GREASE,KING PIN AXLE ISUZU PRODUCTION<8BF> M6 STRAIGHT	9-09031-006-0	04	1	9906-9906	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	9-09031-006-0	04	1	9906-0209	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	9-09031-006-0	04	1	0210-0607	●	●
21	NIPPLE; GREASE,KING PIN M6 STRAIGHT	0-90301-406-0	04	1	0608-	●	●
21	NIPPLE; GREASE,KING PIN EXC. AXLE ISUZU PRODUCTION<8BF> M6 STRAIGHT	9-09031-006-0	02	1	9906-9906	●
25	BEARING; THRUST,KING PIN	8-94162-578-1	02	1	9704-0209	●
25	BEARING; THRUST,KING PIN	8-94162-578-1	02	1	0210-	●	●
26	SHIM; KING PIN,BRG T=0.50	8-94162-570-0	AR	1	9704-0209	●
26	SHIM; KING PIN,BRG T=0.50	8-94162-570-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG T=0.55	8-94162-571-0	AR	1	9704-0209	●
26	SHIM; KING PIN,BRG T=0.55	8-94162-571-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG T=0.65	8-94162-573-0	AR	1	9704-0209	●
26	SHIM; KING PIN,BRG T=0.65	8-94162-573-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG T=0.70	8-94174-347-0	AR	1	9704-0209	●
26	SHIM; KING PIN,BRG T=0.70	8-94174-347-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG T=0.80	8-94174-349-0	AR	1	9704-0209	●
26	SHIM; KING PIN,BRG T=0.80	8-94174-349-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG T=0.90	8-94174-351-0	AR	1	9704-0209	●
26	SHIM; KING PIN,BRG T=0.90	8-94174-351-0	AR	1	0210-	●	●
26	SHIM; KING PIN,BRG T=0.60	8-94162-572-0	AR	1	9804-0209	●
26	SHIM; KING PIN,BRG T=0.60	8-94162-572-0	AR	1	0210-	●	●
31	PIN; S/ABS,LWR	8-94249-010-1	02	1	9704-0209	●
31	PIN; S/ABS,LWR	8-94249-010-1	02	1	0210-	●	●
32	BOLT; KEY,KING PIN	8-97141-945-1	02	1	9707-0209	●
32	BOLT; KEY,KING PIN	8-97141-945-2	02	1	0210-	●	●
32	BOLT; KEY,KING PIN	8-94247-725-0	02	1	9704-9706	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	9704-0209	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0210-0512	●	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	9704-0209	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0210-0603	●	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●	●
35	WASHER; PL,KEY BOLT TO KING PIN ID=10.5 OD=26	9-09160-710-0	02	1	9704-9706	●
36	ARM; KNUCKLE	8-97070-138-0	01	1	9704-0209	●
36	ARM; KNUCKLE	8-97070-138-4	01	1	0210-	●	●
44	COVER; KING PIN OD=36	8-94248-675-1	02	1	9704-0209	●
44	COVER; KING PIN OD=36	8-94248-675-1	02	1	0210-0611	●	●
44	COVER; KING PIN OD=36	8-97360-023-0	02	1	0612-	●	●
47	WASHER; PL,COVER,KING PIN ID=10.5	9-09164-510-0	02	1	9704-0209	●
47	WASHER; PL,COVER,KING PIN ID=10.5	9-09164-510-0	02	1	0210-0402	●	●
48	BOLT; COVER M10X16	0-20801-016-0	02	1	9704-0209	●
48	BOLT; COVER M10X16	0-20801-016-0	02	1	0210-0402	●	●
48	BOLT; COVER M10X12 FLANGE	0-28081-012-0	02	1	0403-0512	●	●
48	BOLT; COVER M10X12 FLANGE	0-28051-012-0	02	1	0601-	●	●
49	CAP; KNUCKLE	8-94248-566-0	02	1	9704-0008	●
49	CAP; KNUCKLE	8-97261-587-0	02	1	0009-0209	●
49	CAP; KNUCKLE	8-97261-587-0	02	1	0210-0611	●	●
49	CAP; KNUCKLE	8-97360-024-0	02	1	0612-	●	●
58	ARM; TIE ROD	8-97032-912-0	01	1	9704-0209	●
58	ARM; TIE ROD	8-97032-912-0	01	1	0210-	●	●
59	NUT; TIE ROD ARM	8-94247-724-0	02	1	9704-0209	●
59	NUT; TIE ROD ARM	8-94247-724-0	02	1	0210-0611	●	●
59	NUT; TIE ROD ARM	8-97360-123-0	02	1	0612-	●	●
61	ROD END; TIE ROD	8-97107-349-2	01	1	9704-0209	●
61	ROD END; TIE ROD	8-97107-349-2	01	1	0210-	●	●
61	ROD END; TIE ROD	8-97107-348-2	01	1	9704-0209	●
61	ROD END; TIE ROD	8-97107-348-2	01	1	0210-	●	●
66	NUT; TIE ROD END M16 SLOTTED	9-99116-516-0	02	1	9704-0209	●
66	NUT; TIE ROD END M16 SLOTTED	9-99116-516-0	02	1	0210-0605	●	●
66	NUT; TIE ROD END M16 SLOTTED	0-91116-516-0	02	1	0606-1204	●	●
66	NUT; TIE ROD END M16 SLOTTED	8-98049-689-0	02	1	1205-	●	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=25	9-08114-025-0	02	1	9704-9704	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	9-08114-020-0	02	1	9704-0209	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	9-08114-020-0	02	1	0210-0606	●	●
69	PIN; SPLIT,TIE ROD END OD=3.7 L=20	0-81124-020-0	02	1	0607-	●	●
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9704-0209	●
70	NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	0210-	●	●
70	NUT; TIE ROD END M20	9-99111-420-0	01	1	9704-0209	●
70	NUT; TIE ROD END M20	9-99111-420-0	01	1	0210-0512	●	●
70	NUT; TIE ROD END M20	0-91111-520-0	01	1	0601-0610	●	●
70	NUT; TIE ROD END M20	8-98043-530-0	01	1	0611-	●	●
81	ROD; TIE	8-97061-866-0	01	1	9704-0209	●
81	ROD; TIE	8-97061-866-0	01	1	0210-	●	●
