◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#72708) — 33 parça

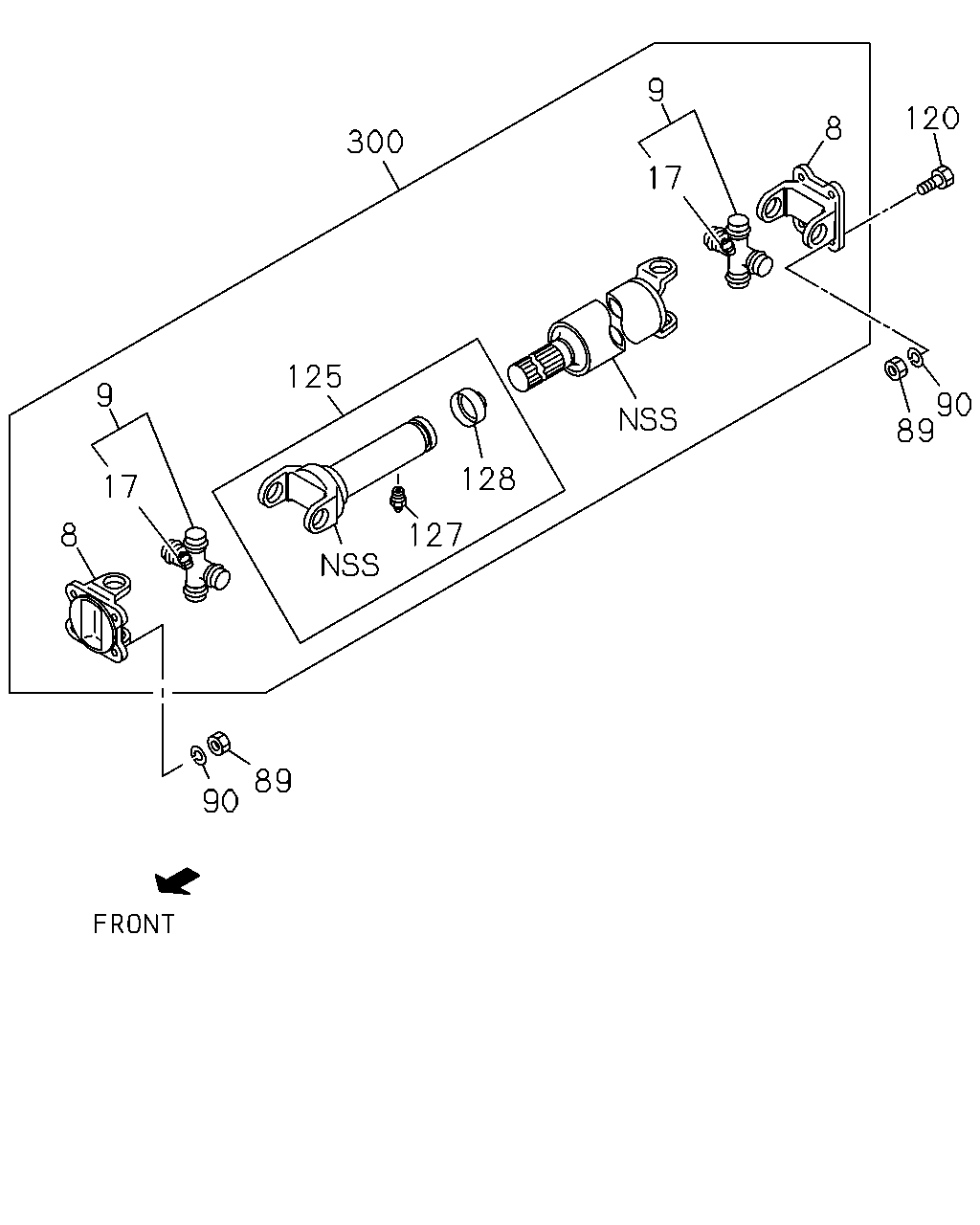

çizim 73368
9 120 8 300 17 125 9 90 89 128 17 8 127 89 90
BalonParca AdiParca NoAdetTipApplied Date A B
8 YOKE; FLANGE,PROP SHAFT 8-97087-078-0 02 1 9704-9807 ●
8 YOKE; FLANGE,PROP SHAFT 8-97211-116-0 02 1 9808-0209 ●
8 YOKE; FLANGE,PROP SHAFT 8-97211-116-0 02 1 0210- ● ●
9 JOURNAL ASM; PROP SHAFT 8-97071-812-1 02 1 9704-9705 ●
9 JOURNAL ASM; PROP SHAFT 8-97180-697-0 02 1 9706-9807 ●
9 JOURNAL ASM; PROP SHAFT 8-97211-135-0 02 1 9808-0209 ●
9 JOURNAL ASM; PROP SHAFT 8-97211-135-0 02 1 0210- ● ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		9-09031-006-0 02 1 9704-0209 ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		9-09031-006-0 02 1 0210-0607 ● ●
17 NIPPLE; GREASE,PROP SHAFT
M6 STRAIGHT 		0-90301-406-0 02 1 0608- ● ●
89 NUT; YOKE TO RR AXLE
M10 		8-94159-009-1 08 1 9704-0209 ●
89 NUT; YOKE TO RR AXLE
M10 		8-94159-009-1 08 1 0210-0610 ● ●
89 NUT; YOKE TO RR AXLE
M10 		8-98056-949-0 08 1 0611- ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=10.2 		9-09150-610-0 08 1 9704-0209 ●
90 WASHER; LK,YOKE TO RR AXLE
ID=10.2 		9-09150-610-0 08 1 0210-0603 ● ●
90 WASHER; LK,YOKE TO RR AXLE
ID=10.2 		0-91510-610-0 08 1 0604- ● ●
120 BOLT; YOKE TO RR AXLE
M10X27 		8-94146-552-2 04 1 9704-9710 ●
120 BOLT; YOKE TO RR AXLE
M10X29 		8-97168-458-1 04 1 9711-0209 ●
120 BOLT; YOKE TO RR AXLE
M10X29 		8-97168-458-1 04 1 0210-0610 ● ●
120 BOLT; YOKE TO RR AXLE
M10X29 		8-98056-948-0 04 1 0611- ● ●
125 YOKE ASM; SPLINED,PROP SHAFT
L=177 		8-97049-301-1 01 1 9704-9807 ●
125 YOKE ASM; SPLINED,PROP SHAFT
L=177 		8-97211-131-0 01 1 9808-0209 ●
125 YOKE ASM; SPLINED,PROP SHAFT
L=177 		8-97211-131-0 01 1 0210- ● ●
127 NIPPLE; GREASE,SPLINED YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 9704-0209 ●
127 NIPPLE; GREASE,SPLINED YOKE
M6 STRAIGHT 		9-09031-006-0 01 1 0210-0607 ● ●
127 NIPPLE; GREASE,SPLINED YOKE
M6 STRAIGHT 		0-90301-406-0 01 1 0608- ● ●
128 SEAL; SLEEVE 8-97020-597-1 01 1 9704-0209 ●
128 SEAL; SLEEVE 8-97020-597-1 01 1 0210- ● ●
300 SHAFT ASM; PROP,RR
L=1122 		8-97048-404-2 01 1 9704-9705 ●
300 SHAFT ASM; PROP,RR
L=1122 		8-97180-955-0 01 1 9706-9807 ●
300 SHAFT ASM; PROP,RR
L=1122 		8-97211-661-0 01 1 9808-0209 ●
300 SHAFT ASM; PROP,RR
L=1122 		8-97211-661-0 01 1 0210-0411 ● ●
300 SHAFT ASM; PROP,RR
L=1122 		8-98002-492-0 01 1 0412- ● ●
