3-60 — BRAKE PIPING; VACUUM (#72707) — 82 parça

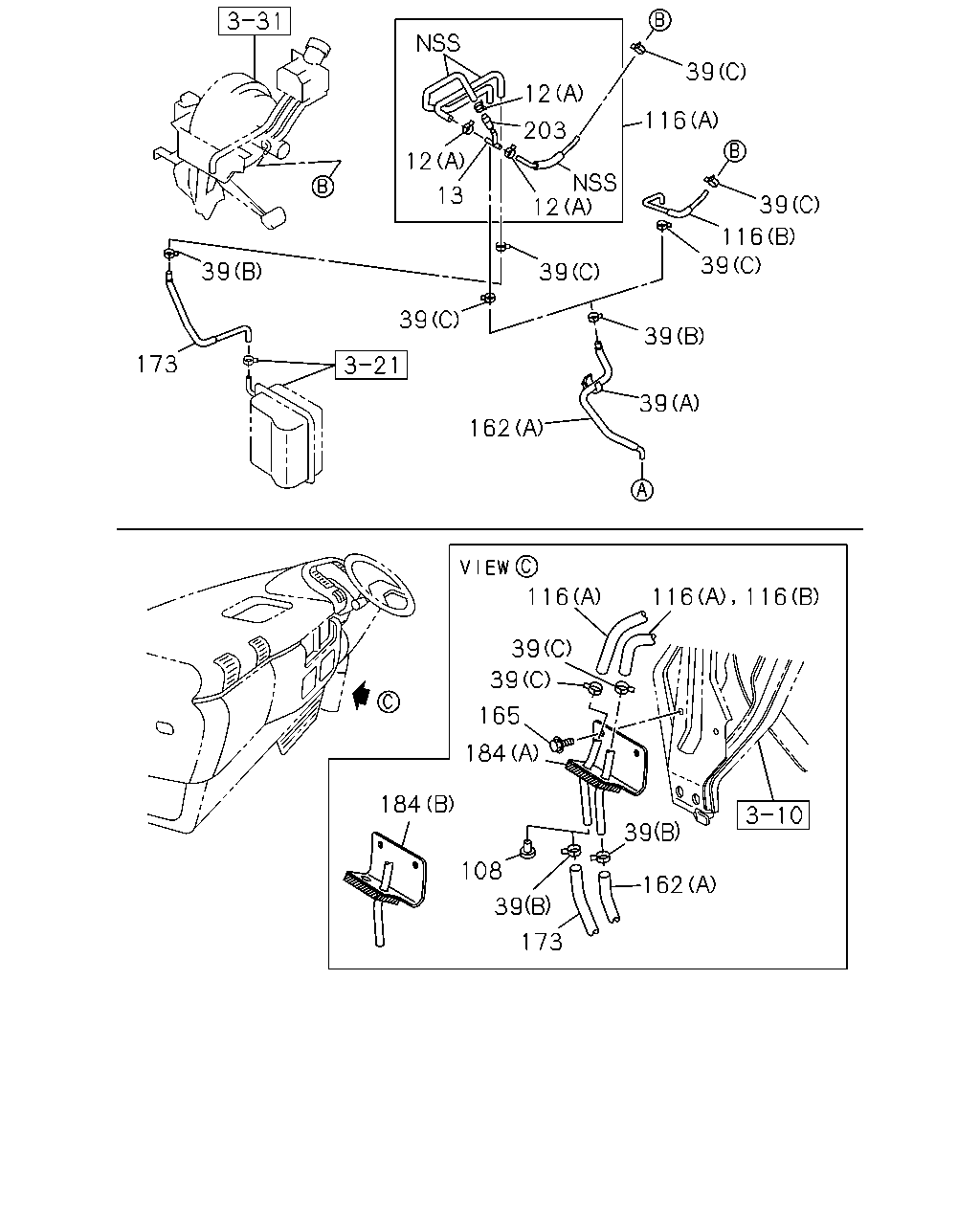

12 13 203 12 39 116 39 116 39 39 39 162 39 39 173 116 116 116 39 39 165 184 184 108 39 162 39 173 12 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE EXHAUST BRAKE<NF8> (A) ID=14.5	8-94167-480-0	03	1	9704-0209	●
12	CLIP; HOSE EXHAUST BRAKE<NF8> (A) ID=14.5	8-94167-480-0	03	1	0210-	●	●
12	CLIP; HOSE EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	9704-0209	●
12	CLIP; HOSE EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0210-0307	●	●
12	CLIP; HOSE EXC. EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	03	1	9704-0209	●
12	CLIP; HOSE EXC. EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	03	1	0210-0307	●	●
13	JOINT; HOSE,VAC EXHAUST BRAKE<NF8> 3WAY	8-94441-184-0	01	1	9704-0209	●
13	JOINT; HOSE,VAC EXHAUST BRAKE<NF8> 3WAY	8-94441-184-0	01	1	0210-	●	●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	9704-0209	●
39	CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0210-	●	●
39	CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (B) ID=16	5-09707-023-2	02	1	9704-0209	●
39	CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (B) ID=16	5-09707-023-2	02	1	0210-	●	●
39	CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (C) ID=16	8-94238-568-0	03	1	9704-0209	●
39	CLIP; HOSE,VAC EXHAUST BRAKE<NF8> (C) ID=16	8-94238-568-0	03	1	0210-	●	●
39	CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> (B) ID=16	5-09707-023-2	01	1	9704-0209	●
39	CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> (B) ID=16	5-09707-023-2	01	1	0210-	●	●
39	CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> (C) ID=16	8-94238-568-0	02	1	9704-0209	●
39	CLIP; HOSE,VAC EXC. EXHAUST BRAKE<NF8> (C) ID=16	8-94238-568-0	02	1	0210-	●	●
108	GROMMET; PIPE EXC. EXHAUST BRAKE<NF8>	9-09956-353-0	01	1	9704-0209	●
108	GROMMET; PIPE EXC. EXHAUST BRAKE<NF8>	9-09956-353-0	01	1	0210-1312	●	●
116	HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (A)	8-97035-969-1	01	1	9704-0209	●
116	HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (A)	8-97035-969-2	01	1	0210-	●	●
116	HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (B)	8-97035-980-1	01	1	9704-0209	●
116	HOSE; VAC,M/VAC EXC. EXHAUST BRAKE<NF8> (B)	8-97035-980-2	01	1	0210-	●	●
162	HOSE; VAC (A)	8-97102-369-2	01	1	9704-0209	●
162	HOSE; VAC (A)	8-97102-369-2	01	1	0210-	●	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (C) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9704-0209	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (C) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0210-	●	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-393-0	01	1	9704-0209	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-393-0	01	1	0210-	●	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-402-0	01	1	9704-0209	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-402-0	01	1	0210-	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	9704-0209	●
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0210-0512	●	●
165	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●
173	HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-875-0	01	1	9704-0209	●
173	HOSE; VAC,VAC TANK SIDE EXHAUST BRAKE<NF8>	8-97129-875-0	01	1	0210-	●	●
184	BRACKET; UNION FIX EXC. EXHAUST BRAKE<NF8> (B)	8-98251-817-0	01	1	1401-	●	●
184	BRACKET; UNION FIX (A)	8-97035-967-3	01	1	9704-0209	●
184	BRACKET; UNION FIX (A)	8-97035-967-3	01	1	0210-1312	●	●
184	BRACKET; UNION FIX EXHAUST BRAKE<NF8> (A)	8-97035-967-3	01	1	1401-	●	●
203	VALVE; CHECK EXHAUST BRAKE<NF8>	8-94386-540-0	01	1	0501-	●	●

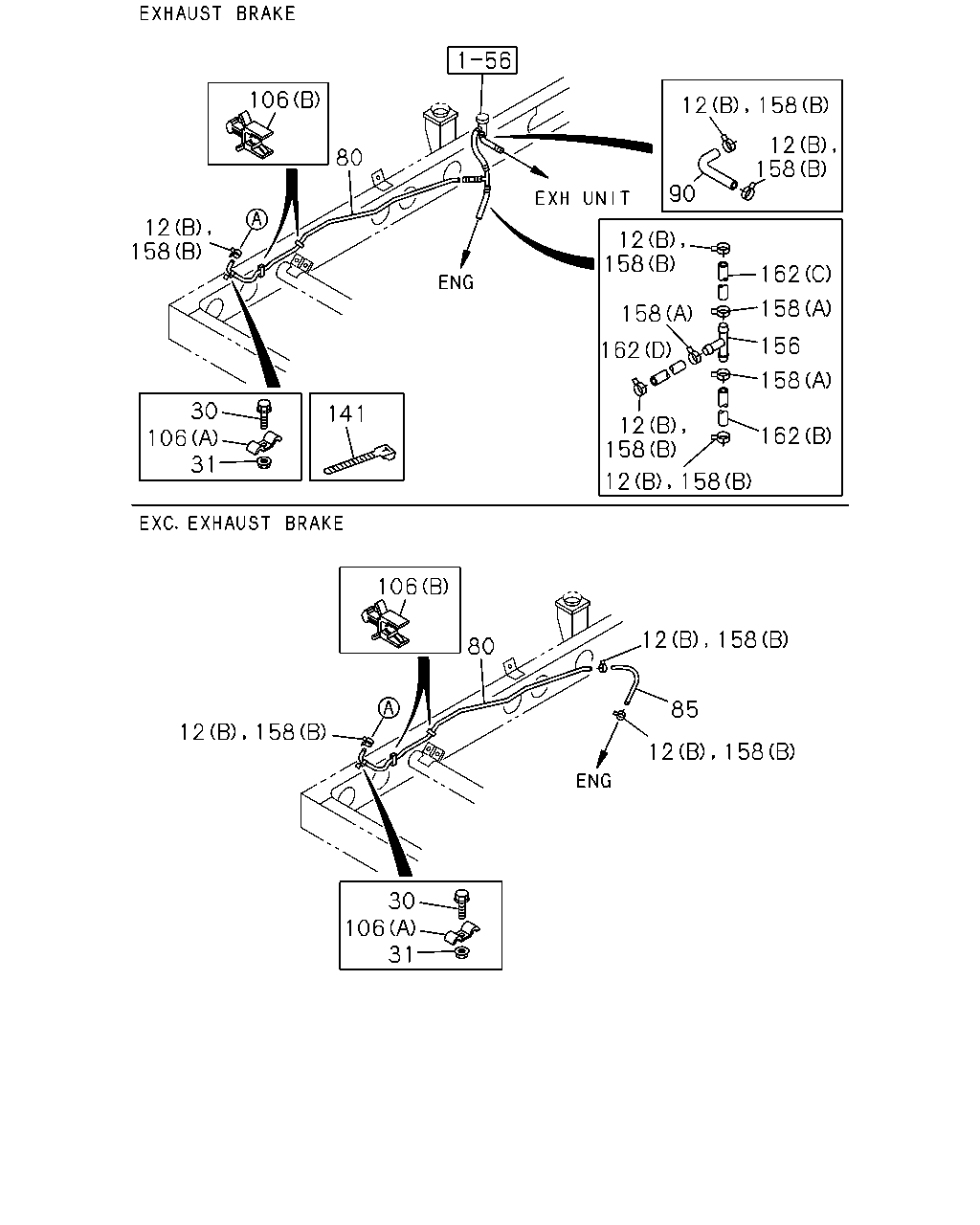

106 12 158 12 158 80 90 12 158 12 158 162 158 158 156 162 158 30 106 31 141 12 158 162 12 158 106 12 158 80 85 12 158 12 158 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	CLIP; HOSE EXHAUST BRAKE<NF8> (A) ID=14.5	8-94167-480-0	03	1	9704-0209	●
12	CLIP; HOSE EXHAUST BRAKE<NF8> (A) ID=14.5	8-94167-480-0	03	1	0210-	●	●
12	CLIP; HOSE EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	9704-0209	●
12	CLIP; HOSE EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0210-0307	●	●
12	CLIP; HOSE EXC. EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	03	1	9704-0209	●
12	CLIP; HOSE EXC. EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	03	1	0210-0307	●	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	9704-0209	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28080-620-0	01	1	0210-0512	●	●
30	BOLT; CLIP,VAC PIPE M6X20 FLANGE	0-28050-620-0	01	1	0601-	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	9704-0209	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91150-106-0	01	1	0210-0602	●	●
31	NUT; CLIP,VAC PIPE M6 FLANGE	0-91180-106-0	01	1	0603-	●	●
80	PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	9704-0209	●
80	PIPE; VAC,ENG SIDE	8-97070-034-1	01	1	0210-	●	●
85	HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9704-0209	●
85	HOSE; VAC,ENG SIDE EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	0210-	●	●
90	HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9704-0209	●
90	HOSE; VAC,MAG VLV EXHAUST BRAKE<NF8> L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0210-	●	●
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9704-0209	●
106	CLIP; PIPE (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	0210-	●	●
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	9704-0209	●
106	CLIP; PIPE (B) ID=10 H=36	8-94249-686-1	02	1	0210-	●	●
141	CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> L=250	5-09707-030-1	01	1	9704-0209	●
141	CLIP; 3 WAY JOINT EXHAUST BRAKE<NF8> L=250	5-09707-030-1	01	1	0210-	●	●
156	JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	9704-0209	●
156	JOINT; 3 WAY EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	0210-	●	●
158	CLIP; HOSE EXHAUST BRAKE<NF8> (A) ID=14.5	8-94167-480-0	03	1	9704-0209	●
158	CLIP; HOSE EXHAUST BRAKE<NF8> (A) ID=14.5	8-94167-480-0	03	1	0210-	●	●
158	CLIP; HOSE EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	06	1	0308-0911	●	●
158	CLIP; HOSE EXHAUST BRAKE<NF8> (B) ID=16	8-98008-098-0	06	1	0912-	●	●
158	CLIP; HOSE EXC. EXHAUST BRAKE<NF8> (B) ID=16	8-94238-568-0	03	1	0308-0911	●	●
158	CLIP; HOSE EXC. EXHAUST BRAKE<NF8> (B) ID=16	8-98008-098-0	03	1	0912-	●	●
162	HOSE; VAC (A)	8-97102-369-2	01	1	9704-0209	●
162	HOSE; VAC (A)	8-97102-369-2	01	1	0210-	●	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (C) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9704-0209	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (C) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	0210-	●	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-393-0	01	1	9704-0209	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (B)	8-97100-393-0	01	1	0210-	●	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-402-0	01	1	9704-0209	●
162	HOSE; VAC EXHAUST BRAKE<NF8> (D)	8-97100-402-0	01	1	0210-	●	●
