◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#72705) — 9 parça

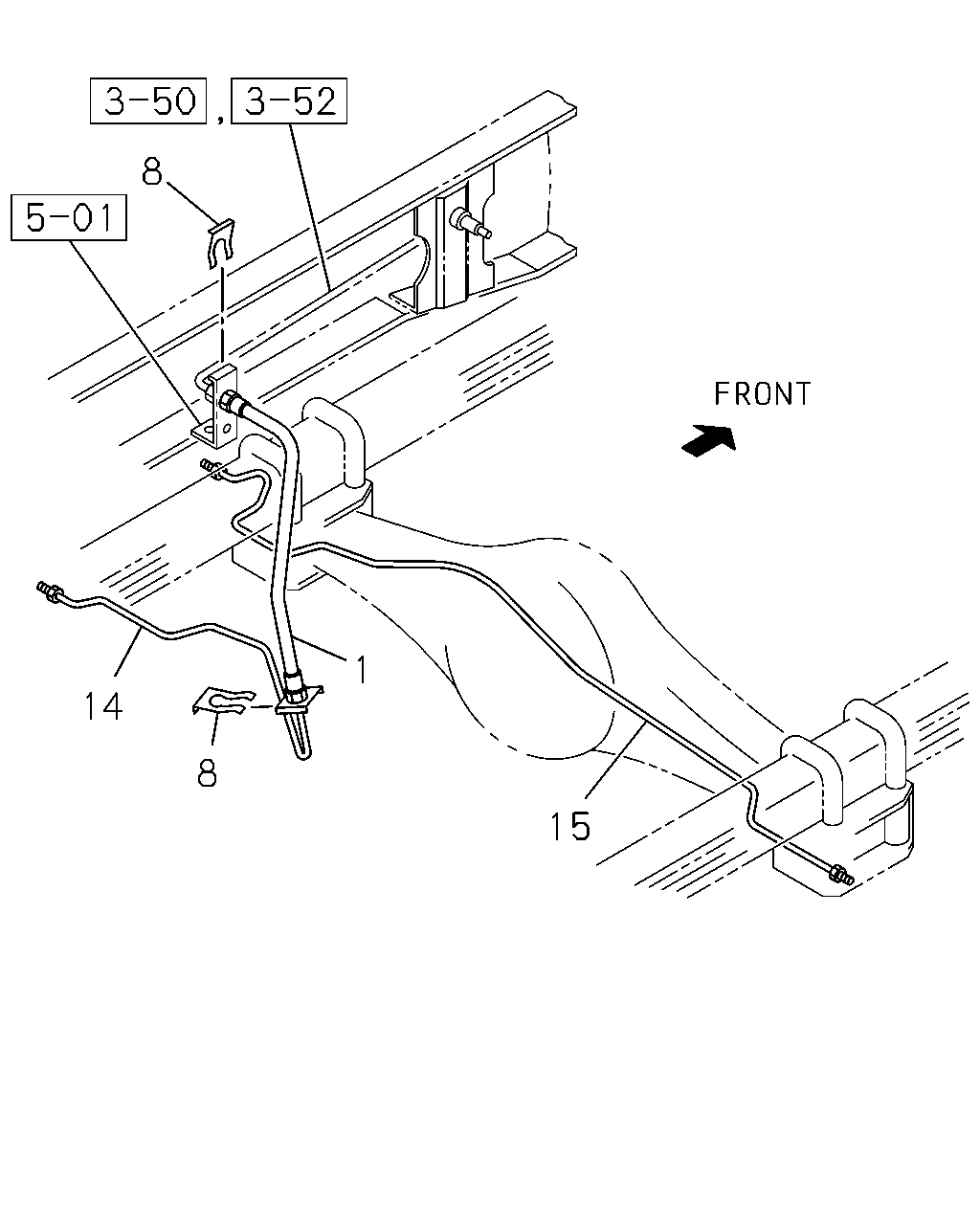

çizim 102660
8 1 14 8 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 9704-0209 ●
1 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 0210- ● ●
8 CLIP; RR BRK 8-94137-662-0 02 1 9704-0209 ●
8 CLIP; RR BRK 8-94137-662-0 02 1 0210-0610 ● ●
8 CLIP; RR BRK 8-97360-054-0 02 1 0611- ● ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97035-850-0 01 1 9704-0209 ●
14 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-97035-850-0 01 1 0210- ● ●
15 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97105-827-0 01 1 9704-0209 ●
15 PIPE; BRK,WHEEL CYL TO WHEEL CYL 8-97105-827-0 01 1 0210- ● ●
