◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#72704) — 45 parça

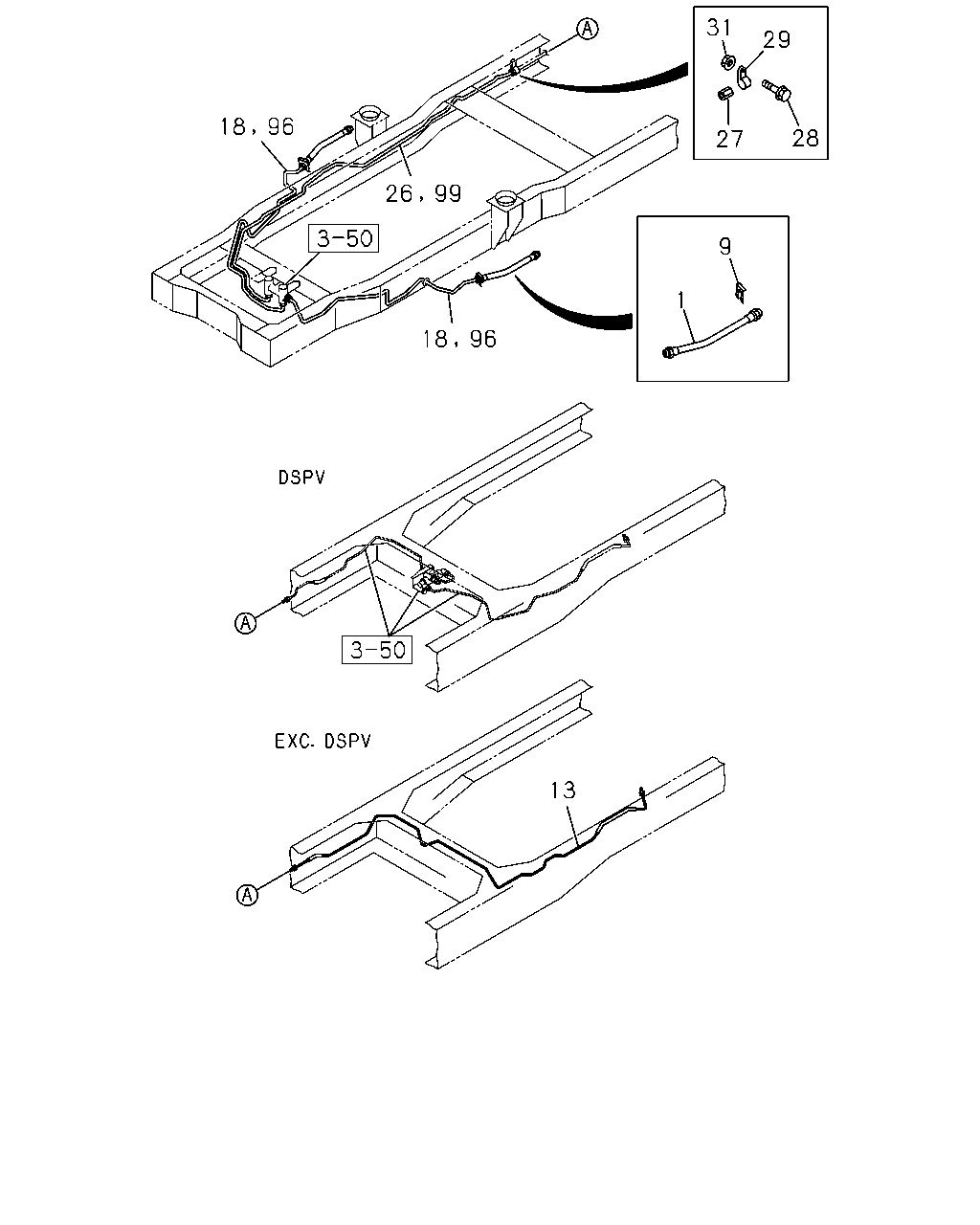

çizim 73979
31 29 18 96 28 27 99 26 9 1 18 96 13
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-0 02 1 9704-0209 ●
1 HOSE; FLEX,FRT BRK
L=310 		8-97035-063-1 02 1 0210- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 9704-0209 ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 02 1 0210-0610 ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611- ● ●
13 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 9704-0209 ●
13 PIPE; OIL,UNION TO UNION
EXC. BRK WHL LK CONT DSPV<JL8> 		8-97041-000-3 01 1 0210- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-629-1 01 1 9704-0209 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-629-1 01 1 0210-0307 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-630-2 01 1 9704-0209 ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE 8-97035-630-2 01 1 0210-0307 ● ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97092-863-4 01 1 9704-0209 ●
26 PIPE; BRK,JOINT TO 2 WAY 8-97092-863-4 01 1 0210-0307 ● ●
27 UNION; BRK PIPE
EXC. BRK WHL LK CONT DSPV<JL8> M10 STRAIGHT 		9-09227-005-0 01 1 9704-9704 ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 01 1 9705-0209 ●
27 UNION; BRK PIPE
M10 STRAIGHT 		9-09227-005-0 01 1 0210-0607 ● ●
27 UNION; BRK PIPE
M10 STRAIGHT 		0-92107-005-0 01 1 0608- ● ●
28 BOLT; UNION CLIP
EXC. BRK WHL LK CONT DSPV<JL8> M6X25 FLANGE 		0-28680-625-0 01 1 9704-9704 ●
28 BOLT; UNION CLIP
M6X25 FLANGE 		0-28680-625-0 01 1 9705-0209 ●
28 BOLT; UNION CLIP
M6X25 FLANGE 		0-28680-625-0 01 1 0210-0512 ● ●
28 BOLT; UNION CLIP
M6X25 FLANGE 		0-28650-625-0 01 1 0601- ● ●
29 CLIP; UNION
EXC. BRK WHL LK CONT DSPV<JL8> ID=16 L=20 		9-09525-532-0 01 1 9704-9704 ●
29 CLIP; UNION
ID=16 L=20 		9-09525-532-0 01 1 9705-0209 ●
29 CLIP; UNION
ID=16 L=20 		9-09525-532-0 01 1 0210-0606 ● ●
29 CLIP; UNION
ID=16 L=20 		0-95235-532-0 01 1 0607- ● ●
31 NUT; UNION CLIP
EXC. BRK WHL LK CONT DSPV<JL8> M6 FLANGE 		0-91150-106-0 01 1 9704-9704 ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 9705-0209 ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91150-106-0 01 1 0210-0602 ● ●
31 NUT; UNION CLIP
M6 FLANGE 		0-91180-106-0 01 1 0603- ● ●
96 PIPE ASM; 6 WAY 8-97035-629-1 01 1 0308- ● ●
96 PIPE ASM; 6 WAY 8-97035-630-2 01 1 0308- ● ●
99 PIPE ASM; 4/5/6 WAY 8-97092-863-4 01 1 0308- ● ●

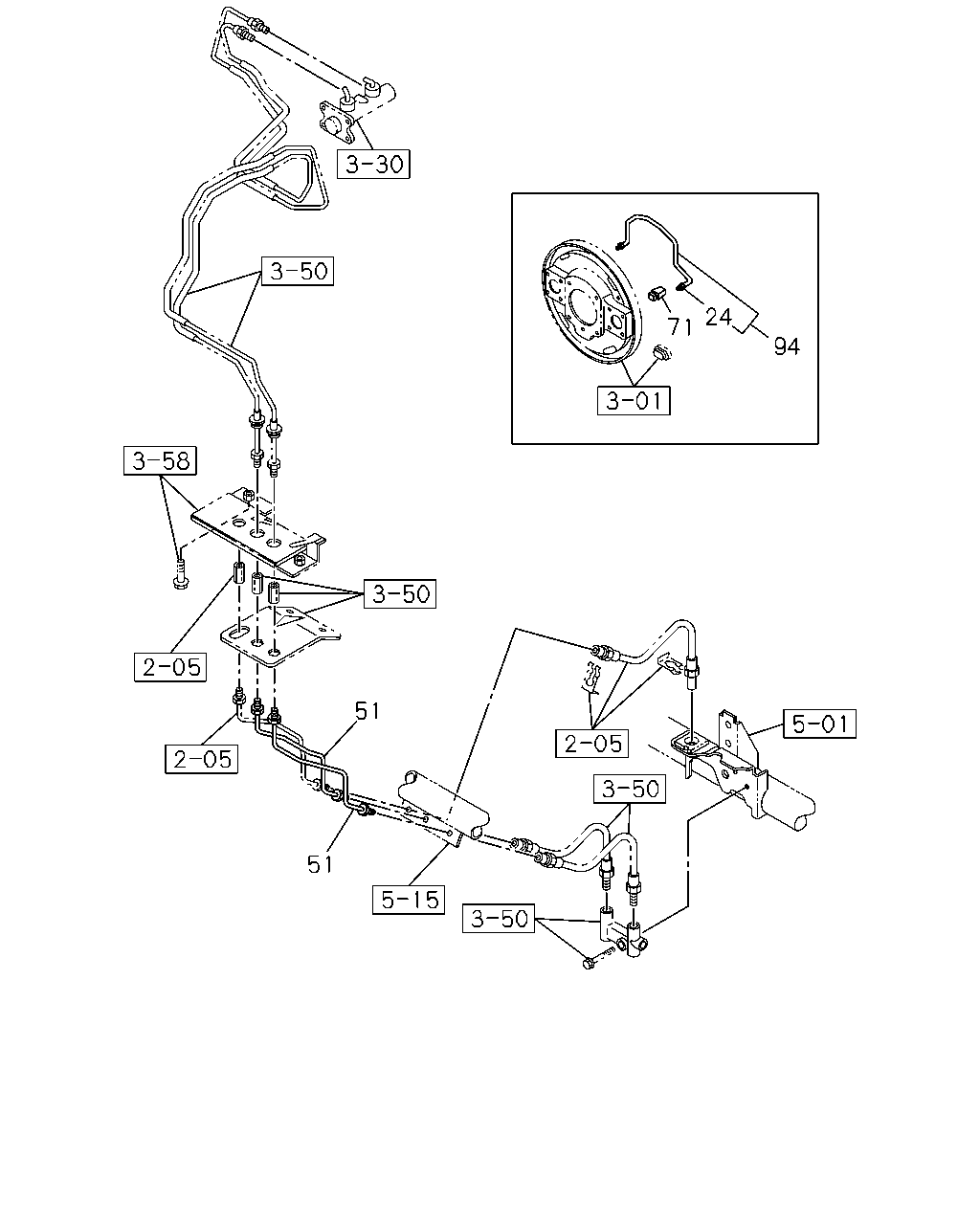

çizim 102637
24 71 94 51 51
BalonParca AdiParca NoAdetTipApplied Date A B
24 NUT; UNION,OIL PIPE 9-09217-625-0 02 1 9704-0209 ●
24 NUT; UNION,OIL PIPE 9-09217-625-0 02 1 0210-0607 ● ●
24 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0608- ● ●
51 PIPE; BRK 8-97035-978-0 02 1 9704-0209 ●
51 PIPE; BRK 8-97035-978-0 01 1 0210- ● ●
51 PIPE; BRK 8-97035-978-0 01 1 0210- ● ●
71 GROMMET; OIL PIPE
AXLE ISUZU PRODUCTION<8BF> 		9-09956-640-0 02 1 9905-9909 ●
71 GROMMET; OIL PIPE 9-09956-640-0 02 1 9910-0209 ●
71 GROMMET; OIL PIPE 9-09956-640-0 02 1 0210- ● ●
94 PIPE; BRK,W/C TO W/C 8-97081-151-0 01 1 9704-0209 ●
94 PIPE; BRK,W/C TO W/C 8-97081-151-0 01 1 0210- ● ●
94 PIPE; BRK,W/C TO W/C 8-97081-184-0 01 1 9704-0209 ●
94 PIPE; BRK,W/C TO W/C 8-97081-184-0 01 1 0210- ● ●
