3-30 — BRAKE MASTER CYLINDER (#72701) — 16 parça

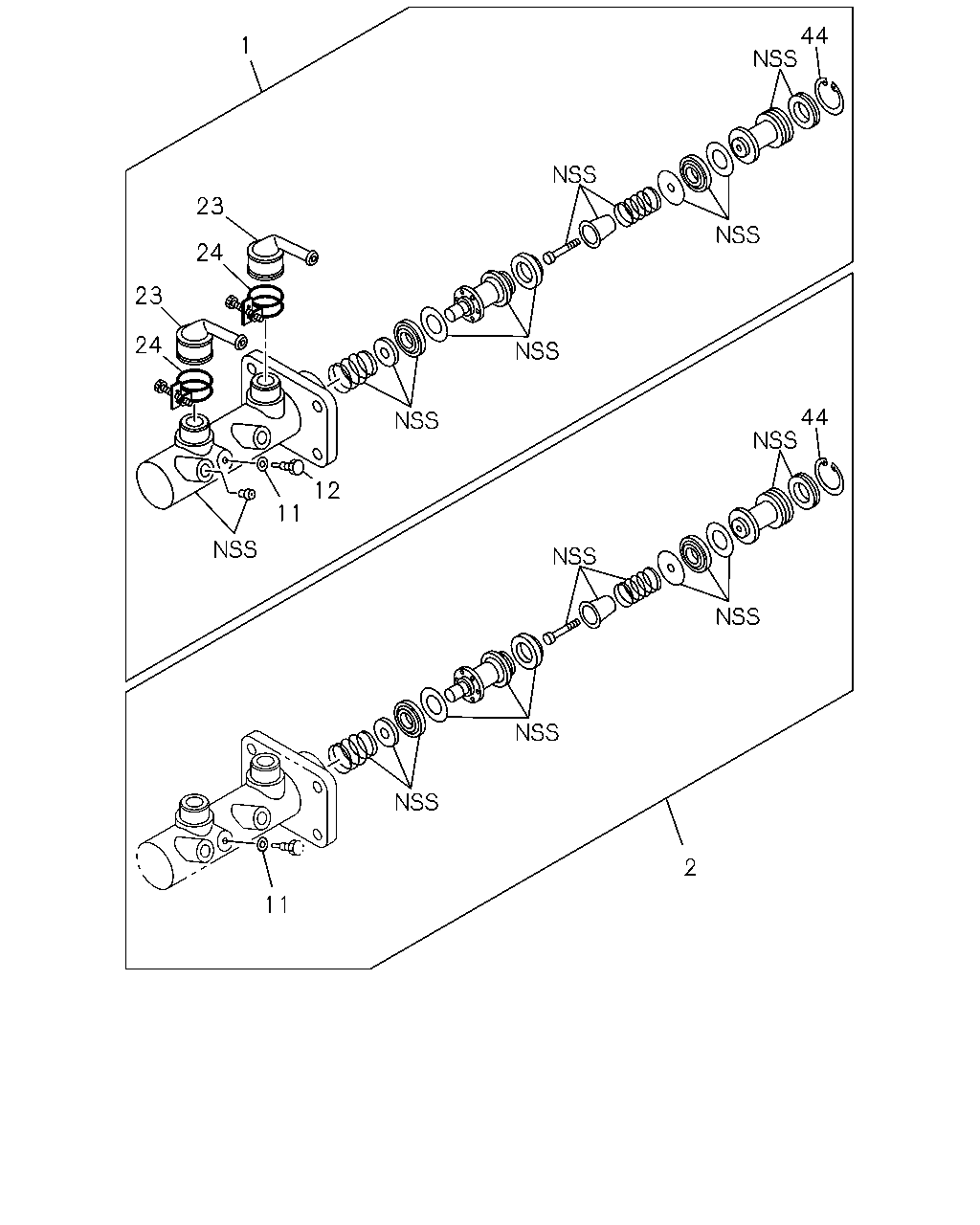

çizim 73953
44 1 23 24 23 24 44 12 11 2 11
BalonParca AdiParca NoAdetTipApplied Date A B
1 CYLINDER ASM; BRK MASTER 8-97033-639-0 01 1 9704-9908 ●
1 CYLINDER ASM; BRK MASTER 8-97181-861-0 01 1 9909-0209 ●
1 CYLINDER ASM; BRK MASTER 8-97181-861-0 01 1 0210- ● ●
2 REPAIR KIT; BRK,M/CYL 8-97080-902-0 01 1 9704-9908 ●
2 REPAIR KIT; BRK,M/CYL 8-97206-412-0 01 1 9909-0209 ●
2 REPAIR KIT; BRK,M/CYL 8-97206-412-0 01 1 0210- ● ●
11 GASKET; STOPPER BOLT TO BRK M/CYL BODY 8-94107-675-0 01 1 9704-0209 ●
11 GASKET; STOPPER BOLT TO BRK M/CYL BODY 8-94107-675-0 01 1 0210- ● ●
12 BOLT; STOPPER,BRK M/CYL 8-97033-978-0 01 1 9704-0209 ●
12 BOLT; STOPPER,BRK M/CYL 8-97033-978-0 01 1 0210- ● ●
23 CONNECTOR; BRK M/CYL TO RESERVE TANK 8-97080-899-0 02 1 9704-0209 ●
23 CONNECTOR; BRK M/CYL TO RESERVE TANK 8-97080-899-0 02 1 0210- ● ●
24 CLIP; CONN TO BRK M/CYL 8-94405-178-0 02 1 9704-0209 ●
24 CLIP; CONN TO BRK M/CYL 8-94405-178-0 02 1 0210- ● ●
44 RING; SNAP,M/CYL 8-97033-005-0 01 1 9704-0209 ●
44 RING; SNAP,M/CYL 8-97033-005-0 01 1 0210- ● ●
