◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 10632 - FVM-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#727) — 115 parça
çizim 94148
26 28 107 29 34 102 106 44 104 153 42 115 43 161 48 48 114 28 33
BalonParca AdiParca NoAdetTipApplied Date A B C
26 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 02 1 9204-9304 ● ●
26 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 03 1 9305- ● ●
26 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 01 1 9505- ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9204- ● ●
28 CLIP; OIL PIPE
(B) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 01 1 9305- ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9505- ●
28 CLIP; OIL PIPE
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9505- ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28010-825-0 02 1 9204-9204 ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9305- ● ●
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 03 1 9505- ●
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 01 1 9204- ● ●
33 CLIP; OIL PIPE
ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9505- ●
34 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28010-825-0 01 1 9204-9204 ●
34 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9205- ● ●
34 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9505- ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47475-444-4 01 1 9204-9306 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9307- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47476-806-0 01 1 9204-9504 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9505- ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47476-806-0 01 1 9505- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28010-830-0 02 1 9204-9204 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28080-830-0 02 1 9205- ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-408-0 02 1 9204- ● ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9204- ● ●
48 GASKET; FLEX HOSE,CLU CONT
(A) ID=10.5 		1-09630-074-1 01 1 9505- ●
48 GASKET; FLEX HOSE,CLU CONT
(B) ID=14.2 		9-09851-004-0 01 1 9505- ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99110-414-0 01 1 9204- ● ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1501 SERVICED BY L=1700 		1-47434-412-0 01 1 9204-9212 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1501 SERVICED BY L=1550 		1-47426-390-0 01 1 9301-9304 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1483 SERVICED BY L=1550 		1-47426-390-0 01 1 9305- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1862 SERVICED BY L=1950 		1-47426-393-0 01 1 9505- ●
106 UNION; OIL PIPE
M14 2WAY 		1-09654-176-2 01 1 9204- ● ● ●
107 NUT; UNION,OIL PIPE
M12 		9-99111-412-0 01 1 9204- ● ● ●
114 BOLT; EYE,FLEX HOSE 1-09675-158-0 01 1 9505- ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9204- ● ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1374 SERVICED BY L=1400 		1-47434-411-0 01 1 9204-9212 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1374 SERVICED BY L=1400 		1-47426-389-0 01 1 9301-9304 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1365 SERVICED BY L=1400 		1-47426-389-0 01 1 9305- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=698 SERVICED BY L=730 		1-47426-382-0 01 1 9505- ●
161 HOSE; FLEX,SLAVE CYL 0-05567-350-0 01 1 9505- ●

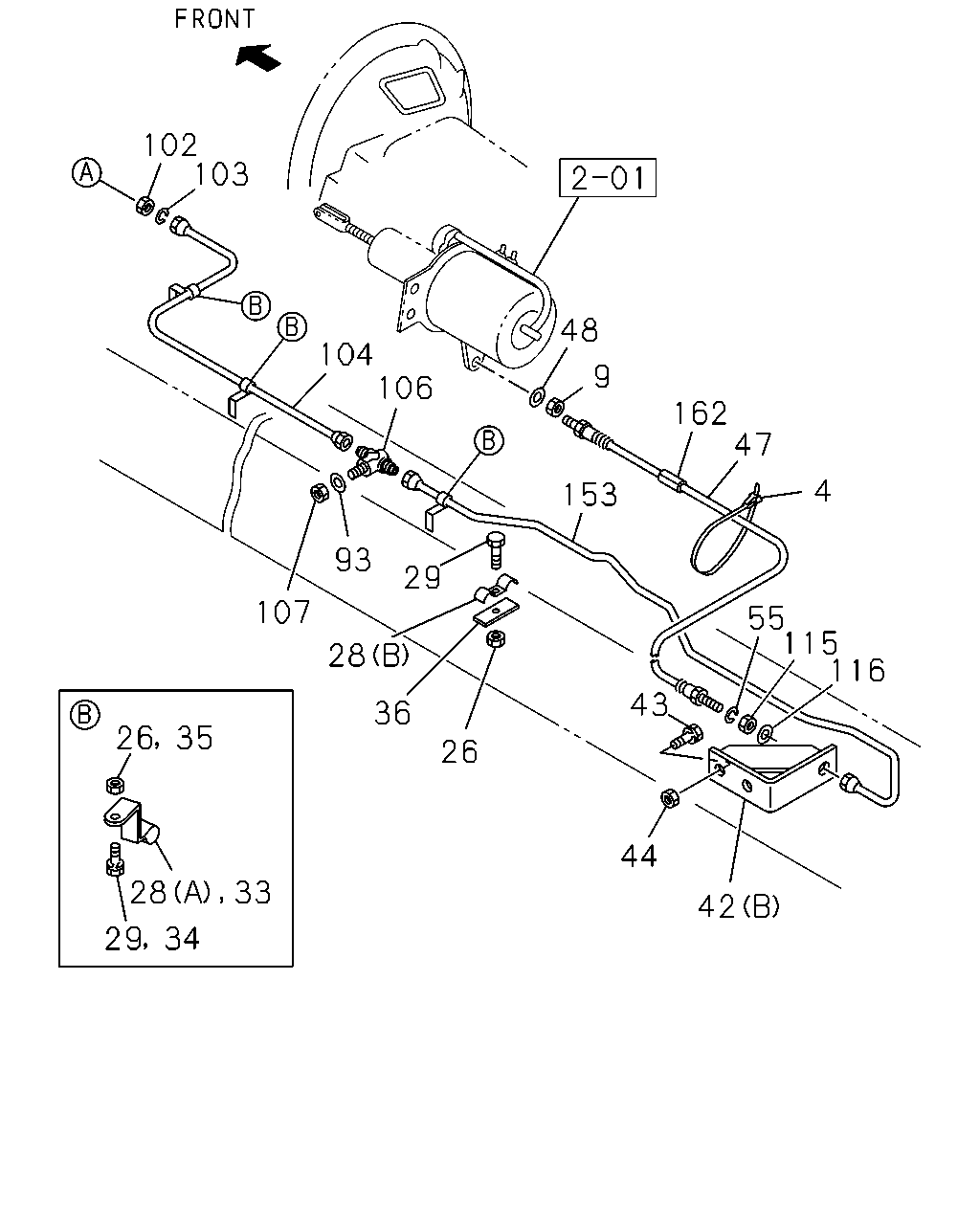

çizim 94766
102 103 48 104 106 9 162 47 4 153 93 29 107 55 115 116 28 43 36 26 35 26 44 28 33 42 29 34
BalonParca AdiParca NoAdetTipApplied Date A B C
4 CLIP; FLEX HOSE,CLU CONT
L=250 		5-09707-030-0 01 1 9204-9310 ● ●
9 NUT; BRKT,FLEX HOSE
6SA1 STD ENG(06L) M8 		9-09110-408-0 01 1 9204- ●
26 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 02 1 9204-9304 ● ●
26 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 03 1 9305- ● ●
26 NUT; CLIP,OIL PIPE
M8 		9-09110-408-0 01 1 9505- ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 02 1 9204- ● ●
28 CLIP; OIL PIPE
(B) ID=7 & 9 L=17.5 & 17.5 		1-09700-746-0 01 1 9305- ● ●
28 CLIP; OIL PIPE
(A) ID=8 H=20 L=20 		1-09700-604-0 01 1 9505- ●
28 CLIP; OIL PIPE
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 9505- ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28010-825-0 02 1 9204-9204 ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28080-825-0 02 1 9205- ● ●
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 01 1 9305- ● ●
29 BOLT; CLIP,OIL PIPE
M8X16 FLANGE 		0-28080-816-0 03 1 9505- ●
33 CLIP; OIL PIPE
ID=8 H=20 L=20 		1-09700-604-0 01 1 9204- ● ●
33 CLIP; OIL PIPE
ID=11 & 7 L=17.5 & 17.5 		1-09700-740-0 01 1 9505- ●
34 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28010-825-0 01 1 9204-9204 ●
34 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28080-825-0 01 1 9205- ● ●
34 BOLT; PIPE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 9505- ●
35 NUT; PIPE CLIP
M8 		9-09110-408-0 01 1 9204- ● ●
36 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 9305- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47475-444-4 01 1 9204-9306 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9307- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47476-806-0 01 1 9204-9504 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9505- ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47476-806-0 01 1 9505- ● ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28010-830-0 02 1 9204-9204 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28080-830-0 02 1 9205- ● ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 		9-09110-408-0 02 1 9204- ● ● ●
47 HOSE; FLEX,CLU CONT
L=250 		1-09364-645-0 01 1 9204- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 9204- ● ●
48 GASKET; FLEX HOSE,CLU CONT
(A) ID=10.5 		1-09630-074-1 01 1 9505- ●
48 GASKET; FLEX HOSE,CLU CONT
(B) ID=14.2 		9-09851-004-0 01 1 9505- ●
55 WASHER; LK,BRKT,FLEX HOSE
6SA1 STD ENG(06L) ID=8.2 		9-09150-508-0 01 1 9204- ●
93 WASHER; LK,UNION,OIL PIPE
ID=12.2 		9-09150-512-0 01 1 9204-9312 ● ●
102 NUT; FLEX HOSE,CLU CONT
M14 		9-99110-414-0 01 1 9204- ● ● ●
103 WASHER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9204-9312 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1501 SERVICED BY L=1700 		1-47434-412-0 01 1 9204-9212 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1501 SERVICED BY L=1550 		1-47426-390-0 01 1 9301-9304 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1483 SERVICED BY L=1550 		1-47426-390-0 01 1 9305- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1862 SERVICED BY L=1950 		1-47426-393-0 01 1 9505- ●
106 UNION; OIL PIPE
M14 2WAY 		1-09654-176-2 01 1 9204- ● ● ●
107 NUT; UNION,OIL PIPE
M12 		9-99111-412-0 01 1 9204- ● ● ●
115 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9204- ● ● ●
116 WASHER; FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9204-9312 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1374 SERVICED BY L=1400 		1-47434-411-0 01 1 9204-9212 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1374 SERVICED BY L=1400 		1-47426-389-0 01 1 9301-9304 ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=1365 SERVICED BY L=1400 		1-47426-389-0 01 1 9305- ● ●
153 PIPE ASM; CLU,UNION TO FLEX
L=698 SERVICED BY L=730 		1-47426-382-0 01 1 9505- ●
162 COVER; RUBBER,FLEX HOSE
ID=10 OD=14 L=30 		9-09956-682-0 01 1 9204-9310 ● ●

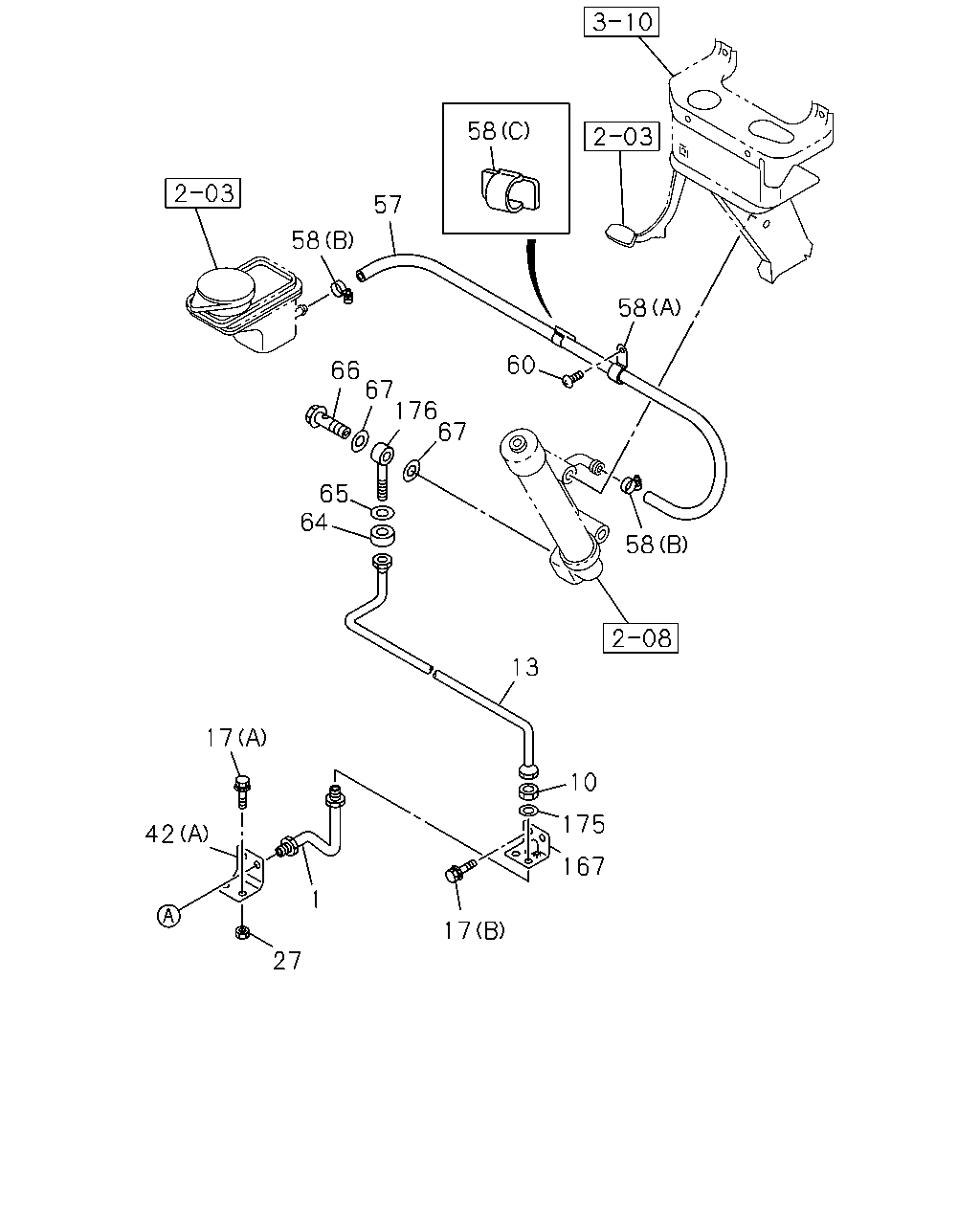

çizim 95439
58 57 58 58 60 66 67 176 67 65 64 58 13 17 10 175 42 167 1 17 27
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,CLU CONT
L=400 		1-09364-263-0 01 1 9204- ● ● ●
10 NUT; FLEX HOSE,CLU CONT
M14 		9-99111-414-0 01 1 9204- ● ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47418-810-0 01 1 9204-9212 ● ●
13 PIPE; OIL,FLEX HOSE TO CLU M/CYL 1-47425-601-0 01 1 9301- ● ● ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28010-820-0 02 1 9204-9204 ●
17 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 02 1 9205- ● ● ●
17 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9204- ● ● ●
27 NUT; BRKT
M8 		9-09110-408-0 02 1 9204- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47475-444-4 01 1 9204-9306 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		1-47476-781-0 01 1 9307- ● ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47476-806-0 01 1 9204-9504 ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47475-709-0 01 1 9505- ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		1-47476-806-0 01 1 9505- ● ●
57 HOSE; CLU M/CYL TO OIL TANK
L=1800 		1-09360-320-0 01 1 9204- ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(B) ID=16 		1-09707-171-0 02 1 9204- ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(C) ID=15 		1-09987-115-0 01 1 9204- ● ● ●
58 CLIP; RUBBER HOSE TO M/CYL
(A) ID=13 L=20 		9-09525-232-0 01 1 9204- ● ● ●
60 SCREW; RUBBER HOSE CLIP,CLU CONT
M6X16 W/LK&PL WASHER 		1-09981-439-0 01 1 9204- ● ● ●
64 SEAL; EYE JOINT,CLU M/CYL 1-73998-453-0 01 1 9204- ● ● ●
65 WASHER; PL,SEAL,CLU M/CYL
ID=15 OD=30 		9-09160-614-0 01 1 9204- ● ● ●
66 BOLT; EYE JOINT,CLU M/CYL
M14X30 EYE-BOLT 		1-09675-146-0 01 1 9204- ● ● ●
67 GASKET; EYE JOINT,CLU M/CYL
ID=14.2 OD=20.0 		9-09571-414-0 02 1 9204- ● ● ●
167 BRACKET; UNION 1-79738-097-3 01 1 9204- ● ● ●
175 WASER; LK,FLEX HOSE,CLU CONT
ID=14.2 		9-09150-514-0 01 1 9204- ● ● ●
176 JOINT; EYE,CLU M/CYL FLUID 1-09674-088-0 01 1 9204- ● ● ●
