◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#72699) — 62 parça

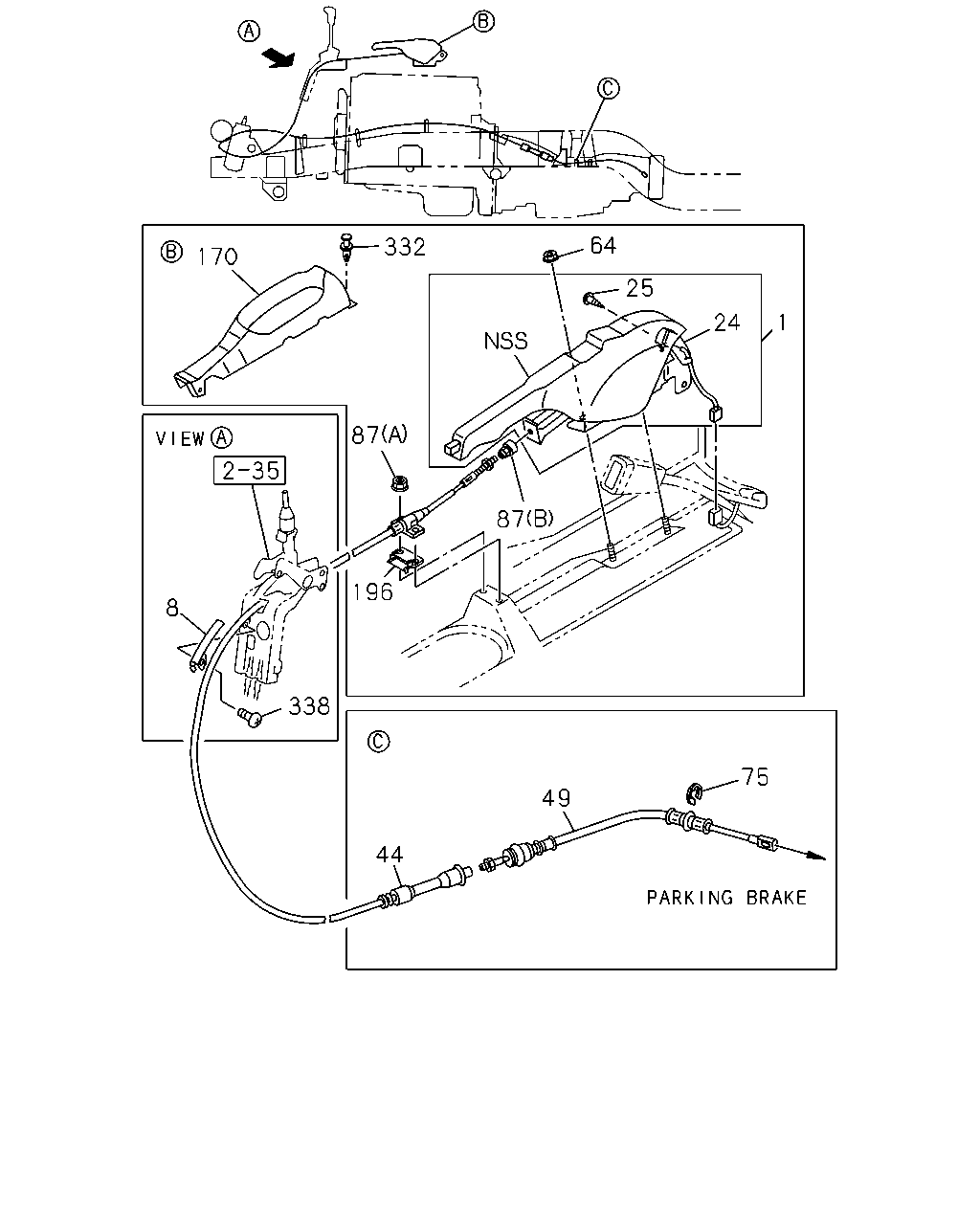

çizim 74131
64 332 170 25 24 1 87 196 8 338 75 49 44
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97856-804-5 01 1 9704-9710 ●
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97890-436-1 01 1 9711-0108 ●
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97995-847-0 01 1 0109-0110 ●
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97996-540-1 01 1 0111-0209 ●
1 STEM ASM; PARKING BRK
DARK BEIGE 		8-97996-540-1 01 1 0210-0307 ● ●
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97996-542-2 01 1 0308-1305 ● ●
1 STEM ASM; PARKING BRK
DARK GRAY 		8-97427-541-0 01 1 1306- ● ●
8 GUIDE; PARKING BRK 8-97071-939-0 01 1 9704-9904 ●
8 GUIDE; PARKING BRK 8-97190-672-0 01 1 9905-0209 ●
8 GUIDE; PARKING BRK 8-97190-672-0 01 1 0210- ● ●
24 SWITCH ASM; PARK BRK 8-97857-198-1 01 1 9704-9710 ●
24 SWITCH ASM; PARK BRK 8-97890-859-0 01 1 9711-0108 ●
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0109-0209 ●
24 SWITCH ASM; PARK BRK 8-97995-828-1 01 1 0210-1305 ● ●
24 SWITCH ASM; PARK BRK 8-98238-611-0 01 1 1306- ● ●
25 SCREW; SW,PARKING BRK 8-98152-463-0 01 1 0308- ● ●
44 CABLE; PARKING BRK,FRT 8-97176-235-0 01 1 9704-0209 ●
44 CABLE; PARKING BRK,FRT 8-97176-235-0 01 1 0210- ● ●
49 CABLE; PARKING BRK 8-97063-103-5 01 1 9704-9706 ●
49 CABLE; PARKING BRK 8-97184-193-0 01 1 9707-9709 ●
49 CABLE; PARKING BRK 8-97184-268-0 01 1 9710-0209 ●
49 CABLE; PARKING BRK 8-97184-268-0 01 1 0210- ● ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 9704-0209 ●
64 NUT; PARKING BRK
M8 W/LK WASHER 		8-94327-073-0 02 1 0210-0610 ● ●
64 NUT; PARKING BRK
M8 LOCK NUT FLANGE 		0-91380-008-0 02 1 0611- ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 9704-0209 ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		9-09185-412-0 01 1 0210-0604 ● ●
75 RING; SNAP,HAND BRK CABLE
ID=12 		0-91805-512-0 01 1 0605- ● ●
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 9704-0209 ●
87 NUT
(A) M8 FLANGE 		0-91150-108-0 02 1 0210-0602 ● ●
87 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
87 NUT
(B) M6 		8-97088-730-1 01 1 9704-0209 ●
87 NUT
(B) M6 		8-97088-730-1 01 1 0210-0310 ● ●
87 NUT
(B) M6 		1-71996-312-0 01 1 0311-0611 ● ●
87 NUT
(B) M6 		8-98034-313-1 01 1 0612- ● ●
170 COVER; PARKING BRK LEVER
DARK BEIGE 		8-97097-008-0 01 1 9704-0209 ●
170 COVER; PARKING BRK LEVER
DARK BEIGE 		8-97097-008-0 01 1 0210-0307 ● ●
170 COVER; PARKING BRK LEVER
DARK GRAY 		8-97155-172-1 01 1 0308-1001 ● ●
170 COVER; PARKING BRK LEVER
DARK GRAY 		8-97412-945-0 01 1 1002- ● ●
196 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 9704-0209 ●
196 SPACER; CABLE TO LEVER 8-97066-277-2 01 1 0210-0611 ● ●
196 SPACER; CABLE TO LEVER 8-98034-201-0 01 1 0612- ● ●
332 CLIP; COVER
D6X12.5 		8-94146-425-0 01 1 9704-0209 ●
332 CLIP; COVER
D6X12.5 		8-94146-425-0 01 1 0210- ● ●
338 SCREW; GUIDE
M6X10 		9-03497-610-0 01 1 9704-0209 ●
338 SCREW; GUIDE
M6X10 		9-03497-610-0 01 1 0210-0604 ● ●
338 SCREW; GUIDE
M6X10 		0-34218-610-0 01 1 0605- ● ●
çizim 74427
237 85 324 236 236 324 85
BalonParca AdiParca NoAdetTipApplied Date A B
85 CLIP; BRKT 8-97084-216-0 02 1 9704-0209 ●
85 CLIP; BRKT 8-97084-216-0 02 1 0210- ● ●
236 BOLT; BRKT TO FRAME
(A) M10X20 FLANGE 		0-28081-020-0 02 1 9704-0209 ●
236 BOLT; BRKT TO FRAME
(A) M10X20 FLANGE 		0-28081-020-0 02 1 0210-0512 ● ●
236 BOLT; BRKT TO FRAME
(A) M10X20 FLANGE 		0-28051-020-0 02 1 0601- ● ●
236 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28680-825-0 02 1 9704-0209 ●
236 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0210-0512 ● ●
236 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 02 1 9704-0209 ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91150-110-0 02 1 0210-0602 ● ●
237 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
324 BRACKET
(A) 		8-97063-090-1 01 1 9704-0209 ●
324 BRACKET
(A) 		8-97063-090-1 01 1 0210- ● ●
324 BRACKET
(B) 		8-97105-721-0 01 1 9704-0209 ●
324 BRACKET
(B) 		8-97105-721-0 01 1 0210- ● ●
