◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#72698) — 60 parça

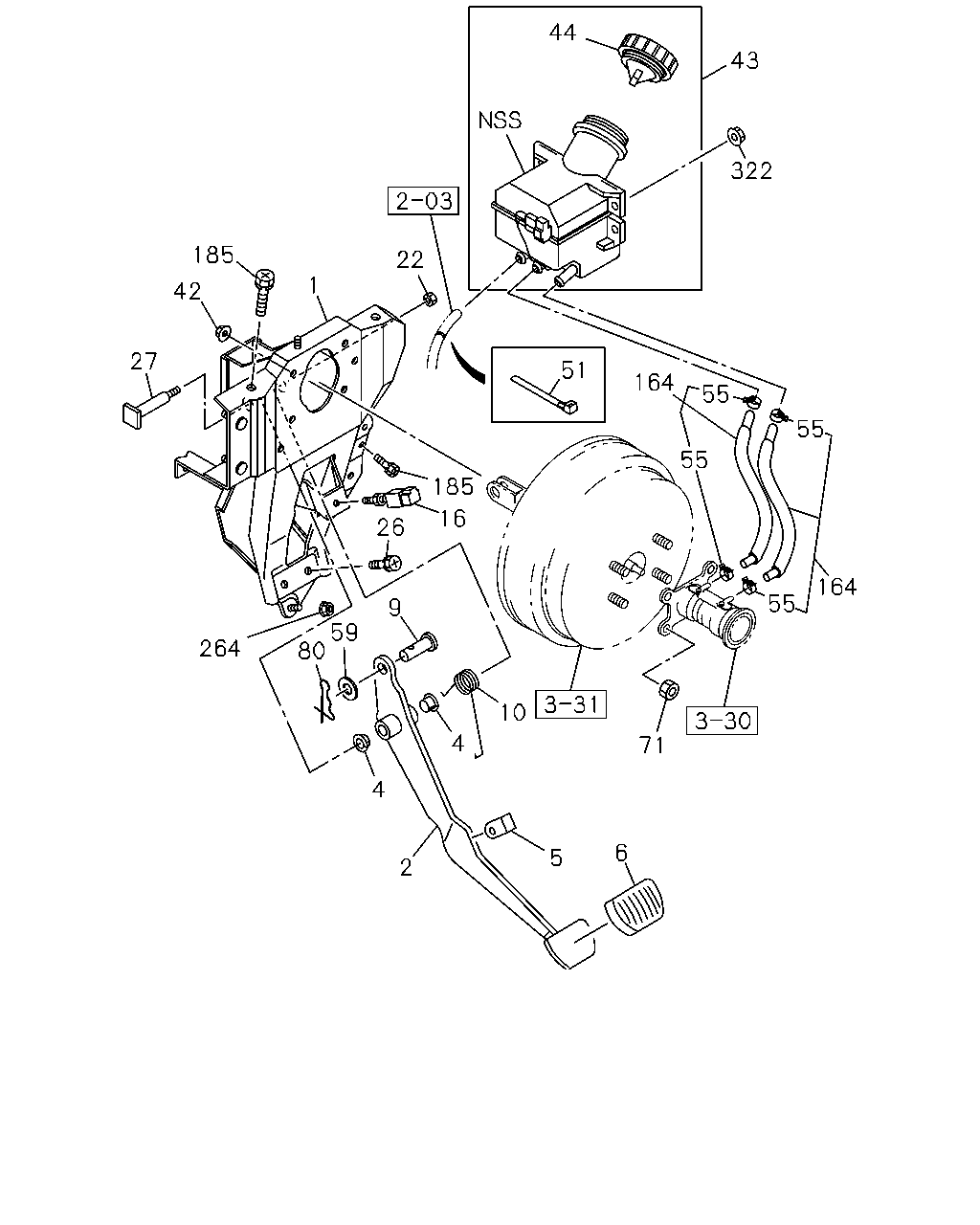

çizim 74003
44 43 322 185 22 1 42 27 164 51 55 55 55 185 16 26 164 55 9 59 80 264 10 4 71 4 6 5 2
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 8-97853-209-8 01 1 9704-9905 ●
1 BRACKET ASM; PEDAL 8-97896-968-1 01 1 9906-0209 ●
1 BRACKET ASM; PEDAL 8-97896-968-5 01 1 0210- ● ●
2 PEDAL; BRK 8-97853-210-3 01 1 9704-0209 ●
2 PEDAL; BRK 8-97853-210-3 01 1 0210- ● ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 9704-0209 ●
4 BUSHING; BRK PEDAL 8-94238-596-0 02 1 0210- ● ●
5 STOPPER; BRK PEDAL 8-97853-602-1 01 1 9704-0209 ●
5 STOPPER; BRK PEDAL 8-97853-602-1 01 1 0210- ● ●
6 COVER; BRK PEDAL 8-97853-413-2 01 1 9704-0209 ●
6 COVER; BRK PEDAL 8-97853-413-2 01 1 0210- ● ●
9 PIN; JAW JOINT 8-94410-276-0 01 1 9704-0209 ●
9 PIN; JAW JOINT 8-94410-276-0 01 1 0210-1406 ● ●
9 PIN; JAW JOINT 8-97359-812-0 01 1 1407- ● ●
10 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 9704-0209 ●
10 SPRING; RETURN,BRK PEDAL 8-97853-212-1 01 1 0210- ● ●
16 SWITCH; STOP LAMP 8-97855-187-0 01 1 9704-0209 ●
16 SWITCH; STOP LAMP 8-97855-187-0 01 1 0210- ● ●
22 NUT; SHAFT
M10 FLANGE 		1-09440-022-0 01 1 9704-0209 ●
22 NUT; SHAFT
M10 FLANGE 		1-09440-022-0 01 1 0210- ● ●
26 BOLT; PEDAL
M10X22 W/WASHER 		8-94279-099-0 02 1 9704-0110 ●
26 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 02 1 0111-0209 ●
26 BOLT; PEDAL
M10X22 W/PL WASHER 		8-97313-188-0 02 1 0210- ● ●
27 SHAFT; BRK PEDAL 8-97866-667-0 01 1 9704-0209 ●
27 SHAFT; BRK PEDAL 8-97866-667-0 01 1 0210- ● ●
42 NUT; BRK PEDAL
M8 W/LK WASHER 		8-94279-050-0 04 1 9704-0209 ●
42 NUT; BRK PEDAL
M8 W/LK WASHER 		8-94279-050-0 04 1 0210- ● ●
43 TANK ASM; OIL 8-97049-568-4 01 1 9704-9811 ●
43 TANK ASM; OIL 8-97179-813-1 01 1 9812-0209 ●
43 TANK ASM; OIL 8-97179-813-1 01 1 0210- ● ●
44 CAP; OIL TANK 8-97095-698-0 01 1 9704-9811 ●
44 CAP; OIL TANK 8-97178-291-1 01 1 9812-0209 ●
44 CAP; OIL TANK 8-97178-291-1 01 1 0210- ● ●
51 CLIP; HOSE,OIL TANK
L=140 		5-09707-031-1 01 1 9704-0209 ●
51 CLIP; HOSE,OIL TANK
L=140 		5-09707-031-1 01 1 0210- ● ●
55 CLIP; RUBBER HOSE 8-97130-480-0 04 1 9704-0209 ●
55 CLIP; RUBBER HOSE 8-97130-480-0 04 1 0210-1405 ● ●
55 CLIP; RUBBER HOSE 8-98168-080-0 04 1 1406- ● ●
59 WASHER; PL,JAW JOINT
ID=15 		9-09160-514-0 01 1 9704-0209 ●
59 WASHER; PL,JAW JOINT
ID=15 		9-09160-514-0 01 1 0210-0605 ● ●
59 WASHER; PL,JAW JOINT
ID=15 		0-91610-514-0 01 1 0606- ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 04 1 9704-0209 ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 04 1 0210- ● ●
80 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 9704-0209 ●
80 PIN; SNAP,BRK PEDAL 8-94279-912-0 01 1 0210- ● ●
164 HOSE; RUBBER,OIL TANK
L=136 		8-97135-013-0 01 1 9704-0209 ●
164 HOSE; RUBBER,OIL TANK
L=136 		8-97135-013-0 01 1 0210-1405 ● ●
164 HOSE; RUBBER,OIL TANK
L=136 		8-98193-432-0 01 1 1406- ● ●
164 HOSE; RUBBER,OIL TANK
L=165 		8-97135-014-0 01 1 9704-0209 ●
164 HOSE; RUBBER,OIL TANK
L=165 		8-97135-014-0 01 1 0210-1405 ● ●
164 HOSE; RUBBER,OIL TANK
L=165 		8-98193-433-0 01 1 1406- ● ●
185 BOLT; BRKT
M10X25 FLANGE 		0-28691-025-0 02 1 9704-0209 ●
185 BOLT; BRKT
M10X25 FLANGE 		0-28691-025-0 02 1 0210-0512 ● ●
185 BOLT; BRKT
M10X25 FLANGE 		0-28661-025-0 02 1 0601- ● ●
264 NUT; BRKT,COLUMN SUPT TO B.PDL
M8 FLANGE 		8-97046-127-0 01 1 9704-0209 ●
264 NUT; BRKT,COLUMN SUPT TO B.PDL
M8 FLANGE 		8-97046-127-0 01 1 0210-0610 ● ●
264 NUT; BRKT,COLUMN SUPT TO B.PDL
M8 W/DISHED WASHER 		8-97329-625-0 01 1 0611- ● ●
322 NUT; OIL TANK
M6 FLANGE 		0-91150-106-0 02 1 9704-0209 ●
322 NUT; OIL TANK
M6 FLANGE 		0-91150-106-0 02 1 0210-0602 ● ●
322 NUT; OIL TANK
M6 FLANGE 		0-91180-106-0 02 1 0603- ● ●
