3-08 — PARKING BRAKE (#72697) — 43 parça

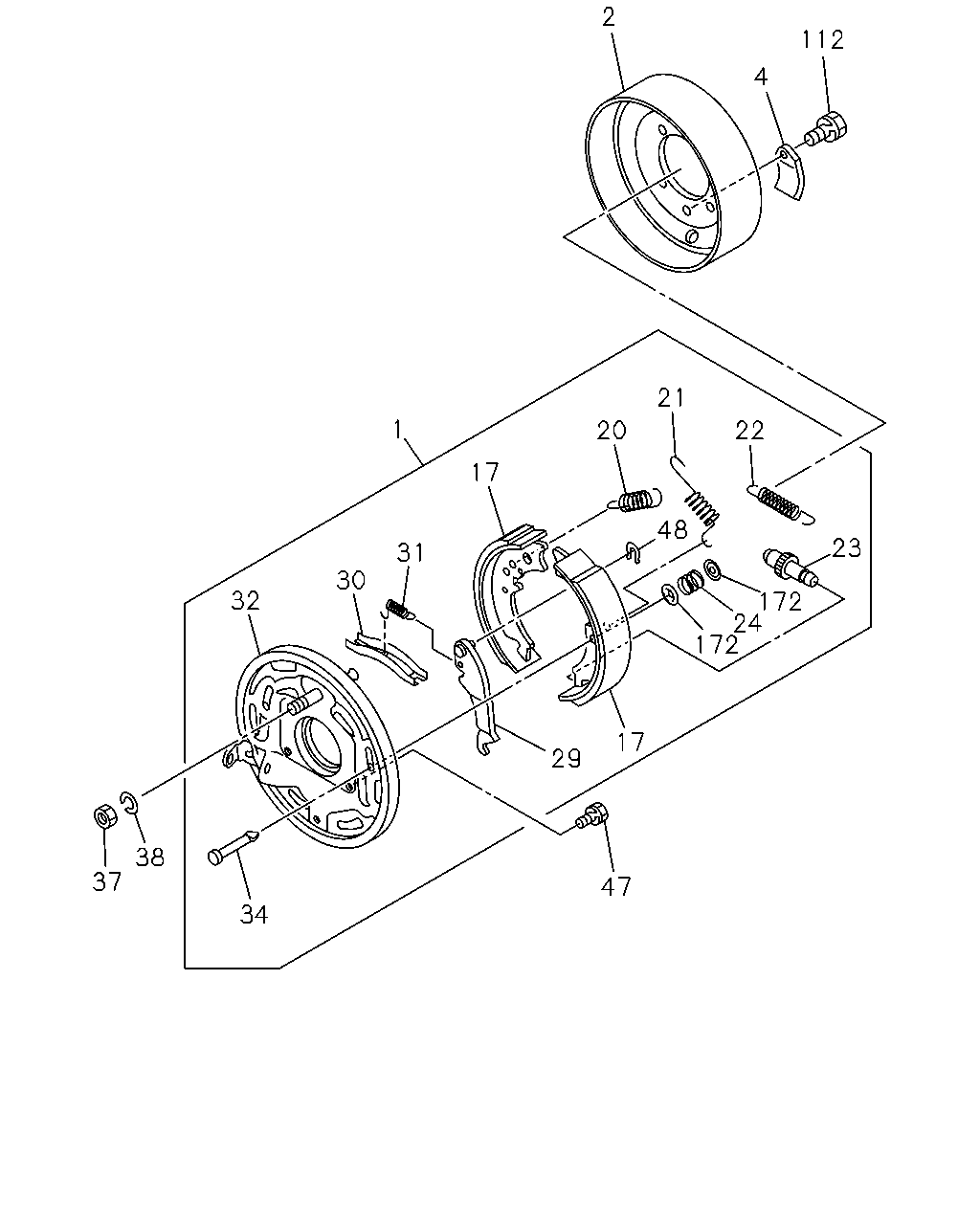

çizim 74404
2 112 4 21 1 20 22 17 48 23 31 30 32 172 24 172 17 29 38 37 47 34
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRAKE ASM; CENTER,PARKING 8-97034-553-2 01 1 9704-0209 ●
1 BRAKE ASM; CENTER,PARKING 8-97034-553-2 01 1 0210- ● ●
2 DRUM; PARKING BRK 5-46210-005-3 01 1 9704-0209 ●
2 DRUM; PARKING BRK 5-46210-005-3 01 1 0210- ● ●
4 COVER; ADJ HOLE 5-42319-003-0 01 1 9704-0209 ●
4 COVER; ADJ HOLE 5-42319-003-0 01 1 0210- ● ●
17 SHOE; PARKING BRK 8-97042-933-1 02 1 9704-0209 ●
17 SHOE; PARKING BRK 8-97042-933-1 02 1 0210- ● ●
20 SPRING; RETURN,SECONDARY,PARKING BRK 9-09942-553-1 01 1 9704-0209 ●
20 SPRING; RETURN,SECONDARY,PARKING BRK 9-09942-553-1 01 1 0210- ● ●
21 SPRING; RETURN,PARKING BRK SHOE 9-09942-552-1 01 1 9704-0209 ●
21 SPRING; RETURN,PARKING BRK SHOE 9-09942-552-1 01 1 0210- ● ●
22 SPRING; ADJ SCREW,PARKING BRK 9-09942-340-1 01 1 9704-0209 ●
22 SPRING; ADJ SCREW,PARKING BRK 9-09942-340-1 01 1 0210- ● ●
23 SCREW; ADJ,PARKING BRK SHOE 5-47165-025-0 01 1 9704-0209 ●
23 SCREW; ADJ,PARKING BRK SHOE 5-47165-025-0 01 1 0210- ● ●
24 SPRING; BRK SHOE 9-09941-062-1 02 1 9704-0209 ●
24 SPRING; BRK SHOE 9-09941-062-1 02 1 0210- ● ●
29 LEVER; PARKING BRK 8-94128-765-0 01 1 9704-0209 ●
29 LEVER; PARKING BRK 8-94128-765-0 01 1 0210- ● ●
30 STRUT; PARKING BRK 5-46251-007-0 01 1 9704-0209 ●
30 STRUT; PARKING BRK 5-46251-007-0 01 1 0210- ● ●
31 SPRING; SHOE TO STRUT 9-09942-521-1 01 1 9704-0209 ●
31 SPRING; SHOE TO STRUT 9-09942-521-1 01 1 0210- ● ●
32 PLATE; SUPPORT,PARKING BRK 9-46213-601-2 01 1 9704-0209 ●
32 PLATE; SUPPORT,PARKING BRK 9-46213-601-2 01 1 0210- ● ●
34 PIN; BRK SHOE 9-47162-034-0 02 1 9704-0209 ●
34 PIN; BRK SHOE 9-47162-034-0 02 1 0210- ● ●
37 NUT; SUPPORT PLATE
M12 		8-97033-122-0 01 1 9704-0209 ●
37 NUT; SUPPORT PLATE
M12 		8-97033-122-0 01 1 0210- ● ●
38 WASHER; LK,SUPPORT PLATE
ID=8.2 		9-09150-808-0 02 1 9704-0209 ●
38 WASHER; LK,SUPPORT PLATE
ID=8.2 		9-09150-808-0 02 1 0210-0603 ● ●
38 WASHER; LK,SUPPORT PLATE
ID=8.2 		0-91510-808-0 02 1 0604- ● ●
47 BOLT; SUPPORT PLATE 9-02060-814-0 02 1 9704-0209 ●
47 BOLT; SUPPORT PLATE 9-02060-814-0 02 1 0210-0805 ● ●
47 BOLT; SUPPORT PLATE 8-98073-190-0 02 1 0806- ● ●
48 RETAINER; PIN,PARKING BRK 9-46349-005-1 01 1 9704-0209 ●
48 RETAINER; PIN,PARKING BRK 9-46349-005-1 01 1 0210- ● ●
112 BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER 		0-50040-616-0 01 1 9704-0209 ●
112 BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER 		0-50040-616-0 01 1 0210-0512 ● ●
112 BOLT; COVER TO BRK DRUM
M6X16 W/LK WASHER 		0-50540-616-0 01 1 0601- ● ●
172 CUP; SHOE HOLD 8-94378-404-0 04 1 9704-0209 ●
172 CUP; SHOE HOLD 8-94378-404-0 04 1 0210- ● ●
