3-01 — FRONT WHEEL BRAKE (#72695) — 77 parça

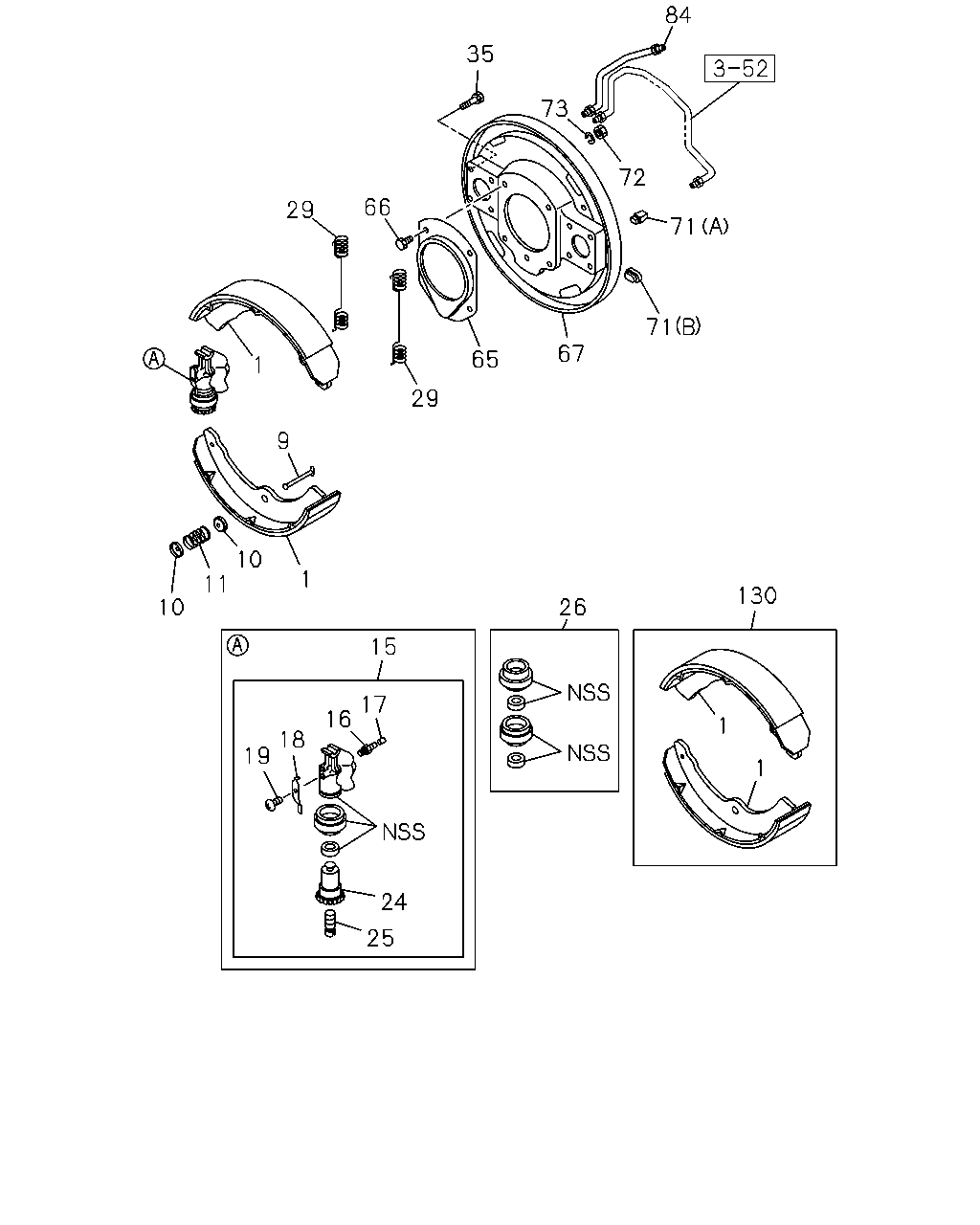

çizim 74424
84 35 73 72 66 29 71 71 67 65 1 29 9 10 1 11 130 26 10 15 17 16 1 18 19 1 24 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,FRT 8-97035-084-0 04 1 9704-0209 ●
1 SHOE; BRK,FRT 8-97035-084-0 04 1 0210- ● ●
9 PIN; SHOE HOLDER
L=52 		9-47162-045-0 04 1 9704-0209 ●
9 PIN; SHOE HOLDER
L=52 		9-47162-045-0 04 1 0210- ● ●
10 CUP; SHOE HOLDING 9-47162-033-0 08 1 9704-0209 ●
10 CUP; SHOE HOLDING 9-47162-033-0 08 1 0210- ● ●
11 SPRING; SHOE HOLDING 9-09940-989-1 04 1 9704-0209 ●
11 SPRING; SHOE HOLDING 9-09940-989-1 04 1 0210- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT ID=28.57(1 1/8") 		8-97081-145-0 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
REAR ID=28.57(1 1/8") 		8-97081-147-0 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-358-0 01 1 9704-0209 ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-358-0 01 1 0210- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-360-0 01 1 9704-0209 ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-360-0 01 1 0210- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT ID=28.57(1 1/8") 		8-97081-146-0 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
REAR ID=28.57(1 1/8") 		8-97081-148-0 01 1 9704-9704 ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-357-0 01 1 9704-0209 ●
15 CYLINDER; WHEEL,FRT BRK
REAR 		8-97179-357-0 01 1 0210- ● ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-359-0 01 1 9704-0209 ●
15 CYLINDER; WHEEL,FRT BRK
FRONT 		8-97179-359-0 01 1 0210- ● ●
16 SCREW; BLEEDER,FRT BRK 9-47615-027-0 02 1 9704-0209 ●
16 SCREW; BLEEDER,FRT BRK 9-47615-027-0 02 1 0210-0711 ● ●
16 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 0712- ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 02 1 9704-0209 ●
17 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 02 1 0210-0711 ● ●
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 0712- ● ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 9704-0209 ●
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0210- ● ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 9704-0209 ●
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0210- ● ●
24 PISTON; FRT WHEEL CYL 8-97078-621-0 04 1 9704-0209 ●
24 PISTON; FRT WHEEL CYL 8-97078-621-0 04 1 0210- ● ●
25 SCREW; ADJ,FRT WHEEL CYL 8-97078-623-0 04 1 9704-0209 ●
25 SCREW; ADJ,FRT WHEEL CYL 8-97078-623-0 04 1 0210- ● ●
26 CUP SET; FRT WHEEL CYL
OD=28.57(1 1/8") 		5-87830-538-0 01 1 9704-9704 ●
26 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 9704-0209 ●
26 CUP SET; FRT WHEEL CYL 5-87831-602-0 01 1 0210- ● ●
29 SPRING; RETURN,FRT BRK SHOE 8-97081-150-0 04 1 9704-0209 ●
29 SPRING; RETURN,FRT BRK SHOE 8-97081-150-0 04 1 0210- ● ●
35 BOLT; FRT WHEEL CYL
M8X16 		9-09602-119-1 16 1 9704-0209 ●
35 BOLT; FRT WHEEL CYL
M8X16 		9-09602-119-1 16 1 0210- ● ●
65 COVER; OIL SHIELD,FRT 8-94253-935-0 02 1 9704-0103 ●
66 BOLT; OIL SHIELD COVER
M12X33 		9-09600-043-3 08 1 9704-0209 ●
66 BOLT; OIL SHIELD COVER
M12X33 		9-09600-043-3 08 1 0210-0611 ● ●
66 BOLT; OIL SHIELD COVER
M12X33 		8-98009-493-2 08 1 0612- ● ●
67 PLATE; BACK,FRT BRK 8-97081-141-1 01 1 9704-0102 ●
67 PLATE; BACK,FRT BRK 8-97302-583-0 01 1 0103-0209 ●
67 PLATE; BACK,FRT BRK 8-97302-583-0 01 1 0210- ● ●
67 PLATE; BACK,FRT BRK 8-97081-140-1 01 1 9704-0102 ●
67 PLATE; BACK,FRT BRK 8-97302-582-0 01 1 0103-0209 ●
67 PLATE; BACK,FRT BRK 8-97302-582-0 01 1 0210- ● ●
71 GROMMET; CHECK HOLE
(B) 		8-94344-919-0 02 1 0308- ● ●
71 GROMMET; CHECK HOLE
EXC. AXLE ISUZU PRODUCTION<8BF> (A) 		9-09956-640-0 04 1 9905-9909 ●
71 GROMMET; CHECK HOLE
(A) 		9-09956-640-0 04 1 9704-9904 ●
71 GROMMET; CHECK HOLE
AXLE ISUZU PRODUCTION<8BF> (A) 		9-09956-640-0 02 1 9905-9909 ●
71 GROMMET; CHECK HOLE
(A) 		9-09956-640-0 02 1 9910-0209 ●
71 GROMMET; CHECK HOLE
(A) 		9-09956-640-0 02 1 0210- ● ●
71 GROMMET; CHECK HOLE
(B) 		8-94344-919-0 01 1 9704-0209 ●
71 GROMMET; CHECK HOLE
(B) 		8-94344-919-0 01 1 0210-0307 ● ●
72 NUT; OIL SHIELD COVER
M12 		9-99110-412-0 08 1 9704-9907 ●
72 NUT; OIL SHIELD COVER
EXC. AXLE ISUZU PRODUCTION<8BF> M12 		9-99110-412-0 08 1 9908-9909 ●
72 NUT; OIL SHIELD COVER
AXLE ISUZU PRODUCTION<8BF> M12 		9-99110-512-0 08 1 9908-9909 ●
72 NUT; OIL SHIELD COVER
M12 		9-99110-512-0 08 1 9910-0209 ●
72 NUT; OIL SHIELD COVER
M12 		9-99110-512-0 08 1 0210-0512 ● ●
72 NUT; OIL SHIELD COVER
M12 		0-91110-512-0 08 1 0601- ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		9-09150-612-0 08 1 9704-0209 ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		9-09150-612-0 08 1 0210-0603 ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-612-0 08 1 0604-0611 ● ●
73 WASHER; LK,OIL SHIELD COVER
ID=12.2 		0-91510-812-0 08 1 0612- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97034-568-0 01 1 9704-0209 ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97034-568-0 01 1 0210- ● ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97034-567-0 01 1 9704-0209 ●
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97034-567-0 01 1 0210- ● ●
130 SHOE KIT; BRK,FRT 5-87832-084-0 01 1 0204-0209 ●
130 SHOE KIT; BRK,FRT 5-87832-084-0 01 1 0210- ● ●
130 SHOE KIT; BRK,FRT
BEST VALUE PARTS 		5-87610-122-0 01 1 0204-0209 ●
130 SHOE KIT; BRK,FRT
BEST VALUE PARTS 		5-87610-122-0 01 1 0210- ● ●
