◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#72693) — 122 parça

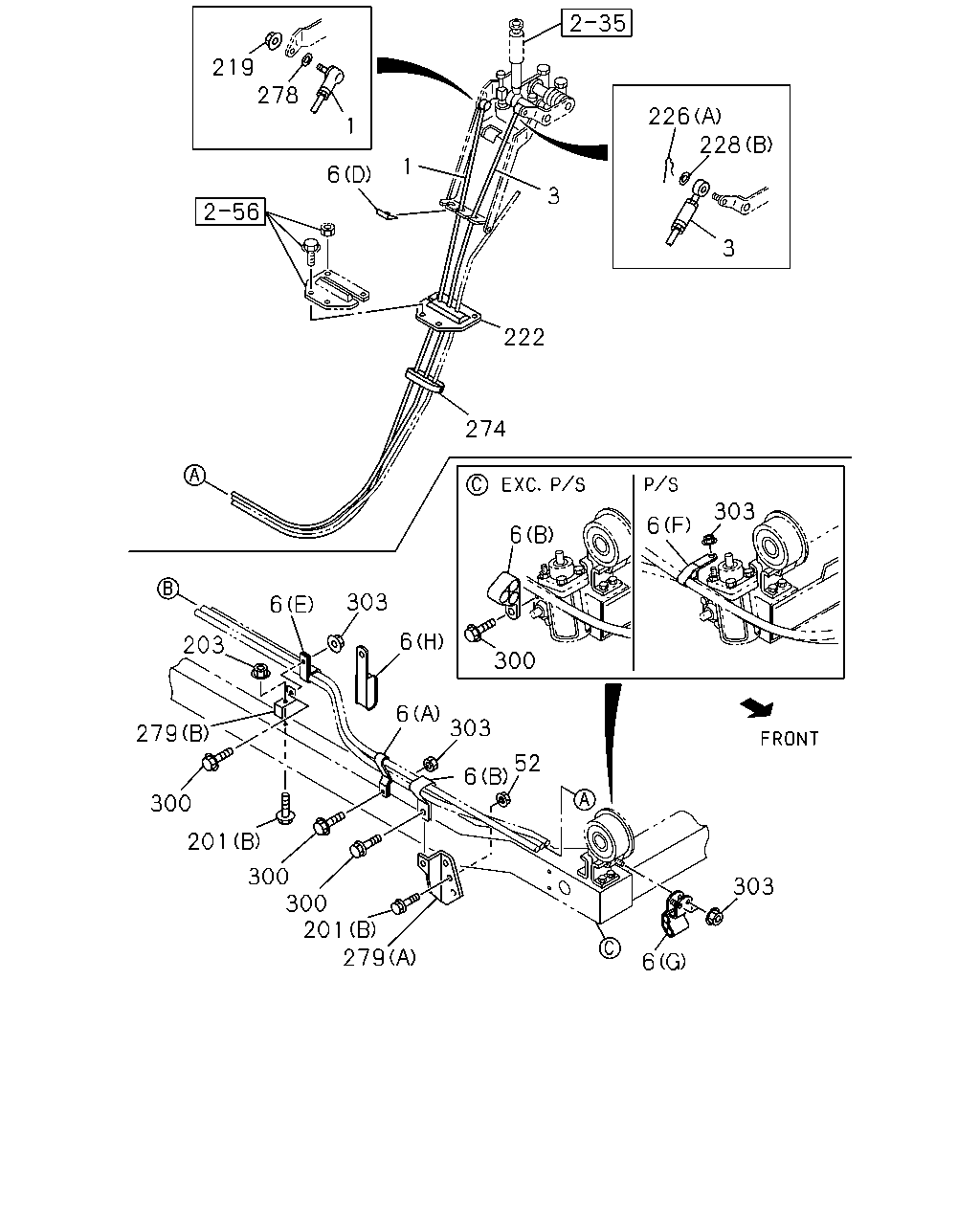

çizim 74401
219 1 278 226 3 228 3 2 6 222 274 6 300 6 303 303 6 52 6 303 6 6 303 6 203 79 300 201 300 300 201 279
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-97176-466-1 01 1 9704-0911
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-98146-810-0 01 1 0912-
3 CABLE; SELECT,TRANS CONT
L=2810 		8-97176-474-0 01 1 9704-
6 CLIP; CABLE
POWER STEERING<N40> (H) 		8-98023-697-0 01 1 1212-
6 CLIP; CABLE
(B) ID=19.2 		8-94365-914-2 02 1 9704-9808
6 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 9809-
6 CLIP; CABLE
(C) 		8-97011-448-0 02 1 9704-
6 CLIP; CABLE
(D) 		8-97036-329-2 01 1 9704-
6 CLIP; CABLE
(E) 		8-97036-332-1 01 1 9704-1211
6 CLIP; CABLE
EXC. POWER STEERING<N40> (E) 		8-97036-332-1 01 1 1212-
6 CLIP; CABLE
(F) 		8-97147-985-0 01 1 9704-
6 CLIP; CABLE
POWER STEERING<N40> (A) 		8-97036-334-2 01 1 9704-
6 CLIP; CABLE
EXC. POWER STEERING<N40> (G) 		8-97036-333-1 01 1 9704-
6 CLIP; CABLE
(G) 		8-97036-333-1 01 1 9704-
52 NUT; BRKT
EXC. POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 02 1 9704-0602
52 NUT; BRKT
EXC. POWER STEERING<N40> M8 FLANGE 		0-91180-108-0 02 1 0603-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9704-
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9704-0512
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
203 NUT; BRKT FIX
EXC. POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 9704-0602
203 NUT; BRKT FIX
EXC. POWER STEERING<N40> M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT; FLANGE,SHAFT CABLE
M8 T=8.0 		8-94363-045-0 01 1 9704-
222 GROMMET; CABLE 8-97061-403-2 01 1 9704-
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9704-
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9704-
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9704-9707
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9704-0605
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606-
274 CLIP; CONT CABLE 8-97093-491-1 01 1 9704-
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		9-09151-208-0 01 1 9704-0604
278 WASHER; LK,SHIFT WIRE
ID=8.4 TOOTH LK INT 		0-91541-208-0 01 1 0605-
279 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (A) 		8-97089-879-0 01 1 9704-
279 BRACKET; CABLE TO FRAME
EXC. POWER STEERING<N40> (B) 		8-97103-234-0 01 1 9704-
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512
300 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0601-
300 BOLT; CLIP
M8X25 FLANGE 		0-28680-825-0 02 1 9704-0512
300 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE 		0-28080-816-0 01 1 9704-0512
300 BOLT; CLIP
EXC. POWER STEERING<N40> M8X16 FLANGE 		0-28050-816-0 01 1 0601-
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
303 NUT; CLIP
M8 FLANGE 		0-91150-108-0 02 1 9704-0602
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
303 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0603-
303 NUT; CLIP
POWER STEERING<N40> M8 FLANGE 		0-91150-108-0 01 1 9704-0602
303 NUT; CLIP
POWER STEERING<N40> M8 FLANGE 		0-91180-108-0 01 1 0603-

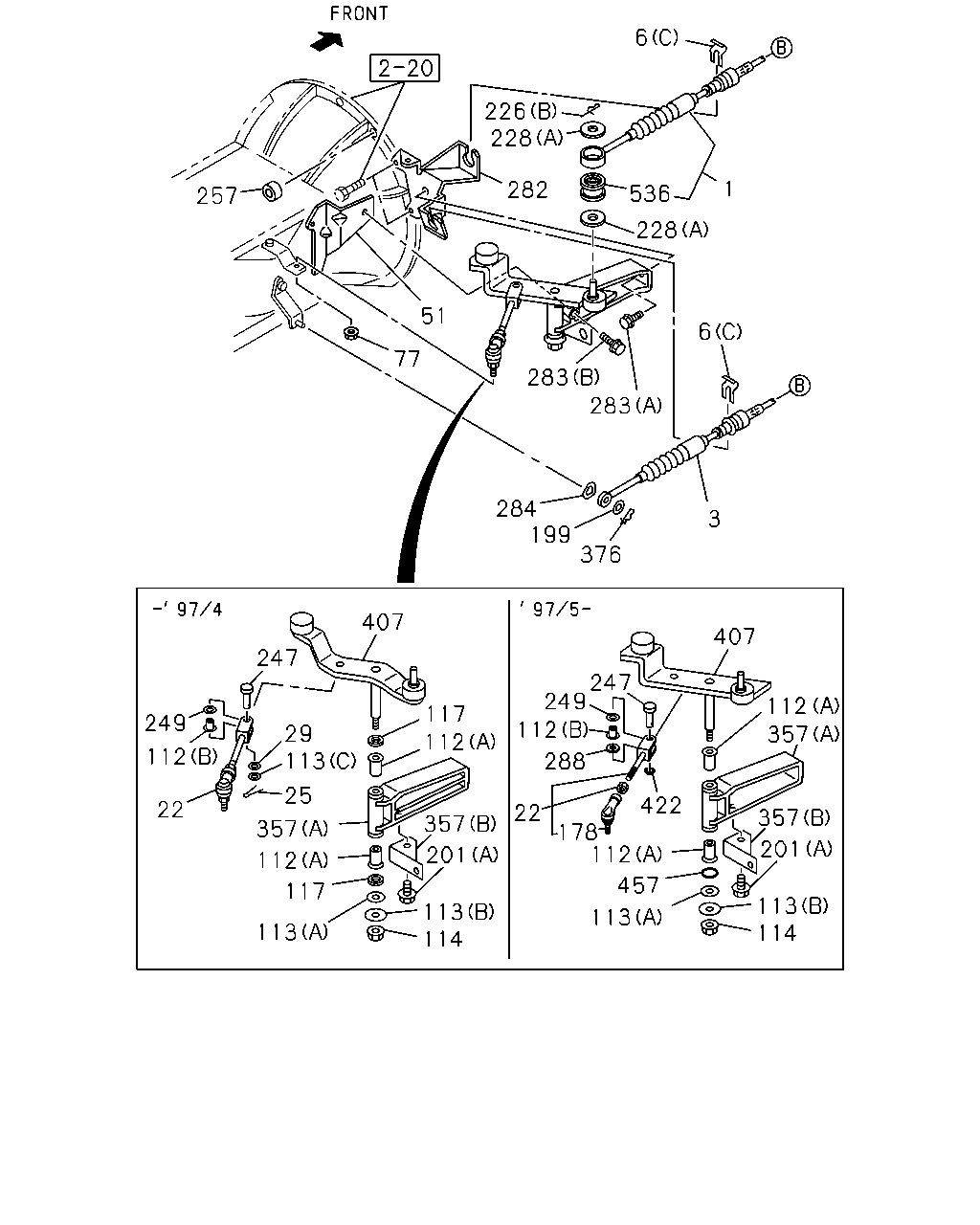

çizim 102487
114 201 357 357 112 407 247 249 112 288 422 112 457 113 178 22 114 201 113 112 357 117 113 112 25 357 117 113 247 29 249 112 22 407 376 199 284 3 6 283 283 51 77 257 228 536 1 6 282 228 226 113
BalonParca AdiParca NoAdetTipApplied Date
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-97176-466-1 01 1 9704-0911
1 CABLE; SHIFT,TRANS CONT
L=2643 		8-98146-810-0 01 1 0912-
3 CABLE; SELECT,TRANS CONT
L=2810 		8-97176-474-0 01 1 9704-
6 CLIP; CABLE
POWER STEERING<N40> (H) 		8-98023-697-0 01 1 1212-
6 CLIP; CABLE
(B) ID=19.2 		8-94365-914-2 02 1 9704-9808
6 CLIP; CABLE
(B) ID=19.2 		8-97211-011-0 02 1 9809-
6 CLIP; CABLE
(C) 		8-97011-448-0 02 1 9704-
6 CLIP; CABLE
(D) 		8-97036-329-2 01 1 9704-
6 CLIP; CABLE
(E) 		8-97036-332-1 01 1 9704-1211
6 CLIP; CABLE
EXC. POWER STEERING<N40> (E) 		8-97036-332-1 01 1 1212-
6 CLIP; CABLE
(F) 		8-97147-985-0 01 1 9704-
6 CLIP; CABLE
POWER STEERING<N40> (A) 		8-97036-334-2 01 1 9704-
6 CLIP; CABLE
EXC. POWER STEERING<N40> (G) 		8-97036-333-1 01 1 9704-
6 CLIP; CABLE
(G) 		8-97036-333-1 01 1 9704-
22 ROD; CONT,SHIFT 8-97085-158-0 01 1 9704-9704
22 ROD; CONT,SHIFT 8-97174-058-0 01 1 9705-0307
22 ROD; CONT,SHIFT 8-97134-286-1 01 1 0308-
25 PIN; SNAP,CONT ROD,RELAY LEVER
L=27.7 		8-94210-407-0 01 1 9704-9704
29 WASHER; LK,RELAY LEVER
ID=8.5 T=0.3 		5-09509-001-0 01 1 9704-9704
51 BRACKET; GEAR CONT
IN-HOUSE PRODUCTION VAR.2<TMW> 		8-98189-335-1 01 1 1211-
51 BRACKET; GEAR CONT 8-97029-286-0 01 1 9704-1210
51 BRACKET; GEAR CONT
EXC. IN-HOUSE PRODUCTION VAR.2<TMW> 		8-97029-286-0 01 1 1211-
77 NUT; LK,BALL JOINT,CONT ROD
M8 T=8.0 		8-94363-045-0 01 1 9704-
112 BUSHING; RELAY LEVER
(A) ID=14 OD=16 		8-94252-671-0 02 1 9704-9704
112 BUSHING; RELAY LEVER
(A) 		8-97174-057-0 02 1 9705-
112 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 9704-9704
112 BUSHING; RELAY LEVER
(B) 		8-97174-060-0 01 1 9705-0307
112 BUSHING; RELAY LEVER
(B) 		8-97085-157-0 01 1 0308-
113 WASHER; RELAY LEVER
(A) 		8-97061-437-0 02 1 9704-9704
113 WASHER; RELAY LEVER
(A) ID=10.5 OD=22 		9-09160-610-0 02 1 9705-0307
113 WASHER; RELAY LEVER
(A) ID=10.5 OD=22 		9-09160-610-0 01 1 0308-0605
113 WASHER; RELAY LEVER
(A) ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0606-
113 WASHER; RELAY LEVER
(B) 		8-97089-693-0 01 1 9704-9704
113 WASHER; RELAY LEVER
(B) ID=15 OD=36 		9-09164-714-0 01 1 9705-0307
113 WASHER; RELAY LEVER
(C) ID=8.4 OD=22 		9-09160-708-0 01 1 9704-9704
114 NUT; RELAY LEVER
M10 FLANGE 		0-91150-110-0 01 1 9704-0602
114 NUT; RELAY LEVER
M10 FLANGE 		0-91180-110-0 01 1 0603-
117 SEAL; DUST,RELAY LEVER 8-97061-438-0 02 1 9704-9704
178 JOINT; BALL,LINK ROD
L=45.5 		1-09760-118-1 01 1 0404-
199 WASHER; PL,SELECT
ID=8.4 		9-09160-508-0 01 1 9704-0605
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91610-508-0 01 1 0606-
201 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9704-
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9704-0512
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9704-0512
201 BOLT; BRKT
EXC. POWER STEERING<N40> (B) M8X25 FLANGE 		0-28650-825-0 02 1 0601-
226 PIN; SHIFT CABLE
(A) L=27.7 		8-94111-137-0 01 1 9704-
226 PIN; SHIFT CABLE
(B) L=23 		8-94170-378-0 01 1 9704-
228 WASHER; PL,SHIFT CABLE
(A) ID=8 T=2.3 		8-94368-403-1 02 1 9704-9707
228 WASHER; PL,SHIFT CABLE
(A) ID=8.2 OD=40 		8-97182-975-0 02 1 9708-
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 		9-09164-508-0 01 1 9704-0605
228 WASHER; PL,SHIFT CABLE
(B) ID=8.4 OD=16 		0-91614-508-0 01 1 0606-
247 PIN; CONT ROD TO LEVER 8-97373-728-0 01 1 0404-
247 PIN; CONT ROD TO LEVER 9-09876-059-1 01 1 9704-0307
249 WASHER; RUBBER,CONT ROD TO LEVER
ID=8.5 T=1.5 		9-09851-889-0 01 1 9704-
257 PIECE; DIST,RELAY LEVER
SGL CAB(NH**S*) 		8-94369-173-0 01 1 9704-0307
257 PIECE; DIST,RELAY LEVER
SGL CAB(NH**S*) 		8-94369-173-0 01 1 0308-
282 BRACKET; TRANS SIDE 8-97034-142-1 01 1 9704-
283 BOLT; RELAY LEVER
(A) M10X25 FLANGE 		0-28681-025-0 01 1 9704-0512
283 BOLT; RELAY LEVER
(A) M10X25 FLANGE 		0-28651-025-0 01 1 0601-
283 BOLT; RELAY LEVER
(B) M10X35 FLANGE 		0-28681-035-0 01 1 9704-0512
283 BOLT; RELAY LEVER
(B) M10X35 FLANGE 		0-28651-035-0 01 1 0601-
284 WASHER; WAVE,SELECT CABLE,CAB
ID=8.4 OD=14 		5-09550-002-0 01 1 9704-
288 WASHER; CABLE TO RELAY LEVER 8-97373-819-0 01 1 0404-
357 BRACKET; RELAY LEVER
(A) 		8-97089-691-0 01 1 9704-9704
357 BRACKET; RELAY LEVER
(A) 		8-97174-056-0 01 1 9705-9706
357 BRACKET; RELAY LEVER
(A) 		8-97182-166-0 01 1 9707-
357 BRACKET; RELAY LEVER
(B) 		8-97089-692-0 01 1 9704-
376 PIN; SNAP,SELECT CABLE
L=23 		8-94170-378-0 01 1 9704-
407 LEVER; RELAY,SHIFT 8-97089-690-1 01 1 9704-9704
407 LEVER; RELAY,SHIFT 8-97174-055-2 01 1 9705-
422 NUT; CONT ROD TO LEVER 8-97373-729-0 01 1 0404-
457 GASKET
ID=13.8 		9-09561-114-0 02 1 9705-
536 DAMPER; CABLE 8-98097-681-0 01 1 0711-
