Sayfa 2-26 - Isuzu EPC

2-26 — MANUAL TRANSMISSION GEAR (#72690) — 337 parça

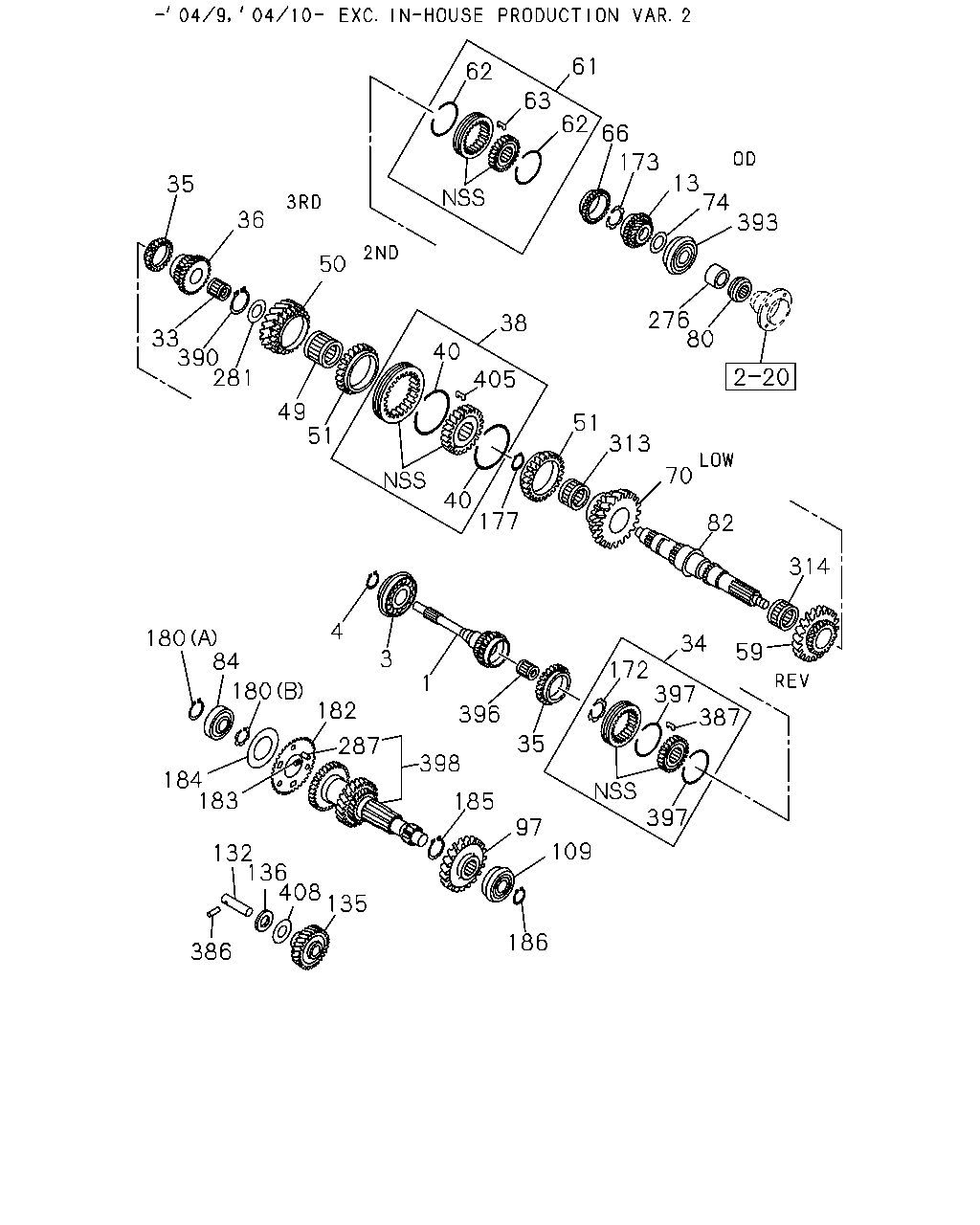

61 62 63 62 66 173 13 74 393 35 36 50 276 80 38 33 390 281 40 405 49 51 51 313 70 40 177 82 314 4 180 84 34 59 3 172 397 387 1 180 182 396 35 287 398 184 183 397 185 97 109 132 136 408 135 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97177-684-0	01	1	0410-1010
1	SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-98179-969-1	01	1	1011-
1	SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	9704-0409
1	SHAFT; TOP GEAR,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	0410-
3	BEARING; TOP GEAR SHAFT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-742-0	01	1	1211-
3	BEARING; TOP GEAR SHAFT NSK	8-94178-732-2	01	1	9704-1210
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94178-732-2	01	1	1211-
3	BEARING; TOP GEAR SHAFT JTEKT	8-94462-615-0	01	1	9704-1210
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-94462-615-0	01	1	1211-
4	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	9704-
13	GEAR; 5TH,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97373-011-0	01	1	0410-
13	GEAR; 5TH,MAINSHAFT Z=25	8-97147-817-0	01	1	9704-9905
13	GEAR; 5TH,MAINSHAFT Z=25	8-97206-012-0	01	1	9906-0409
13	GEAR; 5TH,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-012-0	01	1	0410-
33	BEARING; NEEDLE,3RD GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-746-0	01	1	1211-
33	BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	9704-1210
33	BEARING; NEEDLE,3RD GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94317-158-0	01	1	1211-
34	SYNCHRONIZER; 4TH & 3RD	8-97048-745-2	01	1	9704-0409
34	SYNCHRONIZER; 4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97048-745-2	01	1	0410-
35	RING; BLOCK,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	02	1	1211-
35	RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	9704-1210
35	RING; BLOCK,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	02	1	1211-
36	GEAR; 3RD,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97372-905-0	01	1	0410-1010
36	GEAR; 3RD,MAINSHAFT Z=33	8-94316-761-2	01	1	9704-0203
36	GEAR; 3RD,MAINSHAFT Z=33	8-97324-853-0	01	1	0204-0409
36	GEAR; 3RD,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	0410-
38	SYNCHRONIZER; LOW & 2ND	8-97048-748-0	01	1	9704-0409
38	SYNCHRONIZER; LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97048-748-0	01	1	0410-
40	SPRING; INSERT,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-960-0	02	1	1211-
40	SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	9704-1210
40	SPRING; INSERT,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-708-0	02	1	1211-
49	BEARING; NEEDLE,2ND GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-747-0	01	1	1211-
49	BEARING; NEEDLE,2ND GEAR NSK	5-09811-014-0	01	1	9704-1210
49	BEARING; NEEDLE,2ND GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09811-014-0	01	1	1211-
50	GEAR; 2ND,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-143-1	01	1	0410-
50	GEAR; 2ND,MAINSHAFT Z=36	8-97014-034-2	01	1	9704-0409
50	GEAR; 2ND,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97014-034-2	01	1	0410-
51	RING; BLOCK,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-98190-428-0	02	1	1211-
51	RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	9704-1210
51	RING; BLOCK,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97074-619-3	02	1	1211-
59	GEAR; REV MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-98190-291-1	01	1	1211-
59	GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9704-9905
59	GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	9906-1210
59	GEAR; REV MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-97206-006-0	01	1	1211-
61	SYNCHRONIZER; REV & 5TH	8-97048-750-0	01	1	9704-9905
61	SYNCHRONIZER; REV & 5TH	8-97206-010-0	01	1	9906-0409
61	SYNCHRONIZER; REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97206-010-0	01	1	0410-
62	SPRING; INSERT,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-
62	SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	9704-1210
62	SPRING; INSERT,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-
63	INSERT; SYN,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-418-0	03	1	1211-
63	INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	9704-1210
63	INSERT; SYN,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33263-613-0	03	1	1211-
66	RING; BLOCK,SYN IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	01	1	1211-
66	RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	9704-1210
66	RING; BLOCK,SYN EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	01	1	1211-
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97174-953-0	01	1	0410-0410
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0411-1010
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-98180-095-1	01	1	1011-
70	GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	9704-0409
70	GEAR; 1ST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	0410-
74	WASHER; THRUST,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-569-0	01	1	1211-
74	WASHER; THRUST,REV GEAR	9-33271-607-1	01	1	9704-9905
74	WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	9906-1210
74	WASHER; THRUST,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-176-0	01	1	1211-
80	GEAR; SPD DRIVE IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-98190-429-0	01	1	1211-
80	GEAR; SPD DRIVE Z=4	8-97011-350-0	01	1	9704-9905
80	GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	9906-1210
80	GEAR; SPD DRIVE EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-97207-146-0	01	1	1211-
82	SHAFT; MAIN,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0410-
82	SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9704-9911
82	SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9912-0409
82	SHAFT; MAIN,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0410-
84	BEARING; COUNTER SHAFT,FRT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-745-0	01	1	1211-
84	BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-2	01	1	9704-1210
84	BEARING; COUNTER SHAFT,FRT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09800-062-2	01	1	1211-
97	GEAR; 5TH,COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97169-511-0	01	1	0410-
97	GEAR; 5TH,COUNTER Z=53	8-97077-341-1	01	1	9704-0409
97	GEAR; 5TH,COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97077-341-1	01	1	0410-
109	BEARING; COUNTER SHAFT,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-744-0	01	1	1211-
109	BEARING; COUNTER SHAFT,RR	8-97095-913-1	01	1	9704-1210
109	BEARING; COUNTER SHAFT,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-913-1	01	1	1211-
132	SHAFT; REV IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-378-0	01	1	1211-
132	SHAFT; REV	9-33351-604-1	01	1	9704-1210
132	SHAFT; REV EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33351-604-1	01	1	1211-
135	GEAR; REV IDLER IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0410-
135	GEAR; REV IDLER Z=29	8-97081-539-3	01	1	9704-0409
135	GEAR; REV IDLER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0410-
136	WASHER; THRUST,REV IDLE,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-533-0	01	1	1211-
136	WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	9704-1210
136	WASHER; THRUST,REV IDLE,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-579-2	01	1	1211-
172	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9704-
172	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9704-
172	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9704-
173	RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	9704-
173	RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	9704-
173	RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	9704-
173	RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	9704-
177	RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	8-98189-990-0	01	1	1211-
177	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9704-9905
177	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9704-9905
177	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9704-9905
177	RING; SNAP,CLU HUB ID=44.5	5-09589-010-0	01	1	9906-1210
177	RING; SNAP,CLU HUB EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	5-09589-010-0	01	1	1211-
180	RING; SNAP,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-98189-991-0	01	1	1211-
180	RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	9704-1210
180	RING; SNAP,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-94146-483-0	01	1	1211-
180	RING; SNAP,CLUSTER GEAR (A) ID=32.2	9-09180-035-0	01	1	9704-
182	PLATE; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-585-0	01	1	1211-
182	PLATE; CLUSTER GEAR	8-97095-984-0	01	1	9704-1210
182	PLATE; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-984-0	01	1	1211-
183	SPRING; PLATE,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-380-0	03	1	1211-
183	SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	9704-1210
183	SPRING; PLATE,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94132-168-0	03	1	1211-
184	SPRING; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-350-0	01	1	1211-
184	SPRING; CLUSTER GEAR	8-94128-790-1	01	1	9704-1210
184	SPRING; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-790-1	01	1	1211-
185	RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	9704-
186	RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	9704-
276	SPACER; BRG TO DRIVE GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-906-0	01	1	1211-
276	SPACER; BRG TO DRIVE GEAR	9-33235-606-1	01	1	9704-9905
276	SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	9906-1210
276	SPACER; BRG TO DRIVE GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-175-0	01	1	1211-
281	WASHER; THRUST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-466-0	01	1	1211-
281	WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	9704-1210
281	WASHER; THRUST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33271-007-0	01	1	1211-
287	PIN; COUNTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-445-0	03	1	1406-
287	PIN; COUNTER GEAR	8-94402-462-0	01	1	9704-1405
287	PIN; COUNTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	01	1	1406-
313	BEARING; NEEDLE,LOW GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-748-0	01	1	1211-
313	BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	9704-1210
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94317-161-0	01	1	1211-
313	BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	9704-1210
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-97010-547-0	01	1	1211-
314	BEARING; NEEDLE,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-749-0	01	1	1211-
314	BEARING; NEEDLE,REV GEAR NSK	5-09811-014-0	01	1	9704-9905
314	BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	9906-1210
314	BEARING; NEEDLE,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-97207-174-0	01	1	1211-
386	PIN; REV SHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-093-0	01	1	1211-
386	PIN; REV SHAFT	8-94128-794-0	01	1	9704-1210
386	PIN; REV SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-794-0	01	1	1211-
387	INSERT; SYN,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-
387	INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	9704-1210
387	INSERT; SYN,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-
390	RING; SNAP,CLU HUB T=1.75	8-94151-520-0	01	1	9704-
390	RING; SNAP,CLU HUB T=1.80	8-94151-521-0	01	1	9704-
390	RING; SNAP,CLU HUB T=1.85	8-94151-522-0	01	1	9704-
390	RING; SNAP,CLU HUB T=1.90	8-94151-523-0	01	1	9704-
393	BEARING; MAINSHAFT END IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-743-0	01	1	1211-
393	BEARING; MAINSHAFT END	8-97095-913-0	01	1	9704-9905
393	BEARING; MAINSHAFT END	8-97207-512-1	01	1	9906-1210
393	BEARING; MAINSHAFT END EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-512-1	01	1	1211-
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0410-1210
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-970-0	01	1	1211-
396	BEARING; NEEDLE,MAINSHAFT	9-00096-606-0	01	1	9704-0409
396	BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-00096-606-0	01	1	0410-
397	SPRING; INSERT,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-
397	SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	9704-1210
397	SPRING; INSERT,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-
398	GEAR; COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97381-658-0	01	1	0410-
398	GEAR; COUNTER Z=49-34-22-14	8-97077-337-0	01	1	9704-0203
398	GEAR; COUNTER Z=49-34-22-14	8-97324-857-0	01	1	0204-0409
398	GEAR; COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0410-
405	INSERT; SYN,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-
405	INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	9704-1210
405	INSERT; SYN,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-
408	SPRING IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-347-0	01	1	1211-
408	SPRING	8-97081-577-0	01	1	9704-1210
408	SPRING EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-577-0	01	1	1211-

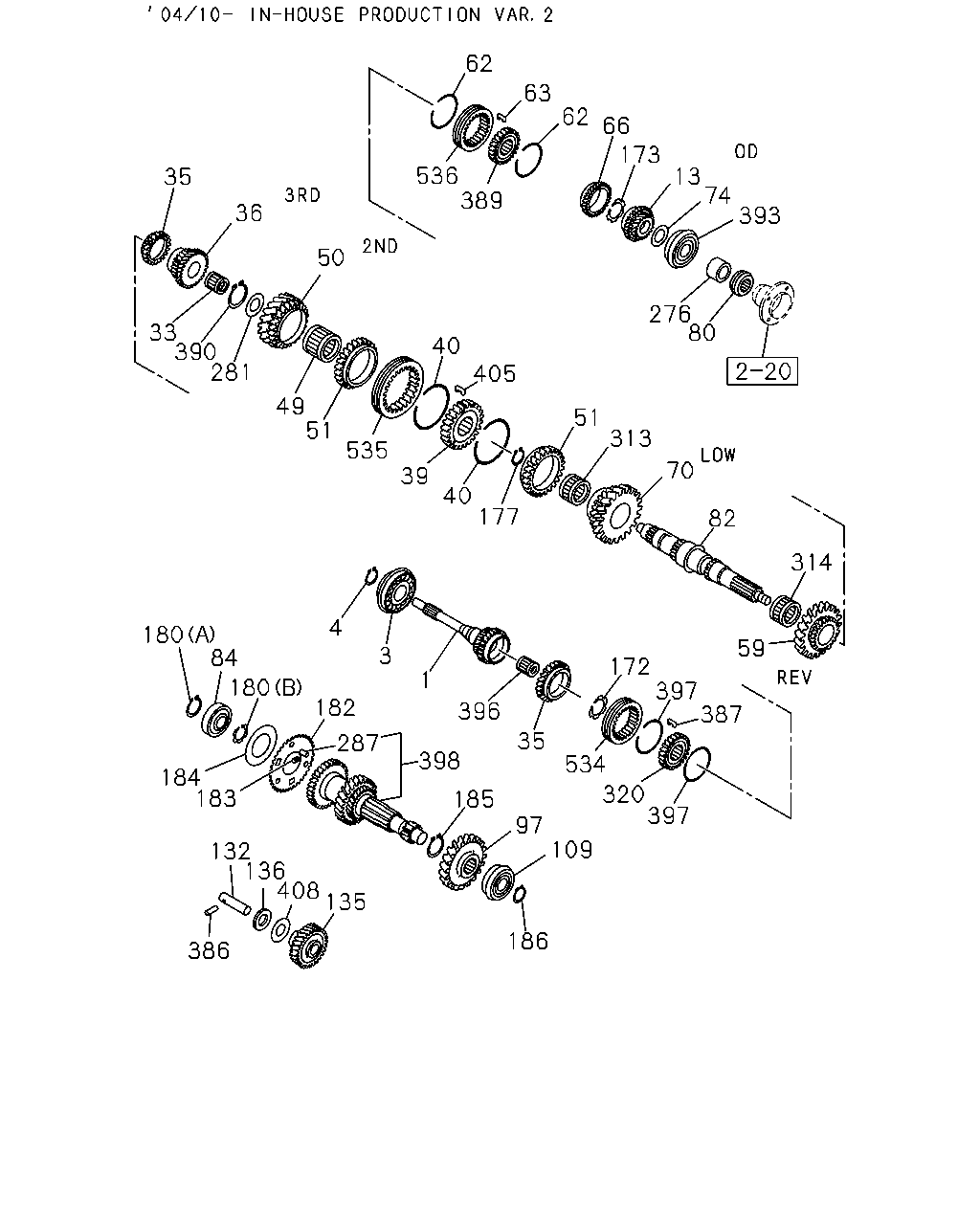

62 63 62 66 173 536 389 13 74 393 35 36 50 276 80 33 390 281 40 405 49 51 51 313 535 70 39 40 177 82 314 4 180 84 59 3 172 397 387 1 180 182 396 35 287 398 534 184 183 320 397 185 97 109 132 136 408 135 186 386

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97177-684-0	01	1	0410-1010
1	SHAFT; TOP GEAR,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-98179-969-1	01	1	1011-
1	SHAFT; TOP GEAR,TRANS Z=30	8-97103-632-0	01	1	9704-0409
1	SHAFT; TOP GEAR,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=30	8-97103-632-0	01	1	0410-
3	BEARING; TOP GEAR SHAFT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-742-0	01	1	1211-
3	BEARING; TOP GEAR SHAFT NSK	8-94178-732-2	01	1	9704-1210
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94178-732-2	01	1	1211-
3	BEARING; TOP GEAR SHAFT JTEKT	8-94462-615-0	01	1	9704-1210
3	BEARING; TOP GEAR SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-94462-615-0	01	1	1211-
4	RING; SNAP,BRG TO TOP GEAR SHAFT ID=37.0	9-09180-040-0	01	1	9704-
13	GEAR; 5TH,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97373-011-0	01	1	0410-
13	GEAR; 5TH,MAINSHAFT Z=25	8-97147-817-0	01	1	9704-9905
13	GEAR; 5TH,MAINSHAFT Z=25	8-97206-012-0	01	1	9906-0409
13	GEAR; 5TH,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=25	8-97206-012-0	01	1	0410-
33	BEARING; NEEDLE,3RD GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-746-0	01	1	1211-
33	BEARING; NEEDLE,3RD GEAR	8-94317-158-0	01	1	9704-1210
33	BEARING; NEEDLE,3RD GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94317-158-0	01	1	1211-
35	RING; BLOCK,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	02	1	1211-
35	RING; BLOCK,4TH & 3RD Z=36	8-94128-775-2	02	1	9704-1210
35	RING; BLOCK,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	02	1	1211-
36	GEAR; 3RD,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97372-905-0	01	1	0410-1010
36	GEAR; 3RD,MAINSHAFT Z=33	8-94316-761-2	01	1	9704-0203
36	GEAR; 3RD,MAINSHAFT Z=33	8-97324-853-0	01	1	0204-0409
36	GEAR; 3RD,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=33	8-97324-853-0	01	1	0410-
39	HUB; CLU,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97177-689-0	01	1	0410-
40	SPRING; INSERT,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-960-0	02	1	1211-
40	SPRING; INSERT,LOW & 2ND	8-97023-708-0	02	1	9704-1210
40	SPRING; INSERT,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-708-0	02	1	1211-
49	BEARING; NEEDLE,2ND GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-747-0	01	1	1211-
49	BEARING; NEEDLE,2ND GEAR NSK	5-09811-014-0	01	1	9704-1210
49	BEARING; NEEDLE,2ND GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09811-014-0	01	1	1211-
50	GEAR; 2ND,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-143-1	01	1	0410-
50	GEAR; 2ND,MAINSHAFT Z=36	8-97014-034-2	01	1	9704-0409
50	GEAR; 2ND,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97014-034-2	01	1	0410-
51	RING; BLOCK,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-98190-428-0	02	1	1211-
51	RING; BLOCK,LOW & 2ND Z=42	8-97074-619-3	02	1	9704-1210
51	RING; BLOCK,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97074-619-3	02	1	1211-
59	GEAR; REV MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-98190-291-1	01	1	1211-
59	GEAR; REV MAINSHAFT Z=41	8-97115-777-0	01	1	9704-9905
59	GEAR; REV MAINSHAFT Z=41	8-97206-006-0	01	1	9906-1210
59	GEAR; REV MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=41	8-97206-006-0	01	1	1211-
62	SPRING; INSERT,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-
62	SPRING; INSERT,REV & 5TH	8-97023-710-0	02	1	9704-1210
62	SPRING; INSERT,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-
63	INSERT; SYN,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-418-0	03	1	1211-
63	INSERT; SYN,REV & 5TH	9-33263-613-0	03	1	9704-1210
63	INSERT; SYN,REV & 5TH EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33263-613-0	03	1	1211-
66	RING; BLOCK,SYN IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-98190-426-0	01	1	1211-
66	RING; BLOCK,SYN Z=36	8-94128-775-2	01	1	9704-1210
66	RING; BLOCK,SYN EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-94128-775-2	01	1	1211-
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97174-953-0	01	1	0410-0410
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97204-109-0	01	1	0411-1010
70	GEAR; 1ST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-98180-095-1	01	1	1011-
70	GEAR; 1ST,MAINSHAFT Z=43	8-97014-033-3	01	1	9704-0409
70	GEAR; 1ST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=43	8-97014-033-3	01	1	0410-
74	WASHER; THRUST,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-569-0	01	1	1211-
74	WASHER; THRUST,REV GEAR	9-33271-607-1	01	1	9704-9905
74	WASHER; THRUST,REV GEAR	8-97207-176-0	01	1	9906-1210
74	WASHER; THRUST,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-176-0	01	1	1211-
80	GEAR; SPD DRIVE IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-98190-429-0	01	1	1211-
80	GEAR; SPD DRIVE Z=4	8-97011-350-0	01	1	9704-9905
80	GEAR; SPD DRIVE Z=4	8-97207-146-0	01	1	9906-1210
80	GEAR; SPD DRIVE EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=4	8-97207-146-0	01	1	1211-
82	SHAFT; MAIN,TRANS IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97368-837-0	01	1	0410-
82	SHAFT; MAIN,TRANS Z=27-40-31-24	8-97045-932-1	01	1	9704-9911
82	SHAFT; MAIN,TRANS Z=27-40-37-27	8-97207-119-0	01	1	9912-0409
82	SHAFT; MAIN,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=27-40-37-27	8-97207-119-0	01	1	0410-
84	BEARING; COUNTER SHAFT,FRT IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-745-0	01	1	1211-
84	BEARING; COUNTER SHAFT,FRT NSK	5-09800-062-2	01	1	9704-1210
84	BEARING; COUNTER SHAFT,FRT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	5-09800-062-2	01	1	1211-
97	GEAR; 5TH,COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97169-511-0	01	1	0410-
97	GEAR; 5TH,COUNTER Z=53	8-97077-341-1	01	1	9704-0409
97	GEAR; 5TH,COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=53	8-97077-341-1	01	1	0410-
109	BEARING; COUNTER SHAFT,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-744-0	01	1	1211-
109	BEARING; COUNTER SHAFT,RR	8-97095-913-1	01	1	9704-1210
109	BEARING; COUNTER SHAFT,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-913-1	01	1	1211-
132	SHAFT; REV IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-378-0	01	1	1211-
132	SHAFT; REV	9-33351-604-1	01	1	9704-1210
132	SHAFT; REV EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33351-604-1	01	1	1211-
135	GEAR; REV IDLER IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97169-508-0	01	1	0410-
135	GEAR; REV IDLER Z=29	8-97081-539-3	01	1	9704-0409
135	GEAR; REV IDLER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=29	8-97081-539-3	01	1	0410-
136	WASHER; THRUST,REV IDLE,RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-533-0	01	1	1211-
136	WASHER; THRUST,REV IDLE,RR	8-97081-579-2	01	1	9704-1210
136	WASHER; THRUST,REV IDLE,RR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-579-2	01	1	1211-
172	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9704-
172	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9704-
172	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9704-
173	RING; SNAP,OVERDRIVE GEAR T=1.85	8-94151-522-0	01	1	9704-
173	RING; SNAP,OVERDRIVE GEAR T=1.90	8-94151-523-0	01	1	9704-
173	RING; SNAP,OVERDRIVE GEAR T=1.95	8-94151-524-0	01	1	9704-
173	RING; SNAP,OVERDRIVE GEAR T=2.00	8-94157-747-0	01	1	9704-
177	RING; SNAP,CLU HUB IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	8-98189-990-0	01	1	1211-
177	RING; SNAP,CLU HUB T=1.75	8-94402-405-0	01	1	9704-9905
177	RING; SNAP,CLU HUB T=1.80	8-94402-406-0	01	1	9704-9905
177	RING; SNAP,CLU HUB T=1.85	8-94402-407-0	01	1	9704-9905
177	RING; SNAP,CLU HUB ID=44.5	5-09589-010-0	01	1	9906-1210
177	RING; SNAP,CLU HUB EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=44.5	5-09589-010-0	01	1	1211-
180	RING; SNAP,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-98189-991-0	01	1	1211-
180	RING; SNAP,CLUSTER GEAR (B) ID=38.5	8-94146-483-0	01	1	9704-1210
180	RING; SNAP,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> (B) ID=38.5	8-94146-483-0	01	1	1211-
180	RING; SNAP,CLUSTER GEAR (A) ID=32.2	9-09180-035-0	01	1	9704-
182	PLATE; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-585-0	01	1	1211-
182	PLATE; CLUSTER GEAR	8-97095-984-0	01	1	9704-1210
182	PLATE; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97095-984-0	01	1	1211-
183	SPRING; PLATE,CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-380-0	03	1	1211-
183	SPRING; PLATE,CLUSTER GEAR	8-94132-168-0	03	1	9704-1210
183	SPRING; PLATE,CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94132-168-0	03	1	1211-
184	SPRING; CLUSTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-350-0	01	1	1211-
184	SPRING; CLUSTER GEAR	8-94128-790-1	01	1	9704-1210
184	SPRING; CLUSTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-790-1	01	1	1211-
185	RING; SNAP,CLUSTER GEAR ID=41.5	9-09180-045-0	01	1	9704-
186	RING; SNAP,CLUSTER GEAR ID=29.6	9-09180-032-0	01	1	9704-
276	SPACER; BRG TO DRIVE GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-906-0	01	1	1211-
276	SPACER; BRG TO DRIVE GEAR	9-33235-606-1	01	1	9704-9905
276	SPACER; BRG TO DRIVE GEAR	8-97207-175-0	01	1	9906-1210
276	SPACER; BRG TO DRIVE GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-175-0	01	1	1211-
281	WASHER; THRUST,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98188-466-0	01	1	1211-
281	WASHER; THRUST,MAINSHAFT	5-33271-007-0	01	1	9704-1210
281	WASHER; THRUST,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33271-007-0	01	1	1211-
287	PIN; COUNTER GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-445-0	03	1	1406-
287	PIN; COUNTER GEAR	8-94402-462-0	01	1	9704-1405
287	PIN; COUNTER GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94402-462-0	01	1	1406-
313	BEARING; NEEDLE,LOW GEAR IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-748-0	01	1	1211-
313	BEARING; NEEDLE,LOW GEAR NSK	8-94317-161-0	01	1	9704-1210
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-94317-161-0	01	1	1211-
313	BEARING; NEEDLE,LOW GEAR JTEKT	8-97010-547-0	01	1	9704-1210
313	BEARING; NEEDLE,LOW GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> JTEKT	8-97010-547-0	01	1	1211-
314	BEARING; NEEDLE,REV GEAR IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-98189-749-0	01	1	1211-
314	BEARING; NEEDLE,REV GEAR NSK	5-09811-014-0	01	1	9704-9905
314	BEARING; NEEDLE,REV GEAR NSK	8-97207-174-0	01	1	9906-1210
314	BEARING; NEEDLE,REV GEAR EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NSK	8-97207-174-0	01	1	1211-
320	HUB; CLU,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-690-0	01	1	0410-
386	PIN; REV SHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-093-0	01	1	1211-
386	PIN; REV SHAFT	8-94128-794-0	01	1	9704-1210
386	PIN; REV SHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94128-794-0	01	1	1211-
387	INSERT; SYN,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-
387	INSERT; SYN,4TH & 3RD	5-33263-001-0	03	1	9704-1210
387	INSERT; SYN,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-
389	HUB; CLU,REV & 5TH IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97373-144-0	01	1	0410-
390	RING; SNAP,CLU HUB T=1.75	8-94151-520-0	01	1	9704-
390	RING; SNAP,CLU HUB T=1.80	8-94151-521-0	01	1	9704-
390	RING; SNAP,CLU HUB T=1.85	8-94151-522-0	01	1	9704-
390	RING; SNAP,CLU HUB T=1.90	8-94151-523-0	01	1	9704-
393	BEARING; MAINSHAFT END IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-743-0	01	1	1211-
393	BEARING; MAINSHAFT END	8-97095-913-0	01	1	9704-9905
393	BEARING; MAINSHAFT END	8-97207-512-1	01	1	9906-1210
393	BEARING; MAINSHAFT END EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-512-1	01	1	1211-
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-97161-658-0	01	1	0410-1210
396	BEARING; NEEDLE,MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-970-0	01	1	1211-
396	BEARING; NEEDLE,MAINSHAFT	9-00096-606-0	01	1	9704-0409
396	BEARING; NEEDLE,MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-00096-606-0	01	1	0410-
397	SPRING; INSERT,4TH & 3RD IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-962-0	02	1	1211-
397	SPRING; INSERT,4TH & 3RD	8-97023-710-0	02	1	9704-1210
397	SPRING; INSERT,4TH & 3RD EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97023-710-0	02	1	1211-
398	GEAR; COUNTER IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97381-658-0	01	1	0410-
398	GEAR; COUNTER Z=49-34-22-14	8-97077-337-0	01	1	9704-0203
398	GEAR; COUNTER Z=49-34-22-14	8-97324-857-0	01	1	0204-0409
398	GEAR; COUNTER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> Z=49-34-22-14	8-97324-857-0	01	1	0410-
405	INSERT; SYN,LOW & 2ND IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-965-0	03	1	1211-
405	INSERT; SYN,LOW & 2ND	5-33263-001-0	03	1	9704-1210
405	INSERT; SYN,LOW & 2ND EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	5-33263-001-0	03	1	1211-
408	SPRING IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-347-0	01	1	1211-
408	SPRING	8-97081-577-0	01	1	9704-1210
408	SPRING EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97081-577-0	01	1	1211-
534	SLEEVE; HUB,4TH-3RD IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-134-0	01	1	0410-
535	SLEEVE; HUB,LOW-2ND IN-HOUSE PRODUCTION VAR.2<TMW> Z=42	8-97177-133-0	01	1	0410-
536	SLEEVE; HUB,REV-5TH IN-HOUSE PRODUCTION VAR.2<TMW> Z=36	8-97177-135-0	01	1	0410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
