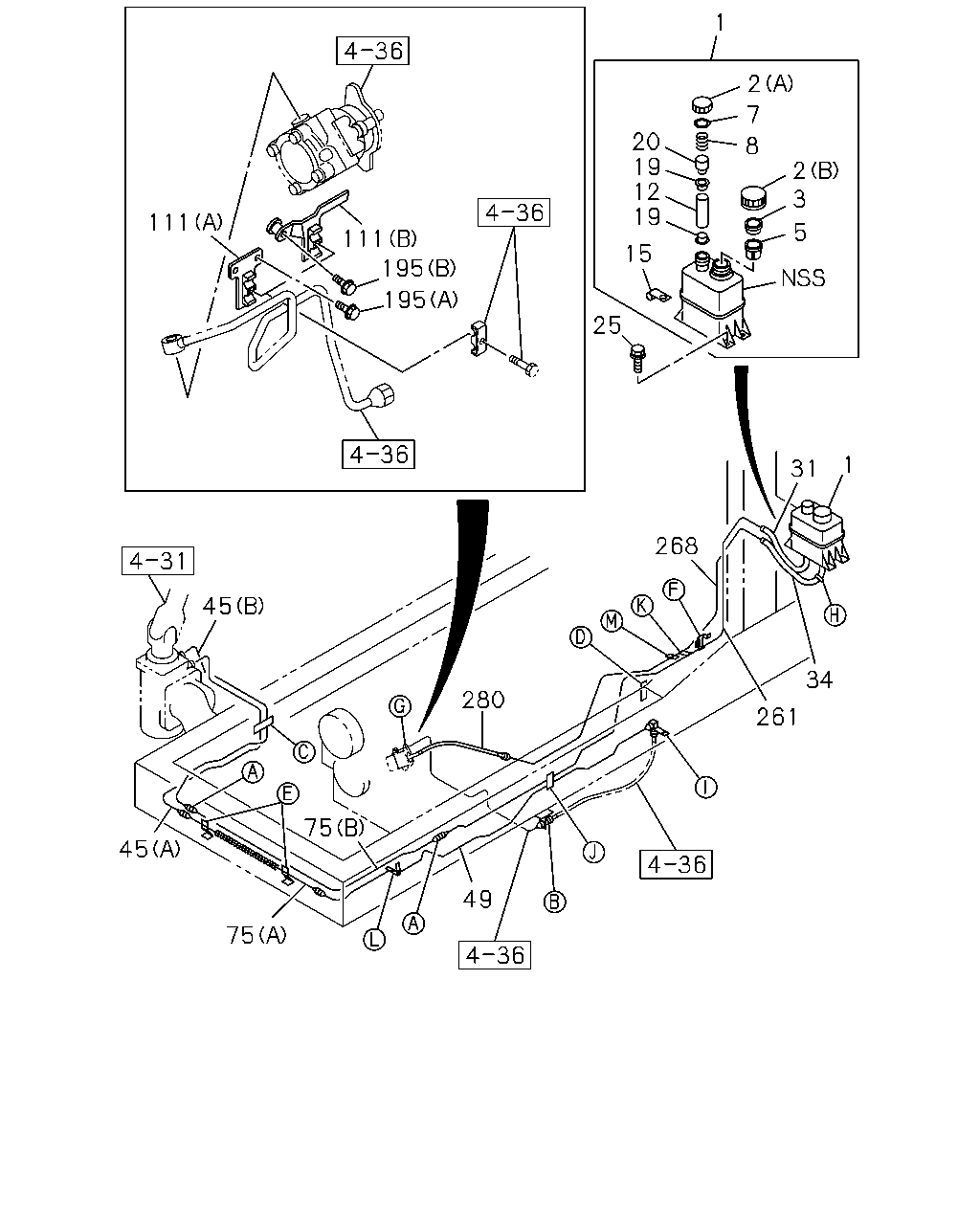

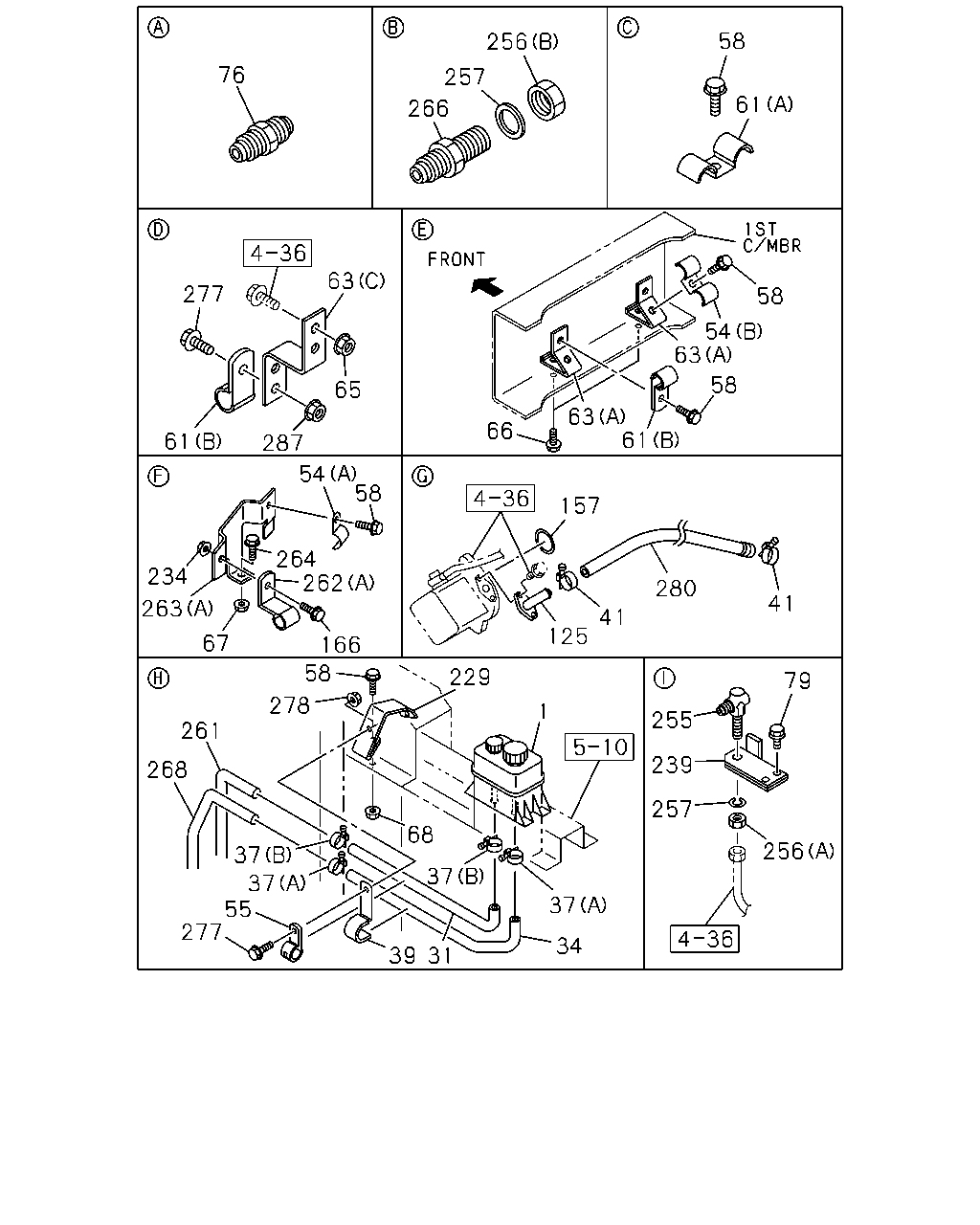

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#7269) — 122 parça

58 256 76 257 61 266 63 277 58 54 63 58 65 66 63 61 61 287 54 58 157 264 262 234 280 41 263 41 125 67 166 58 229 79 278 1 255 261 239 268 257 68 256 37 37 37 55 277 37 34 39 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9906-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	9906-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	9906-
37	CLIP; HOSE,P/S (A) ID=38	9-09915-041-1	02	1	9906-
37	CLIP; HOSE,P/S (B) ID=28	9-09915-672-1	02	1	9906-
39	CLIP; FLEX HOSE ID=32 L=75	1-09700-702-0	01	1	9906-
41	CLIP; HOSE,P/S ID=38	9-09915-041-1	02	1	9906-
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	9906-
54	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
54	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9906-
55	CLIP; P/S RUBBER HOSE ID=28 L=30	1-09700-607-1	01	1	9906-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9906-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	9906-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9906-
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9906-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	04	1	9906-
63	BRACKET; CLIP,P/S (C)	1-47475-963-1	01	1	9906-
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	9906-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9906-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9906-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9906-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9906-
67	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	9906-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	9906-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9906-
76	UNION; OIL PIPE M22	9-09233-015-1	01	1	9906-
79	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	9906-
125	CONNECTOR; P/S PUMP	1-13313-532-0	01	1	9906-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9906-
166	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9906-
229	BRACKET; HOSE,POWER STRG	1-21464-407-1	01	1	9906-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	9906-
239	BRACKET; FLEX HOSE	1-47476-679-4	01	1	9906-
255	UNION; FLEX HOSE M22 & M22 ELBOW	1-09654-163-1	01	1	9906-
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9906-
256	NUT; UNION (B) M22	9-09111-522-0	01	1	9906-
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9906-
257	WASHER; LK,UNION HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) ID=22.5	9-09150-522-0	01	1	9906-
261	PIPE; OIL,UNION TO HOSE L=1034	1-21115-588-0	01	1	9906-0104
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9906-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9906-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	9906-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	9906-
264	BOLT; PIPE BRKT M8X30 FLANGE	0-28680-830-0	01	1	9906-
266	UNION; OIL PIPE,P/S M20 & M22 STRAIGHT	1-09654-167-1	01	1	9906-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L=1305	1-21115-948-0	01	1	9906-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L=1315	1-21116-855-0	01	1	0007-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-21115-394-0	01	1	9906-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0007-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9906-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	9906-
278	NUT; HOSE CLIP M10 FLANGE	0-91150-210-0	01	1	9906-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	9906-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9906-

66 262 234 65 263 66 59 277 58 64 54 287 65 59 61 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=23.6 L=35	1-09700-634-0	02	1	9906-
54	CLIP; OIL PIPE (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9906-
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (B) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
54	CLIP; OIL PIPE ISUZU M/T<X9A> (B) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9906-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	02	1	9906-
58	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	04	1	9906-
58	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	9906-
58	BOLT; CLIP M10X25 FLANGE	0-28681-025-0	02	1	9906-
59	BRACKET; CLIP,OIL PIPE (B)	1-47477-145-0	01	1	9906-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-235-0	01	1	9906-
61	CLIP; OIL PIPE (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9906-
61	CLIP; OIL PIPE (B) ID=16 L=20	9-09525-535-0	04	1	9906-
63	BRACKET; CLIP,P/S (C)	1-47475-963-1	01	1	9906-
63	BRACKET; CLIP,P/S (B)	1-47477-193-0	01	1	9906-
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9906-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28680-825-0	01	1	9906-0103
64	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	01	1	0104-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9906-
66	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	9906-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	9906-
66	BOLT; BRKT,OIL PIPE M8X30 FLANGE	0-28680-830-0	02	1	9906-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91150-108-0	02	1	9906-
262	CLIP; P/S PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9906-
262	CLIP; P/S PIPE (B) ID=16 L=20	9-09525-535-0	01	1	9906-
263	BRACKET; P/S PIPE (A)	1-47476-483-2	01	1	9906-
263	BRACKET; P/S PIPE (B)	1-47477-597-3	01	1	9906-
277	BOLT; HOSE CLIP M8X20 FLANGE	0-28680-820-0	02	1	9906-
277	BOLT; HOSE CLIP M10X25 FLANGE	0-28681-025-0	01	1	9906-
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9906-

1 2 7 20 19 12 19 8 2 3 111 5 111 195 15 195 25 1 31 268 45 34 280 261 75 45 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9906-
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9906-
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9906-
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9906-
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9906-
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9906-
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9906-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9906-
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9906-
19	SEAT; OIL TANK	1-21262-001-0	02	1	9906-
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9906-
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9906-
31	HOSE; P/S OIL TANK,INL	1-21114-284-0	01	1	9906-
34	HOSE; P/S OIL TANK,OUTLET	1-21114-283-0	01	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1234	1-21116-238-0	01	1	9906-
45	PIPE; OIL,P/S UNIT TO UNION (A) L=1106	1-21116-239-0	01	1	9906-0006
45	PIPE; OIL,P/S UNIT TO UNION (A)	1-21116-849-0	01	1	0007-
49	PIPE; OIL,FLEX HOSE TO UNION L=1663	1-21116-235-0	01	1	9906-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=550	1-21116-307-0	01	1	9906-0006
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1807	1-21116-404-0	01	1	9906-
111	BRACKET; OIL PIPE (A)	1-13345-186-0	01	1	9906-
111	BRACKET; OIL PIPE (B)	1-13345-187-0	01	1	9906-
195	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	02	1	9906-
195	BOLT; BRKT (B) M10X35 FLANGE	0-28181-035-0	01	1	9906-
261	PIPE; OIL,UNION TO HOSE L=1034	1-21115-588-0	01	1	9906-0104
261	PIPE; OIL,UNION TO HOSE L=1031	1-21117-048-0	01	1	0105-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L=1305	1-21115-948-0	01	1	9906-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE CAB UP +110MM<TGG> L=1315	1-21116-855-0	01	1	0007-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-21115-394-0	01	1	9906-0006
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0007-
280	HOSE; P/S OIL PUMP,INL	1-21115-865-0	01	1	9906-
