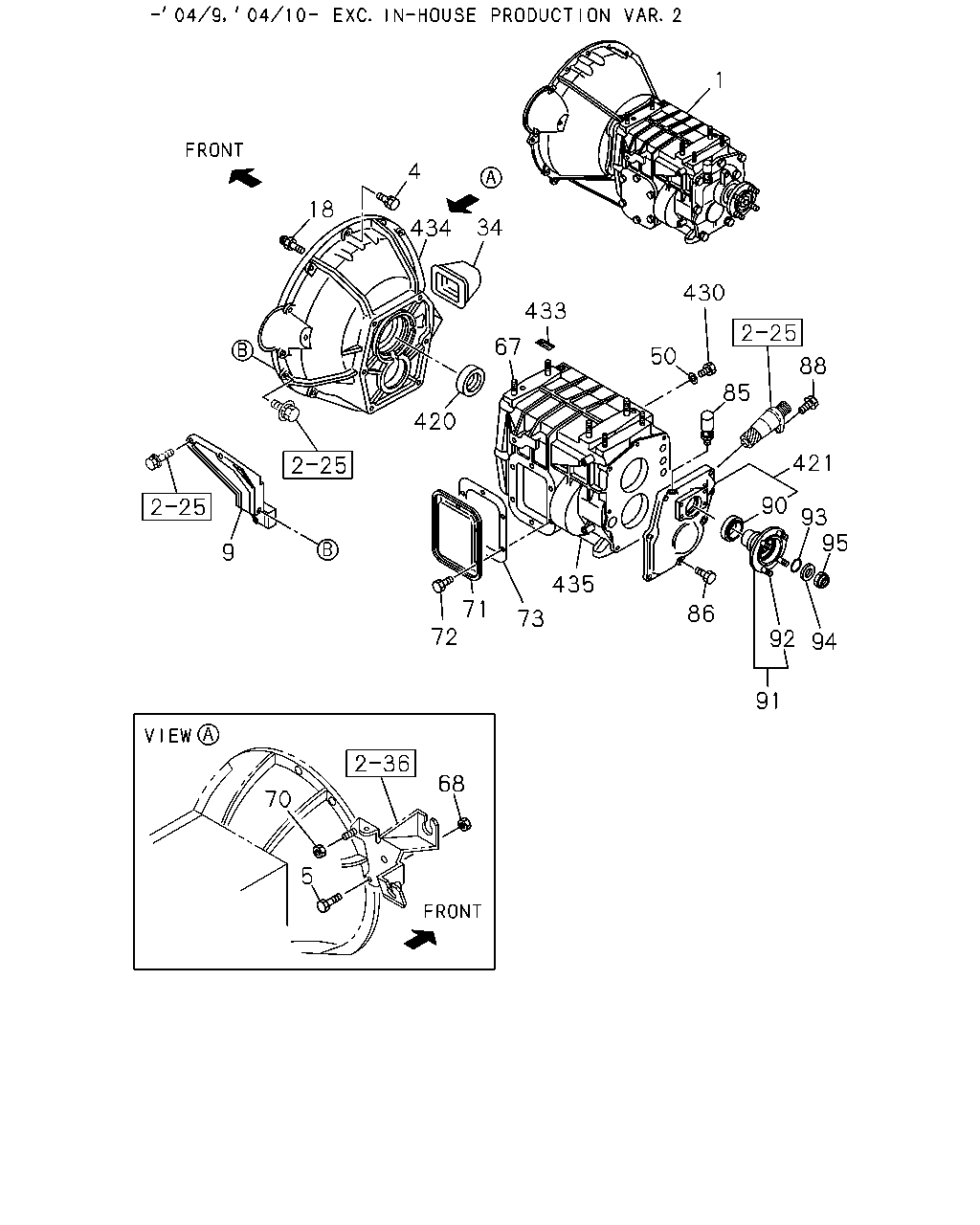

2-20 — MANUAL TRANSMISSION ASM AND CASE (#72688) — 199 parça

1 4 18 34 434 430 433 67 50 88 85 420 650 90 93 95 9 435 71 72 73 324 86 92 94 91 68 70 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-576-0	01	1	0410-1210
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-98203-852-0	01	1	1211-
1	TRANSMISSION ASM; MANUAL IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-577-0	01	1	0410-1210
1	TRANSMISSION ASM; MANUAL IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-98203-853-0	01	1	1211-
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8>	8-97090-013-2	01	1	9704-0409
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97090-013-2	01	1	0410-
1	TRANSMISSION ASM; MANUAL EXC. EXHAUST BRAKE<NF8>	8-97090-011-2	01	1	9704-0409
1	TRANSMISSION ASM; MANUAL EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97090-011-2	01	1	0410-
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28081-035-0	01	1	9704-0209
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28081-035-0	01	1	0210-0512
4	BOLT; FLYWHEEL HSG DBL CAB(NH*W) M10X35 FLANGE	0-28081-035-0	01	1	0210-0512
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28051-035-0	01	1	0601-
4	BOLT; FLYWHEEL HSG DBL CAB(NH*W) M10X35 FLANGE	0-28051-035-0	01	1	0601-
4	BOLT; FLYWHEEL HSG M10X40 FLANGE	0-28081-040-0	01	1	9704-0512
4	BOLT; FLYWHEEL HSG M10X40 FLANGE	0-28051-040-0	01	1	0601-
4	BOLT; FLYWHEEL HSG SGL CAB(NH*S) M10X45 FLANGE	0-28081-045-0	01	1	9704-0307
4	BOLT; FLYWHEEL HSG SGL CAB(NH*S) M10X45 FLANGE	0-28081-045-0	01	1	0308-0512
4	BOLT; FLYWHEEL HSG SGL CAB(NH*S) M10X45 FLANGE	0-28051-045-0	01	1	0601-
5	BOLT; REAR PLATE M10X35 FLANGE	0-28081-035-0	01	1	9704-0512
5	BOLT; REAR PLATE M10X35 FLANGE	0-28051-035-0	01	1	0601-
9	STIFFENER; C/BL	8-97074-108-3	01	1	9704-
9	STIFFENER; C/BL	8-97084-390-2	01	1	9704-
18	SUPPORT; DRAW LEVER IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5	8-98189-389-0	01	1	1211-
18	SUPPORT; DRAW LEVER L=47.5	5-31345-002-1	01	1	9704-9903
18	SUPPORT; DRAW LEVER L=47.5	8-97225-469-1	01	1	9904-1210
18	SUPPORT; DRAW LEVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5	8-97225-469-1	01	1	1211-
34	COVER; DUST,SHIFT FORK IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-416-0	01	1	1211-
34	COVER; DUST,SHIFT FORK	8-97034-880-0	01	1	9704-1210
34	COVER; DUST,SHIFT FORK EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-880-0	01	1	1211-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5	8-98189-969-0	01	1	1211-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.3	8-94336-511-0	01	1	9704-1210
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.3	8-94336-511-0	01	1	1211-
67	STUD; CASE TRANS IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-390-0	06	1	1211-
67	STUD; CASE TRANS	9-09631-004-0	04	1	9704-9905
67	STUD; CASE TRANS	9-09631-004-0	06	1	9906-1210
67	STUD; CASE TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-09631-004-0	06	1	1211-
68	NUT; REAR PLATE M10 FLANGE	0-91150-110-0	01	1	9704-0602
68	NUT; REAR PLATE M10 FLANGE	0-91180-110-0	01	1	0603-
70	NUT; REAMER BOLT M10 FLANGE	0-91150-110-0	01	1	9704-0602
70	NUT; REAMER BOLT M10 FLANGE	0-91180-110-0	01	1	0603-
71	COVER; SIDE,TRANS CASE IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-244-0	01	1	1211-
71	COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9704-1210
71	COVER; SIDE,TRANS CASE EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33141-601-2	01	1	1211-
72	BOLT; SIDE COVER IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	0-28051-012-0	06	1	1211-
72	BOLT; SIDE COVER M10X12 FLANGE	8-94128-791-0	06	1	9704-1210
72	BOLT; SIDE COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	1211-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-272-0	01	1	1211-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-601-0	01	1	9704-1210
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33142-601-0	01	1	1211-
85	BREATHER; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-454-0	01	1	1211-
85	BREATHER; RR COVER	8-97165-939-0	01	1	9704-1210
85	BREATHER; RR COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97165-939-0	01	1	1211-
86	BOLT; RR COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X25	8-94128-786-0	07	1	0410-
86	BOLT; RR COVER M8X25	8-94128-786-0	07	1	9704-0409
86	BOLT; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW> M8X25	8-94128-786-0	04	1	0410-1210
86	BOLT; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW> M8X25 FLANGE	0-28050-825-0	04	1	1211-
88	SCREW; SPEEDOMETER BUSHING IN-HOUSE PRODUCTION VAR.2<TMW> M8X12 FLANGE	0-28050-812-0	01	1	1211-
88	SCREW; SPEEDOMETER BUSHING M8X12	8-94128-785-0	01	1	9704-1210
88	SCREW; SPEEDOMETER BUSHING EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X12	8-94128-785-0	01	1	1211-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-98189-443-0	01	1	1211-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). JTEKT	8-97036-167-0	01	1	9704-9709
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97074-651-0	01	1	9704-0008
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0009-1210
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-97257-296-0	01	1	1211-
91	DRIVER; COUPLING IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-298-0	01	1	1211-
91	DRIVER; COUPLING	8-97011-346-2	01	1	9704-9905
91	DRIVER; COUPLING	8-97207-215-0	01	1	9906-1210
91	DRIVER; COUPLING EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-215-0	01	1	1211-
92	BOLT; COUPLING DRIVER IN-HOUSE PRODUCTION VAR.2<TMW> M10X33	8-98189-989-0	04	1	1211-
92	BOLT; COUPLING DRIVER M10X33	8-97109-696-1	04	1	9704-1210
92	BOLT; COUPLING DRIVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X33	8-97109-696-1	04	1	1211-
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-967-0	01	1	1211-
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94421-576-0	01	1	9704-9905
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94178-725-0	01	1	9906-1210
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94178-725-0	01	1	1211-
94	WASHER; COUPLING DRIVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-951-0	01	1	1211-
94	WASHER; COUPLING DRIVER	8-94249-240-0	01	1	9704-1210
94	WASHER; COUPLING DRIVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94249-240-0	01	1	1211-
95	NUT; MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE	8-98189-932-0	01	1	1211-
95	NUT; MAINSHAFT M24 FLANGE	8-97087-750-0	01	1	9704-1210
95	NUT; MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE	8-97087-750-0	01	1	1211-
324	STUD; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-97320-356-0	03	1	0410-1210
324	STUD; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-391-0	03	1	1211-
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-98189-424-0	01	1	1211-
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-94326-441-0	01	1	9704-1210
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-94326-441-0	01	1	1211-
430	PLUG; OIL DRAIN IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-430-0	01	1	1211-
430	PLUG; OIL DRAIN	8-94336-512-1	01	1	9704-1210
430	PLUG; OIL DRAIN EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94336-512-1	01	1	1211-
433	LABEL; TRANS	8-97076-909-0	01	1	9704-0412
433	LABEL; TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97076-909-1	01	1	0501-
434	HOUSING; CLU IN-HOUSE PRODUCTION VAR.2<TMW>	8-97174-084-0	01	1	0410-
434	HOUSING; CLU	8-97100-489-0	01	1	9704-0409
434	HOUSING; CLU EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97100-489-0	01	1	0410-
435	CASE; TRANS IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-564-0	01	1	0410-
435	CASE; TRANS	8-97072-004-0	01	1	9704-9905
435	CASE; TRANS	8-97206-005-0	01	1	9906-0110
435	CASE; TRANS	8-97240-847-0	01	1	0111-0409
435	CASE; TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97240-847-0	01	1	0410-
650	COVER; RR IN-HOUSE PRODUCTION VAR.2<TMW>	8-97174-087-0	01	1	0410-

1 4 18 34 434 430 433 67 50 88 85 420 421 90 93 95 9 435 71 72 86 73 92 94 91 68 70 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-576-0	01	1	0410-1210
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8> IN-HOUSE PRODUCTION VAR.2<TMW>	8-98203-852-0	01	1	1211-
1	TRANSMISSION ASM; MANUAL IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-97373-577-0	01	1	0410-1210
1	TRANSMISSION ASM; MANUAL IN-HOUSE PRODUCTION VAR.2<TMW> EXC. EXHAUST BRAKE<NF8>	8-98203-853-0	01	1	1211-
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8>	8-97090-013-2	01	1	9704-0409
1	TRANSMISSION ASM; MANUAL EXHAUST BRAKE<NF8> EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97090-013-2	01	1	0410-
1	TRANSMISSION ASM; MANUAL EXC. EXHAUST BRAKE<NF8>	8-97090-011-2	01	1	9704-0409
1	TRANSMISSION ASM; MANUAL EXC. EXHAUST BRAKE<NF8>,IN-HOUSE PRODUCTION VAR.2<TMW>	8-97090-011-2	01	1	0410-
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28081-035-0	01	1	9704-0209
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28081-035-0	01	1	0210-0512
4	BOLT; FLYWHEEL HSG DBL CAB(NH*W) M10X35 FLANGE	0-28081-035-0	01	1	0210-0512
4	BOLT; FLYWHEEL HSG M10X35 FLANGE	0-28051-035-0	01	1	0601-
4	BOLT; FLYWHEEL HSG DBL CAB(NH*W) M10X35 FLANGE	0-28051-035-0	01	1	0601-
4	BOLT; FLYWHEEL HSG M10X40 FLANGE	0-28081-040-0	01	1	9704-0512
4	BOLT; FLYWHEEL HSG M10X40 FLANGE	0-28051-040-0	01	1	0601-
4	BOLT; FLYWHEEL HSG SGL CAB(NH*S) M10X45 FLANGE	0-28081-045-0	01	1	9704-0307
4	BOLT; FLYWHEEL HSG SGL CAB(NH*S) M10X45 FLANGE	0-28081-045-0	01	1	0308-0512
4	BOLT; FLYWHEEL HSG SGL CAB(NH*S) M10X45 FLANGE	0-28051-045-0	01	1	0601-
5	BOLT; REAR PLATE M10X35 FLANGE	0-28081-035-0	01	1	9704-0512
5	BOLT; REAR PLATE M10X35 FLANGE	0-28051-035-0	01	1	0601-
9	STIFFENER; C/BL	8-97074-108-3	01	1	9704-
9	STIFFENER; C/BL	8-97084-390-2	01	1	9704-
18	SUPPORT; DRAW LEVER IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5	8-98189-389-0	01	1	1211-
18	SUPPORT; DRAW LEVER L=47.5	5-31345-002-1	01	1	9704-9903
18	SUPPORT; DRAW LEVER L=47.5	8-97225-469-1	01	1	9904-1210
18	SUPPORT; DRAW LEVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> L=47.5	8-97225-469-1	01	1	1211-
34	COVER; DUST,SHIFT FORK IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-416-0	01	1	1211-
34	COVER; DUST,SHIFT FORK	8-97034-880-0	01	1	9704-1210
34	COVER; DUST,SHIFT FORK EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97034-880-0	01	1	1211-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.5	8-98189-969-0	01	1	1211-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=15.3	8-94336-511-0	01	1	9704-1210
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> ID=15.3	8-94336-511-0	01	1	1211-
67	STUD; CASE TRANS IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-390-0	06	1	1211-
67	STUD; CASE TRANS	9-09631-004-0	04	1	9704-9905
67	STUD; CASE TRANS	9-09631-004-0	06	1	9906-1210
67	STUD; CASE TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-09631-004-0	06	1	1211-
68	NUT; REAR PLATE M10 FLANGE	0-91150-110-0	01	1	9704-0602
68	NUT; REAR PLATE M10 FLANGE	0-91180-110-0	01	1	0603-
70	NUT; REAMER BOLT M10 FLANGE	0-91150-110-0	01	1	9704-0602
70	NUT; REAMER BOLT M10 FLANGE	0-91180-110-0	01	1	0603-
71	COVER; SIDE,TRANS CASE IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-244-0	01	1	1211-
71	COVER; SIDE,TRANS CASE	9-33141-601-2	01	1	9704-1210
71	COVER; SIDE,TRANS CASE EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33141-601-2	01	1	1211-
72	BOLT; SIDE COVER IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	0-28051-012-0	06	1	1211-
72	BOLT; SIDE COVER M10X12 FLANGE	8-94128-791-0	06	1	9704-1210
72	BOLT; SIDE COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X12 FLANGE	8-94128-791-0	06	1	1211-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-272-0	01	1	1211-
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	9-33142-601-0	01	1	9704-1210
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	9-33142-601-0	01	1	1211-
85	BREATHER; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-454-0	01	1	1211-
85	BREATHER; RR COVER	8-97165-939-0	01	1	9704-1210
85	BREATHER; RR COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97165-939-0	01	1	1211-
86	BOLT; RR COVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X25	8-94128-786-0	07	1	0410-
86	BOLT; RR COVER M8X25	8-94128-786-0	07	1	9704-0409
86	BOLT; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW> M8X25	8-94128-786-0	04	1	0410-1210
86	BOLT; RR COVER IN-HOUSE PRODUCTION VAR.2<TMW> M8X25 FLANGE	0-28050-825-0	04	1	1211-
88	SCREW; SPEEDOMETER BUSHING IN-HOUSE PRODUCTION VAR.2<TMW> M8X12 FLANGE	0-28050-812-0	01	1	1211-
88	SCREW; SPEEDOMETER BUSHING M8X12	8-94128-785-0	01	1	9704-1210
88	SCREW; SPEEDOMETER BUSHING EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M8X12	8-94128-785-0	01	1	1211-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-98189-443-0	01	1	1211-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). JTEKT	8-97036-167-0	01	1	9704-9709
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97074-651-0	01	1	9704-0008
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97257-296-0	01	1	0009-1210
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-97257-296-0	01	1	1211-
91	DRIVER; COUPLING IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-298-0	01	1	1211-
91	DRIVER; COUPLING	8-97011-346-2	01	1	9704-9905
91	DRIVER; COUPLING	8-97207-215-0	01	1	9906-1210
91	DRIVER; COUPLING EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97207-215-0	01	1	1211-
92	BOLT; COUPLING DRIVER IN-HOUSE PRODUCTION VAR.2<TMW> M10X33	8-98189-989-0	04	1	1211-
92	BOLT; COUPLING DRIVER M10X33	8-97109-696-1	04	1	9704-1210
92	BOLT; COUPLING DRIVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M10X33	8-97109-696-1	04	1	1211-
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-967-0	01	1	1211-
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94421-576-0	01	1	9704-9905
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T).	8-94178-725-0	01	1	9906-1210
93	GASKET; COUPLING DRIVER ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94178-725-0	01	1	1211-
94	WASHER; COUPLING DRIVER IN-HOUSE PRODUCTION VAR.2<TMW>	8-98189-951-0	01	1	1211-
94	WASHER; COUPLING DRIVER	8-94249-240-0	01	1	9704-1210
94	WASHER; COUPLING DRIVER EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94249-240-0	01	1	1211-
95	NUT; MAINSHAFT IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE	8-98189-932-0	01	1	1211-
95	NUT; MAINSHAFT M24 FLANGE	8-97087-750-0	01	1	9704-1210
95	NUT; MAINSHAFT EXC. IN-HOUSE PRODUCTION VAR.2<TMW> M24 FLANGE	8-97087-750-0	01	1	1211-
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-98189-424-0	01	1	1211-
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-94326-441-0	01	1	9704-1210
420	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. IN-HOUSE PRODUCTION VAR.2<TMW> NOK	8-94326-441-0	01	1	1211-
421	COVER; RR,TRANS	8-97112-986-2	01	1	9704-0409
421	COVER; RR,TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97112-986-2	01	1	0410-
430	PLUG; OIL DRAIN IN-HOUSE PRODUCTION VAR.2<TMW>	8-98190-430-0	01	1	1211-
430	PLUG; OIL DRAIN	8-94336-512-1	01	1	9704-1210
430	PLUG; OIL DRAIN EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-94336-512-1	01	1	1211-
433	LABEL; TRANS	8-97076-909-0	01	1	9704-0412
433	LABEL; TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97076-909-1	01	1	0501-
434	HOUSING; CLU IN-HOUSE PRODUCTION VAR.2<TMW>	8-97174-084-0	01	1	0410-
434	HOUSING; CLU	8-97100-489-0	01	1	9704-0409
434	HOUSING; CLU EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97100-489-0	01	1	0410-
435	CASE; TRANS IN-HOUSE PRODUCTION VAR.2<TMW>	8-97373-564-0	01	1	0410-
435	CASE; TRANS	8-97072-004-0	01	1	9704-9905
435	CASE; TRANS	8-97206-005-0	01	1	9906-0110
435	CASE; TRANS	8-97240-847-0	01	1	0111-0409
435	CASE; TRANS EXC. IN-HOUSE PRODUCTION VAR.2<TMW>	8-97240-847-0	01	1	0410-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
