1-50 — EXHAUST PIPE AND SILENCER (#72679) — 90 parça

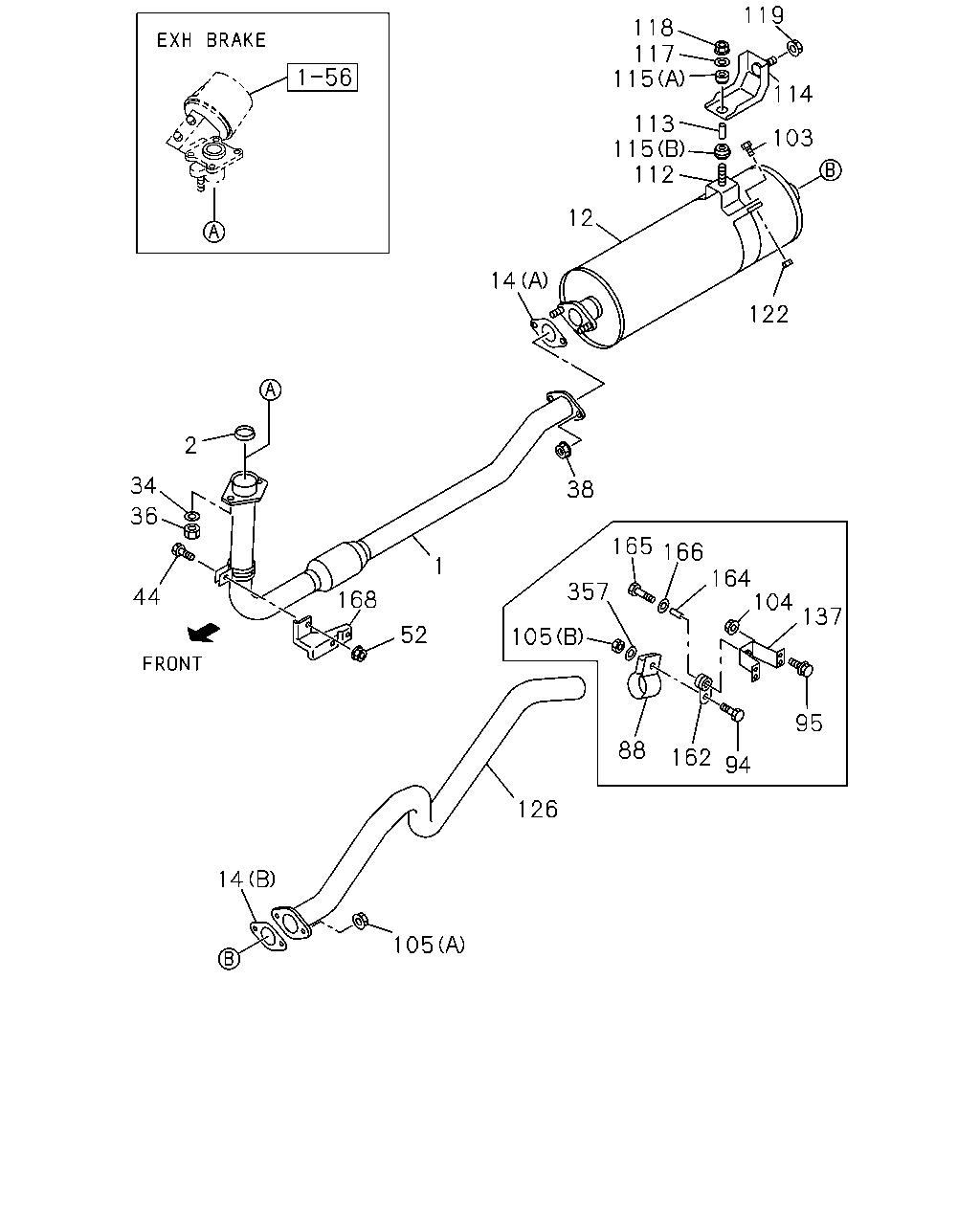

çizim 102484
119 118 117 115 114 113 115 112 103 12 14 122 2 34 38 36 165 166 164 104 137 1 357 44 168 52 105 95 88 162 94 126 14 105
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
EXHAUST BRAKE<NF8> 		8-97102-669-0 01 1 9704-0209 ●
1 PIPE; EXH
EXHAUST BRAKE<NF8> 		8-97102-669-0 01 1 0210- ● ●
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> 		8-97102-668-0 01 1 9704-0209 ●
1 PIPE; EXH
EXC. EXHAUST BRAKE<NF8> 		8-97102-668-0 01 1 0210- ● ●
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> 		8-97069-287-0 01 1 9704-9709 ●
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> 		8-97180-750-2 01 1 9710-0209 ●
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> 		8-97180-750-2 01 1 0210-0408 ● ●
2 GASKET; PIPE TO MANIF
EXC. EXHAUST BRAKE<NF8> 		8-97381-456-0 01 1 0409- ● ●
12 SILENCER ASM; EXH 8-97089-857-0 01 1 9704-0209 ●
12 SILENCER ASM; EXH 8-97089-857-0 01 1 0210- ● ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=64.7 		8-94328-352-0 01 1 9704-0209 ●
14 GASKET; SILENCER TO EXH PIPE
(B) ID=64.7 		8-94328-352-0 01 1 0210- ● ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 9704-0209 ●
14 GASKET; SILENCER TO EXH PIPE
(A) ID=53.0 NON-ASBESTOS 		8-94328-353-0 01 1 0210- ● ●
34 WASHER; EXH PIPE
EXHAUST BRAKE<NF8> ID=10.5 		5-09500-013-0 02 1 9704-0209 ●
34 WASHER; EXH PIPE
EXHAUST BRAKE<NF8> ID=10.5 		5-09500-013-0 02 1 0210- ● ●
36 NUT; EXH PIPE
EXHAUST BRAKE<NF8> M10 H=18 		9-09640-014-0 02 1 9704-0209 ●
36 NUT; EXH PIPE
EXHAUST BRAKE<NF8> M10 H=18 		9-09640-014-0 02 1 0210- ● ●
36 NUT; EXH PIPE
EXC. EXHAUST BRAKE<NF8> M10 FLANGE 		8-97096-192-1 02 1 9704-0209 ●
36 NUT; EXH PIPE
EXC. EXHAUST BRAKE<NF8> M10 FLANGE 		8-97096-192-1 02 1 0210- ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91150-110-0 02 1 9704-0209 ●
38 NUT; SILENCER
M10 FLANGE 		0-91150-110-0 02 1 0210-0602 ● ●
38 NUT; SILENCER
M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
44 BOLT; BRKT
M8X40 W/LK WASHER 		0-50040-840-0 01 1 9704-0209 ●
44 BOLT; BRKT
M8X40 W/LK WASHER 		0-50040-840-0 01 1 0210-0512 ● ●
44 BOLT; BRKT
M8X40 W/LK WASHER 		0-50540-840-0 01 1 0601- ● ●
52 NUT; BRKT
M8 		9-09110-408-0 01 1 9704-0209 ●
52 NUT; BRKT
M8 		9-09110-408-0 01 1 0210-0512 ● ●
52 NUT; BRKT
M8 		0-91110-508-0 01 1 0601- ● ●
88 CLAMP; EXH PIPE
ID=51.5 		8-97016-034-0 01 1 9704-9903 ●
88 CLAMP; EXH PIPE
ID=51.5 		8-97222-648-0 01 1 9904-0112 ●
88 CLAMP; EXH PIPE
ID=51.5 		8-97325-352-0 01 1 0201-0209 ●
88 CLAMP; EXH PIPE
ID=51.5 		8-97325-352-0 01 1 0210- ● ●
94 BOLT; CLAMP
M8X45 		0-20800-845-0 01 1 9704-0209 ●
94 BOLT; CLAMP
M8X45 		0-20800-845-0 01 1 0210- ● ●
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 9704-0209 ●
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0210-0512 ● ●
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 9704-0209 ●
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 0210-0909 ● ●
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50540-845-0 01 1 0910- ● ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9704-0209 ●
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0210-0602 ● ●
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
105 NUT; CLAMP
(A) M10 FLANGE 		0-91150-110-0 02 1 9704-0209 ●
105 NUT; CLAMP
(A) M10 FLANGE 		0-91150-110-0 02 1 0210-0602 ● ●
105 NUT; CLAMP
(A) M10 FLANGE 		0-91180-110-0 02 1 0603- ● ●
105 NUT; CLAMP
(B) M8 		9-09110-408-0 01 1 9704-0209 ●
105 NUT; CLAMP
(B) M8 		9-09110-408-0 01 1 0210-0512 ● ●
105 NUT; CLAMP
(B) M8 		0-91110-508-0 01 1 0601- ● ●
112 BRACKET; HANGER 8-97081-457-0 01 1 9704-0209 ●
112 BRACKET; HANGER 8-97081-457-0 01 1 0210- ● ●
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 9704-0209 ●
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 0210- ● ●
114 BRACKET; EXH SILENCER 8-94329-856-0 01 1 9704-0209 ●
114 BRACKET; EXH SILENCER 8-94329-856-0 01 1 0210- ● ●
115 RUBBER; MTG,SILENCER
(A) 		8-94457-277-1 01 1 9704-0209 ●
115 RUBBER; MTG,SILENCER
(A) 		8-94457-277-1 01 1 0210- ● ●
115 RUBBER; MTG,SILENCER
(B) 		8-94457-278-1 01 1 9704-0209 ●
115 RUBBER; MTG,SILENCER
(B) 		8-94457-278-1 01 1 0210- ● ●
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 9704-0209 ●
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0210- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 9704-0209 ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 0210- ● ●
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9704-0209 ●
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0210-0602 ● ●
119 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
122 NUT; HANGER BRKT
M8 		9-09110-408-0 01 1 9704-0209 ●
122 NUT; HANGER BRKT
M8 		9-09110-408-0 01 1 0210-0512 ● ●
122 NUT; HANGER BRKT
M8 		0-91110-508-0 01 1 0601- ● ●
126 PIPE; EXH,RR 8-97081-460-0 01 1 9704-0209 ●
126 PIPE; EXH,RR 8-97081-460-0 01 1 0210- ● ●
137 BRACKET; TAIL PIPE 9-22121-146-1 01 1 9704-0209 ●
137 BRACKET; TAIL PIPE 9-22121-146-1 01 1 0210- ● ●
162 RUBBER; SUPPORT,TAIL PIPE 8-94156-255-0 01 1 9704-9903 ●
162 RUBBER; SUPPORT,TAIL PIPE
L=180 		8-97222-646-0 01 1 9904-0209 ●
162 RUBBER; SUPPORT,TAIL PIPE
L=180 		8-97222-646-0 01 1 0210- ● ●
164 COLLAR; DIST,TAIL PIPE
L=23 		9-22151-175-0 01 1 9704-0209 ●
164 COLLAR; DIST,TAIL PIPE
L=23 		9-22151-175-0 01 1 0210- ● ●
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28080-845-0 01 1 9704-0209 ●
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28080-845-0 01 1 0210-0512 ● ●
165 BOLT; SUPPORT RUBBER
M8X45 FLANGE 		0-28050-845-0 01 1 0601- ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		9-09164-808-0 01 1 9704-0209 ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		9-09164-808-0 01 1 0210-0605 ● ●
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=8.4 OD=26 		0-91614-808-0 01 1 0606- ● ●
168 BRACKET; EXH PIPE,FRT 8-94445-704-0 01 1 9704-0209 ●
168 BRACKET; EXH PIPE,FRT 8-94445-704-0 01 1 0210- ● ●
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 9704-0209 ●
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 0210-0605 ● ●
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606- ● ●
