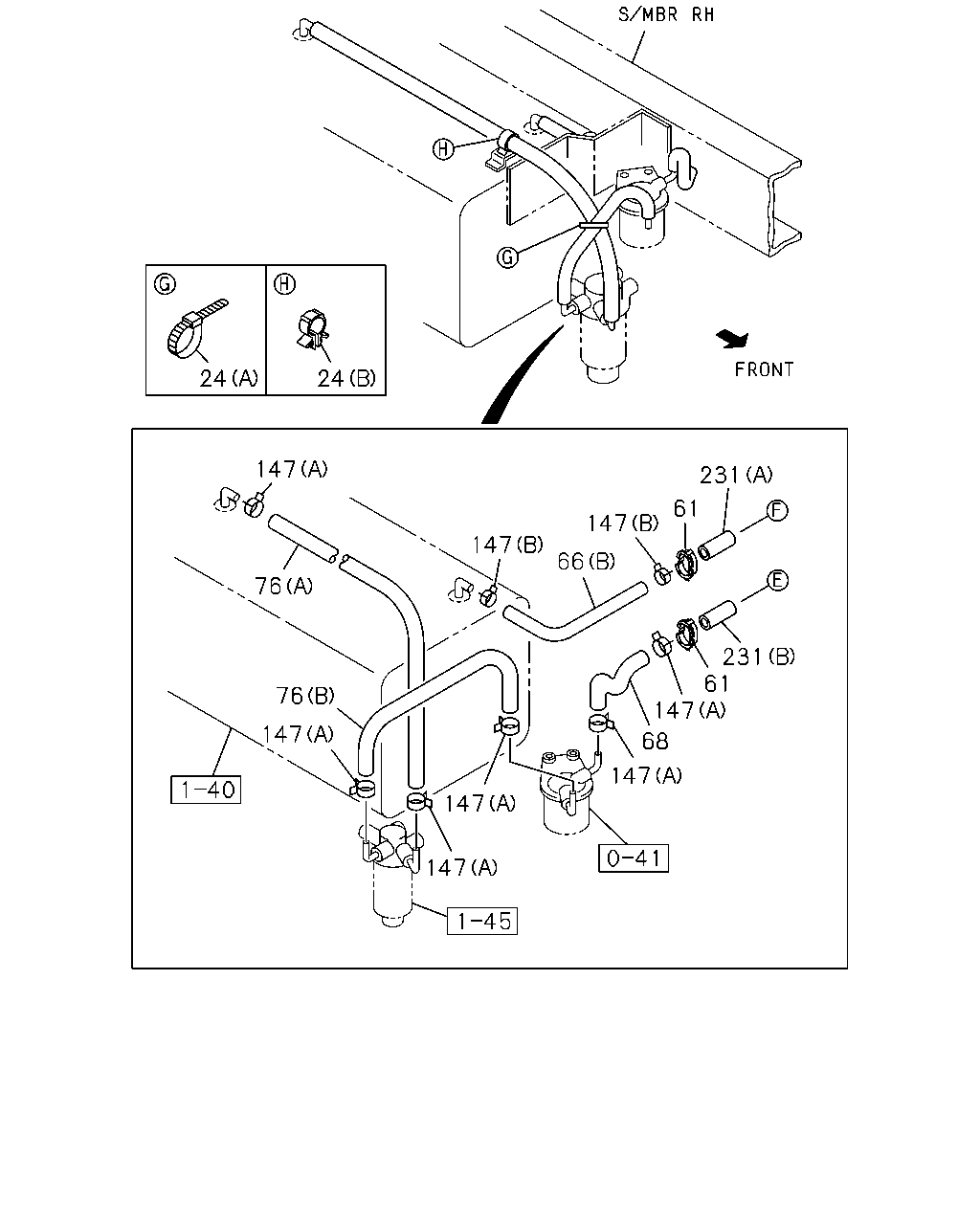

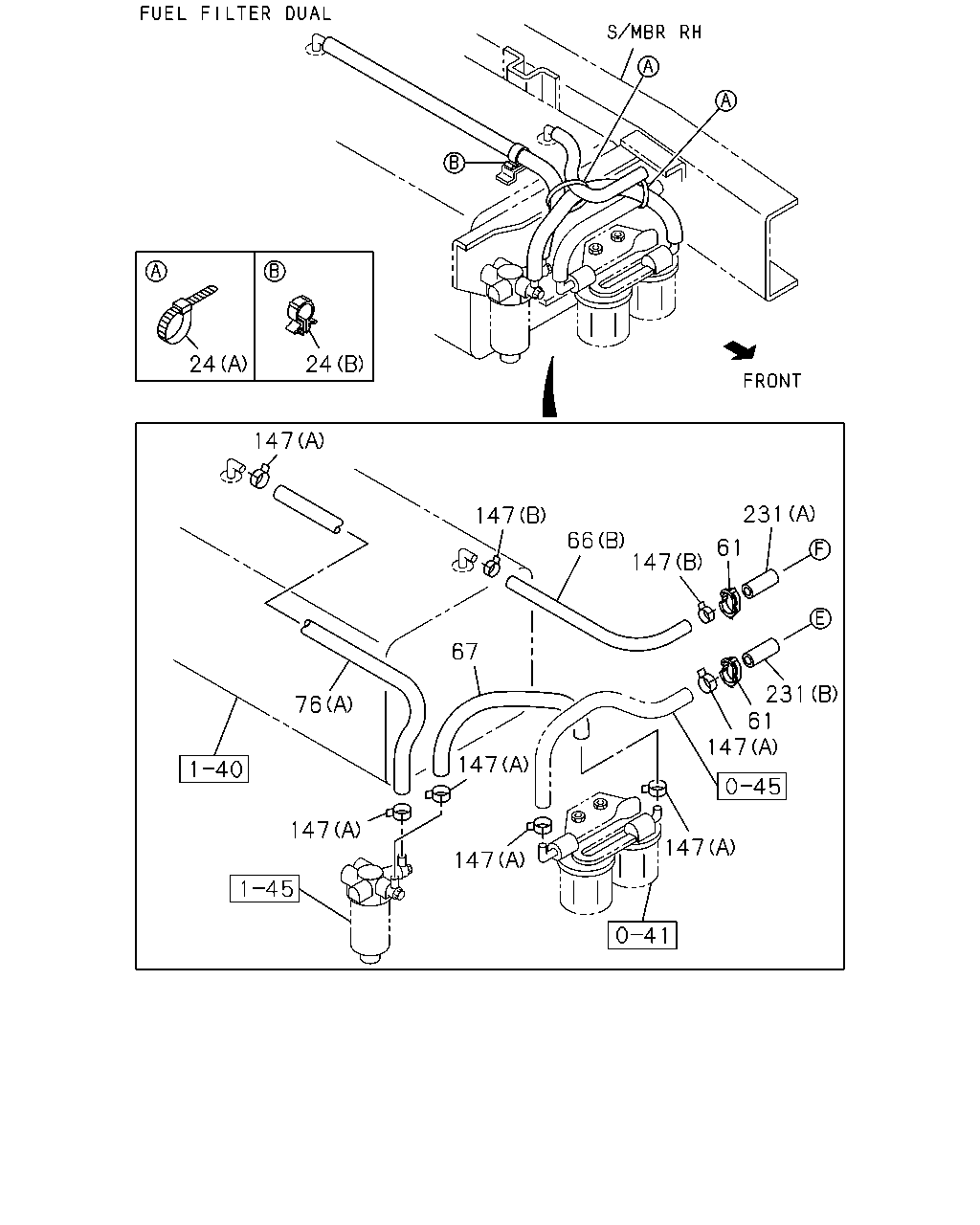

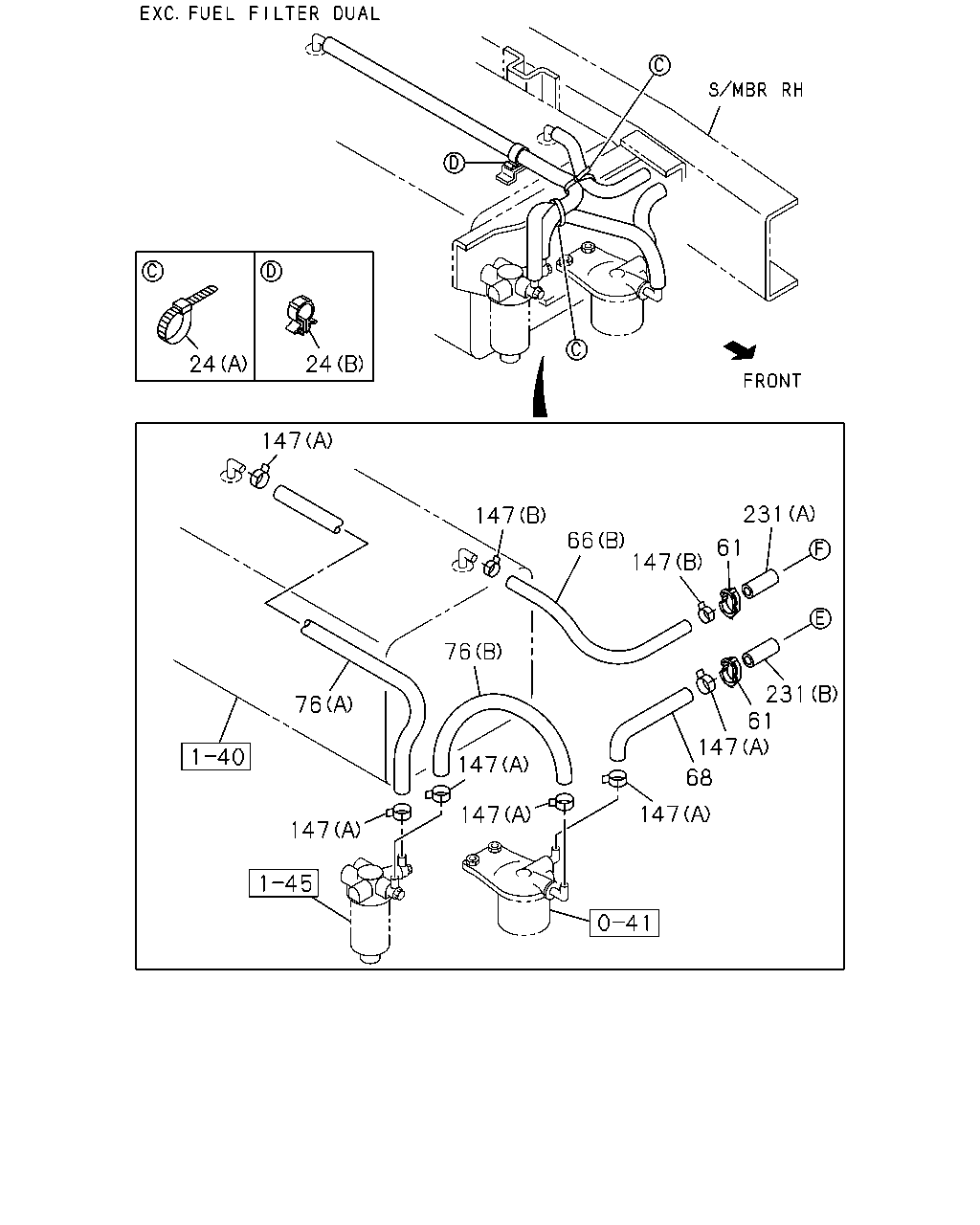

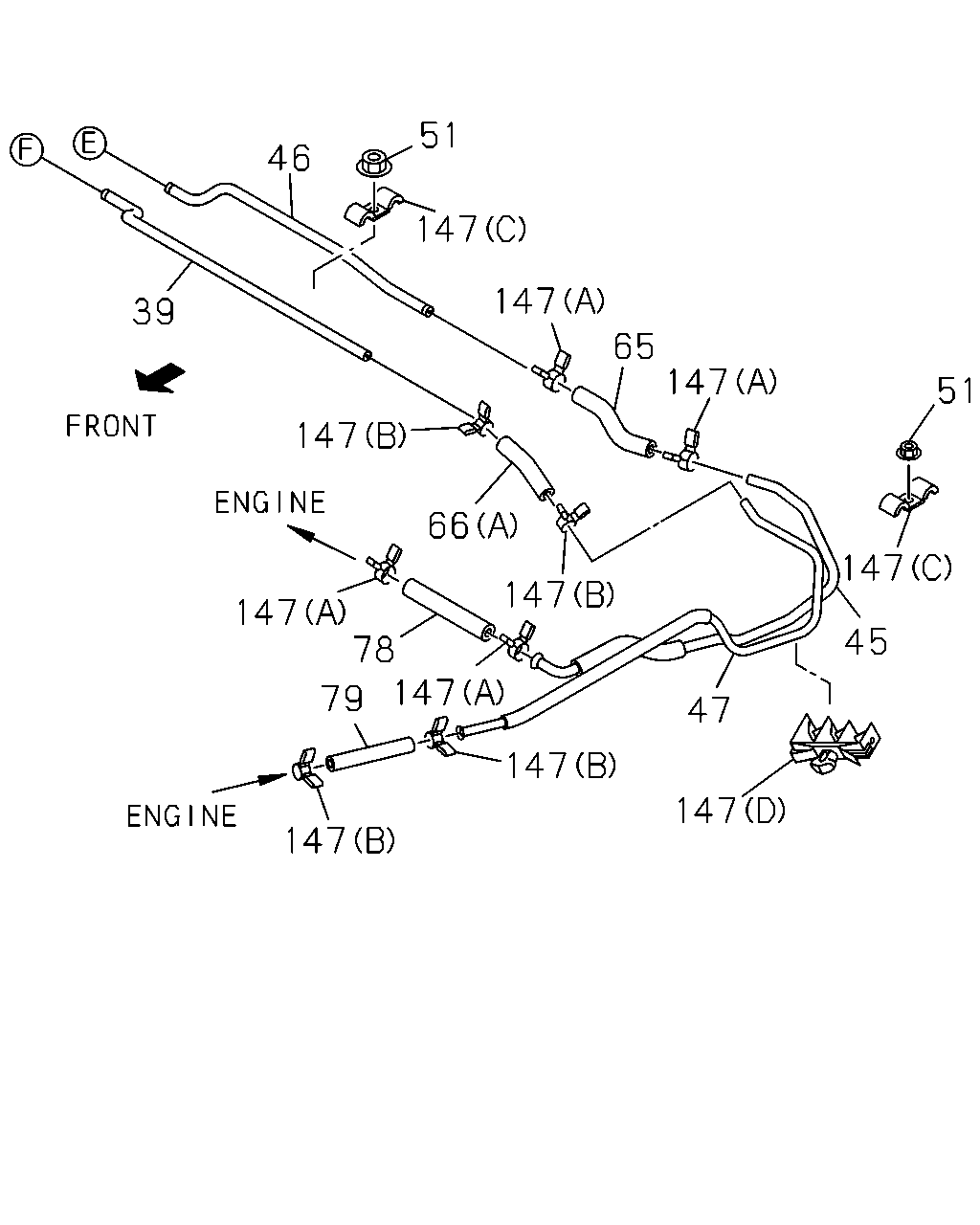

1-41 — FUEL PIPING; CHASSIS (#72677) — 152 parça

51 46 147 147 39 65 147 51 147 66 147 147 147 78 147 45 79 47 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	PIPE; FUEL	8-97090-339-3	01	1	9704-	●
39	PIPE; FUEL	8-97089-641-4	01	1	0210-		●
45	PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	9704-0209	●
45	PIPE; FUEL,DELIVERY	8-97090-340-3	01	1	0210-	●	●
46	PIPE; FUEL,TANK SIDE	8-97075-972-3	01	1	9704-	●
46	PIPE; FUEL,TANK SIDE	8-97075-971-4	01	1	0210-		●
47	PIPE; FUEL,RETURN	8-97080-712-5	01	1	9704-0209	●
47	PIPE; FUEL,RETURN	8-97080-712-5	01	1	0210-	●	●
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	9704-0209	●
51	NUT; CLIP,PIPE M6 FLANGE	0-91150-106-0	03	1	0210-0602	●	●
51	NUT; CLIP,PIPE M6 FLANGE	0-91180-106-0	03	1	0603-	●	●
65	HOSE; FUEL,DELIVERY PIPE L=140 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
65	HOSE; FUEL,DELIVERY PIPE L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0210-		●
78	HOSE; FUEL,PUMP TO PIPE L=200 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
78	HOSE; FUEL,PUMP TO PIPE L=200 SERVICED BY L=3000	0-01259-300-0	01	1	0210-	●	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
79	HOSE; FUEL,PUMP TO PIPE,RETURN L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0210-1410	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	10	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0210-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0210-0307	●	●

24 24 147 231 147 66 147 61 67 231 61 147 76 147 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9704-0209	●
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0210-	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=250	5-09707-030-1	01	1	9704-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9704-	●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9704-0209	●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0210-	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0210-		●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	9704-0209	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0210-		●
67	HOSE; FUEL,DELIVERY FUEL FILTER DUAL<S6B> L=450 SERVICED BY L=3000	0-01259-300-0	01	1	9704-	●
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9704-	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-0307	●
76	HOSE; FUEL,TANK (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-0307		●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●
76	HOSE; FUEL,TANK (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0210-		●
76	HOSE; FUEL,TANK (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0308-		●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0210-1410	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	10	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0210-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0210-0307	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9704-0209	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0210-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9704-0209	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0210-	●	●

24 24 147 231 147 66 147 61 76 231 61 147 76 147 68 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9704-0209	●
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0210-	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=250	5-09707-030-1	01	1	9704-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9704-	●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9704-0209	●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0210-	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0210-		●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	9704-0209	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0210-		●
68	HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	9704-	●
68	HOSE; FUEL,FILTER TO PIPE L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-0307		●
68	HOSE; FUEL,FILTER TO PIPE L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0308-		●
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9704-	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-0307	●
76	HOSE; FUEL,TANK (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-0307		●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●
76	HOSE; FUEL,TANK (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0210-		●
76	HOSE; FUEL,TANK (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0308-		●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0210-1410	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	10	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0210-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0210-0307	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9704-0209	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0210-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9704-0209	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0210-	●	●

24 24 147 231 61 147 147 66 76 231 61 147 76 147 68 147 147 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	9704-0209	●
24	CLIP; FUEL HOSE (B)	8-97089-536-0	01	1	0210-	●	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=250	5-09707-030-1	01	1	9704-	●
24	CLIP; FUEL HOSE FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	01	1	9704-	●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	9704-0209	●
24	CLIP; FUEL HOSE EXC. FUEL FILTER DUAL<S6B> (A) L=140	5-09707-031-1	02	1	0210-	●
24	CLIP; FUEL HOSE (A) L=140	5-09707-031-1	02	1	0210-		●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	9704-0209	●
61	GROMMET; PIPE TO FRAME ID=17	8-94128-319-2	02	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	9704-0209	●
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0210-	●	●
66	HOSE; FUEL,RETURN PIPE (B) L=420 SERVICED BY L=3000	0-01256-300-0	01	1	9704-	●
66	HOSE; FUEL,RETURN PIPE (B) L=150 SERVICED BY L=3000	0-01256-300-0	01	1	0210-		●
68	HOSE; FUEL,FILTER TO PIPE EXC. FUEL FILTER DUAL<S6B>	8-97091-765-0	01	1	9704-	●
68	HOSE; FUEL,FILTER TO PIPE L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-0307		●
68	HOSE; FUEL,FILTER TO PIPE L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0308-		●
76	HOSE; FUEL,TANK (A) L=500 SERVICED BY L=3000	0-01259-300-0	01	1	9704-	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	9704-0209	●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-0307	●
76	HOSE; FUEL,TANK (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0210-0307		●
76	HOSE; FUEL,TANK EXC. FUEL FILTER DUAL<S6B> (B) L=380 SERVICED BY L=3000	0-01259-300-0	01	1	0308-	●
76	HOSE; FUEL,TANK (A) L=600 SERVICED BY L=3000	0-01259-300-0	01	1	0210-		●
76	HOSE; FUEL,TANK (B) L=340 SERVICED BY L=3000	0-01259-300-0	01	1	0308-		●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0210-1410	●	●
147	CLIP; FUEL PIPE TO HOSE (C) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-94238-568-0	10	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (A) ID=16	8-98008-098-0	10	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-94238-571-0	06	1	0210-0911	●	●
147	CLIP; FUEL PIPE TO HOSE (B) ID=13	8-98150-357-0	06	1	0912-	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0210-0307	●	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9704-0209	●
147	CLIP; FUEL PIPE TO HOSE (D) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0210-0307	●	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	9704-0209	●
231	RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0210-	●	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	9704-0209	●
231	RUBBER; SUPPORT,FUEL PIPE (B) OD=15 L=50	8-97077-629-0	01	1	0210-	●	●
