1 |

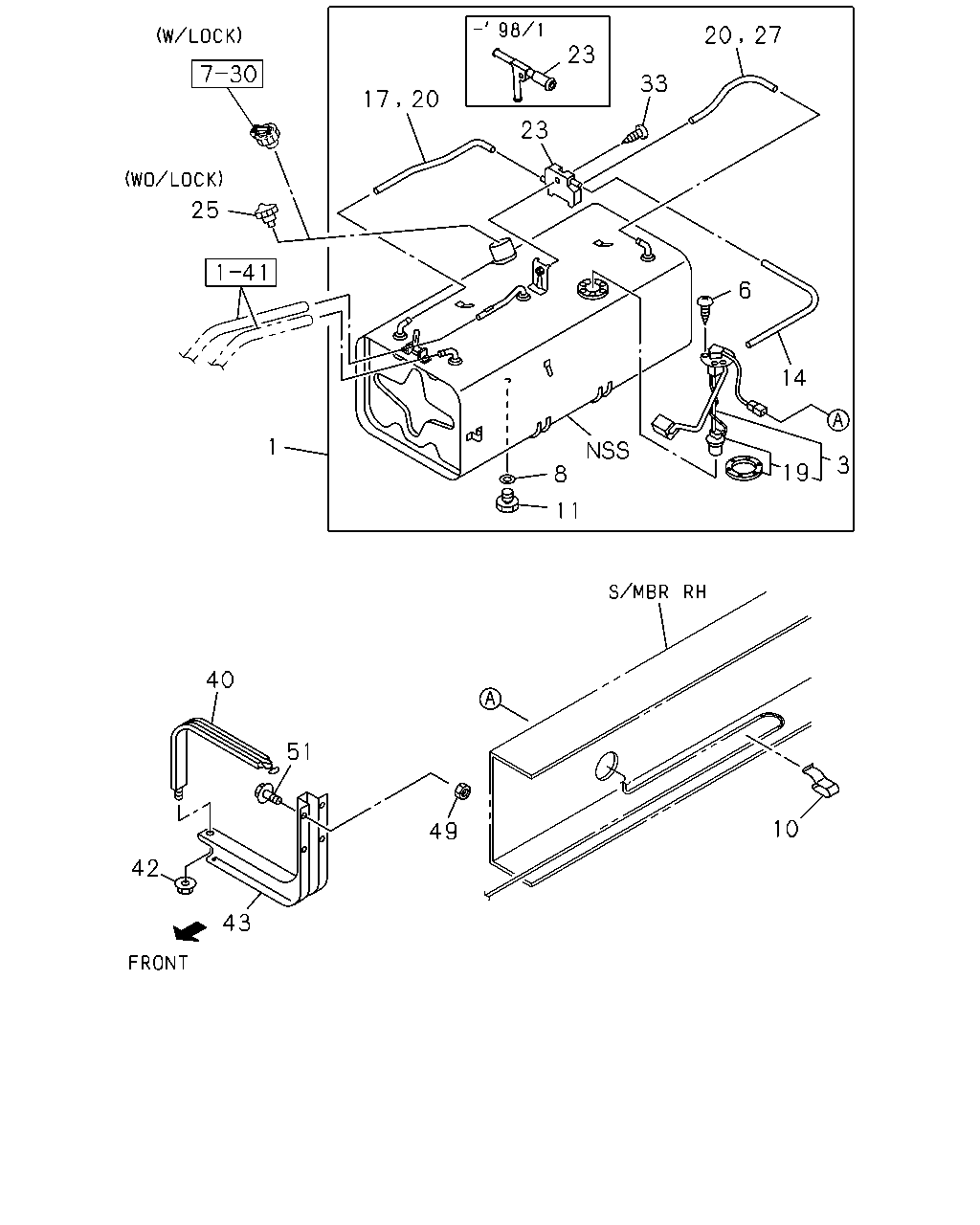

TANK; FUEL
753X340X327 75L
|
8-97131-122-0 |
01 |
1 |
9704-9801 |
● |
|
| |
1 |
TANK; FUEL
753X340X327 75L
|
8-97188-864-0 |
01 |
1 |
9802-0301 |
● |
|
| |
1 |
TANK; FUEL
753X340X327 75L
|
8-97350-988-0 |
01 |
1 |
0302-0307 |
● |
|
| |
1 |
TANK; FUEL
753X340X327 75L
|
8-97350-987-1 |
01 |
1 |
0308- |
● |
|
| |
1 |
TANK; FUEL
753X340X275 63L
|
8-97188-861-0 |
01 |
1 |
0210-0301 |
|
● |
| |
1 |
TANK; FUEL
753X340X275 63L
|
8-97350-986-1 |
01 |
1 |
0302- |
|
● |
| |
3 |
UNIT; FUEL TANK,SUB
|
8-94316-190-0 |
01 |
1 |
9704- |
● |
|
| |
3 |
UNIT; FUEL TANK,SUB
|
8-94316-188-0 |
01 |
1 |
0210- |
|
● |
| |
6 |
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
9704-0209 |
● |
|
| |
6 |
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0210-0604 |
● |
● |
| |
6 |
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
0605- |
● |
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
9704-0209 |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0210- |
● |
● |
| |
10 |
CLIP; SPRING,FUEL TANK UNIT CABLE
T=5.5
|
5-09709-047-0 |
03 |
1 |
9704-0209 |
● |
|
| |
10 |
CLIP; SPRING,FUEL TANK UNIT CABLE
T=5.5
|
5-09709-047-0 |
03 |
1 |
0210- |
● |
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
M14X14
|
9-09862-156-0 |
01 |
1 |
9704-0209 |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
M14X14
|
9-09862-156-0 |
01 |
1 |
0210- |
● |
● |
| |
14 |
HOSE; BREATHER,OUTLET
L=450
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9704-9801 |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
L=350
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
9802-0307 |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
L=320
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
0308- |
● |
|
| |
14 |
HOSE; BREATHER,OUTLET
L=400
SERVICED BY L=10000
|
9-09914-701-0 |
01 |
1 |
0210- |
|
● |
| |
17 |
HOSE; BREATHER
L=430
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
0308- |
● |
|
| |
17 |
HOSE; BREATHER
L=440
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
0210- |
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
9704-0209 |
● |
|
| |
19 |
GASKET; FUEL TANK UNIT
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
0210- |
● |
● |
| |
20 |
HOSE; BREATHER
L=380
SERVICED BY L=3000
|
8-94128-826-0 |
02 |
1 |
9704-0307 |
● |
|
| |
23 |
JOINT; BREATHER HOSE
|
8-94418-058-0 |
01 |
1 |
9704-9801 |
● |
|
| |
23 |
JOINT; BREATHER HOSE
|
8-97077-713-1 |
01 |
1 |
9802-0209 |
● |
|
| |
23 |
JOINT; BREATHER HOSE
|
8-97077-713-1 |
01 |
1 |
0210- |
● |
● |
| |
25 |
CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP W/LOCK<N05>
|
8-94258-609-1 |
01 |
1 |
9704- |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
|
8-94165-450-1 |
01 |
1 |
0210- |
|
● |
| |
27 |
HOSE; BREATHER
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
0210-0307 |
|
● |
| |
27 |
HOSE; BREATHER
L=340
SERVICED BY L=3000
|
8-94128-826-0 |
01 |
1 |
0308- |
● |
● |
| |
33 |
SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER
|
9-03920-620-0 |
01 |
1 |
9704-0209 |
● |
|
| |
33 |
SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER
|
9-03920-620-0 |
01 |
1 |
0210-0604 |
● |
● |
| |
33 |
SCREW; JOINT TO FUEL TANK
M6X20 W/LK&PL WASHER
|
0-36230-620-0 |
01 |
1 |
0605- |
● |
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
|
8-94438-385-4 |
02 |
1 |
9704- |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
|
8-94438-384-3 |
02 |
1 |
0210- |
|
● |
| |
42 |
NUT; SUPPORT BELT
M8 FLANGE
|
9-09130-408-0 |
02 |
1 |
9704-0209 |
● |
|
| |
42 |
NUT; SUPPORT BELT
M8 FLANGE
|
9-09130-408-0 |
02 |
1 |
0210- |
● |
● |
| |
43 |
BRACKET; FUEL TANK
|
8-97035-516-0 |
02 |
1 |
9704-9806 |
● |
|
| |
43 |
BRACKET; FUEL TANK
|
8-97035-517-0 |
02 |
1 |
9807- |
● |
|
| |
43 |
BRACKET; FUEL TANK
|
8-97183-878-0 |
02 |
1 |
0210- |
|
● |
| |
49 |
NUT; BRKT
M10 FLANGE
|
0-91150-210-0 |
08 |
1 |
9704-0209 |
● |
|
| |
49 |
NUT; BRKT
M10 FLANGE
|
0-91150-210-0 |
08 |
1 |
0210-0602 |
● |
● |
| |
49 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
0603- |
● |
● |
| |
51 |
BOLT; BRKT TO FRAME
M10X25
|
0-28091-025-0 |
08 |
1 |
9704-0209 |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M10X25
|
0-28091-025-0 |
08 |
1 |
0210-0512 |
● |
● |
| |
51 |
BOLT; BRKT TO FRAME
M10X25 FLANGE
|
0-28061-025-0 |
08 |
1 |
0601- |
● |
● |
| |
51 |
BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28691-030-0 |
08 |
1 |
0210-0512 |
|
● |
| |
51 |
BOLT; BRKT TO FRAME
M10X30 FLANGE
|
0-28661-030-0 |
08 |
1 |
0601- |
|
● |
