◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-31 - AIR DUCT ▶
1-31 — AIR DUCT (#72675) — 129 parça

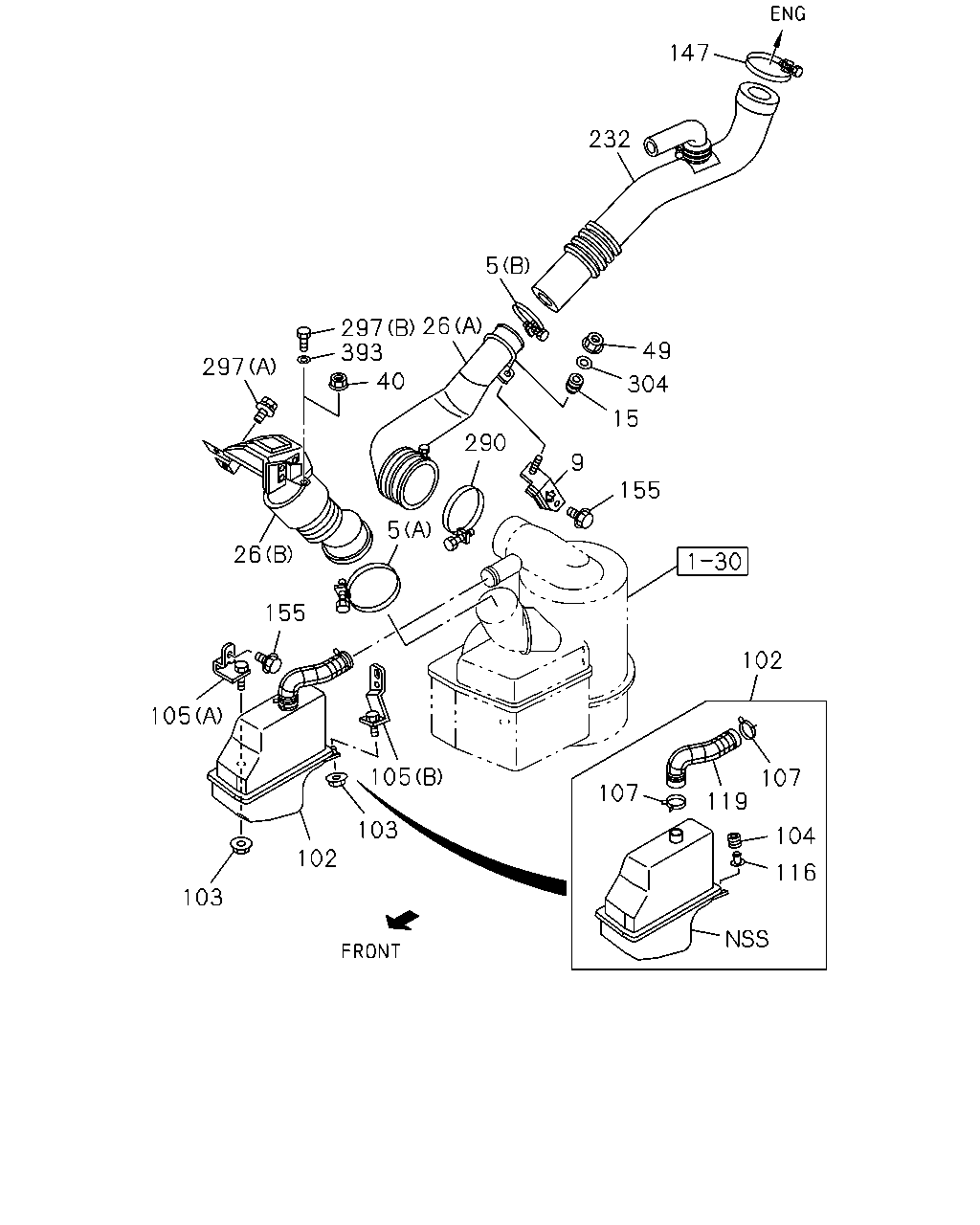

çizim 74074
147 232 5 297 26 393 40 49 297 304 15 290 9 155 5 26 155 102 105 105 107 107 119 103 104 102 116 103
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9704-0209 ●
5 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 0210- ● ●
5 CLIP; AIR DUCT
(B) ID=67 		9-09915-069-1 01 1 0210- ●
9 BRACKET; INT PIPE 8-94155-425-1 01 1 9704- ●
9 BRACKET; INT PIPE 8-97089-655-0 01 1 0210- ●
15 INSULATOR 8-94338-739-0 01 1 0210- ●
26 DUCT; AIR INT
FACE LIFT MODEL<TX7> (B) 		8-97089-949-1 01 1 1112- ●
26 DUCT; AIR INT
(B) 		8-97089-951-2 01 1 0210-1111 ●
26 DUCT; AIR INT
EXC. FACE LIFT MODEL<TX7> (B) 		8-97089-951-2 01 1 1112- ●
26 DUCT; AIR INT
(A) 		8-97091-273-1 01 1 0210- ●
40 NUT; AIR INT DUCT
FACE LIFT MODEL<TX7> M8 CUTTING NUT W/FLANGE 		1-09985-340-0 01 1 1112- ●
49 NUT; AIR DUCT
M8 FLANGE 		0-91150-108-0 01 1 0210-0602 ●
49 NUT; AIR DUCT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●
102 RESONATOR; AIR INT 8-97103-541-1 01 1 0210- ●
103 NUT; RESONATOR
M8 FLANGE 		0-91150-108-0 02 1 0210-0602 ●
103 NUT; RESONATOR
M8 FLANGE 		0-91180-108-0 02 1 0603- ●
104 RUBBER; MOUNTING,RESONATOR 8-97095-600-0 02 1 0210- ●
105 BRACKET; RESONATOR
(A) 		8-97092-039-1 01 1 0210- ●
105 BRACKET; RESONATOR
(B) 		8-97174-754-0 01 1 0210- ●
107 CLIP; PROTECTOR 8-97095-785-0 02 1 0210- ●
116 RETAINER; RESONATOR 8-97105-842-0 02 1 0210- ●
119 HOSE; RESONATOR 8-97109-542-0 01 1 0210- ●
147 CLIP; HOSE TO ENG
ID=79 		9-09915-734-1 01 1 9704-0209 ●
147 CLIP; HOSE TO ENG
ID=79 		9-09915-734-1 01 1 0210- ● ●
155 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0210-0512 ●
155 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
232 HOSE; CONN 5-14231-115-1 01 1 9704- ●
232 HOSE; CONN 8-97096-429-2 01 1 0210- ●
290 CLIP; ACL TO AIR DUCT
ID=92 		9-09915-072-1 01 1 0210- ●
297 BOLT; DUCT
(C) M8X14 W/LK WASHER 		0-50040-814-0 01 1 9704-0507 ●
297 BOLT; DUCT
(C) M8X12 FLANGE 		0-28080-812-0 01 1 0508-0512 ●
297 BOLT; DUCT
(C) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
297 BOLT; DUCT
(C) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9704-0507 ●
297 BOLT; DUCT
(C) M10X16 FLANGE 		0-28081-016-0 02 1 0508-0512 ●
297 BOLT; DUCT
(C) M10X16 FLANGE 		0-28051-016-0 02 1 0601- ●
297 BOLT; DUCT
(A) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0210-0512 ●
297 BOLT; DUCT
(A) 		0-51640-840-0 01 1 0601-1111 ●
297 BOLT; DUCT
EXC. FACE LIFT MODEL<TX7> (A) 		0-51640-840-0 01 1 1112- ●
297 BOLT; DUCT
(B) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 0210- ●
304 WASHER; PL,CONN PIPE BRKT
ID=8.4 OD=26 		9-09164-808-0 01 1 0210-0605 ●
304 WASHER; PL,CONN PIPE BRKT
ID=8.4 OD=26 		0-91614-808-0 01 1 0606- ●
393 WASHER; LK,AIR DUCT
ID=10.5 OD=36 		8-97031-437-0 01 1 0210-1111 ●
393 WASHER; LK,AIR DUCT
EXC. FACE LIFT MODEL<TX7> ID=10.5 OD=36 		8-97031-437-0 01 1 1112- ●

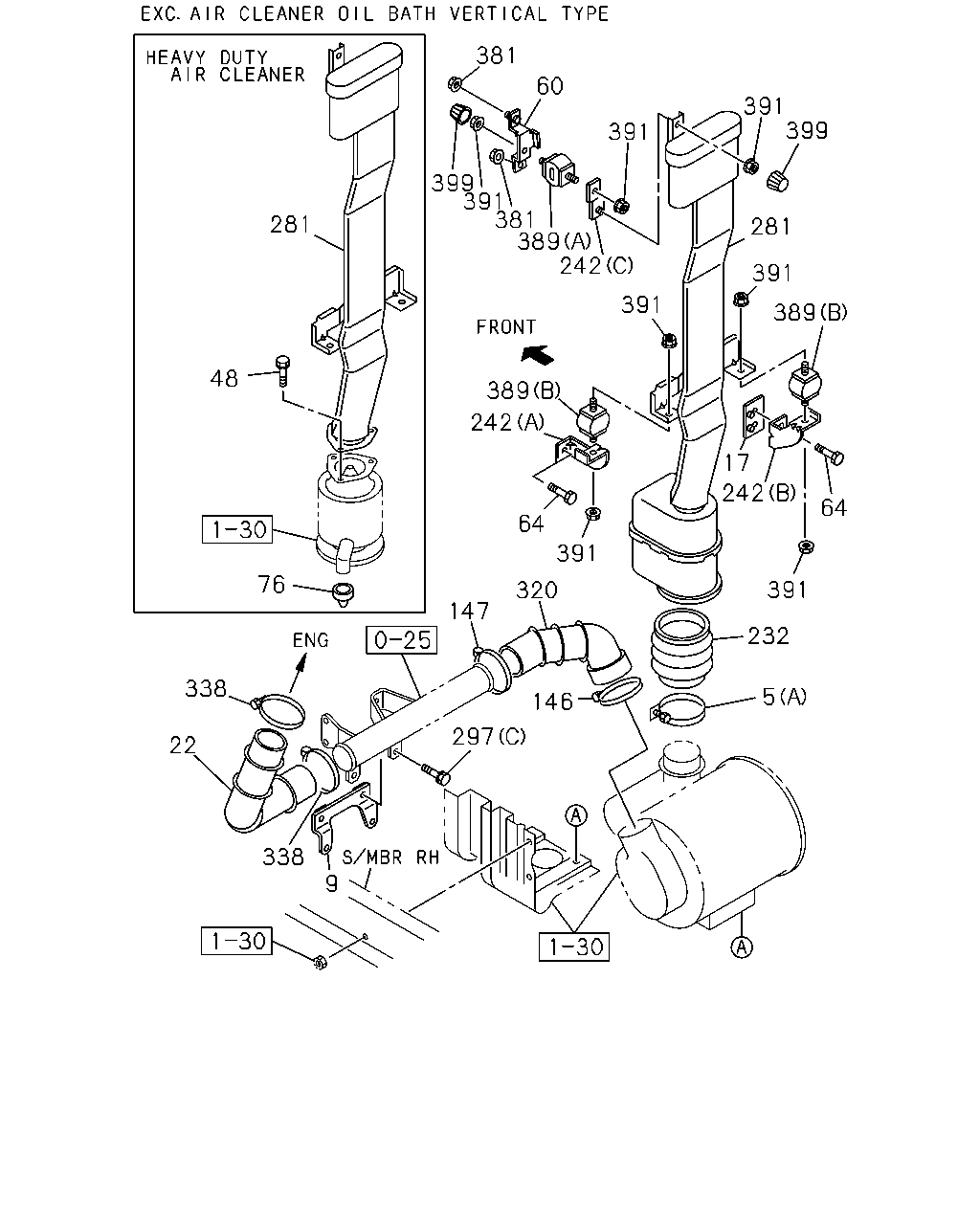

çizim 102466
381 60 391 399 391 399 391 381 389 242 281 281 391 391 389 48 389 242 17 242 64 64 391 76 391 320 147 232 338 5 146 297 22 338 9
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9704-0209 ●
5 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 0210- ● ●
5 CLIP; AIR DUCT
(B) ID=67 		9-09915-069-1 01 1 0210- ●
9 BRACKET; INT PIPE 8-94155-425-1 01 1 9704- ●
9 BRACKET; INT PIPE 8-97089-655-0 01 1 0210- ●
17 GASKET; AIR DUCT 8-97853-699-2 01 1 9704- ●
22 HOSE; CONNECTOR,ENG TO PIPE 8-97107-173-1 01 1 9704- ●
48 BOLT; AIR DUCT
HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER 		0-50040-818-0 03 1 9704-0909 ●
48 BOLT; AIR DUCT
HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER 		0-50540-818-0 03 1 0910- ●
60 BRACKET; AIR DUCT,UPR 8-97856-956-1 01 1 9704- ●
64 BOLT; BRKT,AIR DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9704- ●
76 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 9704- ●
146 CLIP; HOSE,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79 		9-09915-734-1 01 1 9704- ●
146 CLIP; HOSE,ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=92 		9-09915-072-1 01 1 9704- ●
147 CLIP; HOSE TO ENG
ID=79 		9-09915-734-1 01 1 9704-0209 ●
147 CLIP; HOSE TO ENG
ID=79 		9-09915-734-1 01 1 0210- ● ●
232 HOSE; CONN 5-14231-115-1 01 1 9704- ●
232 HOSE; CONN 8-97096-429-2 01 1 0210- ●
242 BRACKET; AIR DUCT
(B) 		8-97856-935-0 01 1 9704- ●
242 BRACKET; AIR DUCT
(C) 		8-97856-958-0 01 1 9704- ●
242 BRACKET; AIR DUCT
(A) 		8-97856-967-1 01 1 9704- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-97089-948-2 01 1 9704- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9704- ●
297 BOLT; DUCT
(C) M8X14 W/LK WASHER 		0-50040-814-0 01 1 9704-0507 ●
297 BOLT; DUCT
(C) M8X12 FLANGE 		0-28080-812-0 01 1 0508-0512 ●
297 BOLT; DUCT
(C) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
297 BOLT; DUCT
(C) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9704-0507 ●
297 BOLT; DUCT
(C) M10X16 FLANGE 		0-28081-016-0 02 1 0508-0512 ●
297 BOLT; DUCT
(C) M10X16 FLANGE 		0-28051-016-0 02 1 0601- ●
297 BOLT; DUCT
(A) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0210-0512 ●
297 BOLT; DUCT
(A) 		0-51640-840-0 01 1 0601-1111 ●
297 BOLT; DUCT
EXC. FACE LIFT MODEL<TX7> (A) 		0-51640-840-0 01 1 1112- ●
297 BOLT; DUCT
(B) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 0210- ●
320 HOSE; CONN,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9704- ●
320 HOSE; CONN,ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94110-075-3 01 1 9704- ●
338 CLIP; PIPE
ID=79 		9-09915-734-1 02 1 9704- ●
381 NUT; BRKT,AIR DUCT
M6 FLANGE 		1-09984-018-0 02 1 9704- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-97080-149-0 01 1 9704- ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-97081-886-0 02 1 9704- ●
391 NUT; SUPPORT RUBBER,UPR
M8 FLANGE 		8-94279-517-0 01 1 9704-1106 ●
391 NUT; SUPPORT RUBBER,UPR
M8 FLANGE 		8-94279-517-0 07 1 9704-0910 ●
391 NUT; SUPPORT RUBBER,UPR
M8 W/LK WASHER 		8-97581-234-0 07 1 0911- ●
399 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9704- ●

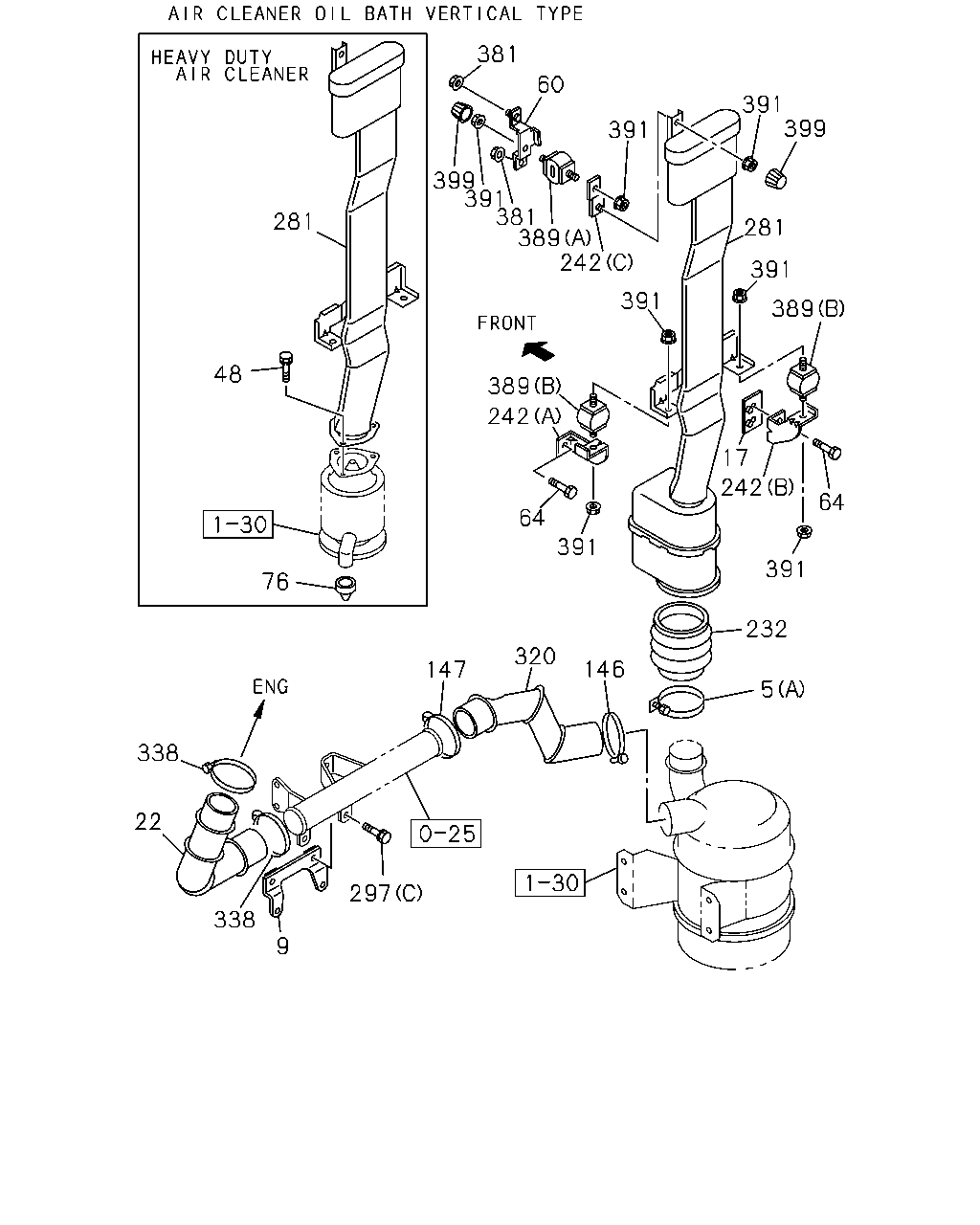

çizim 102467
381 60 391 399 391 399 391 381 389 242 281 281 391 391 389 48 389 242 17 242 64 64 391 391 76 232 320 146 147 5 338 22 297 338 9
BalonParca AdiParca NoAdetTipApplied Date A B
5 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 9704-0209 ●
5 CLIP; AIR DUCT
(A) ID=87 		8-97087-432-0 01 1 0210- ● ●
5 CLIP; AIR DUCT
(B) ID=67 		9-09915-069-1 01 1 0210- ●
9 BRACKET; INT PIPE 8-94155-425-1 01 1 9704- ●
9 BRACKET; INT PIPE 8-97089-655-0 01 1 0210- ●
17 GASKET; AIR DUCT 8-97853-699-2 01 1 9704- ●
22 HOSE; CONNECTOR,ENG TO PIPE 8-97107-173-1 01 1 9704- ●
48 BOLT; AIR DUCT
HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER 		0-50040-818-0 03 1 9704-0909 ●
48 BOLT; AIR DUCT
HEAVY DUTY AIR CLEANER<K46> M8X18 W/LK WASHER 		0-50540-818-0 03 1 0910- ●
60 BRACKET; AIR DUCT,UPR 8-97856-956-1 01 1 9704- ●
64 BOLT; BRKT,AIR DUCT
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 9704- ●
76 VALVE; PRE ACL
HEAVY DUTY AIR CLEANER<K46> 		8-94447-157-0 01 1 9704- ●
146 CLIP; HOSE,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=79 		9-09915-734-1 01 1 9704- ●
146 CLIP; HOSE,ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> ID=92 		9-09915-072-1 01 1 9704- ●
147 CLIP; HOSE TO ENG
ID=79 		9-09915-734-1 01 1 9704-0209 ●
147 CLIP; HOSE TO ENG
ID=79 		9-09915-734-1 01 1 0210- ● ●
232 HOSE; CONN 5-14231-115-1 01 1 9704- ●
232 HOSE; CONN 8-97096-429-2 01 1 0210- ●
242 BRACKET; AIR DUCT
(B) 		8-97856-935-0 01 1 9704- ●
242 BRACKET; AIR DUCT
(C) 		8-97856-958-0 01 1 9704- ●
242 BRACKET; AIR DUCT
(A) 		8-97856-967-1 01 1 9704- ●
281 DUCT; AIR,VERTICAL INT
HEAVY DUTY AIR CLEANER<K46> 		8-97089-948-2 01 1 9704- ●
281 DUCT; AIR,VERTICAL INT
EXC. HEAVY DUTY AIR CLEANER<K46> 		8-97076-959-2 01 1 9704- ●
297 BOLT; DUCT
(C) M8X14 W/LK WASHER 		0-50040-814-0 01 1 9704-0507 ●
297 BOLT; DUCT
(C) M8X12 FLANGE 		0-28080-812-0 01 1 0508-0512 ●
297 BOLT; DUCT
(C) M8X12 FLANGE 		0-28050-812-0 01 1 0601- ●
297 BOLT; DUCT
(C) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9704-0507 ●
297 BOLT; DUCT
(C) M10X16 FLANGE 		0-28081-016-0 02 1 0508-0512 ●
297 BOLT; DUCT
(C) M10X16 FLANGE 		0-28051-016-0 02 1 0601- ●
297 BOLT; DUCT
(A) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0210-0512 ●
297 BOLT; DUCT
(A) 		0-51640-840-0 01 1 0601-1111 ●
297 BOLT; DUCT
EXC. FACE LIFT MODEL<TX7> (A) 		0-51640-840-0 01 1 1112- ●
297 BOLT; DUCT
(B) M8X16 W/LK&PL WASHER 		8-94310-730-0 01 1 0210- ●
320 HOSE; CONN,ACL
AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94412-772-1 01 1 9704- ●
320 HOSE; CONN,ACL
EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> 		8-94110-075-3 01 1 9704- ●
338 CLIP; PIPE
ID=79 		9-09915-734-1 02 1 9704- ●
381 NUT; BRKT,AIR DUCT
M6 FLANGE 		1-09984-018-0 02 1 9704- ●
389 RUBBER; SUPPORT,AIR INT UPR
(A) 		8-97080-149-0 01 1 9704- ●
389 RUBBER; SUPPORT,AIR INT UPR
(B) 		8-97081-886-0 02 1 9704- ●
391 NUT; SUPPORT RUBBER,UPR
M8 FLANGE 		8-94279-517-0 01 1 9704-1106 ●
391 NUT; SUPPORT RUBBER,UPR
M8 FLANGE 		8-94279-517-0 07 1 9704-0910 ●
391 NUT; SUPPORT RUBBER,UPR
M8 W/LK WASHER 		8-97581-234-0 07 1 0911- ●
399 CAP; BRKT,AIR DUCT 8-94273-605-0 02 1 9704- ●
