1-30 — AIR CLEANER (#72674) — 109 parça

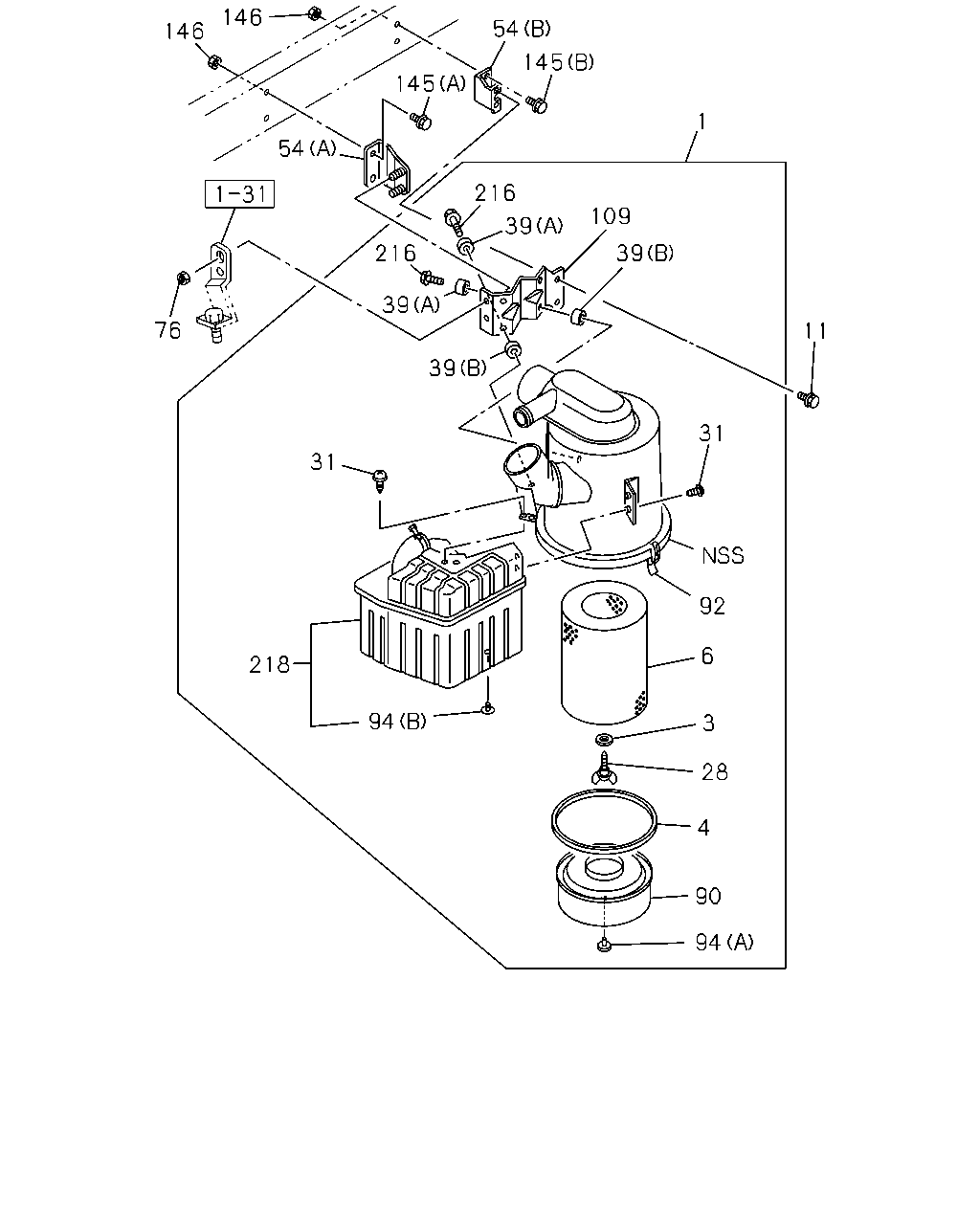

146 54 146 145 145 1 54 216 109 39 39 216 39 76 11 39 31 31 92 6 218 94 3 28 4 90 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLEANER ASM; AIR AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9704-	●
1	CLEANER ASM; AIR EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94140-289-3	01	1	9704-	●
1	CLEANER ASM; AIR	8-97090-029-2	01	1	0210-		●
3	WASHER; SEAL,WING NUT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9704-	●
3	WASHER; SEAL,WING NUT EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	1-14219-225-0	02	1	9704-	●
3	WASHER; SEAL,WING NUT	9-14219-279-0	01	1	0210-		●
4	GASKET; COVER TO BODY AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9704-	●
4	GASKET; COVER TO BODY EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94156-051-0	01	1	9704-	●
4	GASKET; COVER TO BODY	8-94361-137-0	01	1	0210-		●
6	FILTER; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94156-052-0	01	1	9704-	●
6	FILTER; ACL	8-97173-210-0	01	1	0210-		●
6	FILTER; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> BEST VALUE PARTS	5-87610-029-3	01	1	9704-	●
6	FILTER; ACL BEST VALUE PARTS	5-87610-148-0	01	1	0210-		●
11	BOLT; ACL M10X25 FLANGE	0-28681-025-0	02	1	0210-0512		●
11	BOLT; ACL M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
28	BOLT; WING,ACL	9-14217-090-0	01	1	0210-		●
31	SCREW; ACL	8-97100-001-0	04	1	0210-		●
39	RUBBER; MTG,BOLT (A)	8-97100-002-0	04	1	0210-		●
39	RUBBER; MTG,BOLT (B)	8-97100-007-0	02	1	0210-		●
54	BRACKET; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C)	8-94140-144-3	01	1	9704-	●
54	BRACKET; ACL (A)	8-97038-519-1	01	1	0210-		●
54	BRACKET; ACL (B)	8-97084-884-0	01	1	0210-		●
76	NUT; BRKT TO ACL M10 FLANGE	0-91150-110-0	02	1	0210-0602		●
76	NUT; BRKT TO ACL M10 FLANGE	0-91180-110-0	02	1	0603-		●
90	CUP; ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94155-235-0	01	1	9704-	●
90	CUP; ACL	8-97215-621-0	01	1	0210-		●
92	CLIP; WIRE,ACL	8-94118-230-0	03	1	0210-		●
94	VALVE; VACUATOR EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C)	8-94160-187-0	01	1	9704-	●
94	VALVE; VACUATOR (A)	8-94439-205-0	01	1	0210-		●
94	VALVE; VACUATOR (B)	8-97148-258-0	01	1	0210-		●
109	STAY; ACL	8-97096-175-1	01	1	0210-		●
145	BOLT; BRKT TO FRAME EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C) M10X25 FLANGE	0-28681-025-0	04	1	9704-0512	●
145	BOLT; BRKT TO FRAME EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
145	BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	02	1	0210-0512		●
145	BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
145	BOLT; BRKT TO FRAME (B) M10X35 FLANGE	0-28681-035-0	02	1	0210-0512		●
145	BOLT; BRKT TO FRAME (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
146	NUT; BRKT TO FRAME EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE	0-91150-110-0	04	1	9704-0209	●
146	NUT; BRKT TO FRAME EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE	0-91150-110-0	04	1	0210-0602	●	●
146	NUT; BRKT TO FRAME EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE	0-91180-110-0	04	1	0603-	●
146	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	04	1	0603-		●
216	BOLT; ACL TO SILENCER	8-97126-074-0	04	1	0210-		●
218	RESONATOR; ACL	8-97093-071-1	01	1	0210-		●

49 44 101 26 1 38 5 5 5 27 4 3 2 90 113 102 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLEANER ASM; AIR AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9704-	●
1	CLEANER ASM; AIR EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94140-289-3	01	1	9704-	●
1	CLEANER ASM; AIR	8-97090-029-2	01	1	0210-		●
2	NUT; WING,ELEMENT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-063-0	01	1	9704-	●
2	NUT; WING,ELEMENT EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	1-14217-068-0	02	1	9704-	●
3	WASHER; SEAL,WING NUT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9704-	●
3	WASHER; SEAL,WING NUT EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	1-14219-225-0	02	1	9704-	●
3	WASHER; SEAL,WING NUT	9-14219-279-0	01	1	0210-		●
4	GASKET; COVER TO BODY AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9704-	●
4	GASKET; COVER TO BODY EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94156-051-0	01	1	9704-	●
4	GASKET; COVER TO BODY	8-94361-137-0	01	1	0210-		●
5	GASKET; ELEMENT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (A)	9-14213-013-0	01	1	9704-	●
5	GASKET; ELEMENT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (B)	9-14213-014-0	01	1	9704-	●
5	GASKET; ELEMENT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C)	9-14213-015-0	01	1	9704-	●
26	FILTER; ACL,INNER AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14215-042-0	01	1	9704-	●
27	FILTER; ACL,OUTER AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14215-044-0	01	1	9704-	●
38	SPACER; ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14219-048-0	01	1	9704-	●
44	BOLT; ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER	0-50041-028-0	04	1	9704-0909	●
44	BOLT; ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER	0-50541-028-0	04	1	0910-	●
44	BOLT; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER	0-50040-818-0	04	1	9704-0909	●
44	BOLT; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER	0-50540-818-0	04	1	0910-	●
49	NUT; ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE	0-91150-110-0	04	1	9704-0602	●
49	NUT; ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE	0-91180-110-0	04	1	0603-	●
90	CUP; ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94155-235-0	01	1	9704-	●
90	CUP; ACL	8-97215-621-0	01	1	0210-		●
101	BOLT; HANGER,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	5-14219-049-0	03	1	9704-	●
102	GAUGE; OIL,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-074-0	01	1	9704-	●
113	WASHER; HANGER BOLT,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	03	1	9704-	●
114	NUT; HANGER BOLT,ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-079-0	03	1	9704-	●

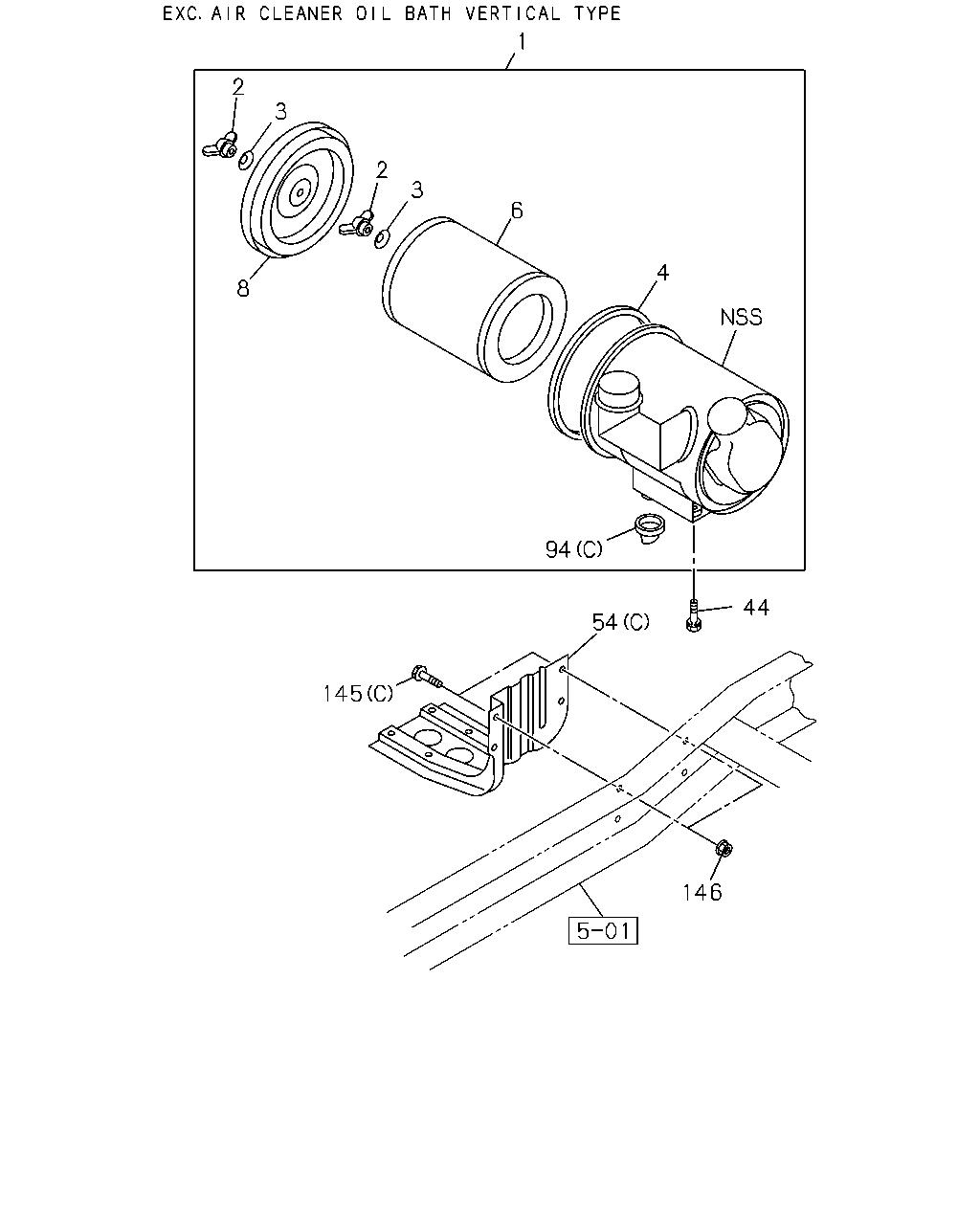

1 2 3 2 3 6 4 8 94 44 54 145 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLEANER ASM; AIR AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94144-298-5	01	1	9704-	●
1	CLEANER ASM; AIR EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94140-289-3	01	1	9704-	●
1	CLEANER ASM; AIR	8-97090-029-2	01	1	0210-		●
2	NUT; WING,ELEMENT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14217-063-0	01	1	9704-	●
2	NUT; WING,ELEMENT EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	1-14217-068-0	02	1	9704-	●
3	WASHER; SEAL,WING NUT AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14219-005-0	01	1	9704-	●
3	WASHER; SEAL,WING NUT EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	1-14219-225-0	02	1	9704-	●
3	WASHER; SEAL,WING NUT	9-14219-279-0	01	1	0210-		●
4	GASKET; COVER TO BODY AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	9-14213-012-0	01	1	9704-	●
4	GASKET; COVER TO BODY EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94156-051-0	01	1	9704-	●
4	GASKET; COVER TO BODY	8-94361-137-0	01	1	0210-		●
6	FILTER; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94156-052-0	01	1	9704-	●
6	FILTER; ACL	8-97173-210-0	01	1	0210-		●
6	FILTER; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> BEST VALUE PARTS	5-87610-029-3	01	1	9704-	●
6	FILTER; ACL BEST VALUE PARTS	5-87610-148-0	01	1	0210-		●
8	COVER ASM; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z>	8-94156-050-0	01	1	9704-	●
44	BOLT; ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER	0-50041-028-0	04	1	9704-0909	●
44	BOLT; ACL AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10X28 W/LK WASHER	0-50541-028-0	04	1	0910-	●
44	BOLT; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER	0-50040-818-0	04	1	9704-0909	●
44	BOLT; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M8X18 W/LK WASHER	0-50540-818-0	04	1	0910-	●
54	BRACKET; ACL EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C)	8-94140-144-3	01	1	9704-	●
54	BRACKET; ACL (A)	8-97038-519-1	01	1	0210-		●
54	BRACKET; ACL (B)	8-97084-884-0	01	1	0210-		●
94	VALVE; VACUATOR EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C)	8-94160-187-0	01	1	9704-	●
94	VALVE; VACUATOR (A)	8-94439-205-0	01	1	0210-		●
94	VALVE; VACUATOR (B)	8-97148-258-0	01	1	0210-		●
145	BOLT; BRKT TO FRAME EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C) M10X25 FLANGE	0-28681-025-0	04	1	9704-0512	●
145	BOLT; BRKT TO FRAME EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> (C) M10X25 FLANGE	0-28651-025-0	04	1	0601-	●
145	BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28681-025-0	02	1	0210-0512		●
145	BOLT; BRKT TO FRAME (A) M10X25 FLANGE	0-28651-025-0	02	1	0601-		●
145	BOLT; BRKT TO FRAME (B) M10X35 FLANGE	0-28681-035-0	02	1	0210-0512		●
145	BOLT; BRKT TO FRAME (B) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
146	NUT; BRKT TO FRAME EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE	0-91150-110-0	04	1	9704-0209	●
146	NUT; BRKT TO FRAME EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE	0-91150-110-0	04	1	0210-0602	●	●
146	NUT; BRKT TO FRAME EXC. AIR CLEANER OIL BATH VERTICAL TYPE<S5Z> M10 FLANGE	0-91180-110-0	04	1	0603-	●
146	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	04	1	0603-		●

164

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	164	CLEANER ASM; AIR,SUB HEAVY DUTY AIR CLEANER<K46>	8-94144-273-2	01	1	9704-	●
