Isuzu WW
▶
TRUCKS
▶
NHR
▶
50785 - NHR(MALAYSIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#72673) — 43 parça
Tümü
A - NHB5SF
B - NHB5WF
◀

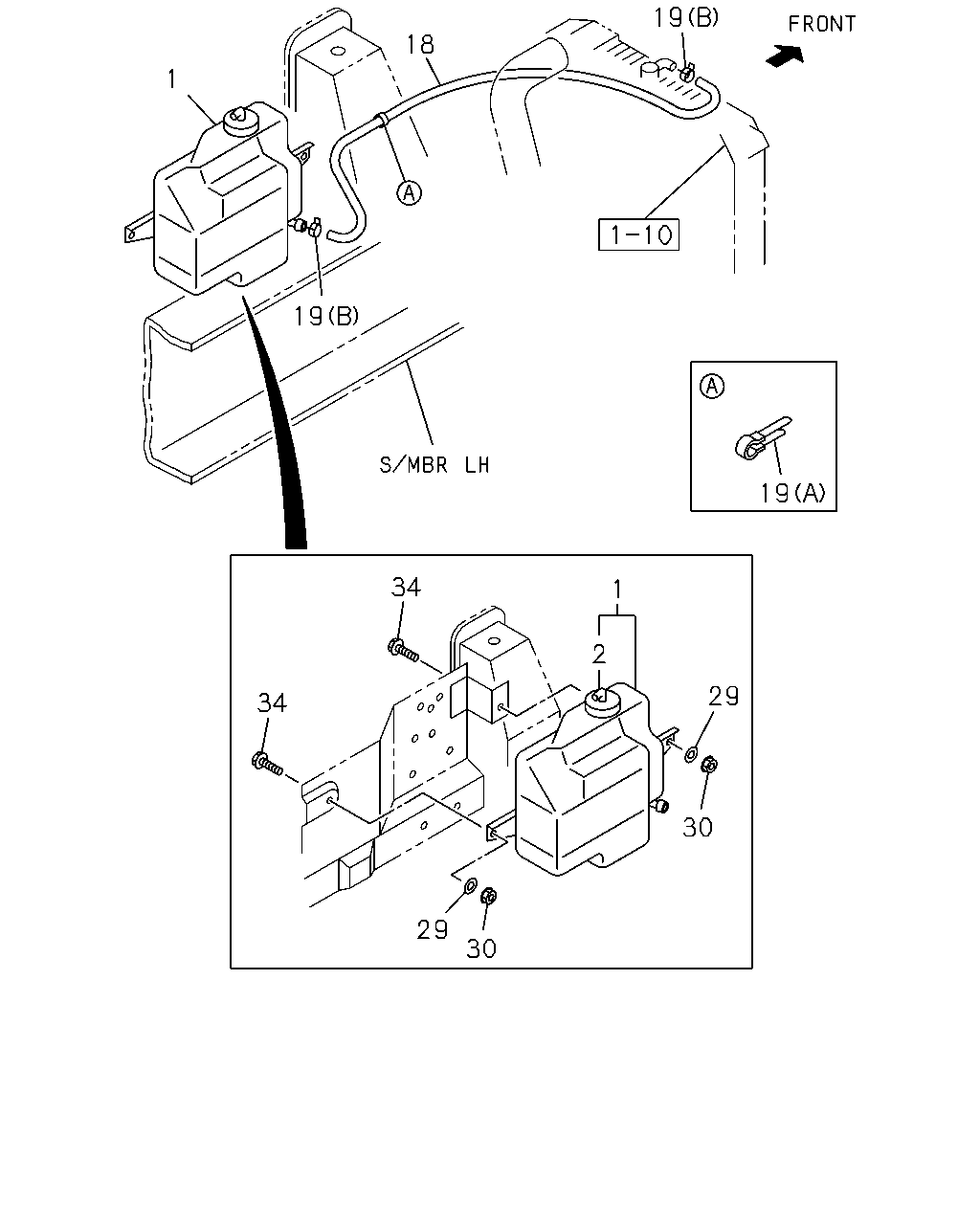

[111A] SURGE TANK;SGL CAB (20 parça)

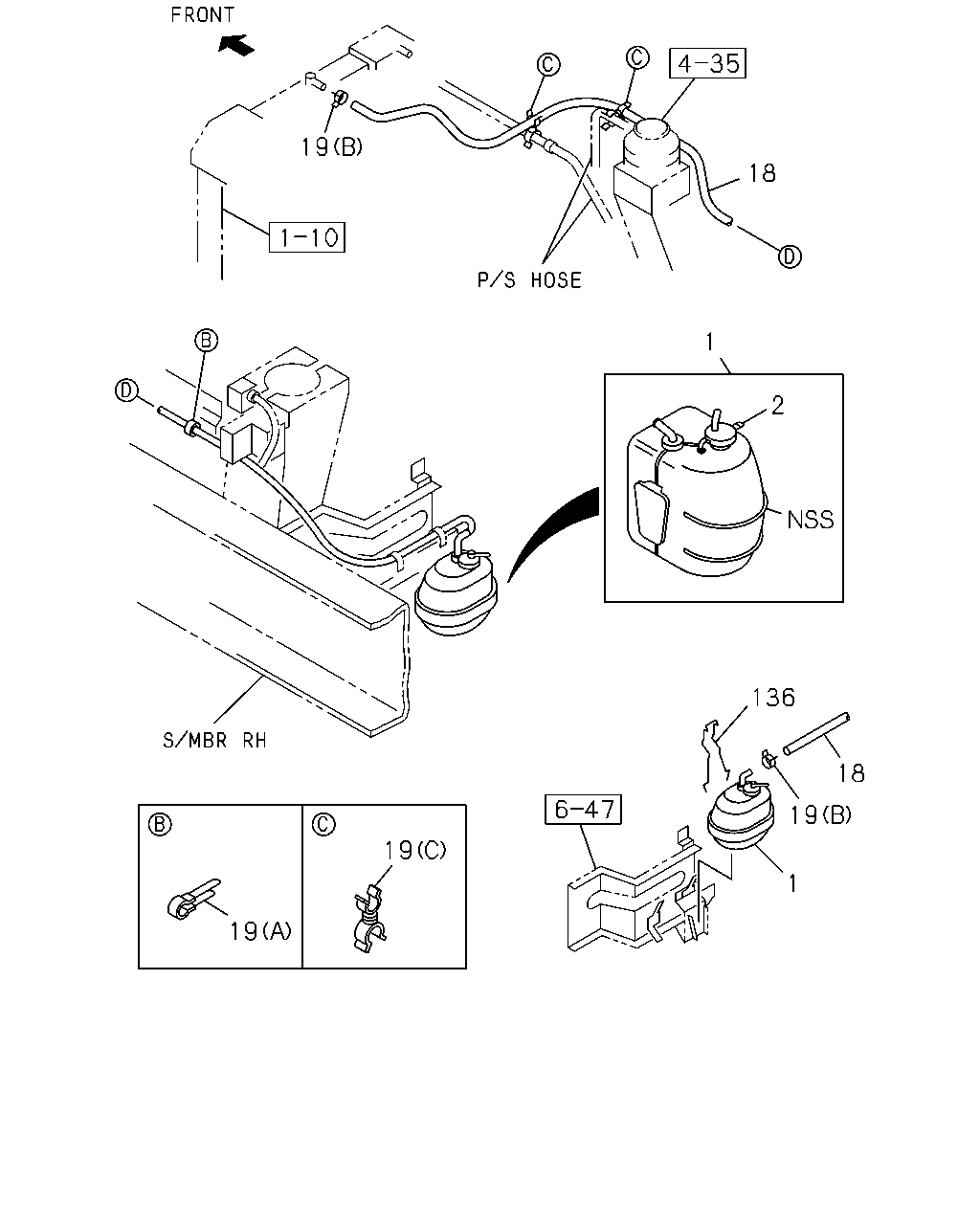

[111A] SURGE TANK;DBL CAB (14 parça)
[111A] RADIATOR HOSE (9 parça)
▶
19
18
1
19
19
34
1
2
29
34
30
29
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-97138-509-0
01
1
9704-
●
1
TANK; SURGE,RAD
8-94378-388-1
01
1
0210-
●
2
CAP; SURGE TANK
8-94449-363-0
01
1
9704-0209
●
2
CAP; SURGE TANK
8-94449-363-0
01
1
0210-
●
●
18
HOSE; RAD TO SURGE TANK
L=860
8-97163-002-1
01
1
9704-
●
18
HOSE; RAD TO SURGE TANK
L=1720
8-97162-124-2
01
1
0210-
●
19
CLIP; HOSE,SURGE TANK
(A) ID=14 L=47
5-09700-319-0
01
1
9704-0209
●
19
CLIP; HOSE,SURGE TANK
(A) ID=14 L=47
5-09700-319-0
01
1
0210-
●
●
19
CLIP; HOSE,SURGE TANK
(B) ID=12
8-94238-610-0
02
1
9704-0209
●
19
CLIP; HOSE,SURGE TANK
(B) ID=12
8-94238-610-0
02
1
0210-0911
●
●
19
CLIP; HOSE,SURGE TANK
(B) ID=12
8-98150-358-0
02
1
0912-
●
●
19
CLIP; HOSE,SURGE TANK
POWER STEERING<N40> (C) ID=12 & 16.5
8-94400-865-0
02
1
0210-
●
19
CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> (C) ID=10 & 11
8-94438-996-0
02
1
0210-
●
29
WASHER; PL,RESERVE TANK
ID=6.4 OD=18
9-09160-706-0
03
1
9704-0605
●
29
WASHER; PL,RESERVE TANK
ID=6.4 OD=18
0-91610-706-0
03
1
0606-
●
30
NUT
M6 FLANGE
0-91150-106-0
03
1
9704-0602
●
30
NUT
M6 FLANGE
0-91180-106-0
03
1
0603-
●
34
BOLT; RESERVE TANK
M6X16 W/LK WASHER
0-50040-616-0
03
1
9704-0307
●
34
BOLT; RESERVE TANK
M6X16 FLANGE
0-28080-616-0
03
1
0308-0512
●
34
BOLT; RESERVE TANK
M6X16 FLANGE
0-28050-616-0
03
1
0601-
●
19
18
1
2
136
18
19
19
1
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
TANK; SURGE,RAD
8-97138-509-0
01
1
9704-
●
1
TANK; SURGE,RAD
8-94378-388-1
01
1
0210-
●
2
CAP; SURGE TANK
8-94449-363-0
01
1
9704-0209
●
2
CAP; SURGE TANK
8-94449-363-0
01
1
0210-
●
●
18
HOSE; RAD TO SURGE TANK
L=860
8-97163-002-1
01
1
9704-
●
18
HOSE; RAD TO SURGE TANK
L=1720
8-97162-124-2
01
1
0210-
●
19
CLIP; HOSE,SURGE TANK
(A) ID=14 L=47
5-09700-319-0
01
1
9704-0209
●
19
CLIP; HOSE,SURGE TANK
(A) ID=14 L=47
5-09700-319-0
01
1
0210-
●
●
19
CLIP; HOSE,SURGE TANK
(B) ID=12
8-94238-610-0
02
1
9704-0209
●
19
CLIP; HOSE,SURGE TANK
(B) ID=12
8-94238-610-0
02
1
0210-0911
●
●
19
CLIP; HOSE,SURGE TANK
(B) ID=12
8-98150-358-0
02
1
0912-
●
●
19
CLIP; HOSE,SURGE TANK
POWER STEERING<N40> (C) ID=12 & 16.5
8-94400-865-0
02
1
0210-
●
19
CLIP; HOSE,SURGE TANK
EXC. POWER STEERING<N40> (C) ID=10 & 11
8-94438-996-0
02
1
0210-
●
136
STOPPER; SURGE TANK
8-97087-220-0
01
1
0210-
●
56
56
128
56
55
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
55
HOSE; WATER,RAD OUTLET
8-97089-916-1
01
1
9704-0209
●
55
HOSE; WATER,RAD OUTLET
8-97089-916-1
01
1
0210-
●
●
56
CLIP; WATER HOSE,RAD
(A) ID=42
5-09704-047-1
01
1
9704-0209
●
56
CLIP; WATER HOSE,RAD
(A) ID=42
5-09704-047-1
01
1
0210-0901
●
●
56
CLIP; WATER HOSE,RAD
(A) ID=42
8-98133-958-0
01
1
0902-
●
●
56
CLIP; WATER HOSE,RAD
(B) ID=48
5-09704-049-0
03
1
9704-0209
●
56
CLIP; WATER HOSE,RAD
(B) ID=48
5-09704-049-0
03
1
0210-
●
●
128
HOSE; WATER,RAD INL
8-97147-473-0
01
1
9704-0209
●
128
HOSE; WATER,RAD INL
8-97147-473-0
01
1
0210-
●
●
