◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-10 - RADIATOR ▶
1-10 — RADIATOR (#72672) — 56 parça
çizim 74207
27 22 23 26 25 74 518 1 75 59 57 58 74 56 27 240 26 74 62 518
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 8-97162-144-1 01 1 9704-0209 ●
1 RADIATOR ASM 8-97162-144-1 01 1 0210- ● ●
22 BRACKET; RAD MTG 8-94257-949-1 01 1 9704-0209 ●
22 BRACKET; RAD MTG 8-94257-949-1 01 1 0210- ● ●
23 NUT; RAD MTG
M10 FLANGE 		5-09440-006-0 02 1 9704-0209 ●
23 NUT; RAD MTG
M10 FLANGE 		5-09440-006-0 02 1 0210- ● ●
25 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 9704-0209 ●
25 BOLT; BRKT
M10X25 FLANGE 		0-28081-025-0 02 1 0210-0512 ● ●
25 BOLT; BRKT
M10X25 FLANGE 		0-28051-025-0 02 1 0601- ● ●
26 BUFFER; RAD,LWR 8-94249-347-0 02 1 9704-0209 ●
26 BUFFER; RAD,LWR 8-94249-347-0 02 1 0210- ● ●
27 BUFFER; RAD,UPR 8-94249-346-0 02 1 9704-0209 ●
27 BUFFER; RAD,UPR 8-94249-346-0 02 1 0210- ● ●
56 STAY; RAD 8-97032-798-2 01 1 9704-0209 ●
56 STAY; RAD 8-97032-798-2 01 1 0210-0307 ● ●
56 STAY; RAD 8-97350-324-0 01 1 0308- ● ●
57 WASHER; PL,STAY
ID=10.5 OD=18 		9-09160-510-0 01 1 9704-0209 ●
57 WASHER; PL,STAY
ID=10.5 OD=18 		9-09160-510-0 01 1 0210-0605 ● ●
57 WASHER; PL,STAY
ID=10.5 		0-91610-510-0 01 1 0606- ● ●
58 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 9704-0209 ●
58 WASHER; CURVED,STAY
ID=12 		8-97011-676-0 01 1 0210- ● ●
59 PIN; SNAP,STAY
L=32.6 		8-94202-777-0 01 1 9704-0209 ●
59 PIN; SNAP,STAY
L=32.6 		8-94202-777-0 01 1 0210- ● ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9704-0209 ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0210- ● ●
62 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9704-0209 ●
62 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0210- ● ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-94221-082-0 02 1 9704-0209 ●
74 WASHER; PL,CUSHION RUBBER
(A) ID=8.5 OD=36 		8-94221-082-0 02 1 0210- ● ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 01 1 9704-0209 ●
74 WASHER; PL,CUSHION RUBBER
(B) ID=10.5 OD=26 		9-09160-710-0 01 1 0210- ● ●
75 BOLT; CUSHION RUBBER,RAD MTG
M8X63 		8-94249-446-0 01 1 9704-0209 ●
75 BOLT; CUSHION RUBBER,RAD MTG
M8X63 		8-94249-446-0 01 1 0210- ● ●
240 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 9704-0209 ●
240 NUT; STAY
M8 FLANGE 		8-94178-701-0 01 1 0210- ● ●
518 NUT
M8 FLANGE 		5-09440-005-0 02 1 9704-0209 ●
518 NUT
M8 FLANGE 		5-09440-005-0 02 1 0210-0805 ● ●
518 NUT
M8 FLANGE 		8-97581-233-0 02 1 0806- ● ●

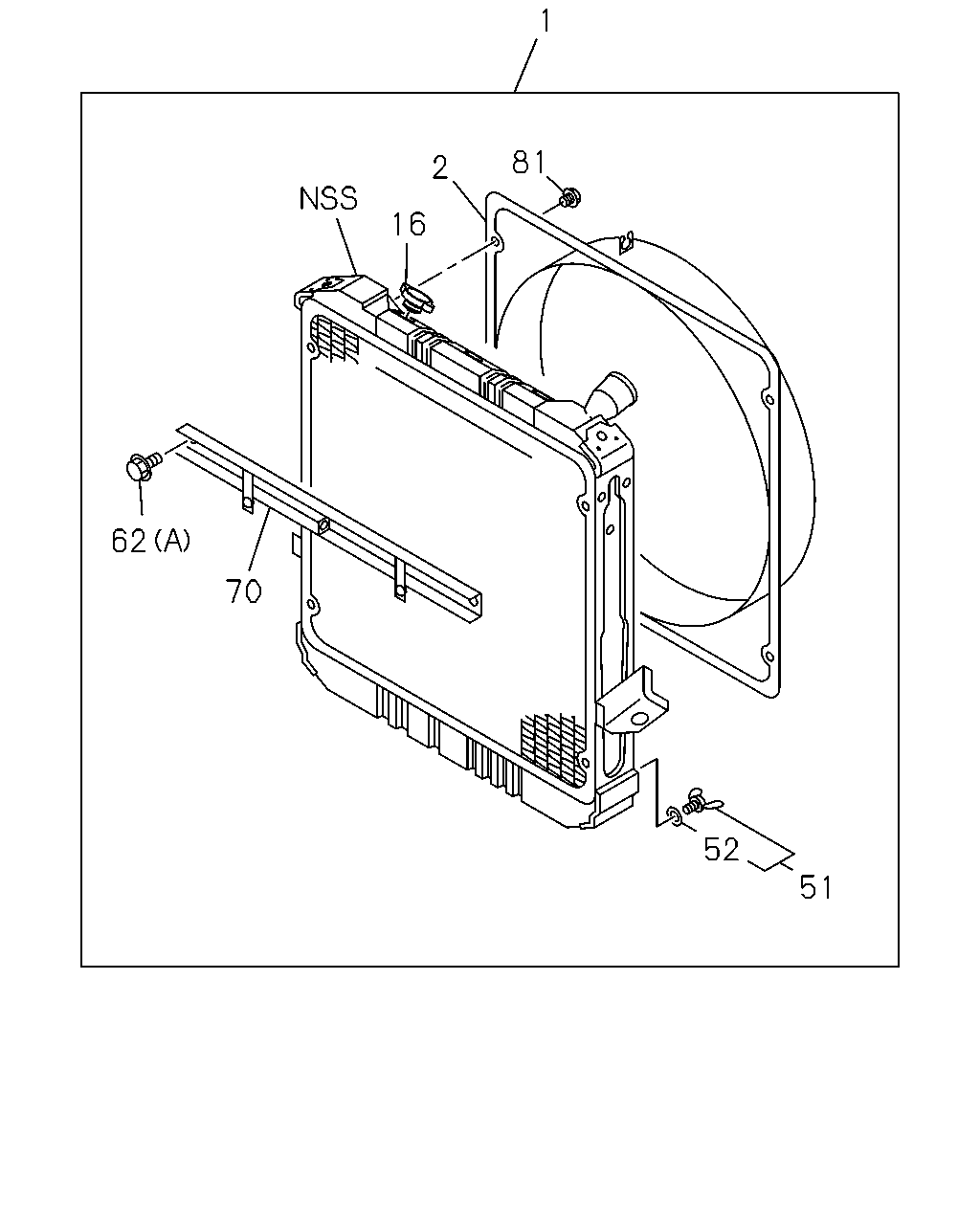

çizim 102463
1 81 2 16 62 70 52 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 RADIATOR ASM 8-97162-144-1 01 1 9704-0209 ●
1 RADIATOR ASM 8-97162-144-1 01 1 0210- ● ●
2 GUIDE; FAN 8-97066-011-0 01 1 9704-0209 ●
2 GUIDE; FAN 8-97066-011-0 01 1 0210- ● ●
16 CAP; RAD 8-97167-854-0 01 1 9704-0209 ●
16 CAP; RAD 8-97167-854-0 01 1 0210- ● ●
51 PLUG; DRAIN
W/GASKET 		8-94321-236-0 01 1 9704-0209 ●
51 PLUG; DRAIN
W/GASKET 		8-94321-236-0 01 1 0210- ● ●
52 GASKET; DRAIN PLUG
ID=10 		9-09720-557-0 01 1 9704-0209 ●
52 GASKET; DRAIN PLUG
ID=10 		9-09720-557-0 01 1 0210- ● ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28080-812-0 02 1 9704-0209 ●
62 BOLT; STAY
(A) M8X12 FLANGE 		0-28080-812-0 02 1 0210- ● ●
62 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 9704-0209 ●
62 BOLT; STAY
(B) M8X45 		8-94401-350-0 01 1 0210- ● ●
70 STAY; RAD 8-97047-899-0 01 1 9704-0209 ●
70 STAY; RAD 8-97047-899-0 01 1 0210- ● ●
81 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 9704-0209 ●
81 SCREW; FAN GUIDE,RAD 8-97088-810-0 04 1 0210- ● ●
