◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-85 - AUTO TIMER; INJECTION PUMP ▶
0-85 — AUTO TIMER; INJECTION PUMP (#72670) — 20 parça

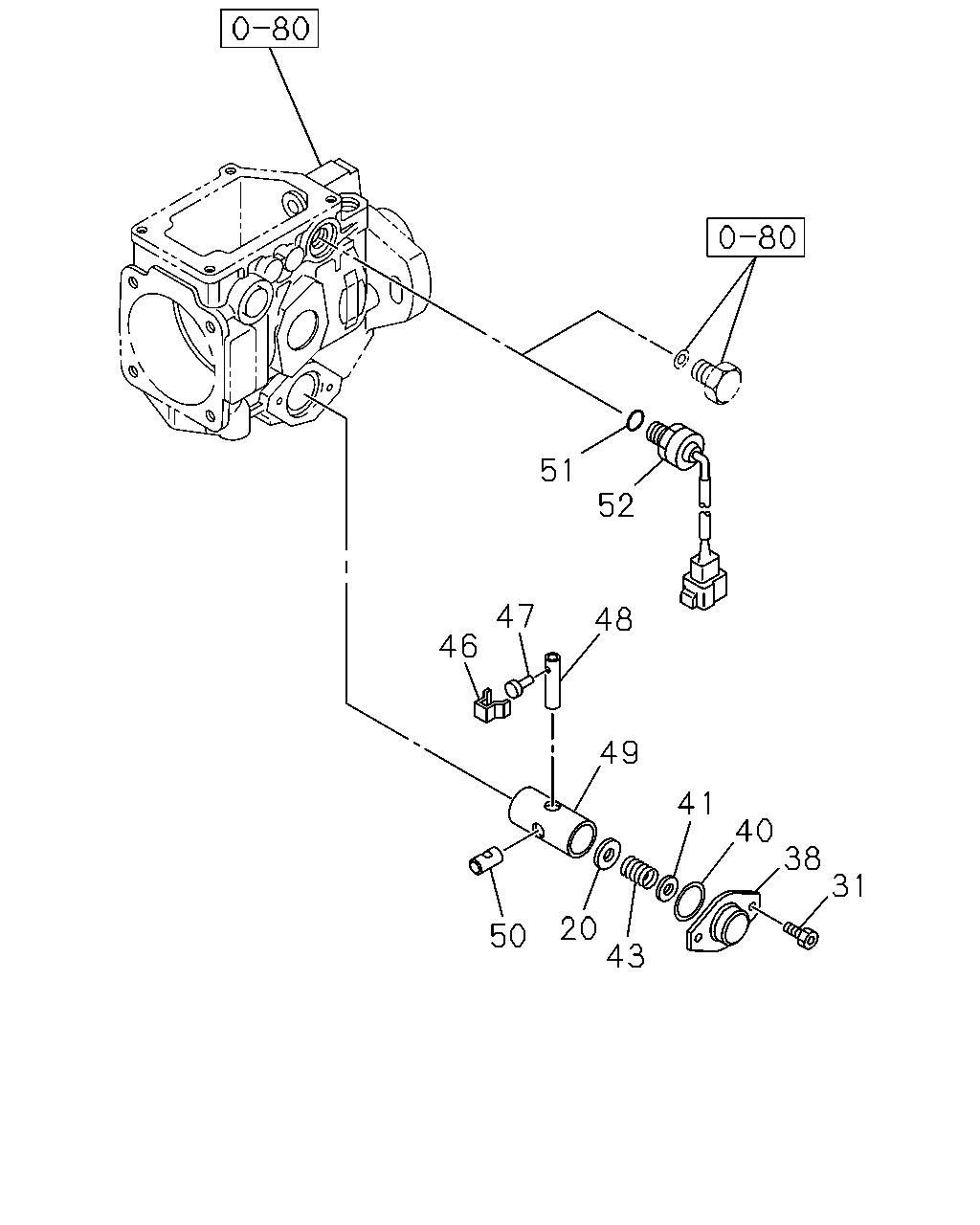

çizim 74231
51 52 47 48 46 49 41 40 38 31 20 43 50
BalonParca AdiParca NoAdetTipApplied Date
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-495-0 01 1 -
31 SCREW; TIMER COVER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94313-276-0 02 1 -
38 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94473-120-0 01 1 -
40 GASKET; TIMER COVER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-763-0 01 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=2.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94121-620-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-495-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-496-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-497-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-498-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-499-0 AR 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=40.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97045-508-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=40.2 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97047-719-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=40.6 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97125-524-0 01 1 -
46 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-488-0 01 1 -
47 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-487-0 01 1 -
48 PIN; ROLLER HOLDER,TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-486-0 01 1 -
49 PISTON; TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94174-739-0 01 1 -
50 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97119-163-0 01 1 -
51 GASKET; TIMING SENSOR,INJ PUMP
ASM PART: B = 8-97120-180-1 		8-94227-671-0 01 1 -
52 SENSOR; TIMING,TACHOMETER,INJ PUMP
ASM PART: B = 8-97120-180-1 		8-94343-307-0 01 1 -
