0-84 — FEED PUMP; INJECTION PUMP (#72669) — 7 parça

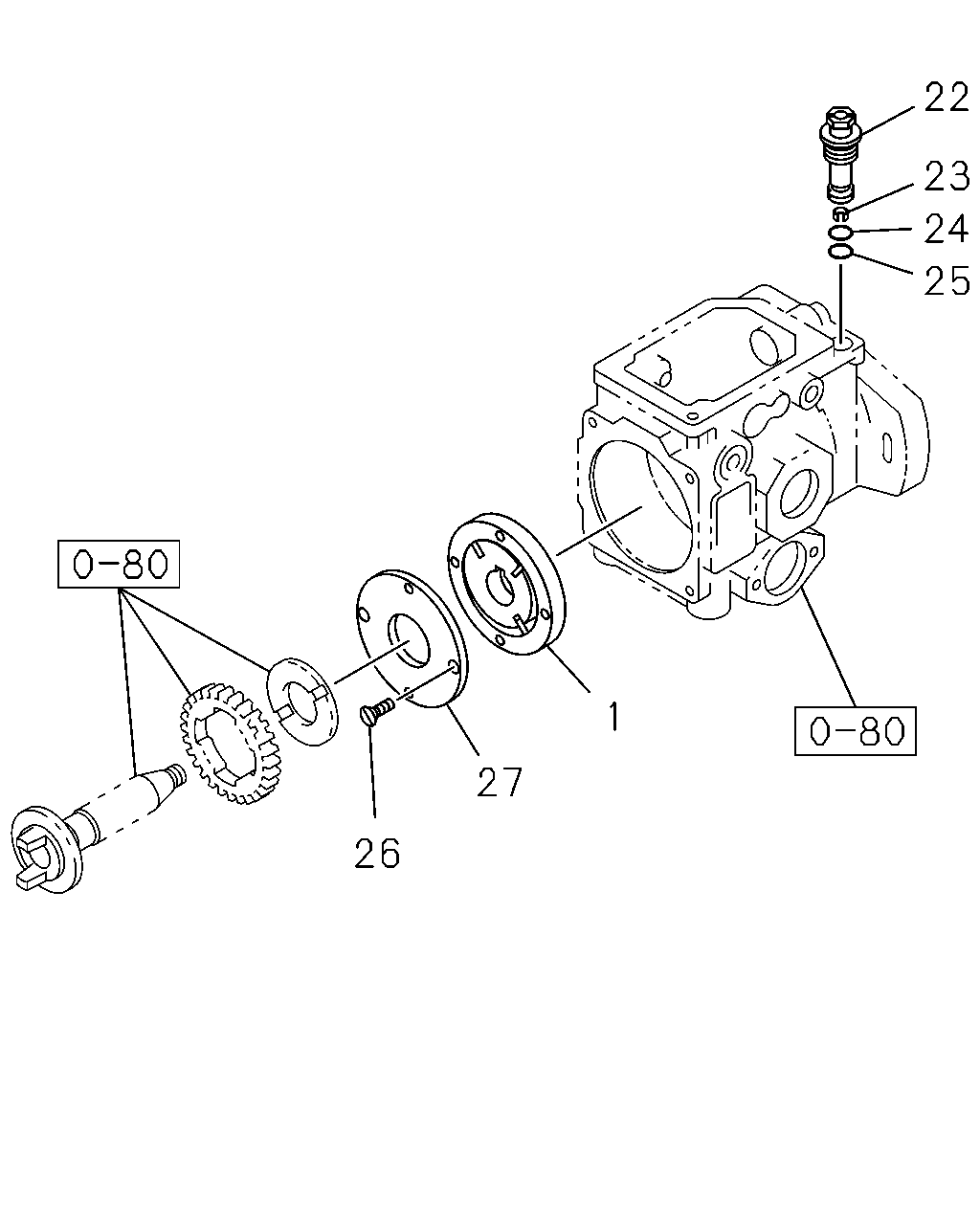

çizim 74263
22 23 24 25 1 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94478-848-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
STAMP 06 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94174-819-0 01 1 -
23 RING; SPRING,REGULATING VLV,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-643-0 01 1 -
24 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-641-0 01 1 -
25 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-640-0 01 1 -
26 SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-479-0 02 1 -
27 COVER; FUEL FEED PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-478-0 01 1 -
