0-81 — GOVERNOR; INJECTION PUMP (#72668) — 92 parça

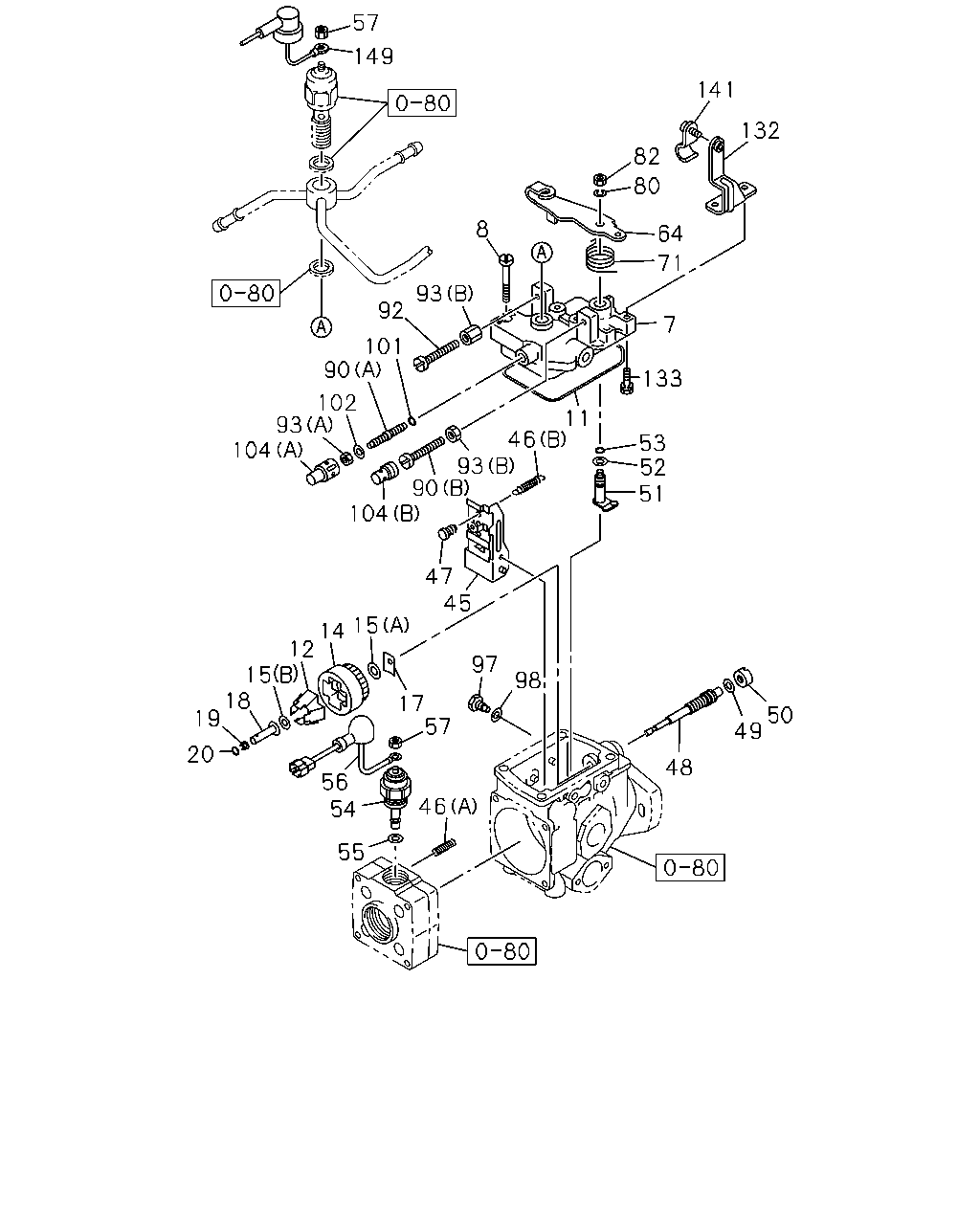

çizim 102455
57 149 141 132 82 80 8 64 71 93 92 7 101 90 133 102 93 104 11 46 93 90 104 53 52 51 47 45 15 14 12 15 18 19 97 98 17 57 50 49 20 48 56 54 46 55
BalonParca AdiParca NoAdetTipApplied Date
7 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94320-283-0 01 1 -
8 BOLT; GOV COVER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-636-0 04 1 -
11 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-599-0 01 1 -
12 FLYWEIGHT ASM; GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94228-403-0 01 1 -
14 HOLDER; GOV FLYWEIGHT,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-613-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
(A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-612-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
(B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-614-0 01 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.05 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-607-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.25 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-608-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.45 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-609-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.65 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-610-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.85 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-611-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.15 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94231-123-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.35 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94231-124-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.55 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94231-125-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.75 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94231-126-0 AR 1 -
18 SLEEVE; GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-222-0 01 1 -
19 CAP; GOV SLEEVE,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-519-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94372-499-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94372-500-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94372-501-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94372-502-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-520-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-521-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-522-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-523-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-524-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-525-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-526-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-527-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-528-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-529-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-530-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-531-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-532-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-533-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-534-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94408-535-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-868-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-869-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-870-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-871-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-872-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-873-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-874-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-875-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-876-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-877-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-878-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-879-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-880-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-881-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94428-882-0 01 1 -
45 LEVER ASM; GOV,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97125-517-0 01 1 -
46 SPRING; GOV,INJ PUMP
(A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94473-128-0 02 1 -
46 SPRING; GOV,INJ PUMP
(B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97077-837-0 01 1 -
47 PIN; RET
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97096-706-0 01 1 -
48 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94248-002-0 01 1 -
49 GASKET; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-606-0 01 1 -
50 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94473-129-0 01 1 -
51 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94174-807-0 01 1 -
52 WASHER; CONT SHAFT,GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-590-0 01 1 -
53 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-585-0 01 1 -
54 VALVE; MAG,ENG STOP,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94242-275-0 01 1 -
55 GASKET; MAG VLV,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94239-373-0 01 1 -
56 WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94470-582-0 01 1 -
57 NUT; VLV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94473-135-0 02 1 -
64 LEVER; LOAD CONT,GOV
STAMP 519A ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94443-055-1 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 520A ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94443-056-1 01 1 -
71 SPRING; CONT LEVER,GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94132-785-0 01 1 -
80 WASHER; LK,CONT LEVER,GOV
ID=6.1 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		9-09150-506-0 01 1 -
82 NUT; CONT LEVER FIX,GOV
M6 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		9-09110-406-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), L=53.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94316-274-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), L=55.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94316-275-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A), L=57.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94316-276-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94426-049-0 01 1 -
92 BOLT; FULL LOAD STOPPER,GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94426-049-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94316-277-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94426-047-1 02 1 -
97 BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-601-0 02 1 -
98 GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-602-0 02 1 -
101 GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-598-0 01 1 -
102 WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-593-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(A), L=16.5 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94316-262-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=18.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94316-263-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=21.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94316-264-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=24.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94316-265-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=27.0 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94316-266-0 01 1 -
132 BRACKET; ADJ SCREW,GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94174-810-0 01 1 -
133 BOLT; BRKT FIX,GOV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94313-264-0 02 1 -
141 PLATE ASM; PIPE BRKT
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94174-822-0 01 1 -
149 WIRE; VLV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94316-278-0 01 1 -
