0-80 — INJECTION PUMP (#72667) — 124 parça

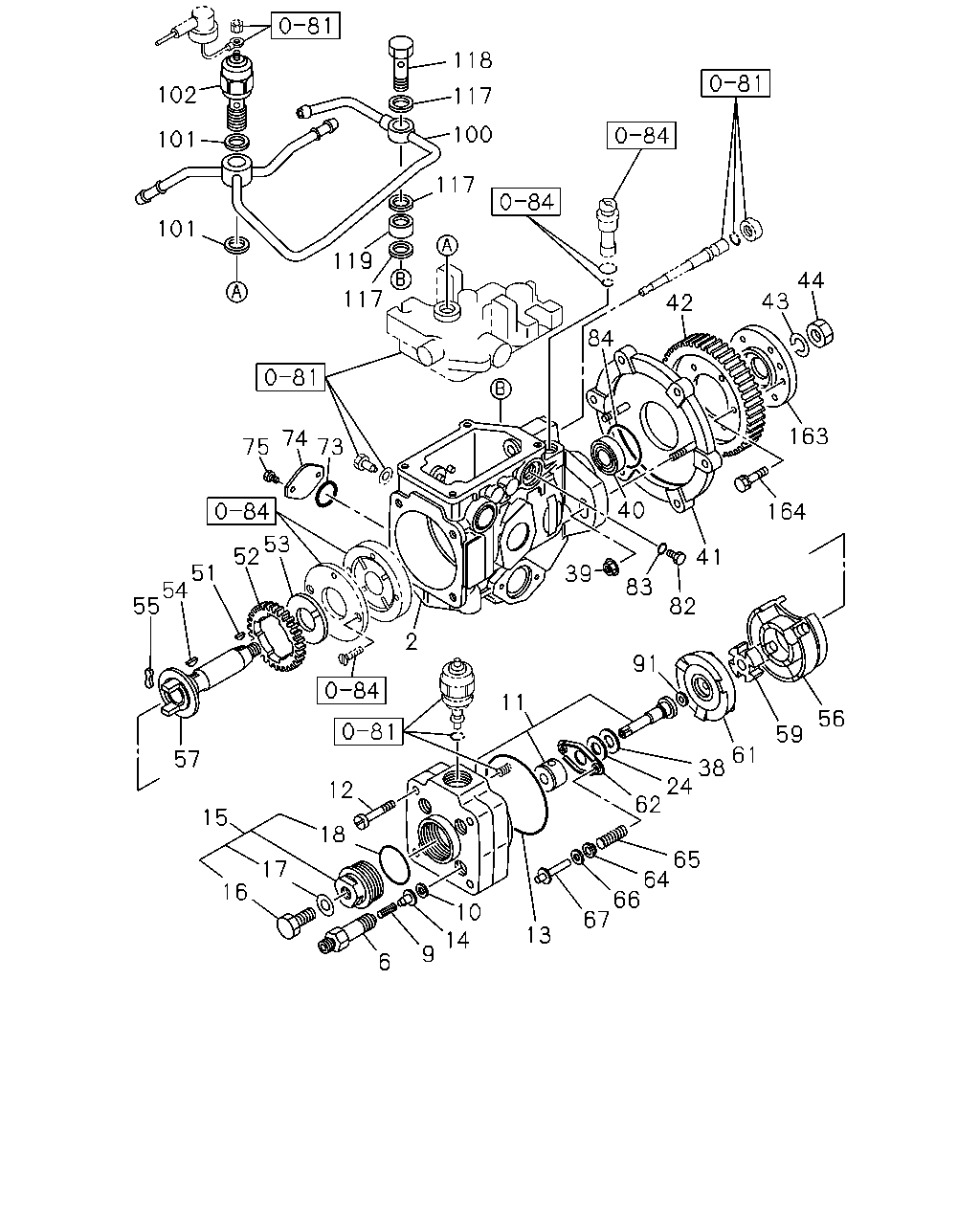

çizim 102451
118 102 117 100 101 117 101 119 44 43 117 42 84 163 74 73 75 40 164 53 52 41 51 54 55 39 83 82 2 91 11 56 59 61 38 24 62 57 12 15 18 65 64 66 67 17 16 10 14 13 9 6
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING ASM; PUMP,FUEL INJ
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94174-844-0 01 1 -
6 HOLDER; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94367-330-0 04 1 -
9 SPRING; DELIVERY VLV
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94174-803-0 04 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94247-716-0 04 1 -
11 HEAD ASM; DISTR,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97125-529-0 01 1 -
12 SCREW; DISTR HD,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94257-670-0 04 1 -
13 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-527-0 01 1 -
14 VALVE; DELIVERY,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94174-802-0 04 1 -
15 PLUG ASM; DISTR,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-807-0 01 1 -
16 BOLT; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94174-818-0 01 1 -
17 GASKET; BOLT,DISTR PLUG,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-808-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-637-0 01 1 -
24 WASHER; PLUNGER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-515-0 01 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-514-0 01 1 -
39 NUT; MTG BRKT FIX
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97119-344-0 02 1 -
40 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-475-0 01 1 -
41 BRACKET; INJ PUMP HSG
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94174-843-0 01 1 -
42 GEAR; DRIVE,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94458-257-0 01 1 -
43 WASHER; LK,DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94226-554-0 01 1 -
44 NUT; DRIVE GEAR FIX,INJ PUMP
M14 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94226-565-0 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		5-83539-024-0 01 1 -
52 GEAR; GOV DRIVE,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-483-0 01 1 -
53 WASHER; GOV DRIVE GEAR,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-484-0 01 1 -
54 KEY; FEED PUMP,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-481-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-482-1 02 1 -
56 ROLLER ASM; TIMER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-760-0 01 1 -
57 SHAFT; DRIVE,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-759-0 01 1 -
59 DISC; DRIVE,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-761-0 01 1 -
61 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97125-528-0 01 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-516-1 01 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-517-0 02 1 -
65 SPRING KIT; PLUNGER,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-816-0 01 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-518-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-519-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-520-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-521-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-522-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-523-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-524-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-204-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-205-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-206-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-207-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-208-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-209-0 AR 1 -
67 PIN; GUIDE,PLUNGER SPRING
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-776-0 02 1 -
73 GASKET; COVER TO HSG
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-763-0 01 1 -
74 COVER; HSG,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97125-525-0 01 1 -
75 SCREW; COVER TO HSG
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94313-276-0 02 1 -
82 PLUG; HSG,INJ PUMP
ASM PART: A = 8-97120-179-1 		8-94242-284-0 01 1 -
83 GASKET; HSG PLUG
ASM PART: A = 8-97120-179-1 		8-94227-671-0 01 1 -
84 GASKET; BRKT TO HSG
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94247-722-0 01 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.74 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94111-658-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.76 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94111-659-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.78 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94111-660-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94111-661-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.82 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94111-662-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.84 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94111-663-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.86 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94111-664-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.88 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94111-665-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-528-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.92 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-529-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.94 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-530-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.96 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-531-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.98 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-532-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.00 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-533-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.02 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-534-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.04 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-535-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.06 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-536-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.08 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-537-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.10 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-538-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.12 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-539-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.14 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-540-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.16 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-541-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.18 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-542-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.20 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-543-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.22 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-544-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.24 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-545-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.26 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-546-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.28 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-547-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.30 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-548-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.32 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-549-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.34 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-550-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.36 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-551-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.38 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-552-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.40 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-553-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.42 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-554-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.44 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-555-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.46 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-556-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.48 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-557-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.50 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-558-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.52 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-559-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.54 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-560-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.56 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-561-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.58 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-562-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.60 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-563-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.62 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-564-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.64 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-565-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.66 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-566-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.68 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-567-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.70 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-568-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.72 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-569-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.74 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-570-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.76 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-571-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.78 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-572-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.80 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-573-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.82 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-574-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.84 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-575-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.86 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-576-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.88 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-577-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.90 ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-578-0 AR 1 -
100 PIPE; FUEL INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97102-546-1 01 1 -
101 GASKET; OVERFLOW VLV,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97119-188-0 02 1 -
102 VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97125-533-0 01 1 -
117 GASKET; EYE BOLT,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97119-187-0 03 1 -
118 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97165-709-0 01 1 -
119 SPACER; FUEL INL,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97113-359-0 01 1 -
163 COUPLING; INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-337-1 01 1 -
164 BOLT; GEAR TO COUPLING
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		5-15619-112-0 06 1 -
çizim 102454
3 117 117 117 18 17 13
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; FUEL INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94228-545-0 01 1 -
13 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-527-0 01 1 -
17 GASKET; BOLT,DISTR PLUG,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94433-808-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-94227-637-0 01 1 -
117 GASKET; EYE BOLT,INJ PUMP
ASM PART: A = 8-97120-179-1, B = 8-97120-180-1 		8-97119-187-0 03 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
