0-66 — GENERATOR (#72666) — 120 parça

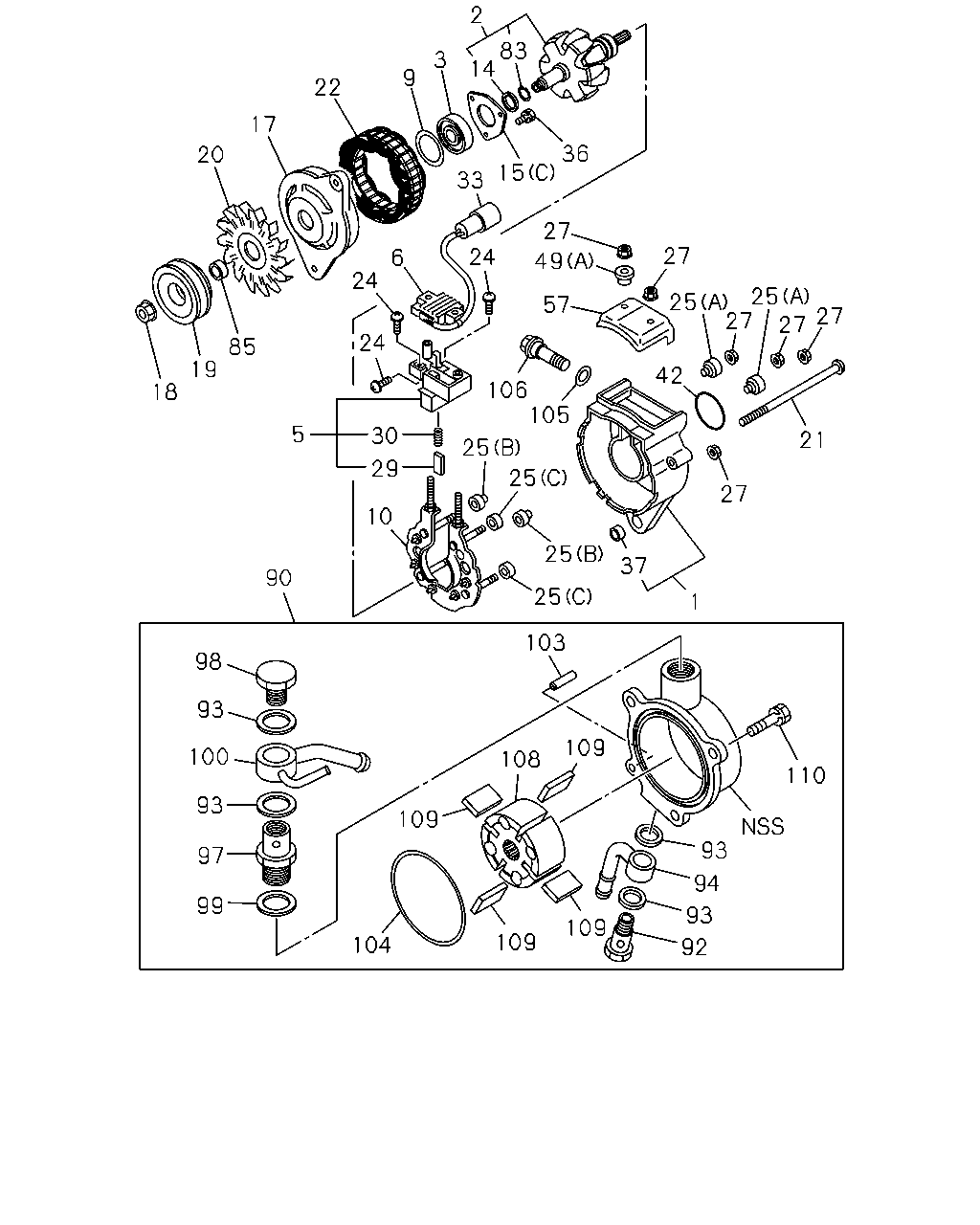

2 83 14 3 9 22 17 36 15 20 33 27 27 24 6 49 24 25 27 27 27 25 57 24 85 19 42 106 105 18 5 30 21 25 29 25 27 10 25 37 90 25 1 103 98 93 109 100 108 110 93 109 93 97 94 99 93 109 109 104 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-598-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-94310-379-0	8-94456-595-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97985-001-0	8-97063-381-0	01	1	-
3	BEARING; ROTOR,GEN ASM PART: B = 8-97985-001-0	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN ASM PART: A = 8-94310-379-0	8-94456-592-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97985-001-0	8-94342-673-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0	8-94456-603-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97985-001-0	8-94342-680-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0	8-94456-614-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: B = 8-97985-001-0	8-94453-231-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-94310-379-0	8-94456-591-0	01	1	-
10	RECTIFIER; GEN ASM PART: B = 8-97985-001-0	8-94342-672-0	01	1	-
14	COLLAR; STEEL ASM PART: B = 8-97985-001-0	8-94453-225-0	01	1	-
14	COLLAR; STEEL ASM PART: A = 8-94310-379-0	8-94456-596-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: B = 8-97985-001-0	8-94453-229-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0	8-94456-590-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-593-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-588-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94167-948-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-585-0	01	1	-
20	FAN; GEN ASM PART: B = 8-97985-001-0	8-94453-235-0	01	1	-
20	FAN; GEN ASM PART: A = 8-94310-379-0	8-94456-587-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	1-81229-031-0	03	1	-
22	STATOR; GEN ASM PART: B = 8-97985-001-0	8-94342-675-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-94310-379-0	8-94456-607-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	1-81229-419-0	04	1	-
25	BUSHING; INSULATION TERMINAL (A) ASM PART: B = 8-97985-001-0	1-81229-410-0	02	1	-
25	BUSHING; INSULATION TERMINAL (B) ASM PART: B = 8-97985-001-0	1-81229-411-0	02	1	-
25	BUSHING; INSULATION TERMINAL (C) ASM PART: B = 8-97985-001-0	5-81229-105-0	02	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-94310-379-0	8-94206-188-0	06	1	-
27	NUT; RECTIFIER,GEN ASM PART: B = 8-97985-001-0	8-94206-188-0	08	1	-
29	BRUSH; GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-81215-018-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-81216-002-0	02	1	-
33	WIRE; LEAD,GEN ASM PART: B = 8-97985-001-0	8-97201-008-0	01	1	-
36	SCREW; FRT COVER ASM PART: B = 8-97985-001-0	8-94453-227-0	03	1	-
37	BUSHING; RR COVER,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-599-0	01	1	-
42	GASKET; RR COVER,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-608-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	1-81229-413-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: A = 8-94310-379-0	5-81229-105-0	02	1	-
57	COVER; BRUSH,GEN ASM PART: B = 8-97985-001-0	8-94342-674-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 8-94310-379-0	8-94456-604-0	01	1	-
83	RING; SLIP,ROTOR,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-81229-109-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: B = 8-97985-001-0	8-94453-234-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 8-94310-379-0	8-94456-586-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0	8-94456-609-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97985-001-0	8-97201-009-0	01	1	-
92	BOLT; DELIVERY,VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-19679-001-0	01	1	-
93	GASKET; CONN,VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	9-88130-081-0	04	1	-
94	CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-613-0	01	1	-
97	VALVE; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-612-0	01	1	-
98	BOLT; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-09000-134-0	01	1	-
99	GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0	8-94456-597-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: B = 8-97985-001-0	8-97201-010-0	01	1	-
103	PIN; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	9-88130-099-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-09623-017-0	01	1	-
105	WASHER; CONN BOLT,VAC PUMP ASM PART: B = 8-97985-001-0	9-88130-087-0	02	1	-
106	BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97985-001-0	8-94456-605-0	01	1	-
108	ROTOR; VAC PUMP ASM PART: B = 8-97985-001-0	8-97063-383-0	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-610-0	04	1	-
110	BOLT; THROUGH ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-611-0	03	1	-

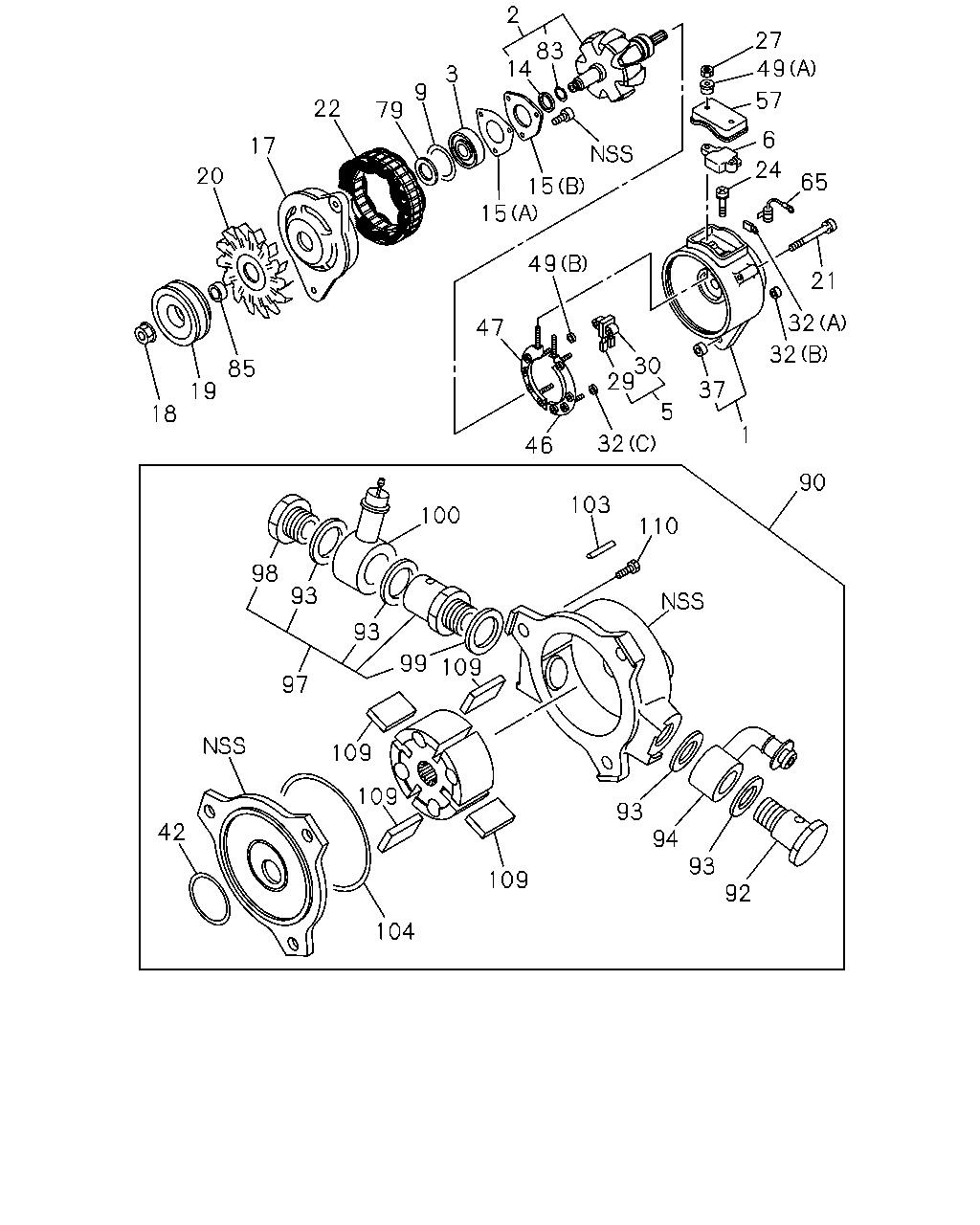

2 27 49 83 14 3 9 57 22 79 6 17 24 20 65 15 15 49 21 32 47 32 30 29 85 37 19 5 18 1 32 46 90 103 100 110 98 93 93 99 109 97 109 109 93 42 94 93 109 92 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COVER ASM; RR,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-598-0	01	1	-
2	ROTOR; GEN ASM PART: A = 8-94310-379-0	8-94456-595-0	01	1	-
2	ROTOR; GEN ASM PART: B = 8-97985-001-0	8-97063-381-0	01	1	-
3	BEARING; ROTOR,GEN ASM PART: B = 8-97985-001-0	8-94453-230-0	01	1	-
3	BEARING; ROTOR,GEN ASM PART: A = 8-94310-379-0	8-94456-592-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: B = 8-97985-001-0	8-94342-673-0	01	1	-
5	HOLDER; BRUSH,GEN ASM PART: A = 8-94310-379-0	8-94456-603-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: B = 8-97985-001-0	8-94342-680-0	01	1	-
6	REGULATOR ASM; VOLTAGE,GEN ASM PART: A = 8-94310-379-0	8-94456-614-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: B = 8-97985-001-0	8-94453-231-0	01	1	-
9	COVER; FELT WASHER,ROTOR,GEN ASM PART: A = 8-94310-379-0	8-94456-591-0	01	1	-
14	COLLAR; STEEL ASM PART: B = 8-97985-001-0	8-94453-225-0	01	1	-
14	COLLAR; STEEL ASM PART: A = 8-94310-379-0	8-94456-596-0	01	1	-
15	RETAINER; ROTOR,GEN (C) ASM PART: B = 8-97985-001-0	8-94453-229-0	01	1	-
15	RETAINER; ROTOR,GEN (B) ASM PART: A = 8-94310-379-0	8-94456-590-0	01	1	-
15	RETAINER; ROTOR,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-593-0	01	1	-
17	COVER ASM; FRT,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-588-0	01	1	-
18	NUT; PULLEY,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94167-948-0	01	1	-
19	PULLEY; GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-585-0	01	1	-
20	FAN; GEN ASM PART: B = 8-97985-001-0	8-94453-235-0	01	1	-
20	FAN; GEN ASM PART: A = 8-94310-379-0	8-94456-587-0	01	1	-
21	BOLT; THROUGH,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	1-81229-031-0	03	1	-
22	STATOR; GEN ASM PART: B = 8-97985-001-0	8-94342-675-0	01	1	-
22	STATOR; GEN ASM PART: A = 8-94310-379-0	8-94456-607-0	01	1	-
24	SCREW; RECTIFIER,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	1-81229-419-0	04	1	-
27	NUT; RECTIFIER,GEN ASM PART: A = 8-94310-379-0	8-94206-188-0	06	1	-
27	NUT; RECTIFIER,GEN ASM PART: B = 8-97985-001-0	8-94206-188-0	08	1	-
29	BRUSH; GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-81215-018-0	02	1	-
30	SPRING; BRUSH,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-81216-002-0	02	1	-
32	TERMINAL; RECTIFIER,GEN (B) ASM PART: A = 8-94310-379-0	1-81229-410-0	01	1	-
32	TERMINAL; RECTIFIER,GEN (C) ASM PART: A = 8-94310-379-0	1-81229-411-0	02	1	-
32	TERMINAL; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0	8-94456-602-0	01	1	-
37	BUSHING; RR COVER,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-599-0	01	1	-
42	GASKET; RR COVER,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-608-0	01	1	-
46	RECTIFIER; (+),GEN ASM PART: A = 8-94310-379-0	8-94456-600-0	01	1	-
47	RECTIFIER; (-),GEN ASM PART: A = 8-94310-379-0	8-94456-601-0	01	1	-
49	BUSHING; RECTIFIER,GEN (A) ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	1-81229-413-0	01	1	-
49	BUSHING; RECTIFIER,GEN (B) ASM PART: A = 8-94310-379-0	5-81229-105-0	02	1	-
57	COVER; BRUSH,GEN ASM PART: B = 8-97985-001-0	8-94342-674-0	01	1	-
57	COVER; BRUSH,GEN ASM PART: A = 8-94310-379-0	8-94456-604-0	01	1	-
65	CONDENSER; GEN ASM PART: A = 8-94310-379-0	8-94456-606-0	01	1	-
79	WASHER; FELT,ROTOR,GEN ASM PART: A = 8-94310-379-0	8-94456-589-0	02	1	-
83	RING; SLIP,ROTOR,GEN ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-81229-109-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: B = 8-97985-001-0	8-94453-234-0	01	1	-
85	SPACER; PULLEY,GEN ASM PART: A = 8-94310-379-0	8-94456-586-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: A = 8-94310-379-0	8-94456-609-0	01	1	-
90	PUMP ASM; VAC,GEN ASM PART: B = 8-97985-001-0	8-97201-009-0	01	1	-
92	BOLT; DELIVERY,VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-19679-001-0	01	1	-
93	GASKET; CONN,VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	9-88130-081-0	04	1	-
94	CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-613-0	01	1	-
97	VALVE; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-612-0	01	1	-
98	BOLT; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-09000-134-0	01	1	-
99	GASKET; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	9-88130-126-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: A = 8-94310-379-0	8-94456-597-0	01	1	-
100	CONNECTOR; VAC PUMP ASM PART: B = 8-97985-001-0	8-97201-010-0	01	1	-
103	PIN; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	9-88130-099-0	01	1	-
104	GASKET; FRT COVER,VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	5-09623-017-0	01	1	-
109	VANE; VAC PUMP ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-610-0	04	1	-
110	BOLT; THROUGH ASM PART: A = 8-94310-379-0, B = 8-97985-001-0	8-94456-611-0	03	1	-
