0-65 — STARTER (#72665) — 79 parça

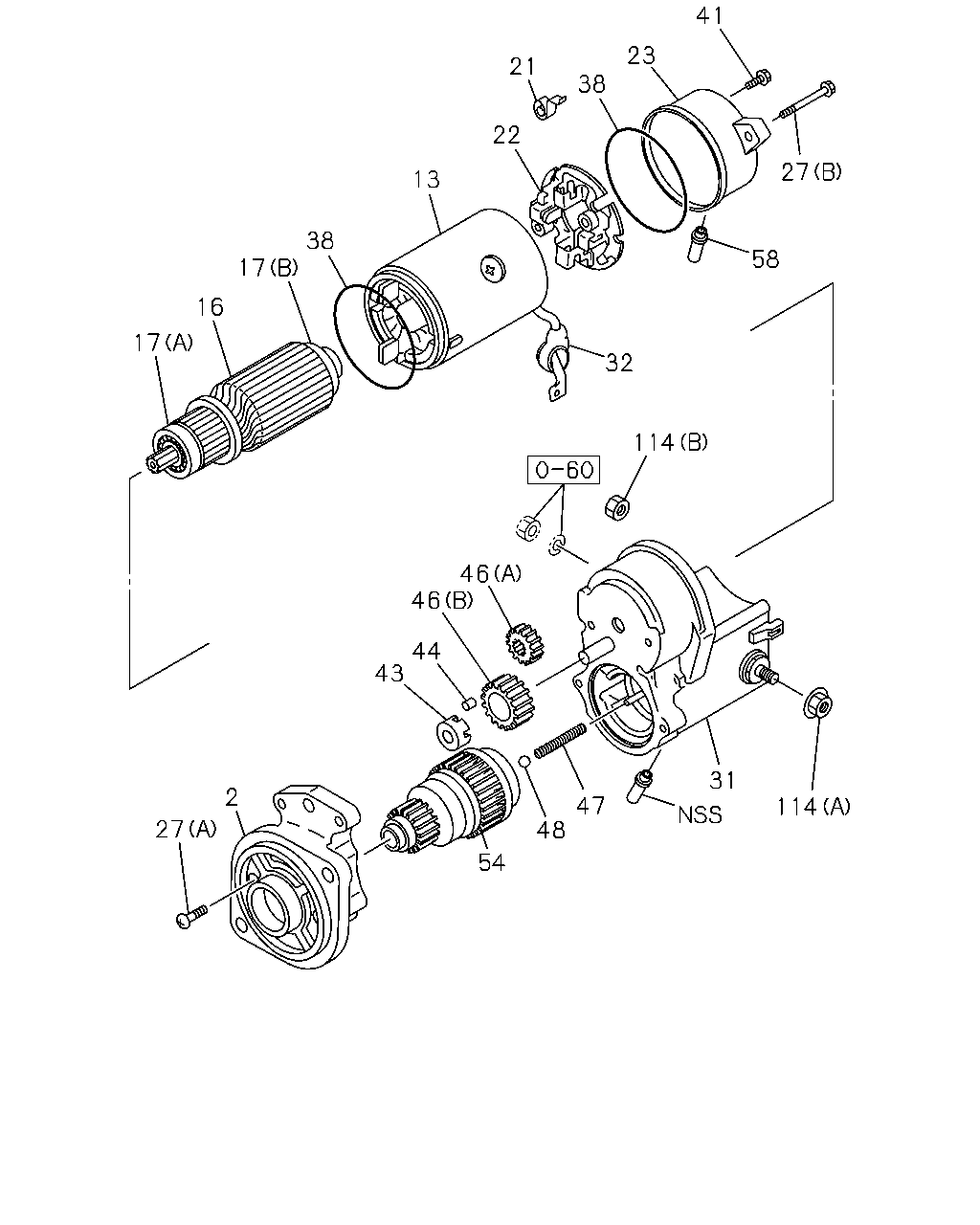

41 23 21 38 22 27 13 38 17 58 16 17 32 114 46 46 44 43 31 2 47 48 114 27 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94448-959-3	5-81113-036-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97120-356-2	8-97142-908-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-94448-959-3	5-81111-010-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-97120-356-2	8-97135-497-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-94448-959-3	5-81121-029-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97120-356-2	8-97112-869-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-94448-959-3	5-09800-081-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97120-356-2	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-97120-356-2	8-97112-954-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94448-959-3	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97120-356-2	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94448-959-3	5-81118-021-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97120-356-2	8-97112-873-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-97120-356-2	8-97112-875-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-94448-959-3	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-94448-959-3	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97120-356-2	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97120-356-2	8-97112-957-0	02	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94448-959-3	8-94450-045-2	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97120-356-2	8-97142-907-1	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-97120-356-2	5-81119-029-0	01	1	-
38	GASKET; RR COVER,STARTER ASM PART: B = 8-97120-356-2	8-94170-214-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: B = 8-97120-356-2	8-97142-903-0	02	1	-
43	RETAINER; PINION STARTER ASM PART: A = 8-94448-959-3	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: B = 8-97120-356-2	8-94377-246-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: A = 8-94448-959-3, B = 8-97120-356-2	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (A) ASM PART: A = 8-94448-959-3	5-81123-010-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: A = 8-94448-959-3	5-81123-011-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: B = 8-97120-356-2	8-97078-649-0	01	1	-
46	GEAR; CLU STARTER (A) ASM PART: B = 8-97120-356-2	8-97142-904-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 8-94448-959-3	5-81129-096-0	01	1	-
47	SPRING; PINION STARTER ASM PART: B = 8-97120-356-2	8-94377-245-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 8-94448-959-3, B = 8-97120-356-2	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94448-959-3	5-81124-003-1	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97120-356-2	8-97148-687-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: A = 8-94448-959-3	1-81129-677-0	01	1	9806-
58	PIPE; DRAIN RR COVER STARTER ASM PART: B = 8-97120-356-2	8-97041-421-0	01	1	-
114	NUT; TERMINAL (C) ASM PART: A = 8-94448-959-3	5-09400-042-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: B = 8-97120-356-2	8-94109-763-0	01	1	-
114	NUT; TERMINAL (B) ASM PART: B = 8-97120-356-2	8-94377-238-0	01	1	-

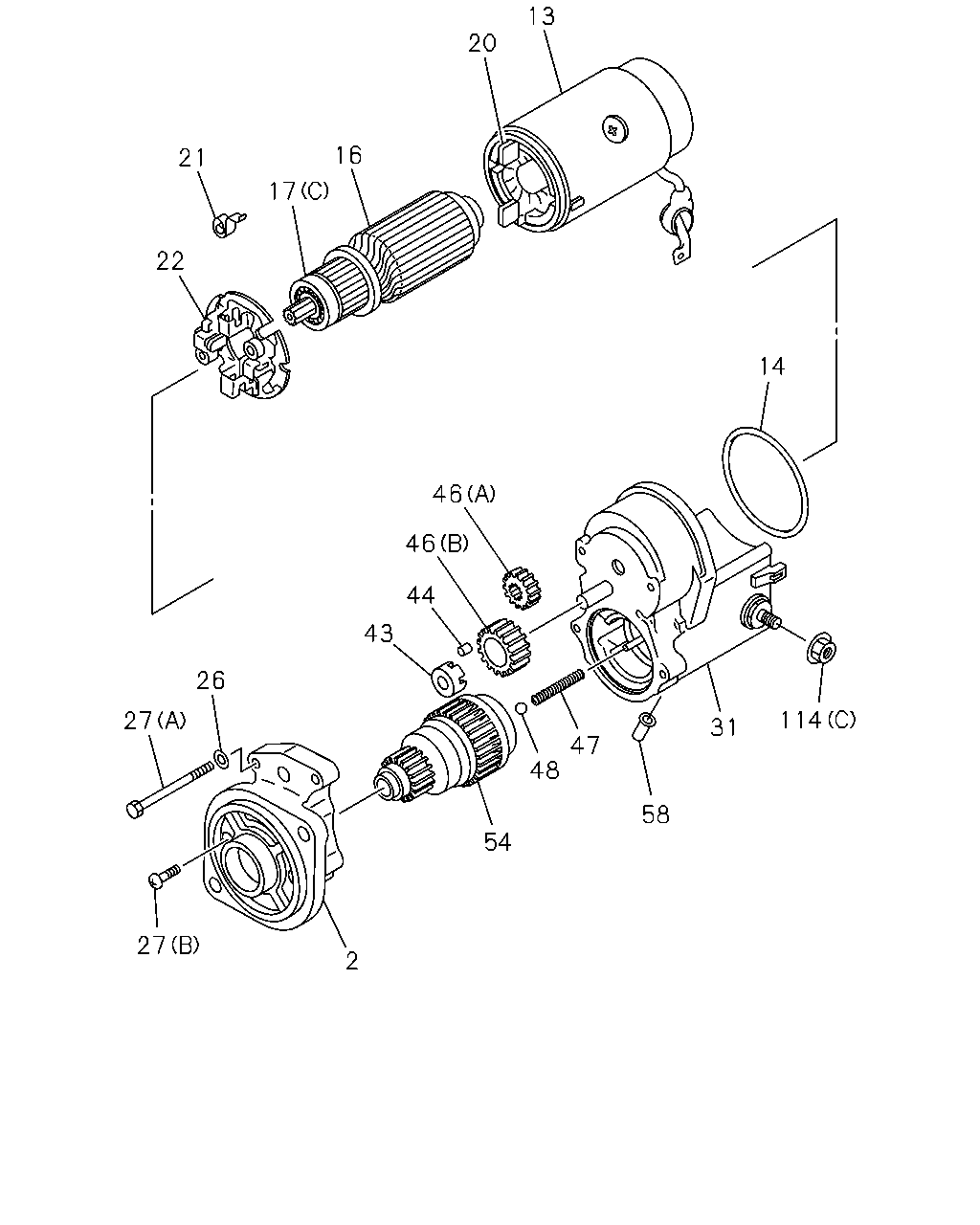

13 20 16 21 17 22 14 46 46 44 43 26 114 27 31 47 48 58 54 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94448-959-3	5-81113-036-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-97120-356-2	8-97142-908-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-94448-959-3	5-81111-010-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-97120-356-2	8-97135-497-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 8-94448-959-3	5-81129-210-0	01	1	-
16	ARMATURE; STARTER ASM PART: A = 8-94448-959-3	5-81121-029-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-97120-356-2	8-97112-869-0	01	1	-
17	BEARING; ARMATURE,STARTER (C) ASM PART: A = 8-94448-959-3	5-09800-081-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-97120-356-2	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-97120-356-2	8-97112-954-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-94448-959-3	5-81116-040-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94448-959-3	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-97120-356-2	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94448-959-3	5-81118-021-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-97120-356-2	8-97112-873-0	01	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: A = 8-94448-959-3	5-81129-211-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-94448-959-3	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-94448-959-3	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-97120-356-2	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-97120-356-2	8-97112-957-0	02	1	-
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94448-959-3	8-94450-045-2	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-97120-356-2	8-97142-907-1	01	1	-
43	RETAINER; PINION STARTER ASM PART: A = 8-94448-959-3	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: B = 8-97120-356-2	8-94377-246-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: A = 8-94448-959-3, B = 8-97120-356-2	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (A) ASM PART: A = 8-94448-959-3	5-81123-010-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: A = 8-94448-959-3	5-81123-011-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: B = 8-97120-356-2	8-97078-649-0	01	1	-
46	GEAR; CLU STARTER (A) ASM PART: B = 8-97120-356-2	8-97142-904-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 8-94448-959-3	5-81129-096-0	01	1	-
47	SPRING; PINION STARTER ASM PART: B = 8-97120-356-2	8-94377-245-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 8-94448-959-3, B = 8-97120-356-2	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94448-959-3	5-81124-003-1	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-97120-356-2	8-97148-687-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: A = 8-94448-959-3	1-81129-677-0	01	1	9806-
58	PIPE; DRAIN RR COVER STARTER ASM PART: B = 8-97120-356-2	8-97041-421-0	01	1	-
114	NUT; TERMINAL (C) ASM PART: A = 8-94448-959-3	5-09400-042-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: B = 8-97120-356-2	8-94109-763-0	01	1	-
114	NUT; TERMINAL (B) ASM PART: B = 8-97120-356-2	8-94377-238-0	01	1	-
