50785 - NHR(MALAYSIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶

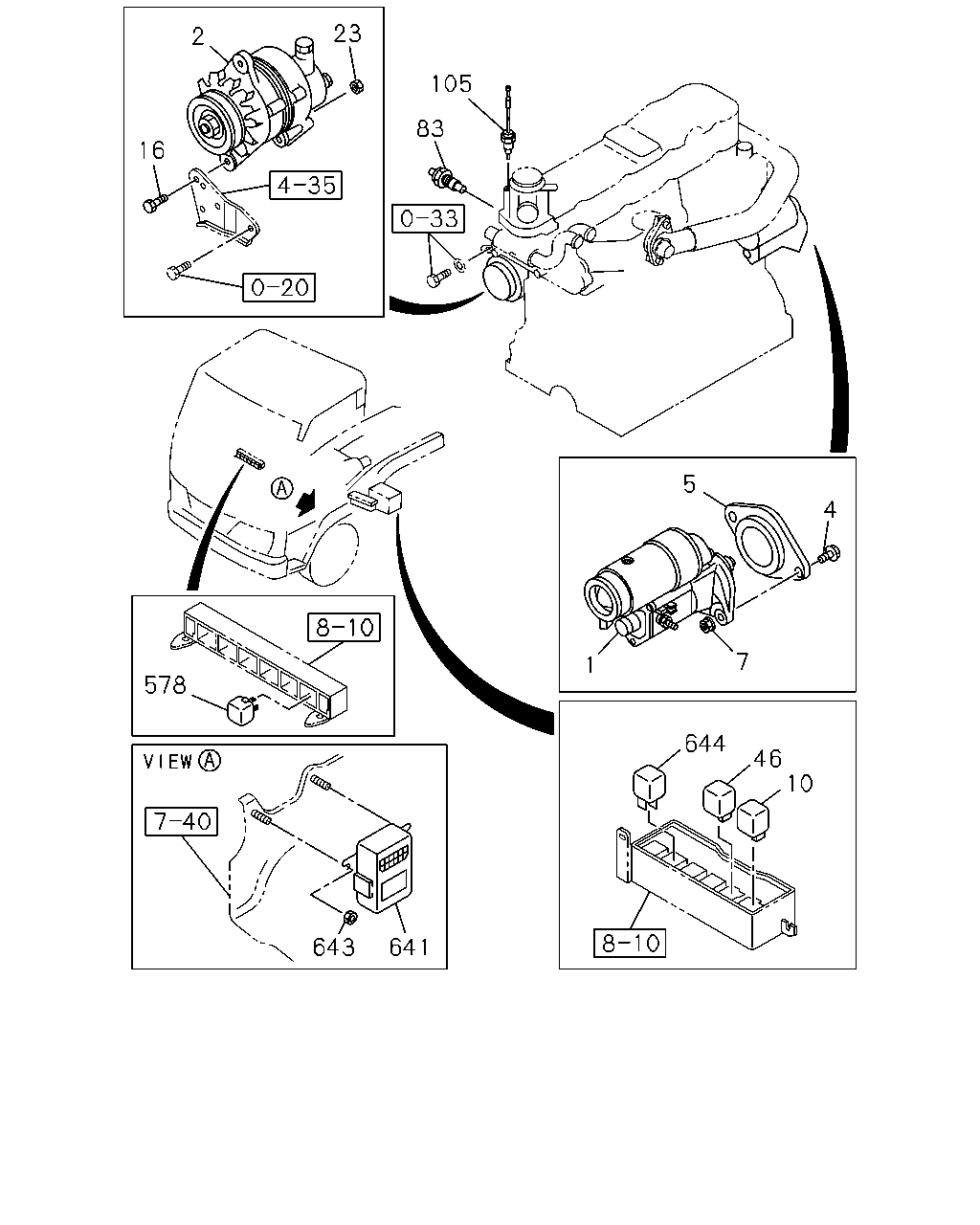

0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#72663) — 32 parça
23
2
105
83
16
5
4
7
1
578
644
46
10
643
641
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW
8-94448-959-3
01
1
9704-0009
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW
8-97120-356-2
01
1
0010-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 40A
8-94310-379-0
01
1
9704-0307
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXC. EXHAUST BRAKE<NF8> 12V 40A
8-94310-379-0
01
1
0308-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. EXHAUST BRAKE<NF8> 12V 40A
8-97985-001-0
01
1
0308-
4
BOLT; STARTER
8-94478-186-1
02
1
9704-0012
4
BOLT; STARTER
M12X80
0-28081-280-0
02
1
0101-0512
4
BOLT; STARTER
M12X80 FLANGE
0-28051-280-0
02
1
0601-
5
DISTANCE; STARTER
8-97045-783-0
01
1
9704-0009
7
NUT; STARTER
M12 FLANGE
0-91150-112-0
02
1
9704-0602
7
NUT; STARTER
M12 FLANGE
0-91180-112-0
02
1
0603-
10
RELAY; STARTER
12V 80A
8-97036-358-1
01
1
9704-9704
10
RELAY; STARTER
12V 80A
8-97173-951-0
01
1
9705-
16
BOLT; GEN
M10X130 FLANGE
0-28086-013-0
01
1
9704-0512
16
BOLT; GEN
M10X130 FLANGE
0-28056-013-0
01
1
0601-
23
NUT; GEN
M10 FLANGE
0-91150-210-0
01
1
9704-0602
23
NUT; GEN
M10 FLANGE
0-91180-210-0
01
1
0603-
46
RELAY; GLOW PLUG
12V 80A
8-97036-358-1
01
1
9704-9704
46
RELAY; GLOW PLUG
12V 80A
8-97173-951-0
01
1
9705-
83
THERMOMETER UNIT
DENSO
8-94235-691-0
01
1
9704-
83
THERMOMETER UNIT
YAZAKI
8-94237-861-0
01
1
9704-
105
SWITCH; THERMO,QOS
8-94121-152-1
01
1
9704-9710
105
SWITCH; THERMO,QOS
8-94457-511-0
01
1
9711-
578
RELAY; CHARGE WARNING
12V
8-97063-441-2
01
1
9704-
641
TIMER; QOS
8-97047-027-0
01
1
9704-9809
641
TIMER; QOS
8-97215-646-0
01
1
9810-0301
641
TIMER; QOS
8-97361-317-0
01
1
0302-0307
641
TIMER; QOS
FAST GLOW SYSTEM<KM6>
8-97361-317-3
01
1
0308-
643
NUT; TIMER,QOS
M6 FLANGE
0-91150-106-0
02
1
9704-0307
643
NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> M6 FLANGE
0-91150-106-0
02
1
0308-0602
643
NUT; TIMER,QOS
FAST GLOW SYSTEM<KM6> M6 FLANGE
0-91180-106-0
02
1
0603-
644
RELAY; COLD START DEVICE
12V 20A
8-97060-926-1
01
1
9704-
