◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50785 - NHR(MALAYSIA) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35 - ENGINE CONTROL VALVE AND LEVER ▶
0-35 — ENGINE CONTROL VALVE AND LEVER (#72656) — 9 parça

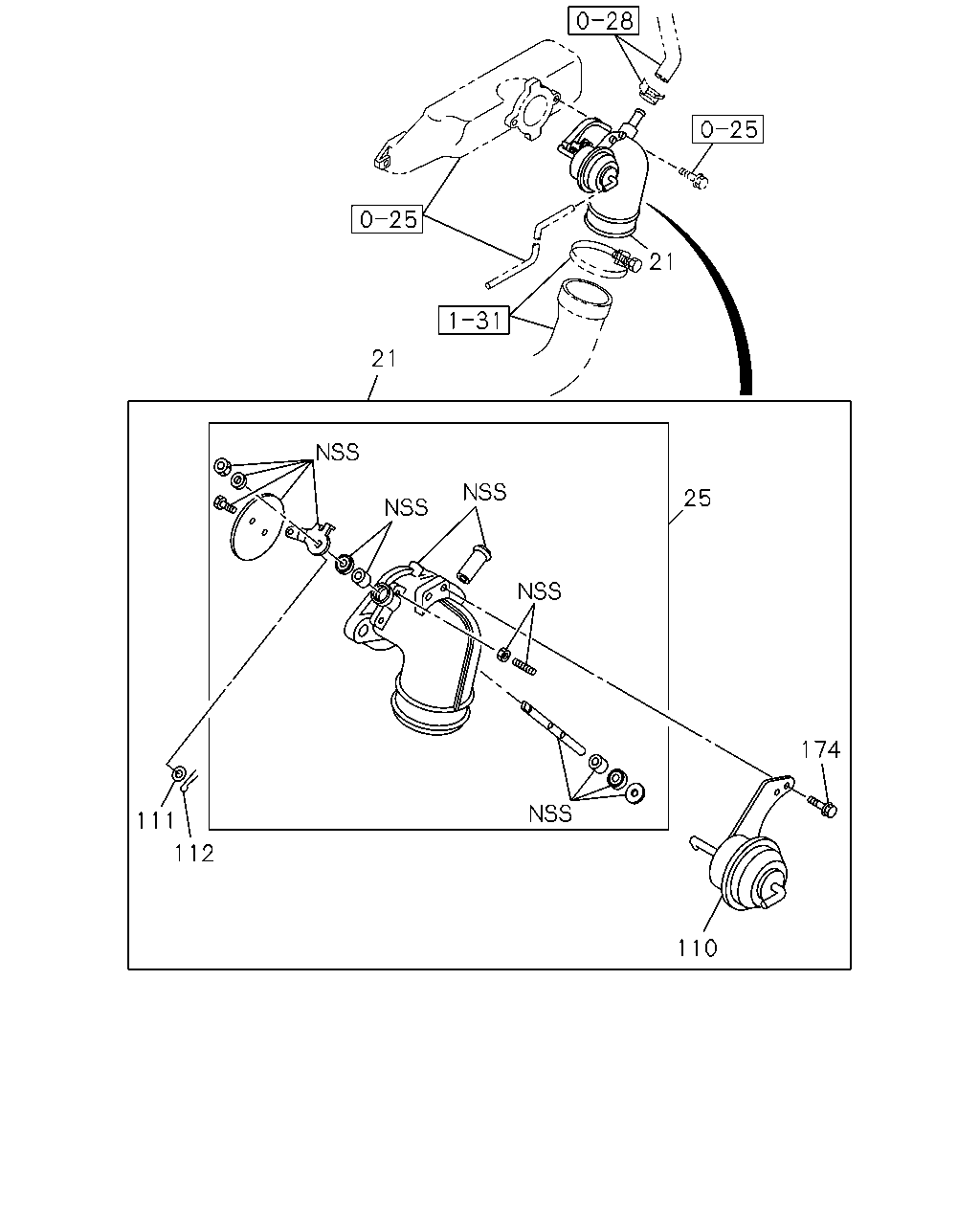

çizim 73444
21 21 25 174 111 112 110
BalonParca AdiParca NoAdetTipApplied Date
21 VALVE ASM; THROTTLE
SGL CAB(NH**S*) EXHAUST BRAKE<NF8> 		8-94143-586-1 01 1 9704-
21 VALVE ASM; THROTTLE
DBL CAB(NH**W*) EXHAUST BRAKE<NF8> 		8-97042-996-1 01 1 0210-
25 BODY ASM; THROTTLE
DBL CAB(NH**W*) EXHAUST BRAKE<NF8> 		8-97094-116-0 01 1 0210-
110 CHAMBER ASM; DIAPH
SGL CAB(NH**S*) EXHAUST BRAKE<NF8> 		8-97104-169-0 01 1 9704-
110 CHAMBER ASM; DIAPH
DBL CAB(NH**W*) EXHAUST BRAKE<NF8> 		8-97019-267-0 01 1 0210-
111 WASHER; SPLIT PIN
EXHAUST BRAKE<NF8> 		8-94467-828-0 01 1 9704-
112 PIN; SPLIT,LEVER
EXHAUST BRAKE<NF8> 		9-08112-010-0 01 1 9704-
174 BOLT; CHAMBER
EXHAUST BRAKE<NF8> M6X12 W/LK WASHER 		9-01900-612-0 02 1 9704-0208
174 BOLT; CHAMBER
EXHAUST BRAKE<NF8> M6X12 FLANGE 		0-28080-612-0 02 1 0209-
